Tool Design
Model | Actuation | Reversible | Max. Working Torque (Nm) | Max. Working Torque (in-lb) | Free Speed (rpm) | Weight with Chuck (kg) | Weight with Chuck (lb) | Length with Chuck (mm) | Length with Chuck (in) | Bit Holder Capacity (in) | Bit Holder Capacity (mm) | Side to Center (mm) | Side to Center (in) | Sound Level dB(A) | Rated Power (hp) | Air Inlet | cfm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

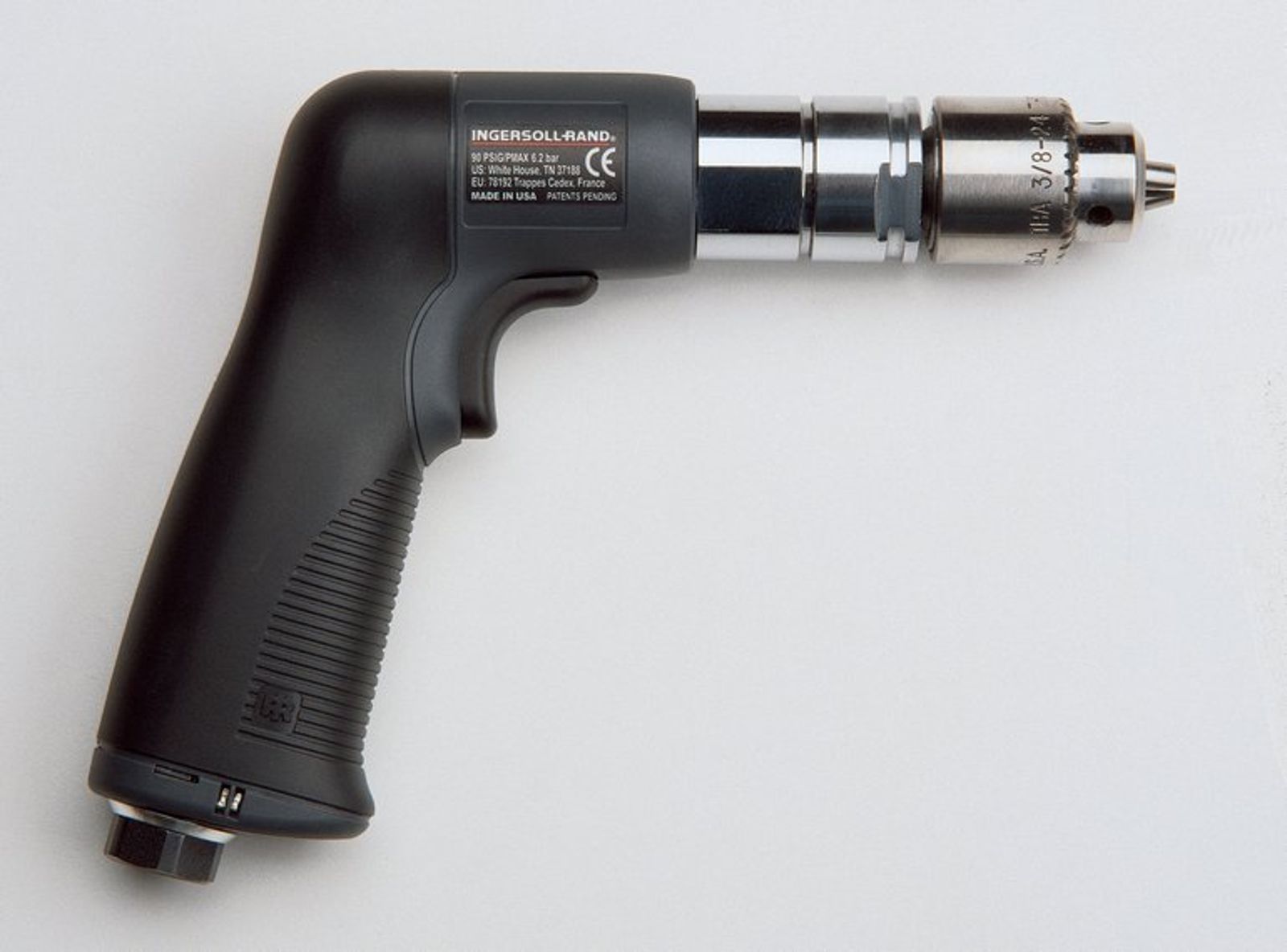

QP051D | Trigger Start | No | 9.8 | 86.4 | 500 | 0.7 | 1.5 | 184 | 7.2 | 1/4 | 6 | 15 | 0.6 | 75 | 0.25 | 1/4 in. NPT | 16 |
QP052D | Trigger Start | No | 9.8 | 86.4 | 500 | 0.8 | 1.8 | 184 | 7.2 | 3/8 | 10 | 18 | 0.7 | 75 | 0.25 | 1/4 in. NPT | 16 |
QP091D | Trigger Start | No | 5.8 | 51.3 | 900 | 0.7 | 1.5 | 184 | 7.2 | 1/4 | 6 | 15 | 0.6 | 75 | 0.25 | 1/4 in. NPT | 16 |
QP151D | Trigger Start | No | 3.4 | 30.1 | 1500 | 0.7 | 1.5 | 184 | 7.2 | 1/4 | 6 | 15 | 0.6 | 75 | 0.25 | 1/4 in. NPT | 16 |
QP152D | Trigger Start | No | 3.4 | 30.1 | 1500 | 0.8 | 1.8 | 184 | 7.2 | 3/8 | 10 | 18 | 0.7 | 75 | 0.25 | 1/4 in. NPT | 16 |
QP201D | Trigger Start | No | 2.8 | 24.8 | 2000 | 0.7 | 1.5 | 184 | 7.2 | 1/4 | 6 | 15 | 0.6 | 75 | 0.25 | 1/4 in. NPT | 16 |
QP202D | Trigger Start | No | 2.8 | 24.8 | 2000 | 0.8 | 1.8 | 184 | 7.2 | 3/8 | 10 | 18 | 0.7 | 75 | 0.25 | 1/4 in. NPT | 16 |
QP301LD | Trigger Start | No | 1.8 | 15.9 | 3000 | 0.7 | 1.4 | 171 | 6.7 | 1/4 | 6 | 15 | 0.6 | 75 | 0.25 | 1/4 in. NPT | 16 |
QP302LD | Trigger Start | No | 1.8 | 15.9 | 3000 | 0.8 | 1.7 | 171 | 6.7 | 3/8 | 10 | 18 | 0.7 | 75 | 0.25 | 1/4 in. NPT | 16 |
QP381D | Trigger Start | No | 1.5 | 13.3 | 3800 | 0.7 | 1.5 | 184 | 7.2 | 1/4 | 6 | 15 | 0.6 | 75 | 0.25 | 1/4 in. NPT | 16 |
QP511LD | Trigger Start | No | 1.1 | 9.7 | 5100 | 0.7 | 1.4 | 171 | 6.7 | 1/4 | 6 | 15 | 0.6 | 75 | 0.25 | 1/4 in. NPT | 16 |
QP512LD | Trigger Start | No | 5100 | 0.8 | 1.76 | 184 | 7.2 | 3/8 | 9.5 | 75 | 0.25 | 1/4 in. NPT | 16 |
