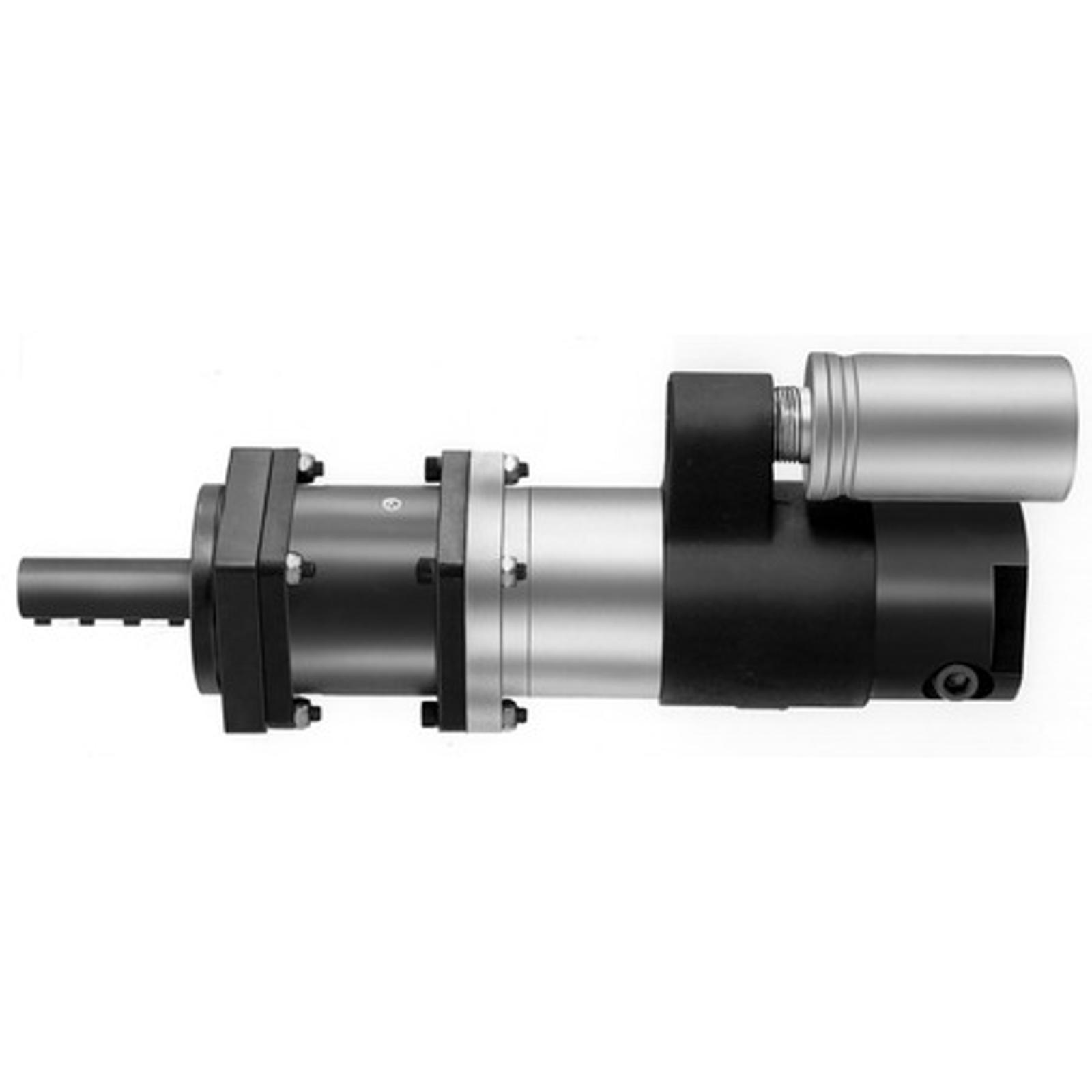

4800 Series Air Motor, 3.0-3.8 hp

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Request a Quote Request Service, Parts or Support

Safety

Meets ATEX Standards

Durable

Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.

Ease of Service

Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Reach Out to Us

Request a Quote Request Service, Parts or Support

Model	Max. Power (hp)	Max. Power (kw)	Reversible	Torque Stall (ft-lb)	Torque Stall (Nm)	Free Speed (rpm)	Torque Output @ Max. H.P. (ft-lb)	Torque Output @ Max. H.P. (Nm)	Speed at Max. Power (rpm)	Starting Torque (ft-lb)	Starting Torque (Nm)	Air Consumption at Max. Power (scfm)	Air Consumption at Max. Power (m^3/m)	Weight (lb)	Weight (kg)	Length (in)	Length (mm)	Diameter/Width (in)	Diameter/Width (mm)	In Line Motor
4800D	3.8	2.83	No	7.7	10.4	9850	3.85	5.22	4925	5.8	7.8	98	2.77	15.25	6.92	9	228.6	4.38	111.3	Yes
4800K	3.7	2.76	No	47	63.7	1538	23.5	31.86	769	35.3	47.8	95	2.69	15.25	6.92	9	228.6	4.38	111.3	Yes
4800M	3.7	2.76	No	69	93.6	1050	34.5	46.78	525	51	69.2	95	2.69	15.25	6.92	9	228.6	4.38	111.3	Yes
4800N	3.7	2.76	No	100	136	726	50	67.79	363	75	102	95	2.69	15.25	6.92	9	228.6	4.38	111.3	Yes
4800P	3.5	2.61	No	131	178	510	65.5	88.81	255	98	133	95	2.69	19.75	8.96	9	228.6	4.38	111.3	Yes
4800Q	3.5	2.61	No	173	235	375	86.5	117.29	187.5	129	175	95	2.69	19.75	8.96	9	228.6	4.38	111.3	Yes
4800S	3.5	2.61	No	238	323	275	119	161.34	137.5	178	241	95	2.69	19.75	8.96	9	228.6	4.38	111.3	Yes
4800U	3.5	2.61	No	354	480	185	177	239.98	92.5	265	359	95	2.69	19.75	8.96	9	228.6	4.38	111.3	Yes
4840D	3.3	2.46	Yes	6.9	9.4	9100	3.45	4.68	4550	5.2	7	95	2.69	15.25	6.92	11.37	288.8	4.38	111.3	Yes
4840K	3.2	2.39	Yes	42.7	57.9	1429	21.35	28.95	714.5	32	43.4	95	2.69	15.25	6.92	11.37	288.8	4.38	111.3	Yes
4840M	3.2	2.39	Yes	63	85.4	975	31.5	42.71	487.5	47.3	64	95	2.69	15.25	6.92	11.37	288.8	4.38	111.3	Yes
4840N	3.2	2.39	Yes	90.2	122	675	45.1	61.15	337.5	67.7	91.7	95	2.69	15.25	6.92	11.37	288.8	4.38	111.3	Yes
4840P	3	2.24	Yes	125	170	475	62.5	84.74	237.5	93	126	95	2.69	20.125	9.13	11.37	288.8	4.38	111.3	Yes
4840Q	3	2.24	Yes	165	224	350	82.5	111.85	175	123	167	95	2.69	20.125	9.13	11.37	288.8	4.38	111.3	Yes
4840S	3	2.24	Yes	215	292	255	107.5	145.75	127.5	162	218	95	2.69	20.125	9.13	11.37	288.8	4.38	111.3	Yes
4840U	3	2.24	Yes	300	407	170	150	203.37	85	225	305	95	2.69	20.125	9.13	11.37	288.8	4.38	111.3	Yes
