130MAX Series Heavy Duty Air Hammer

The 133MAX, 135MAX, and 139MAX Heavy Duty Air Hammers are the next generation air hammers—offering incredible performance and power at an accessible cost—while leveraging a fine-tuned feather-able trigger, inspired by legendary Ingersoll Rand® impact wrenches, for more precision and even better results. Featuring an optimized combination of power and speed to achieve best-in-class BPM, the 130MAX Series can breeze through any job, from heavy duty front-end applications to the jobs that call for a lighter touch.



MAX Power:

  • Break at lightspeed with the most powerful air hammer available—30% more powerful to get your job done faster than the leading competitive air hammer

MAX Productivity:

  • Quick-Change retainer provides fast chisel changeovers (included with tool)

MAX Control:

  • Feather-able trigger to give you the ultimate control over every job- from jobs that require the lightest touch to the hardest hitting applications, we’ve got you covered

MAX Assurance:

  • The 130MAX Series pneumatic hammers are backed by a two-year warranty, giving you peace of mind that your tool will work when you need it, every time

MAX Comfort:

  • Shock reduction and anti-slip grip

Available in Kits:

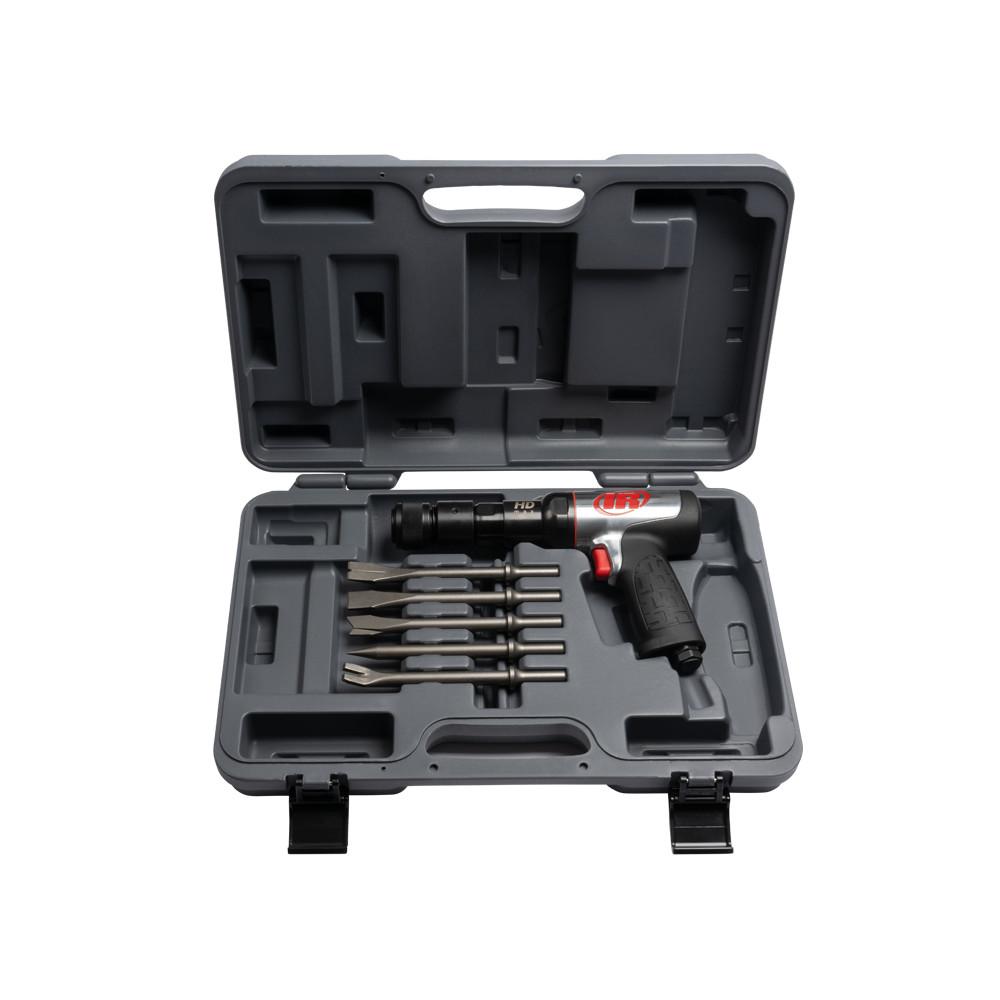

  • 133MAXK includes the 133MAX Air Hammer, Quick-change retainer, 5-piece chisel set, and plastic case.

  • 135MAXK includes the 135MAX Air Hammer, Quick-change retainer, 5-piece chisel set, and plastic case.
  • 139MAXK includes the 133MAX Air Hammer, Quick-change retainer, 5-piece chisel set, and plastic case.

Model

Actuation

Configuration

Blows Per Minute

Bore Diameter in (mm)

Stroke Length in (mm)

Weight lbs (kg)

Length in (mm)

Sound Pressure/Power (dBA)

Vibration Level (m/s2)

Avg. Air Consumption cfm (L/min)

Air Inlet NPT (in)

Min Hose Size (in)

Air Pressure (PSI)

133MAX

Trigger

Pistol Grip

3330

3/4 (19)

2.5 (63.5)

3.88 (1.76)

7.46 (189)

89.1 / 100.1

4.7

16.2 (460)

1/4

3/8

90

135MAX

Trigger

Pistol Grip

2600

3/4 (19)

3 (76)

4.5 (2.04)

8.67 (220)

98 / 107

5.4

21 (593)

1/4

3/8

90

139MAX

Trigger

Pistol Grip

2600

3/4 (19)

3.74 (95)

4.78 (2.17)

9.45 (240)

98.7 / 109.7

3.6

21.8 (619

1/4

3/8

90

135MAX Air Hammer | Autobody Technician Testimonial

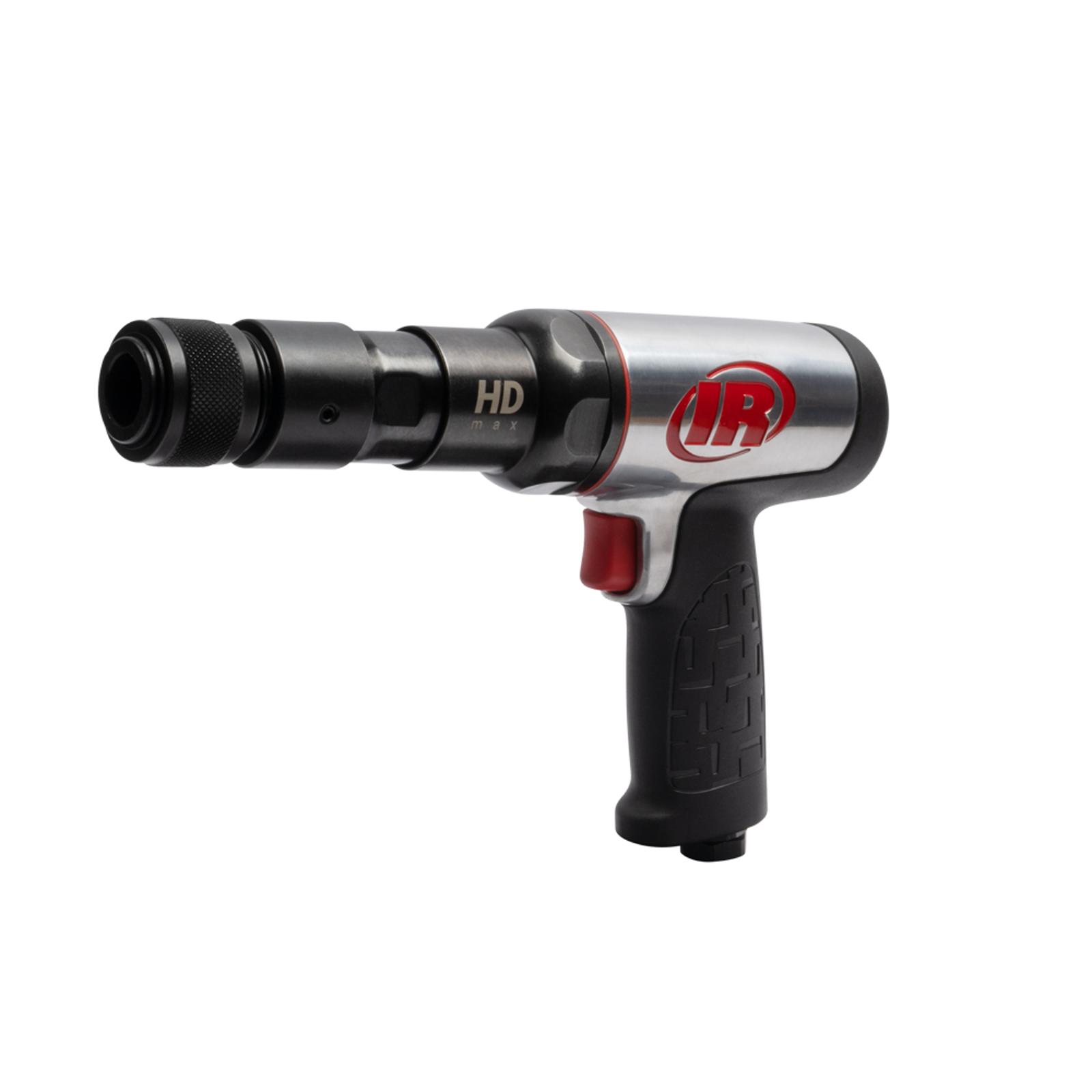

135MAX heavy duty air hammer left angle
