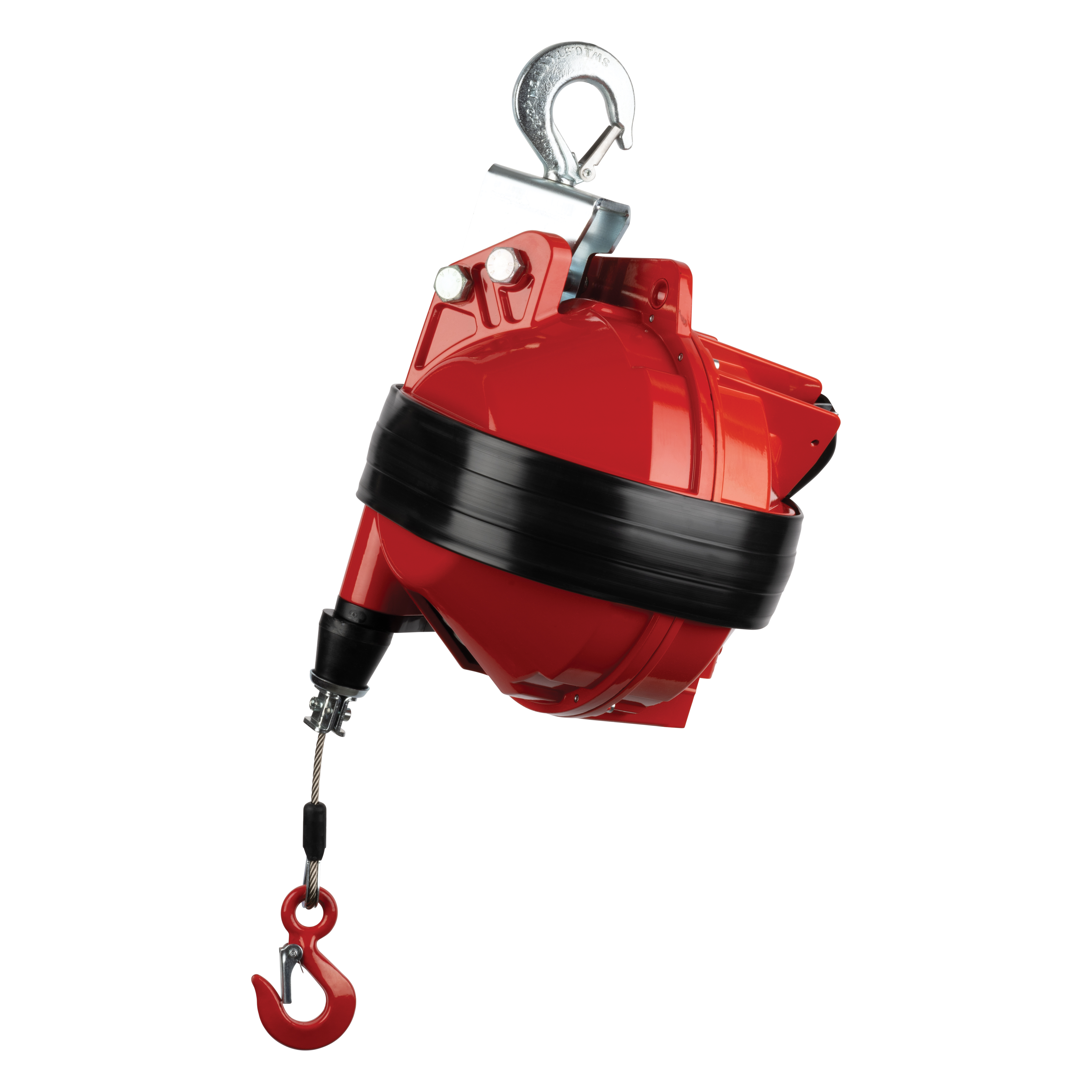

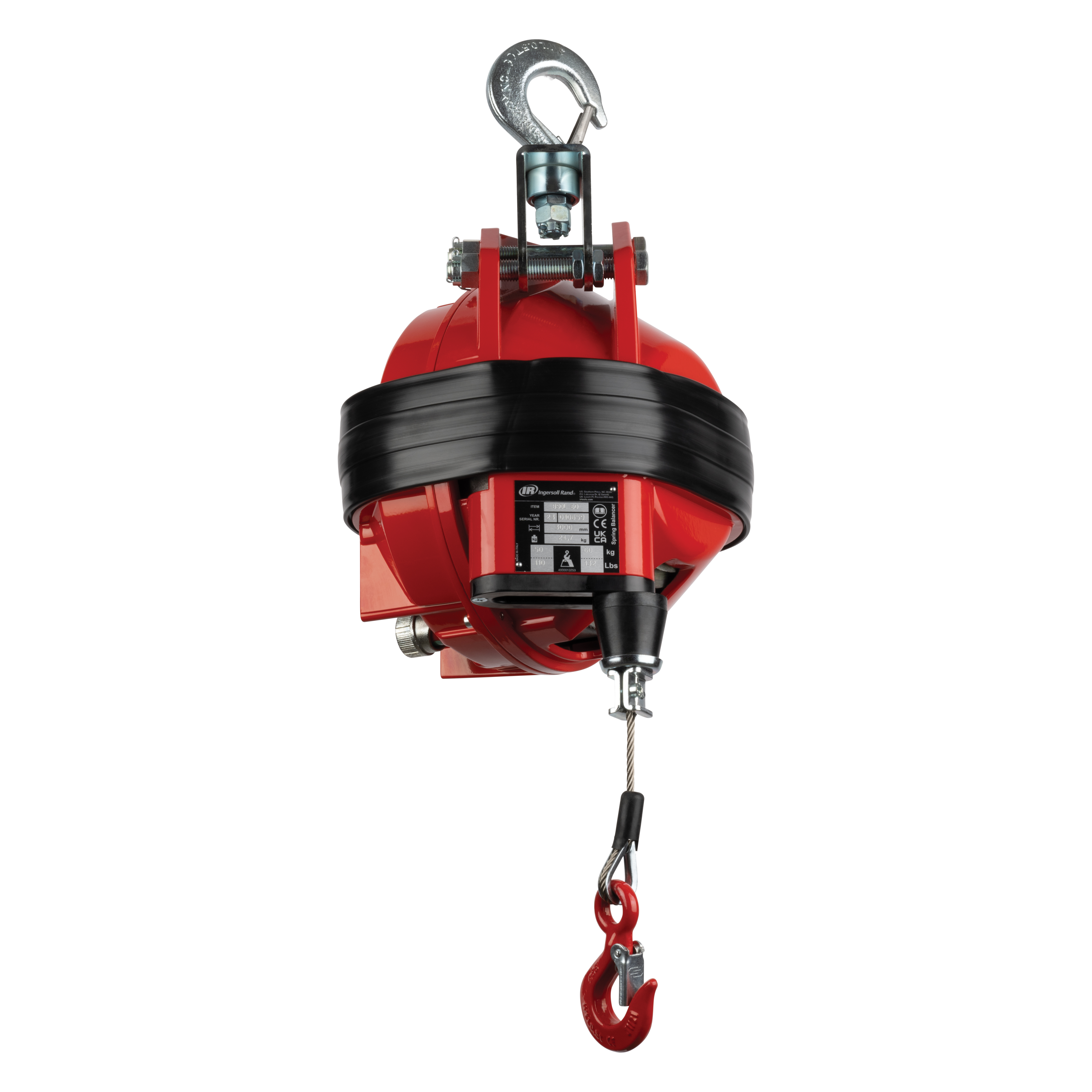

BSD, BSDL Series Super-Duty Spring Balancers

The Spring Balancer line from Ingersoll Rand® has been upgraded with new adjustments that take its fine-tuning capabilities and safety innovations up a notch and its tight space potential down to even smaller spots. Designed with greater durability and a higher weight capacity, these newly improved accessories will put even more spring, safety, and strength in your step.

Safety:

  • Safety device against load dropping due to the spring breakage (>3 kg)
  • Locking device to block the load at any height (BSD models only)
  • Upper rotary suspension with safety hook
  • Manual locking device for instant clamping or release (BSDL models only)
  • Cable visible for inspection (BSDL models only)

Ergonomics:

  • 33 - 363 lbs capacity for BSD models and 33 - 330 lbs capacity for BSDL models
  • Adjustable stroke limiting device (BSD models only)
  • Gravity-free suspension capability (BSD models only)
  • Visible cable for inspection (BSD models only)
  • Precision-guided cable-winding prevents jamming (BSDL models only)
  • Cable replacement without balancer disassembly (BSDL models only)
  • Alignable rotating upper hook (BSDL models only)
  • Worm screw capacity adjustment (BSDL models only)

Durability:

  • Stainless-steel cable (BSD models only)
  • Cable guide in anti-friction material (BSD models only)
  • Ribbed and sealed monobloc construction in aluminum alloy (BSD models only)
  • Anti-friction cable guide (BSDL models only)

Model

Capacity lb (kg)

Weight lb (kg)

Lift ft (mm)

Dimension Type

Housing Material

Cable Material

BSD-20

33 - 44 (15 - 20)

41.9 (18.6)

8.2 (2500)

A

Aluminum

Stainless Steel

BSD-30

44 - 66 (20 - 30)

43.7 (19.8)

8.2 (2500)

A

Aluminum

Stainless Steel

BSD-40

66 - 88 (30 - 40)

45.9 (20.8)

8.2 (2500)

A

Aluminum

Stainless Steel

BSD-50

88 - 110 (40 - 50)

52.7 (23.9)

8.2 (2500)

A

Aluminum

Stainless Steel

BSD-60

110 - 132 (50 - 60)

56 (25.4)

8.2 (2500)

A

Aluminum

Stainless Steel

BSD-70

132 - 154 (60 - 70)

59.1 (26.8)

8.2 (2500)

B

Aluminum

Stainless Steel

BSD-80

154 - 176 (70 - 80)

61.3 (27.8)

8.2 (2500)

B

Aluminum

Stainless Steel

BSD-90

176 - 198 (80 - 90)

63.5 (28.8)

8.2 (2500)

B

Aluminum

Stainless Steel

BSD-100

198 - 220 (90 - 100)

78.5 (35.6)

8.2 (2500)

C

Aluminum

Stainless Steel

BSD-120

220 - 265 (100 - 120)

85.3 (38.8)

8.2 (2500)

C

Aluminum

Stainless Steel

BSD-140

265 - 309 (120 - 140)

92.2 (41.8)

8.2 (2500)

C

Aluminum

Stainless Steel

BSD-150

287 - 330 (130 - 150)

98.1 (44.5)

8.2 (2500)

C

Aluminum

Stainless Steel

BSD-165

330 - 363 (150 - 165)

106.3 (48.2)

8.2 (2500)

C

Aluminum

Stainless Steel

BSDL-20

33 - 44 (15 - 20)

42.1 (19.1)

9.8 (3000)

A

Aluminum

Stainless Steel

BSDL-25

44 - 55 (20 - 25)

43.9 (19.9)

9.8 (3000)

A

Aluminum

Stainless Steel

BSDL-35

55 - 77 (25 - 35)

46.1 (20.9)

9.8 (3000)

A

Aluminum

Stainless Steel

BSDL-45

77 - 99 (35 - 45)

52.5 (23.8)

9.8 (3000)

B

Aluminum

Stainless Steel

BSDL-50

99 - 110 (40 - 50)

52.7 (23.9)

9.8 (3000)

B

Aluminum

Stainless Steel

BSDL-60

110 - 132 (50 - 60)

55.8 (25.3)

9.8 (3000)

B

Aluminum

Stainless Steel

BSDL-70

132 - 154 (60 - 70)

58.9 (26.7)

9.8 (3000)

B

Aluminum

Stainless Steel

BSDL-80

154 - 176 (70 - 80)

61.7 (28)

9.8 (3000)

B

Aluminum

Stainless Steel

BSDL-90

176 - 198 (80 - 90)

64 (29)

9.8 (3000)

B

Aluminum

Stainless Steel

BSDL-100

198 - 220 (90 - 100)

81.1 (36.8)

9.8 (3000)

C

Aluminum

Stainless Steel

BSDL-115

220 - 254 (100 - 115)

85.3 (38.7)

9.8 (3000)

C

Aluminum

Stainless Steel

BSDL-130

254 - 286 (115 - 130)

88 (39.9)

9.8 (3000)

C

Aluminum

Stainless Steel

BSDL-140

286 - 309 (130 - 140)

94.4 (42.8)

9.8 (3000)

C

Aluminum

Stainless Steel

BSDL-150

309 - 330 (140 - 150)

100.6 (45.6)

9.8 (3000)

C

Aluminum

Stainless Steel
