QXBN Cordless High Torque Angle Wrench

Increase the productivity of your assembly line with the added length and improved ergonomics of the 40V High Torque Angle Wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series™ Precision Fastening System streamlines your operation into one tool with traceable, accurate results. Reducing torque reaction doesn’t have to be complicated with the QX Series™ Ergonomic Tightening System.

The QXBD and QXBN models also offer users the Bluetooth connectivity option to wirelessly program the QX Connect Series™ tools using the INSIGHT Connect App.

INSIGHT Connect App

Comes with 32 programmable tightening configurations
Optional Bluetooth models (QXBD, QXBN) further add mobility to enable Wireless programming using the INSIGHT Connect app
Available in Pistol and Angle Configuration
Enhanced quantitative feedback – displaying the actual measured torque or angle result
1,200 cycles of onboard tightening data storage
Configurable preventative maintenance alarms
Intuitive qualitative feedback using green, red, and yellow indicators
The QX Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer-use applications. The 40-volt batteries utilize our IQv Series™ 40V, 2.5Ah charger BC1161
Insight Connect Android APP LINK
Optional ergonomic tightening system to reduce torque reaction experienced by operator. Visit QX ETS to learn more.

Multiple Programming Methods

Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software
Through On-Board Tool Display/Key on QXBD Models

Model	Configuration	Torque Range (Nm)	Torque Range (ft-lbs)	Free Speed (RPM)	Drive Size/Type	Communication	Display	Battery Type	Weight w/out Battery (kg)	Weight w/out Battery (lbs)	Side to Center (mm)	Side to Center (in)	Length (mm)	Length (in)	Height (mm)	Height (in)
QXFD5AT020PS06	Right Angle	4.0-20	2.9 -14.8	1045	3/8 in. Square	USB Only	Yes	40V Li-ion	2.04	4.5	13.1	0.52	577.7	22.74	100	3.94
QXFD5AT030PS06	Right Angle	6.0-30	4.4-22.1	775	3/8 in. Square	USB Only	Yes	40V Li-ion	2.18	4.8	17.2	0.68	581.8	22.91	100	3.94
QXFD5AT030PS08	Right Angle	6.0-30	4.4-22.1	775	1/2 in. Square	USB Only	Yes	40V Li-ion	2.18	4.8	17.2	0.68	581.8	22.91	100	3.94
QXFD5AT035PS06	Right Angle	7.0-35	5.2-25.8	640	3/8 in. Square	USB Only	Yes	40V Li-ion	2.18	4.8	17.2	0.68	581.8	22.91	100	3.94
QXFD5AT035PS08	Right Angle	7.0-35	5.2-25.8	640	1/2 in. Square	USB Only	Yes	40V Li-ion	2.18	4.8	17.2	0.68	581.8	22.91	100	3.94
QXFD5AT040ES08	Right Angle-ETS	8.0-40	5.9-29.5	545	1/2 in. Square	USB Only	Yes	40V Li-ion	2.27	5	21.6	0.85	586.1	23.07	100	3.94
QXFD5AT040PS08	Right Angle	8.0-40	5.9-29.5	545	1/2 in. Square	USB Only	Yes	40V Li-ion	2.27	5	21.6	0.85	586.1	23.07	100	3.94
QXFD5AT080ES08	Right Angle-ETS	12.0-80	8.8-59.0	375	1/2 in. Square	USB Only	Yes	40V Li-ion	2.27	5	21.6	0.85	586.1	23.07	100	3.94
QXFD5AT080PS08	Right Angle	12.0-80	8.8-59.0	375	1/2 in. Square	USB Only	Yes	40V Li-ion	2.27	5	21.6	0.85	586.1	23.07	100	3.94
QXBD5AT020PS06	Right Angle	4.0-20	2.9 -14.8	1045	3/8 in. Square	Bluetooth + USB Cable	Yes	40V Li-ion	2.04	4.5	13.1	0.52	577.7	22.74	100	3.94
QXBD5AT030PS06	Right Angle	6.0-30	4.4-22.1	775	3/8 in. Square	Bluetooth + USB Cable	Yes	40V Li-ion	2.18	4.8	17.2	0.68	581.8	22.91	100	3.94
QXBD5AT030PS08	Right Angle	6.0-30	4.4-22.1	775	1/2 in. Square	Bluetooth + USB Cable	Yes	40V Li-ion	2.18	4.8	17.2	0.68	581.8	22.91	100	3.94
QXBD5AT035PS06	Right Angle	7.0-35	5.2-25.8	640	3/8 in. Square	Bluetooth + USB Cable	Yes	40V Li-ion	2.18	4.8	17.2	0.68	581.8	22.91	100	3.94
QXBD5AT035PS08	Right Angle	7.0-35	5.2-25.8	640	1/2 in. Square	Bluetooth + USB Cable	Yes	40V Li-ion	2.18	4.8	17.2	0.68	581.8	22.91	100	3.94
QXBD5AT040ES08	Right Angle	8.0-40	5.9-29.5	545	1/2 in. Square	Bluetooth + USB Cable	Yes	40V Li-ion	2.27	5	21.6	0.85	586.1	23.07	100	3.94
QXBD5AT040PS08	Right Angle	8.0-40	5.9-29.5	545	1/2 in. Square	Bluetooth + USB Cable	Yes	40V Li-ion	2.27	5	21.6	0.85	586.1	23.07	100	3.94
QXBD5AT080ES08	Right Angle	12.0-80	8.8-59.0	375	1/2 in. Square	Bluetooth + USB Cable	Yes	40V Li-ion	2.27	5	21.6	0.85	586.1	23.07	100	3.94
QXBD5AT080PS08	Right Angle	12.0-80	8.8-59.0	375	1/2 in. Square	Bluetooth + USB Cable	Yes	40V Li-ion	2.27	5	21.6	0.85	586.1	23.07	100	3.94
QXBN5AT020PS06	Right Angle	4.0-20	2.9 -14.8	1045	3/8 in. Square	Bluetooth + USB Cable	No	40V Li-ion	2.04	4.5	13.1	0.52	577.7	22.74	100	3.94
QXBND5AT030PS06	Right Angle	6.0-30	4.4-22.1	775	3/8 in. Square	Bluetooth + USB Cable	No	40V Li-ion	2.18	4.8	17.2	0.68	581.8	22.91	100	3.94
QXBN5AT030PS08	Right Angle	6.0-30	4.4-22.1	775	1/2 in. Square	Bluetooth + USB Cable	No	40V Li-ion	2.18	4.8	17.2	0.68	581.8	22.91	100	3.94
QXBN5AT035PS06	Right Angle	7.0-35	5.2-25.8	640	3/8 in. Square	Bluetooth + USB Cable	No	40V Li-ion	2.18	4.8	17.2	0.68	581.8	22.91	100	3.94
QXBN5AT035PS08	Right Angle	7.0-35	5.2-25.8	640	1/2 in. Square	Bluetooth + USB Cable	No	40V Li-ion	2.18	4.8	17.2	0.68	581.8	22.91	100	3.94
QXBN5AT040ES08	Right Angle	8.0-40	5.9-29.5	545	1/2 in. Square	Bluetooth + USB Cable	No	40V Li-ion	2.27	5	21.6	0.85	586.1	23.07	100	3.94
QXBN5AT040PS08	Right Angle	8.0-40	5.9-29.5	545	1/2 in. Square	Bluetooth + USB Cable	No	40V Li-ion	2.27	5	21.6	0.85	586.1	23.07	100	3.94
QXBN5AT080ES08	Right Angle	12.0-80	8.8-59.0	375	1/2 in. Square	Bluetooth + USB Cable	No	40V Li-ion	2.27	5	21.6	0.85	586.1	23.07	100	3.94
QXBN5AT080PS08	Right Angle	12.0-80	8.8-59.0	375	1/2 in. Square	Bluetooth + USB Cable	No	40V Li-ion	2.27	5	21.6	0.85	586.1	23.07	100	3.94

North America

Europe

Africa, Middle East & India

Asia Pacific

Latin America & Caribbean

Global

Features

Model Specifications

Documents

QX Connect Series™ Brochure

Product Information - QX Connect Series

Maintenance Information - QX Series

Safety Information - Cordless Screwdriver and Nutrunner

Parts Information - QX Connect Series

User Manual - QX Connect Series

Quick Start Guide - QX Series

QX-ETS Data Sheet

Declaration of conformity, August 2021

CE Declaration of conformity, July 2021

QE8 Inline

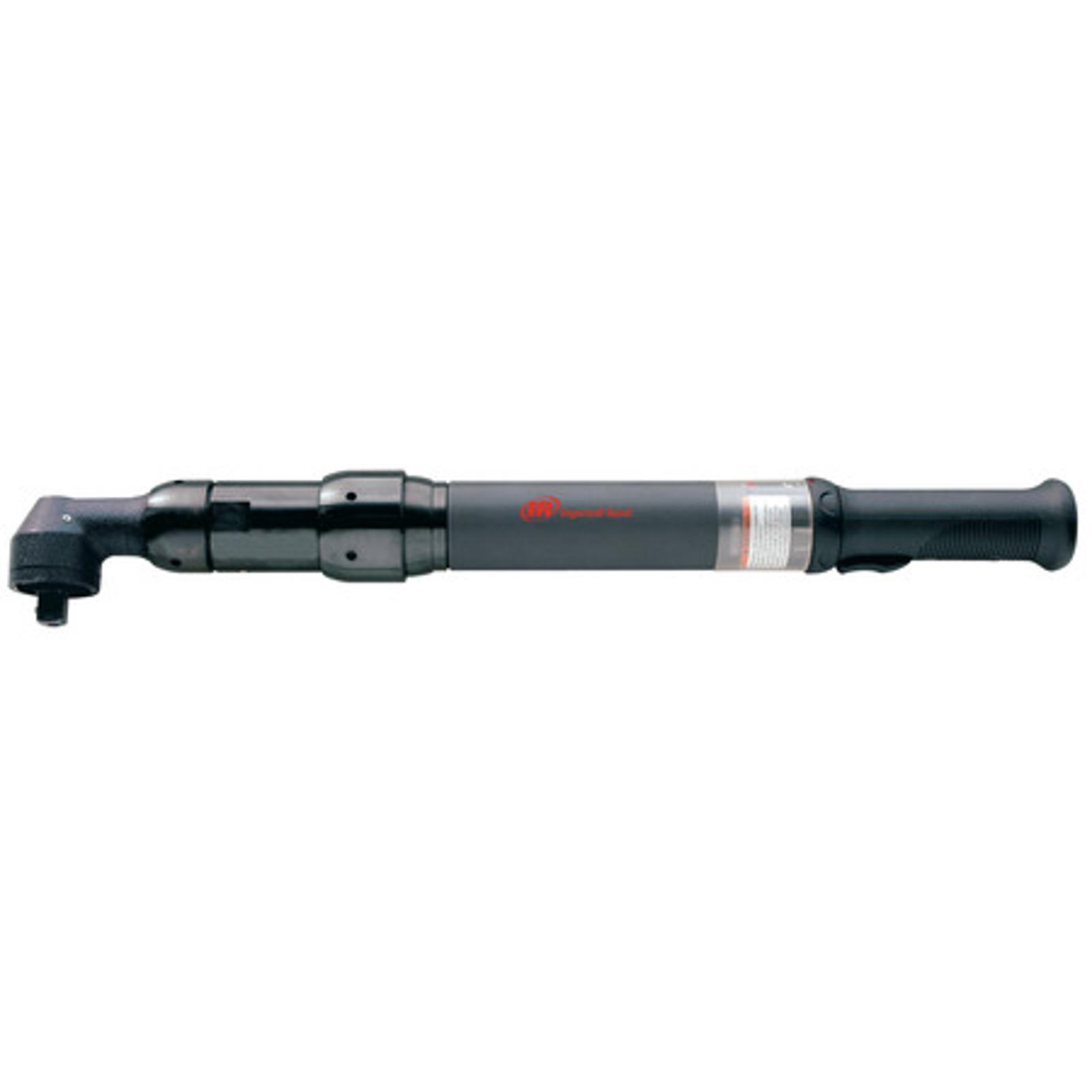

QE8 Angle
