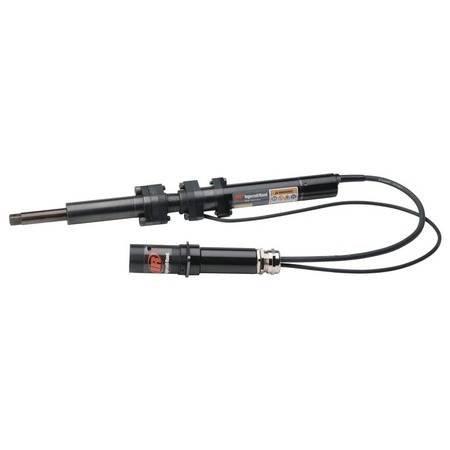

QM5 Series Fixtured Spindles

QM5 Tools are highly durable designed. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. QM5 Torque Range 3.5-90Nm.

Accuracy:

  • The closed loop transducerized control provides high accuracy and traceability for advanced torque control strategies.

Flexibility:

  • With flexible mounting options, an external electronics pod, and high durability cables and connections, you’ll be able to integrate your spindles with ease and security.

Reliability:

  • With a heavy-duty gear train and brushless DC motor, the QM3 series is as dependable as it is efficient. And with preventative maintenance alarms, you’ll always know when your tool is in need of a tune up.

Model

Torque Range (Nm)

Torque Range (in-lbs)

Torque Range (ft-lbs)

Max Torque (Nm)

Free Speed (rpm)

Spindle Length (mm)

Float (mm)

Length (mm)

Length (in)

Weight (kg)

Weight (lbs)

C-C (mm)

Bolt Size

Square Drive (in)

QM5SS035H22S06

3.5-35

30.975-309.75

2.6 - 25.7

35

590

318.6

50

673

26.496062992125985

4.2

9.26

44

M6-M8

3/8

QM5SS035H22S08

3.5-35

30.975-309.75

2.6 - 25.7

35

590

318.6

50

673

26.496062992125985

4.2

9.26

44

M6-M8

1/2

QM5SS035H62S06

3.5-35

30.975-309.75

2.6 - 25.7

35

590

168.6

50

523

20.590551181102363

3.9

8.60

44

M6-M8

3/8

QM5SS035H62S08

3.5-35

30.975-309.75

2.6 - 25.7

35

590

168.6

50

523

20.590551181102363

3.91

8.6

44

M6-M8

1/2

QM5SS035H92S06

3.5-35

30.975-309.75

2.6 - 25.7

35

590

243.6

50

598

23.543307086614174

4.05

8.9

44

M6-M8

3/8

QM5SS035H92S08

3.5-35

30.975-309.75

2.6 - 25.7

35

590

243.6

50

598

23.543307086614174

4.05

8.9

44

M6-M8

1/2

QM5SS055H22S06

5.5-55

48.675-486.75

4.1 - 40.4

55

507

318.6

50

673

26.496062992125985

4.2

9.26

44

M6-M8

3/8

QM5SS055H22S08

5.5-55

48.675-486.75

4.1 - 40.4

55

507

318.6

50

673

26.496062992125985

4.2

9.26

44

M6-M8

1/2

QM5SS055H62S06

5.5-55

48.675-486.75

4.1 - 40.4

55

507

168.6

50

523

20.590551181102363

3.9

8.60

44

M6-M8

3/8

QM5SS055H62S08

5.5-55

48.675-486.75

4.1 - 40.4

55

507

168.6

50

523

20.590551181102363

3.9

8.60

44

M6-M8

1/2

QM5SS055H92S06

5.5-55

48.675-486.75

4.1 - 40.4

55

507

243.6

50

598

23.543307086614174

4.05

8.9

44

M6-M8

3/8

QM5SS055H92S08

5.5-55

48.675-486.75

4.1 - 40.4

55

507

243.6

50

598

23.543307086614174

4.05

8.9

44

M6-M8

1/2

QM5SS090H22S08

9.0-90

79.65-796.5

6.6 - 66

90

280

318.6

50

673

26.496062992125985

3.91

8.6

44

M8-M10

1/2

QM5SS090H92S08

9.0-90

79.65-796.5

6.6 - 66

90

280

243.6

50

598

23.543307086614174

4.19

9

44

M8-M10

1/2
