1 Series Handheld Angle Adjustable Shut-Off | Ingersoll Rand Power Tools

air nutrunners Series1Screwdriver2l

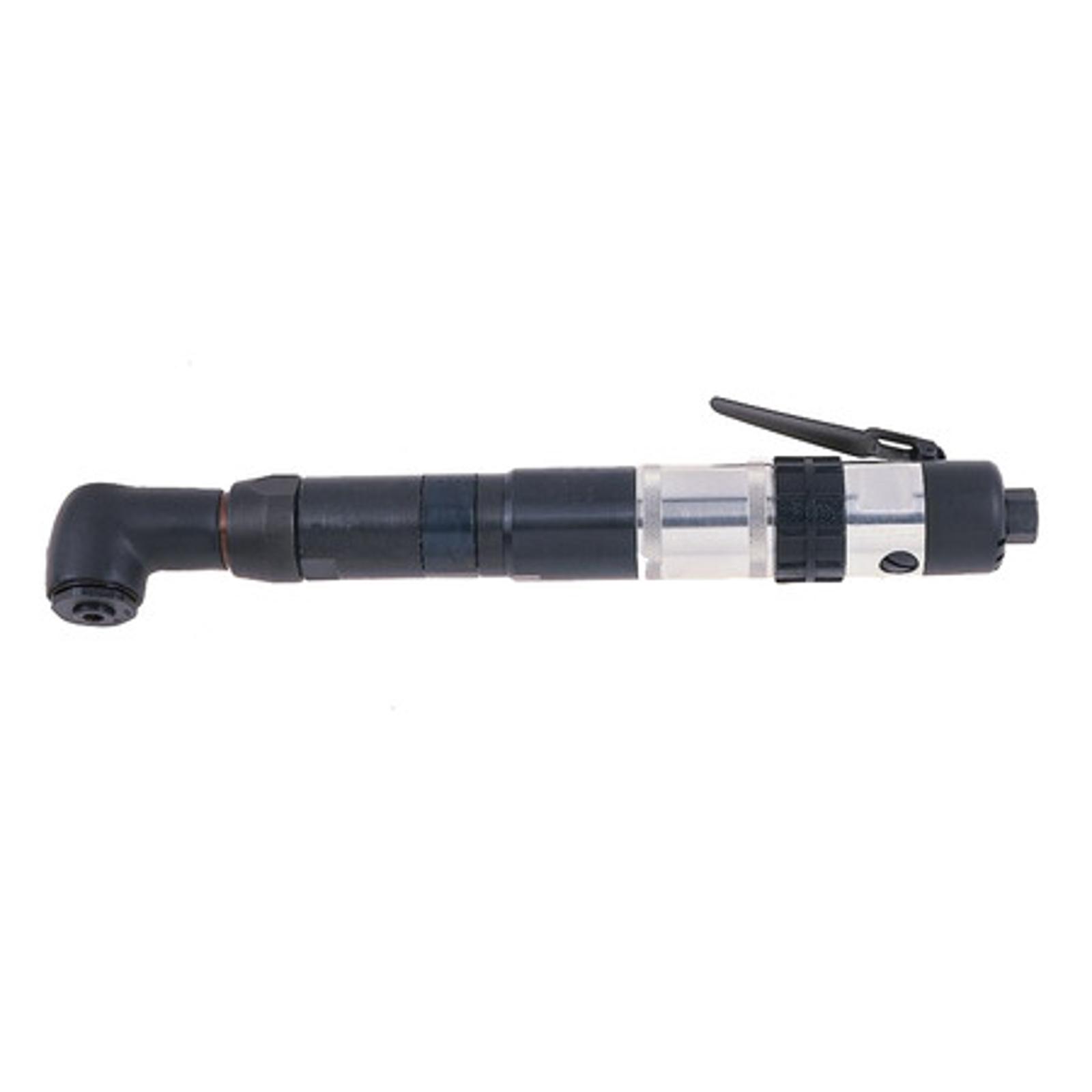

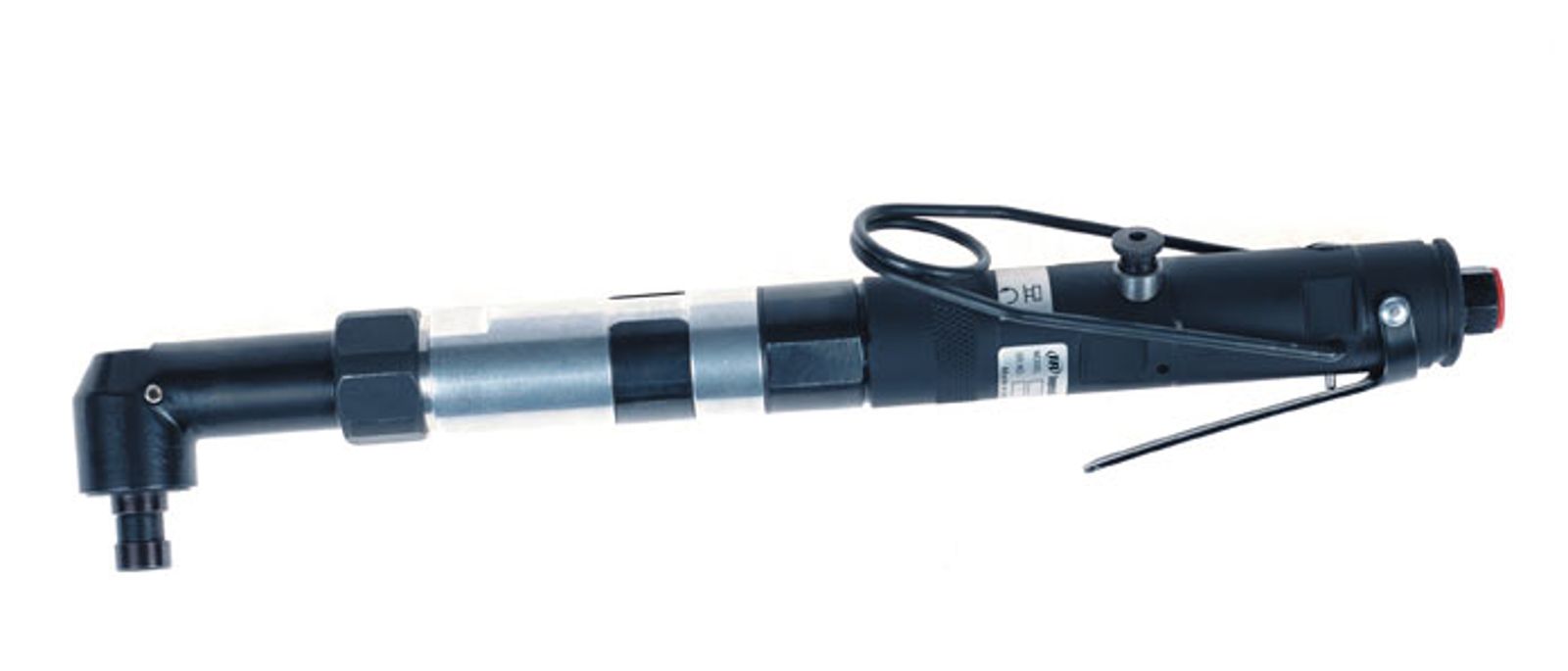

The 1 Series Angle Adjustable Shutoff Nutrunner is compact and lightweight with a well-balanced design. The adjustable shutoff clutch reduces air consumption and limits torque reaction.

Accuracy:

The 1 Series delivers repeatable precision performance you can count on.

High Performance:

The 1 Series nutrunners are fast (up to 2,800 RPM) and powerful (up to 11.5Nm) to help you get the job done.

Reliability:

1 Series Nutrunners are designed to withstand high duty cycle applications and our robust air motors makes it more reliable

Model	Actuation	Torque Range (Nm)	Torque Range (in-lb)	Free Speed (rpm)	Weight (kg)	Weight (lb)	Length (mm)	Length (in)	Angle Head Side to Center (mm)	Angle Head Side to Center (in)	Angle Head Height (mm)	Angle Head Height (in)	Air Inlet	cfm	Spindle Type	Sound (dBA)
1RLN2S3	Lever Start	0.4 - 5.2	3.5 - 46.0	700	0.8	1.7	318	12.5	13.2	0.52	33	1.3	1/8 in. NPT	13	1/4 in. Hex Quick Change	73
1RLN2S5	Lever Start	0.4 - 5.2	3.5 - 46.0	700	0.8	1.7	318	12.5	13.2	0.52	33	1.3	1/8 in. NPT	13	1/4 in. Square	73	1RLM2S5	Lever Start	0.4 - 3.4	3.5 - 30.0	1100	0.8	1.7	318	12.5	13.2	0.52	33	1.3	1/8 in. NPT	13	1/4 in. Square	73
1RLM2S5	Lever Start	0.4 - 3.4	3.5 - 30.0	1100	0.8	1.7	318	12.5	13.2	0.52	33	1.3	1/8 in. NPT	13	1/4 in. Square	73
