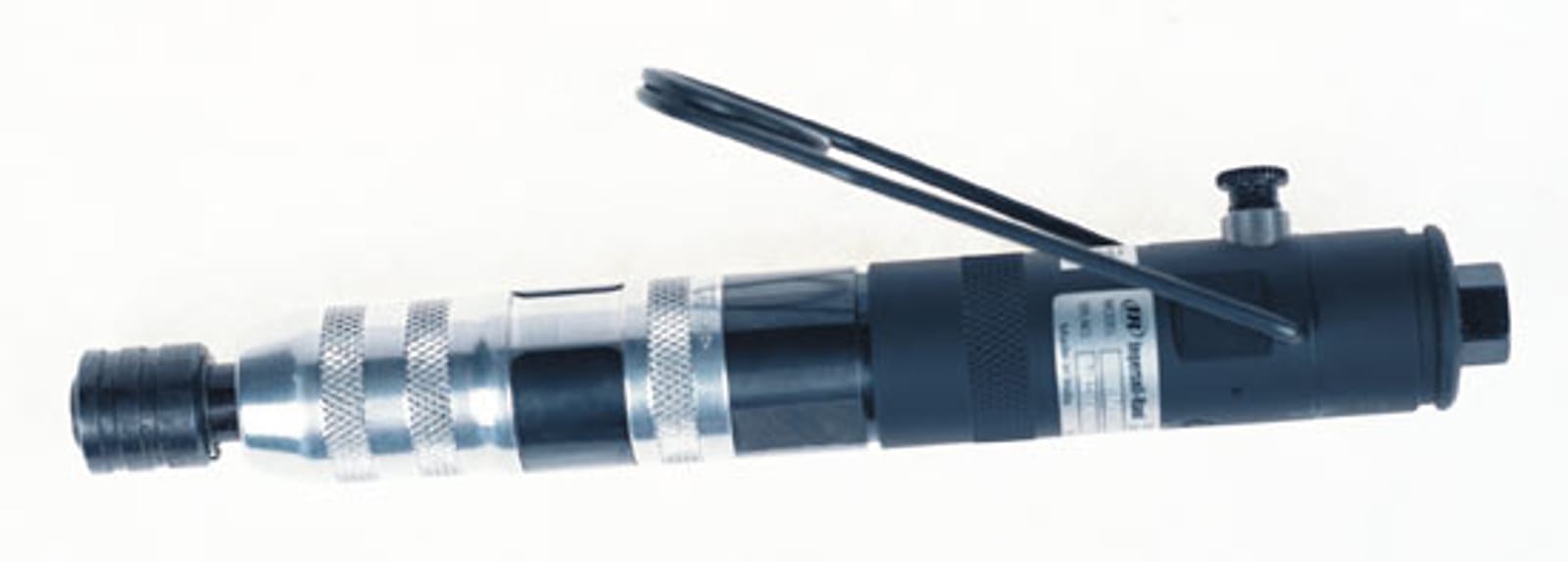

1 Series - Inline Adjustable Shut-Off | Ingersoll Rand

air and electric screwdrivers Series1Screwdriver3l

A good, all-around screwdriver with a coated grip and adjustable shut-off clutch brings the power you need in a lightweight, compact package.

Durability:

Made to last and tested to 1 million cycles without failure, this tool is designed to handle toughest jobs.

Performance:

For all your fastening jobs, this screwdriver gives you the power the task demands each time every time.

Compact:

A smart size that's easy to maneuver on your applications.

Well-Balanced & Lightweight Design:

It’s made with materials that won’t weigh you down. Overall, a tool that is easy to handle for long periods.

Model	Actuation	Torque Range (Nm)	Torque Range (in-lbs)	Free Speed (rpm)	Weight (kg)	Weight (lb.)	Length (mm)	Length (in)	Side to Center Distance (mm)	Side to Center Distance (in)	Spindle Type	Sound Level dB(A) @ Free Speed	Inlet Location	Air Inlet (NPTF/NPT)	CFM
1RLNS1	Lever Start	0.3 - 3.4	2.7 - 30.1	1000	0.5	1.1	234	9.2	14	0.6	1/4 in. Hex Quick Change	73	Std	1/8 in. NPT	13
1RPLS1	Push to Start	0.5 - 1.5	4.4 - 13.3	2800	0.5	1.1	213	8.4	14	0.6	1/4 in. Hex Quick Change	73	Std	1/8 in. NPT	13
1RPMS1	Push to Start	0.5 - 2.3	4.4 - 20.4	1650	0.5	1.1	222	8.7	14	0.6	1/4 in. Hex Quick Change	73	Std	1/8 in. NPT	13
1RPNS1	Push to Start	0.3 - 3.4	2.7 - 30.1	1000	0.5	1.1	222	8.7	14	0.6	1/4 in. Hex Quick Change	73	Std	1/8 in. NPT	13
1RPQS1	Push to Start	0.3 - 5.1	2.7 - 45.1	500	0.5	1.1	222	8.7	17	0.7	1/4 in. Hex Quick Change	73	Std	1/8 in. NPT	13
1RLQS1	Push to Start	0.3 - 5.1	2.7 - 45.1	500	0.5	1.1	222	8.7	17	0.7	1/4 in. Hex Quick Change	73	Std	1/8 in. NPT	13
