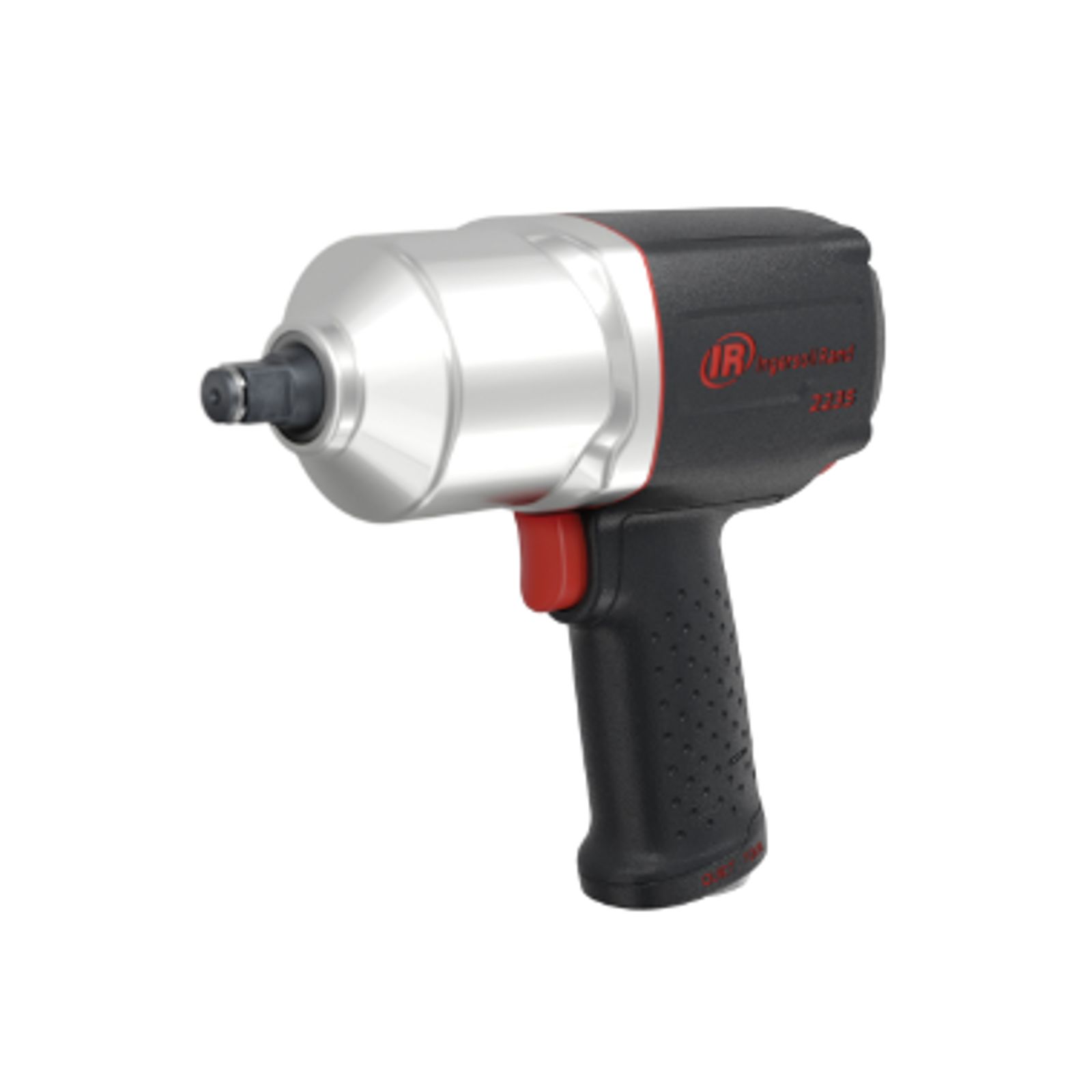

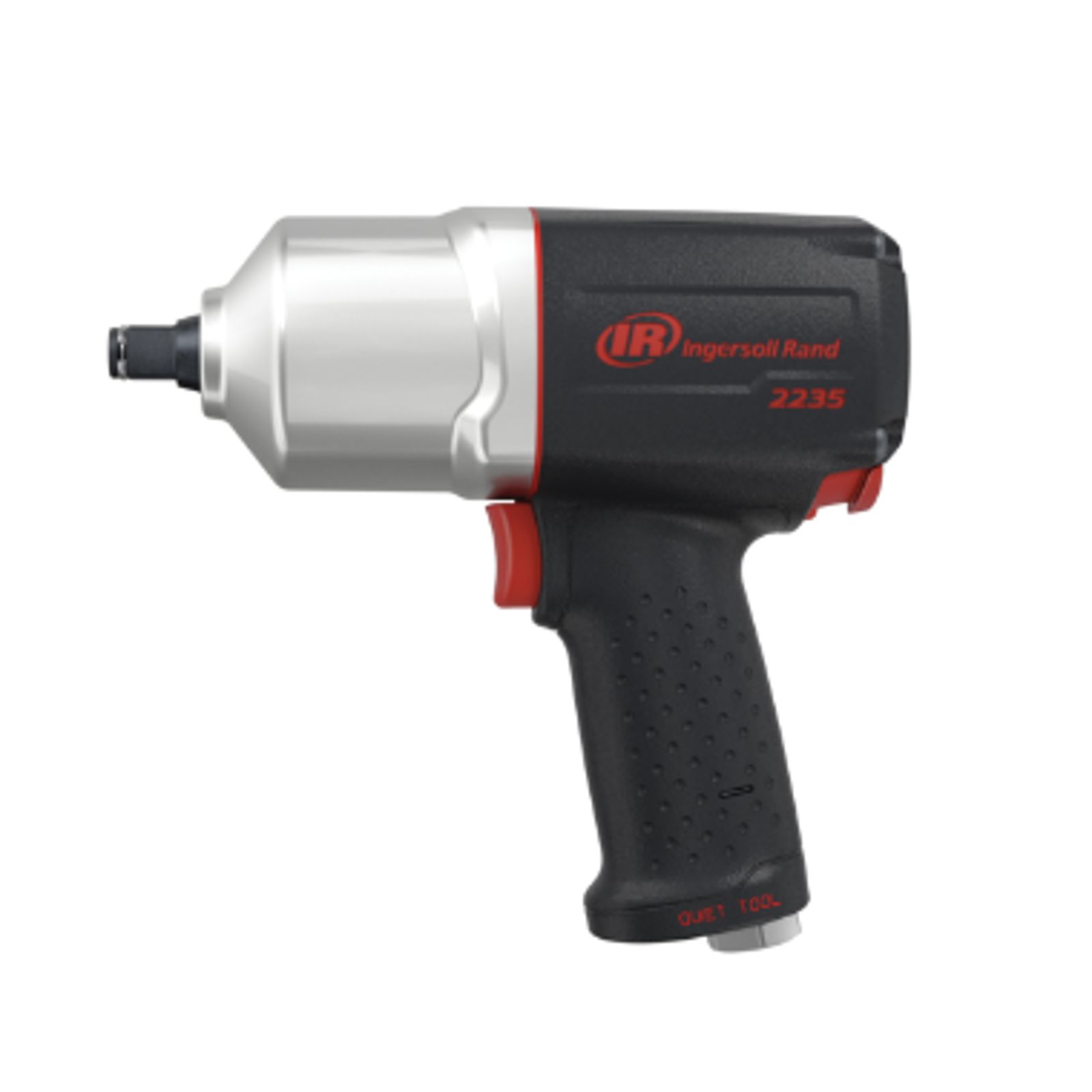

2235QXPA Impact Wrench

The 2235QXPA impact Wrench offers the power and reliability you expect from Ingersoll Rand. This versatile impact wrench can be used on any job site, from vehicle repair to facility maintenance.

Durability:

  • Whether you drop it or take it to work in the harshest environments, the 2235QXPA impact wrench will see things through.

Reliability:

  • You can expect the same high impact output every time you use the 2235QXPA on the job.

Power:

  • Strong but easy to handle. This impact wrench delivers high torque output in a lightweight package.

Other Features:

  • Reverse-bias 7-vane motor delivers even more torque in reverse
  • 4 positions power regulator helps adjusting power to the application
  • One hand forward/reverse push button for easy operation
  • Quiet Tool technology reduces noise level without sacrificing the power.

Model

Configuration

Drive Size

Drive Type

Nut-Busting Torque (ft-lb)

Nut-Busting Torque (Nm)

Forward Torque (ft-lb)

Forward Torque (Nm)

Max Reverse Torque (ft-lb)

Max Reverse Torque (Nm)

Blows per minute

Free Speed (RPM)

Quiet

Impacting Sound Level dB(A) -- ISO15744 (pressure/power)

Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)

Vibration Level (ISO28927) (m/s²)

Weight (lb)

Weight (kg)

Width (in)

Width (mm)

Height (in)

Height (mm)

Length (in)

Length (mm)

Air Inlet (NPTF/ NPT)

Min Hose Size (in)

Min Hose Size (mm)

Air Consumption @ Load (cfm)

Air Consumption @ Load (L/min)

Average Air Consumption (cfm)

Average Air Consumption (L/min)

2235QXPA

Pistol

1/2 in.

Square

1300

1760

870

1180

900

1220

1220

8500

yes

91.9/102.9

88.7/99.7

9 (2.8 uncertainty)

4.7

2.1

2.9

74

7.2

183

7.6

193

1/4 in. NPTF

3/8

10

24

680

6

170
