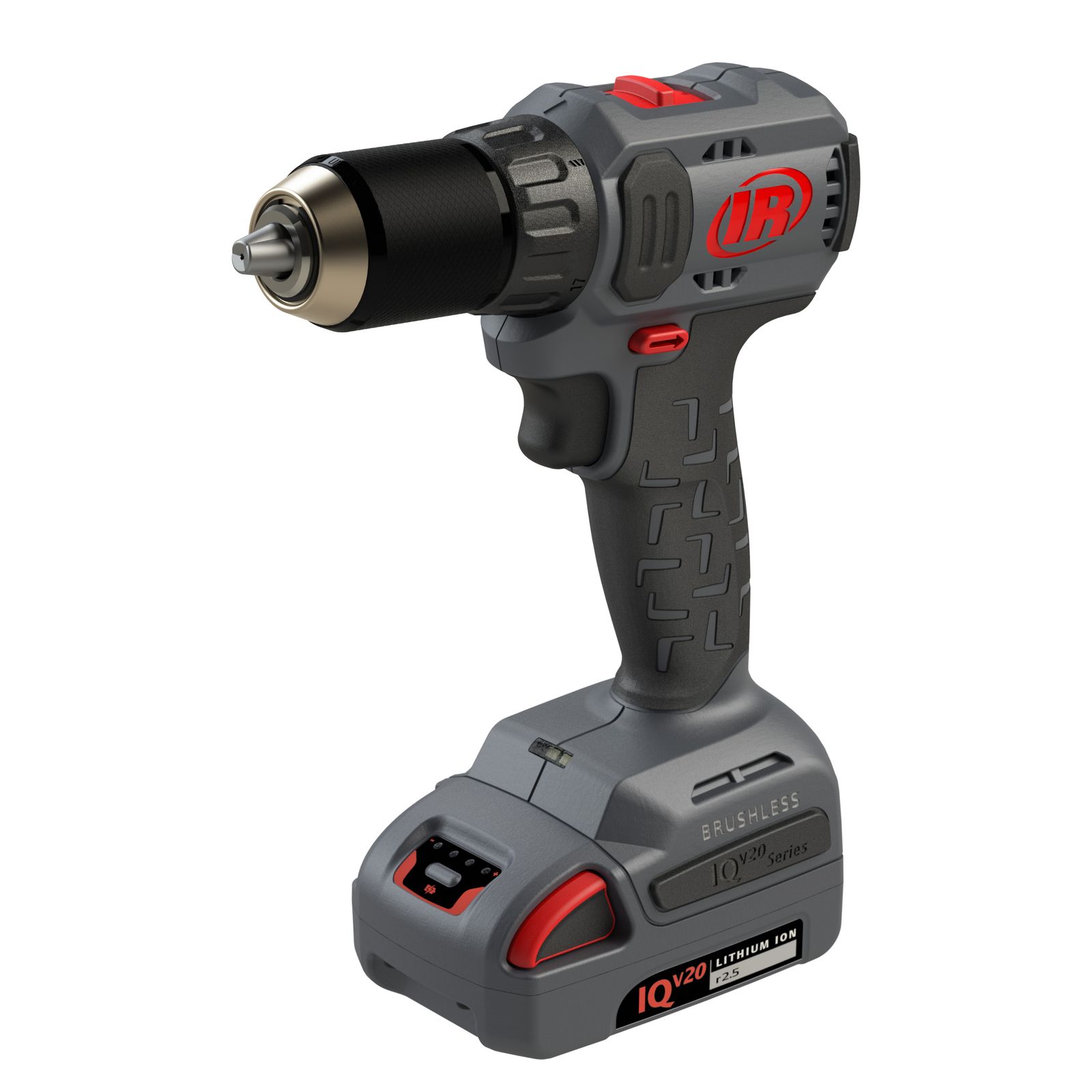

D3141 IQV20™ Cordless Compact Drill Driver D3141, D3141-K22-EU

The Ingersoll Rand® D3141 IQV20™ Cordless Compact Drill Driver combines all the flexibility and dexterity of cordless tools with the power, durability, and strength that our professional-grade portfolio is known for. Plus, at 25% shorter and 40% lighter than our former cordless drill driver model, it’s designed to help you access the toughest spots, from wheel hubs to heavy machinery gaskets.

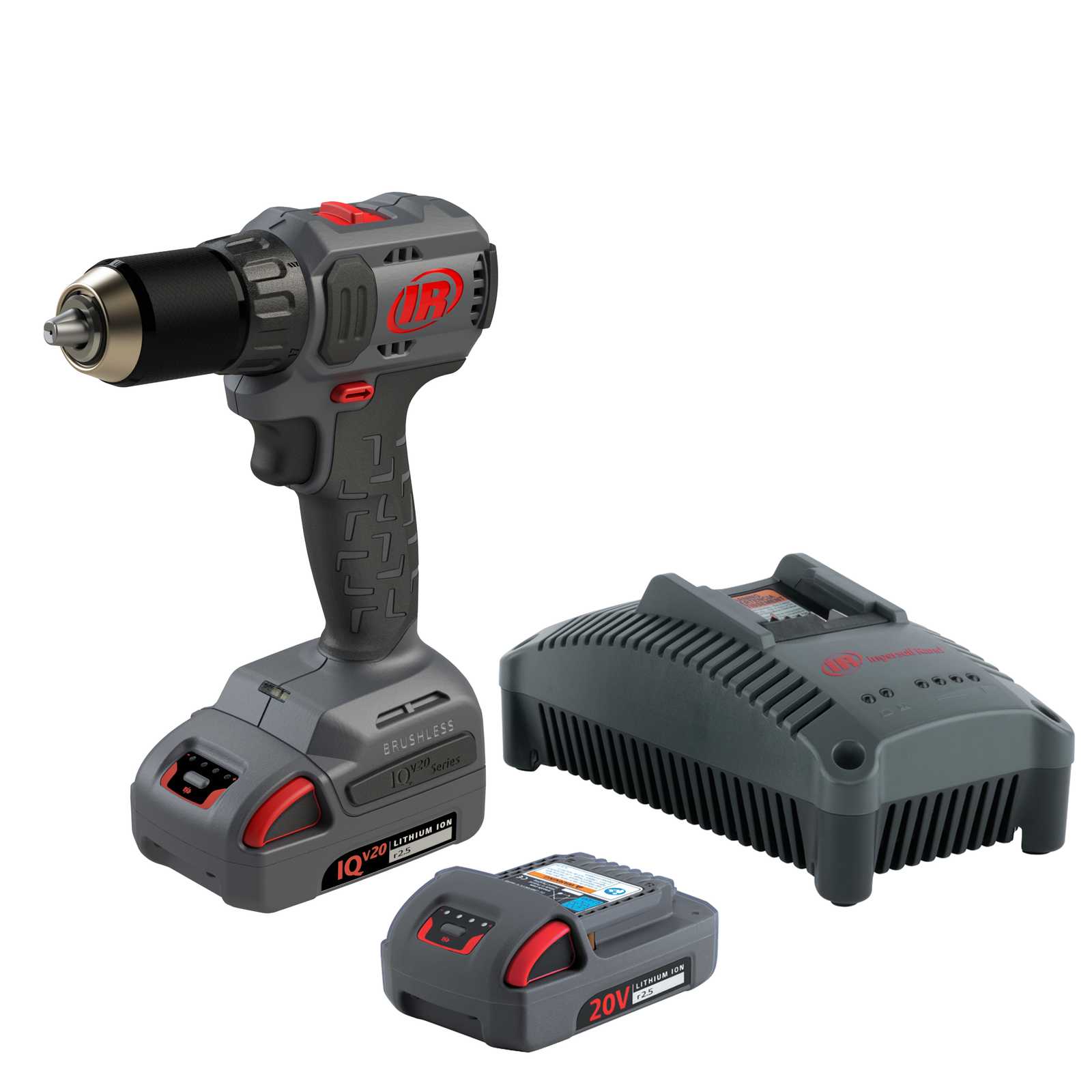

Also available in a kit, D3141-K22-EU, which includes the D3141 Drill Driver, (2) BL2012 2.5Ah Batteries, and BC1124-EU Compact Battery Charger.

Power:

  • A powerful brushless motor runs with up to 50 Nm of torque, ensuring the IQV20™ Cordless Compact Drill Driver operates at the peak of power in any application.

Size:

  • The IQV20™ Cordless Compact Drill Driver is 25% shorter and 40% lighter than its predecessor, so you can get the job done in tight spaces without getting fatigued.

Versatility:

  • Equipped with drill + drive modes, the IQV20™ Cordless Compact Drill Driver helps you get the job done right — no matter the application.

Precision:

  • Fine-tune fastening depth with an 18-position clutch that helps reduce cam-outs and keep you working efficiently.

Speed:

  • Whether you’re drilling through sheet metal, wood, or anything in between, two speed settings help you work with the right level of torque.

Strength:

  • A ½-inch all-metal keyless chuck with carbide teeth grips drill bits and lets you drill through tough materials with ease.

Voltage:

  • Don’t let dead batteries slow you down. A high-voltage 20-volt battery helps the IQV20™ Cordless Compact Drill Driver operate at the peak of power, all day long.

Visibility:

  • An LED light located at the bottom of the tool reduces shadows so you can see your work area clearly.

Model

System

Actuation

Chuck Type

Chuck Capacity in (mm)

Max Torque (in-lbs)

Max Torque (Nm)

Free Speed Low (RPM)

Free Speed High (RPM)

Length in (mm)

Length (mm)

Weight Bare Tool lbs

Weight Bare Tool kg

Motor

Sound Pressure/Power dBA

Vibration m/s2 (uncertainty K)

D3141

IQV20™

Trigger

Keyless

1/2 (13)

450

50

500

1,800

7.1

180

2.2

1.00

Brushless

71 / 82

< 2.5
