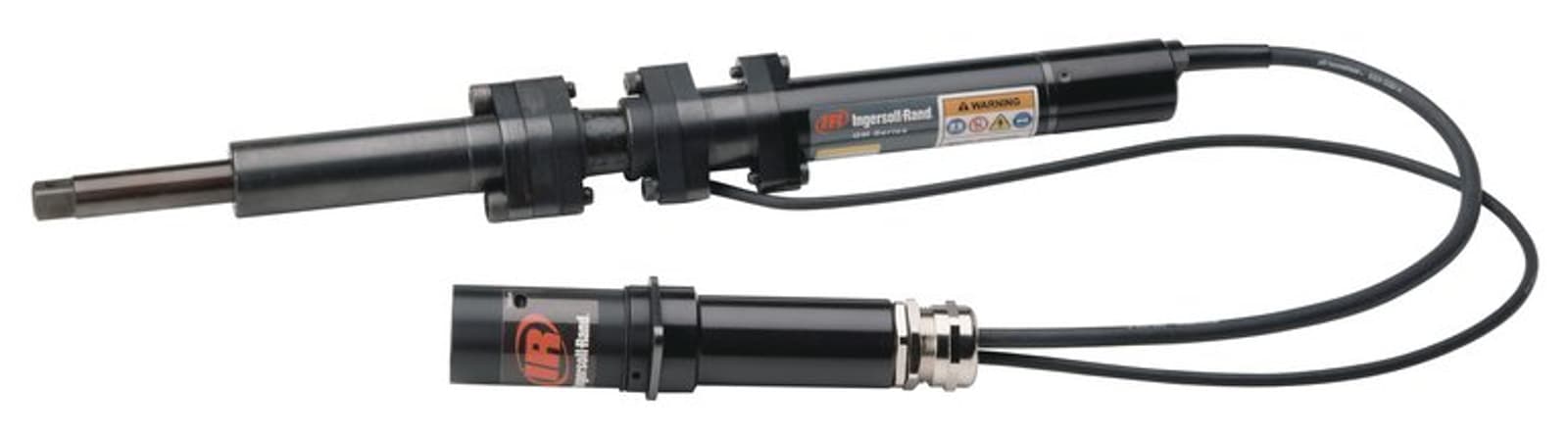

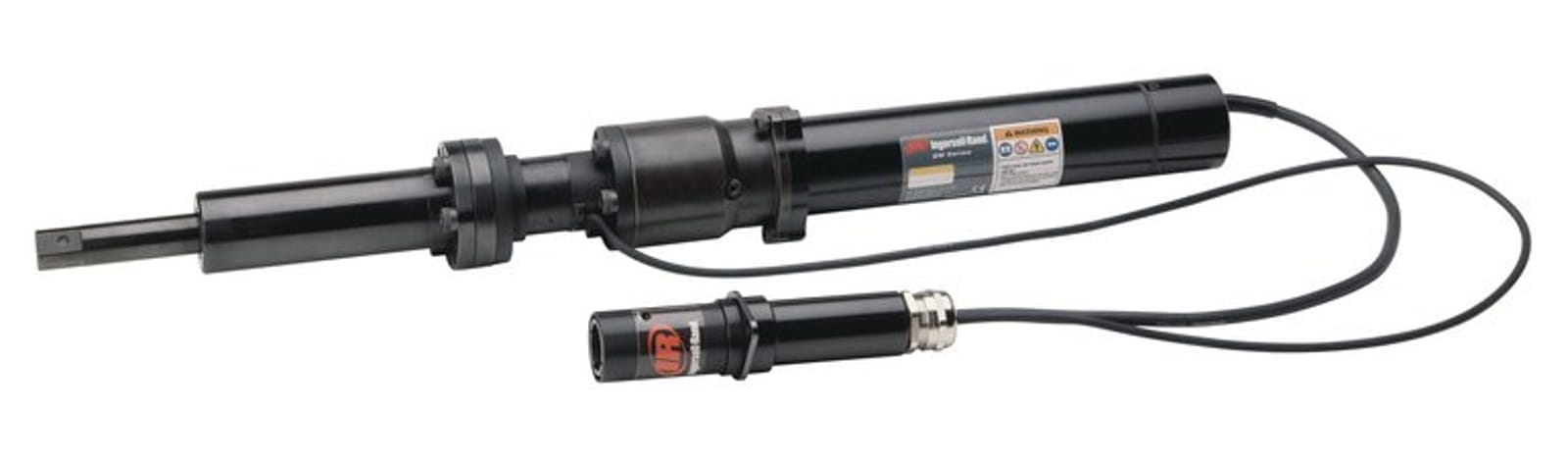

QM7 Series Fixtured Spindles

QM7 Tools are highly durable designed. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. QM7 Torque Range 19-220Nm.

Accuracy:

  • The closed loop transducerized control provides high accuracy and traceability for advanced torque control strategies.

Flexibility:

  • With flexible mounting options, an external electronics pod, and high durability cables and connections, you’ll be able to integrate your spindles with ease and security.

Reliability:

  • With a heavy-duty gear train and brushless DC motor, the QM3 series is as dependable as it is efficient. And with preventative maintenance alarms, you’ll always know when your tool is in need of a tune up.

Model

Recommended Torque Range (Nm)

Recommended Torque Range (ft-lbs)

Max Torque (Nm)

Free Speed (rpm)

Spindle Length (mm)

Float (mm)

Length (mm)

Weight (kg)

C-C (mm)

Bolt Size

Square Drive (in)

QM7SS190H22S08

38 - 152

28 - 112

190

273

300

50

794

8.9

70

M10 - M12

1/2

QM7SS190H22S12

38 - 152

28 - 112

190

273

300

50

794

8.9

70

M10 - M12

3/4

QM7SS190H62S08

38 - 152

28 - 112

190

273

150

50

645

8.4

70

M10 - M12

1/2

QM7SS190H62S12

38 - 152

28 - 112

190

273

150

50

645

8.4

70

M10 - M12

3/4

QM7SS190H92S08

38 - 152

28 - 112

190

273

225

50

720

8.6

70

M10 - M12

1/2

QM7SS190H92S12

38 - 152

28 - 112

190

273

225

50

720

8.6

70

M10 - M12

3/4

QM7SS220H22S12

44 - 176

32.5 - 130

220

233

300

50

794

8.9

70

M10 - M14

3/4

QM7SS220H62S12

44 - 176

32.5 - 130

220

233

150

50

645

8.4

70

M10 - M14

3/4

QM7SS220H92S12

44 - 176

32.5 - 130

220

233

225

50

720

8.6

70

M10 - M14

3/4
