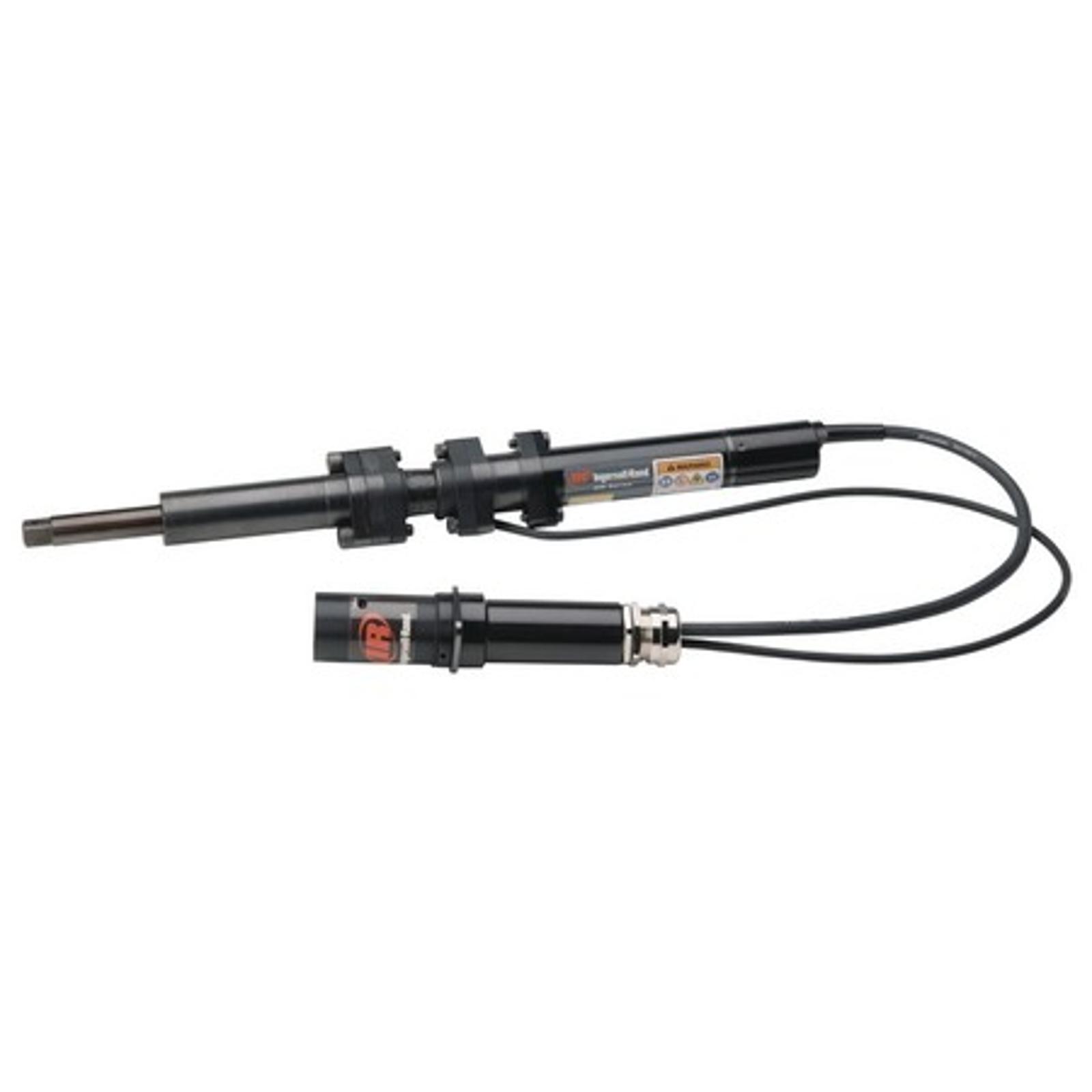

QM7 Series Fixtured Spindles

QM7 Tools are highly durable designed. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. QM7 Torque Range 19-220Nm

Accuracy:

  • The closed loop transducerized control provides high accuracy and traceability for advanced torque control strategies.

Flexibility:

  • With flexible mounting options, an external electronics pod, and high durability cables and connections, you’ll be able to integrate your spindles with ease and security.

Reliability:

  • With a heavy duty gear train and brushless DC motor, the QM3 series is as dependable as it is efficient. And with preventative maintenance alarms, you’ll always know when your tool is in need of a tune up.

Model

Torque Range (Nm)

Torque Range (in-lbs)

Torque Range (ft-lbs)

Max Torque (Nm)

Free Speed (rpm)

Spindle Length (mm)

Float (mm)

Length (mm)

Length (in)

Weight (kg)

Weight (lbs)

C-C (mm)

Bolt Size

Square Drive (in)

QM7SS190H22S08

19-190

168.15-1681.5

14 - 139

190

273

343.85

50

794

31.25984251968504

8.85

19.5

70

M10 - M12

1/2

QM7SS190H22S12

19-190

168.15-1681.5

14 - 139

190

273

343.85

50

794

31.25984251968504

8.9

19.62

70

M10 - M12

3/4

QM7SS190H62S08

19-190

168.15-1681.5

14 - 139

190

273

193.85

50

645

25.393700787401578

8.4

18.52

70

M10 - M12

1/2

QM7SS190H62S12

19-190

168.15-1681.5

14 - 139

190

273

193.85

50

645

25.393700787401578

8.4

18.52

70

M10 - M12

3/4

QM7SS190H92S08

19-190

168.15-1681.5

14 - 139

190

273

268.85

50

720

28.34645669291339

8.63

19.0

70

M10 - M12

1/2

QM7SS190H92S12

19-190

168.15-1681.5

14 - 139

190

273

268.85

50

720

28.34645669291339

8.67

19.1

70

M10 - M12

3/4

QM7SS220H22S12

22-220

194.7-1947

16.2 - 161

220

233

343.85

50

794

31.25984251968504

8.9

19.62

70

M10 - M14

3/4

QM7SS220H62S12

22-220

194.7-1947

16.2 - 161

220

233

193.85

50

645

25.393700787401578

8.4

18.52

70

M10 -M14

3/4

QM7SS220H92S12

22-220

194.7-1947

16.2 - 161

220

223

268.85

50

720

28.34645669291339

8.67

19.1

70

M10 - M14

3/4
