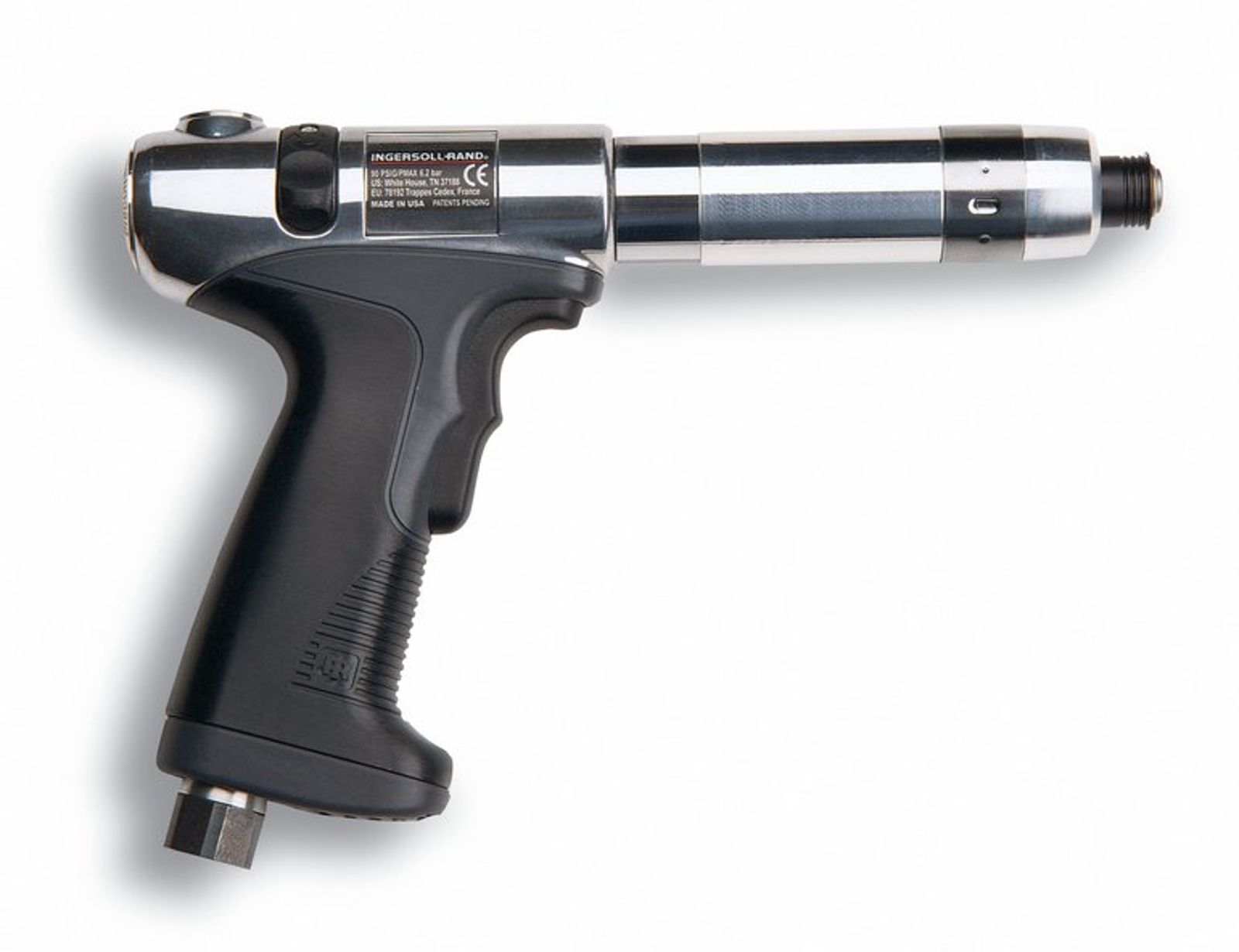

The Q2 Series Pistol Adjustable Cushion Clutch is great for any general-purpose jobs requiring a torque-limiting clutch. And with top and bottom air inlets, they’re optimal for mounting on the assembly line. With skinsulate housing and an optimized design, this series is great to use in any application.
User Experience:
Speed:
Durable:
Performance:
Model | Actuation | Torque Range (Nm) | Torque Range (in-lbs) | Free Speed (rpm) | Weight (kg) | Weight (lb.) | Length (mm) | Length (in) | Side to Center Distance (mm) | Side to Center Distance (in) | Spindle Type | Sound Level dB(A) @ Free Speed | Inlet Location | Air Inlet (NPTF/NPT) | CFM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
QP1S05C1TD | Trigger Start | 0.3 - 5.4 | 3.0 - 47.8 | 500 | 0.8 | 1.9 | 223 | 8.8 | 15 | 0.6 | 1/4 in. Hex Quick Change | 75 | Top | 1/4 in. NPT | 16 |
QP1S10C1TD | Trigger Start | 0.3 - 4.5 | 3.0 - 40.0 | 1000 | 0.8 | 1.9 | 223 | 8.8 | 15 | 0.6 | 1/4 in. Hex Quick Change | 75 | Top | 1/4 in. NPT | 16 |
QP1T10C1TD | Trigger + Push to Start | 0.3 - 4.5 | 3.0 - 40.0 | 1000 | 0.8 | 1.9 | 223 | 8.8 | 15 | 0.6 | 1/4 in. Hex Quick Change | 75 | Top | 1/4 in. NPT | 16 |
QP1T15C1TD | Trigger + Push to Start | 0.3 - 3.1 | 3.0 - 27.4 | 1500 | 0.8 | 1.9 | 223 | 8.8 | 15 | 0.6 | 1/4 in. Hex Quick Change | 75 | Top | 1/4 in. NPT | 16 |
QP1S15C1TD | Trigger Start | 0.3 - 3.1 | 3.0 - 27.4 | 1500 | 0.8 | 1.9 | 223 | 8.8 | 15 | 0.6 | 1/4 in. Hex Quick Change | 75 | Top | 1/4 in. NPT | 16 |
