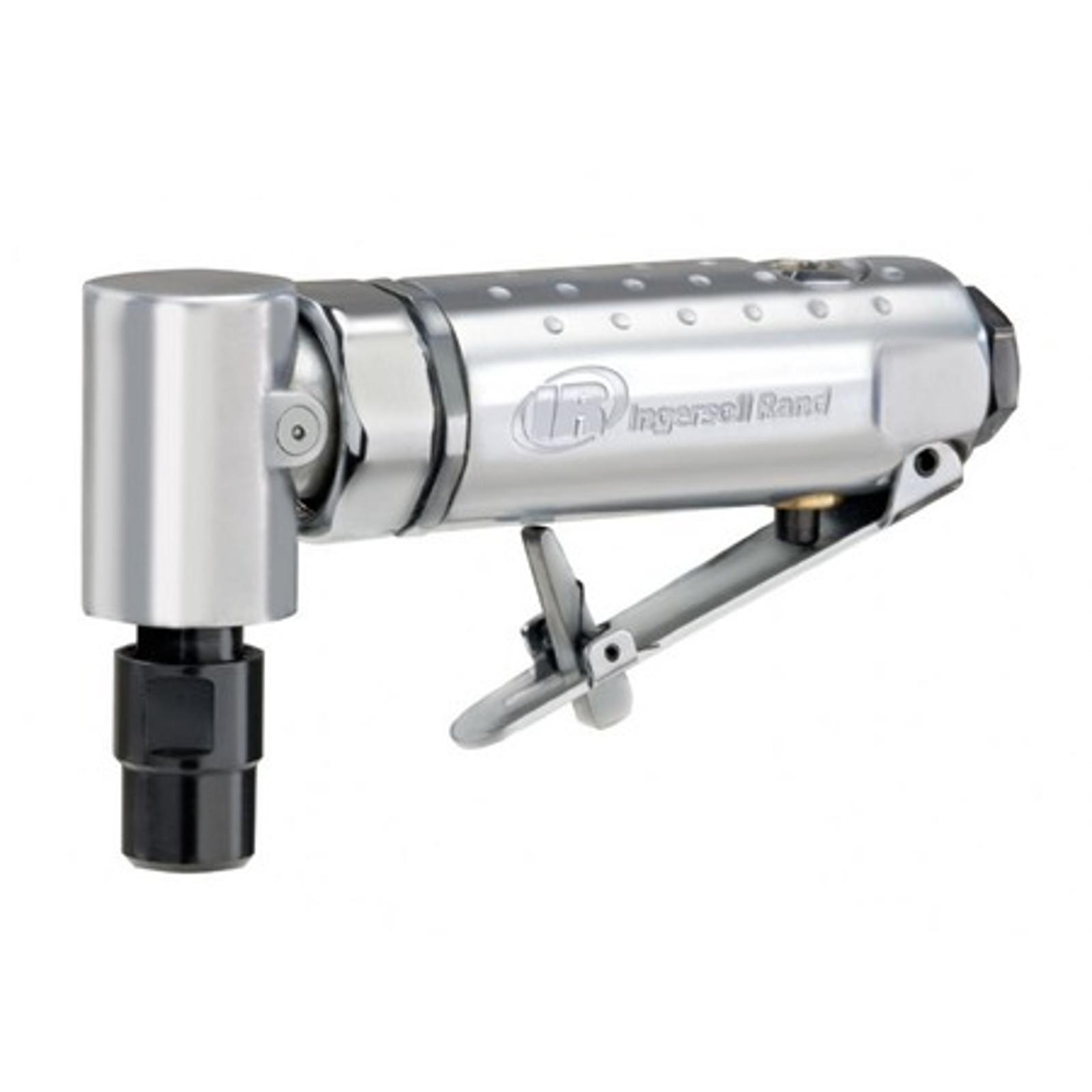

MAX Series Air Die Grinder

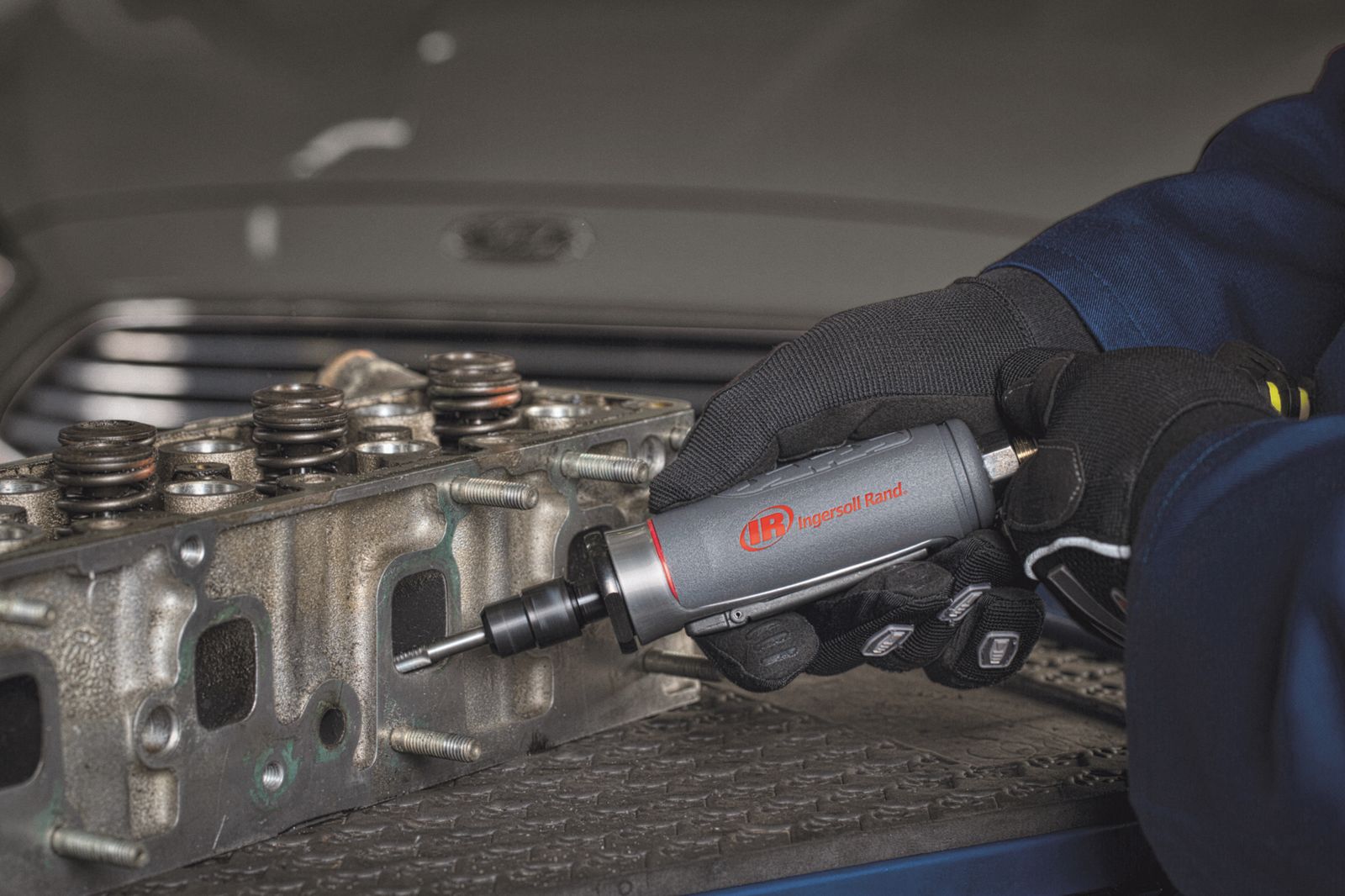

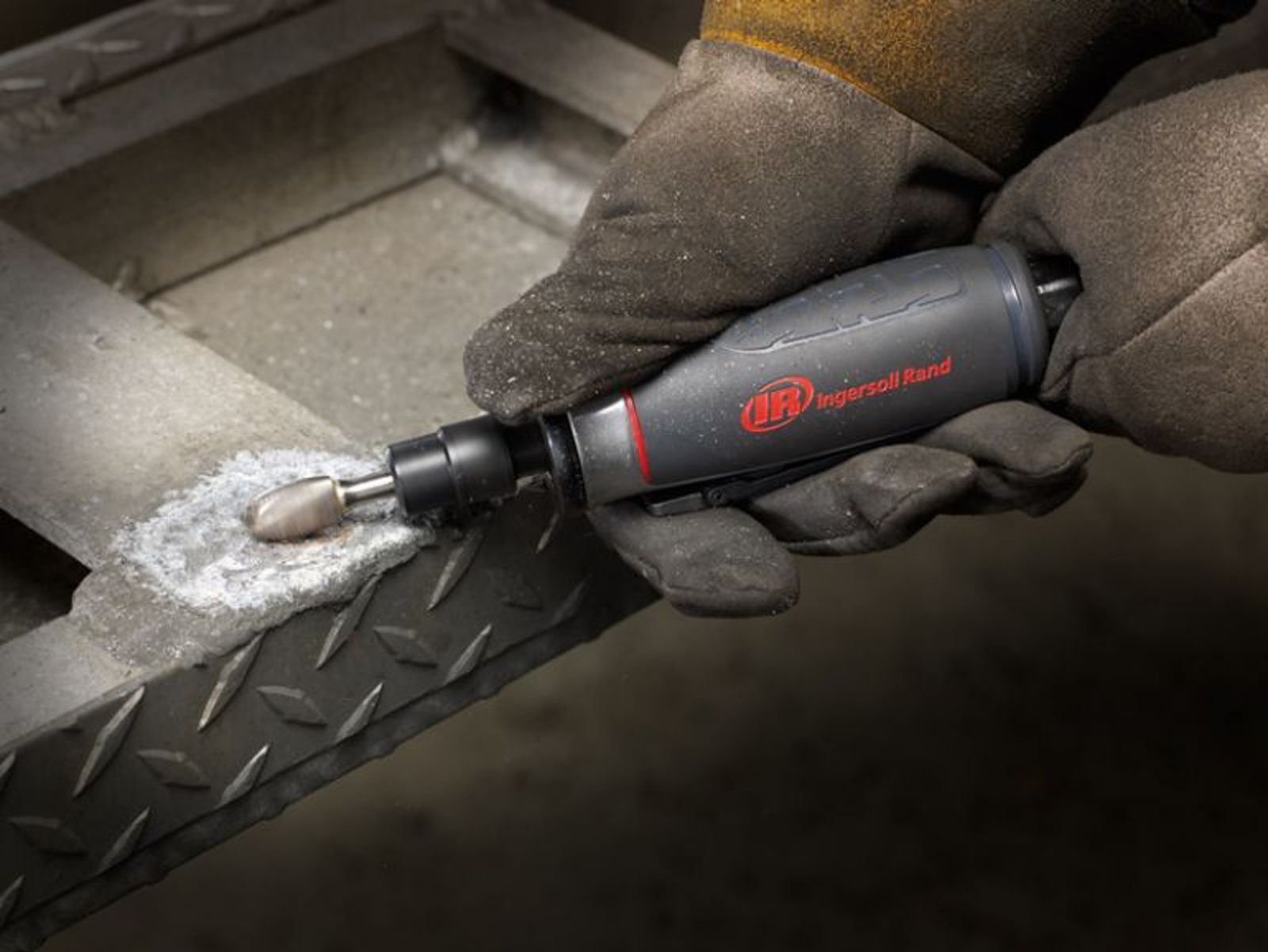

For the ultimate performance and versatility in a lightweight package with superior maneuverability, the MAX Series Die Grinders are perfect choices. Use this powerful grinder in various applications including porting, weld breaking, deburring, polishing or grinding.

MAX Power:

  • With a 0.4HP (0.3kW) motor and speeds up to 35,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.

MAX Productivity:

  • Spindle lock feature allows for quick abrasive changeovers reducing operator downtime (angle tools only).

MAX Comfort:

  • Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue and maximizes operator comfort during extended runtimes.

MAX Cleanliness:

  • Optimal lube free design eliminates oil contamination of the work piece and surrounding environment.

Model

Actuation

Configuration

Rated Power (hp)

Max Free Speed (rpm)

Product Weight (lbs)

Product Length (in)

Grinder Type

Wheel Type

Arbor/Collet

Housing Material

Exhaust Location

Vibration Level (m/s2)

Average Air Consumption (cfm)

Speed Setting

Min Hose Size (in)

Air Inlet

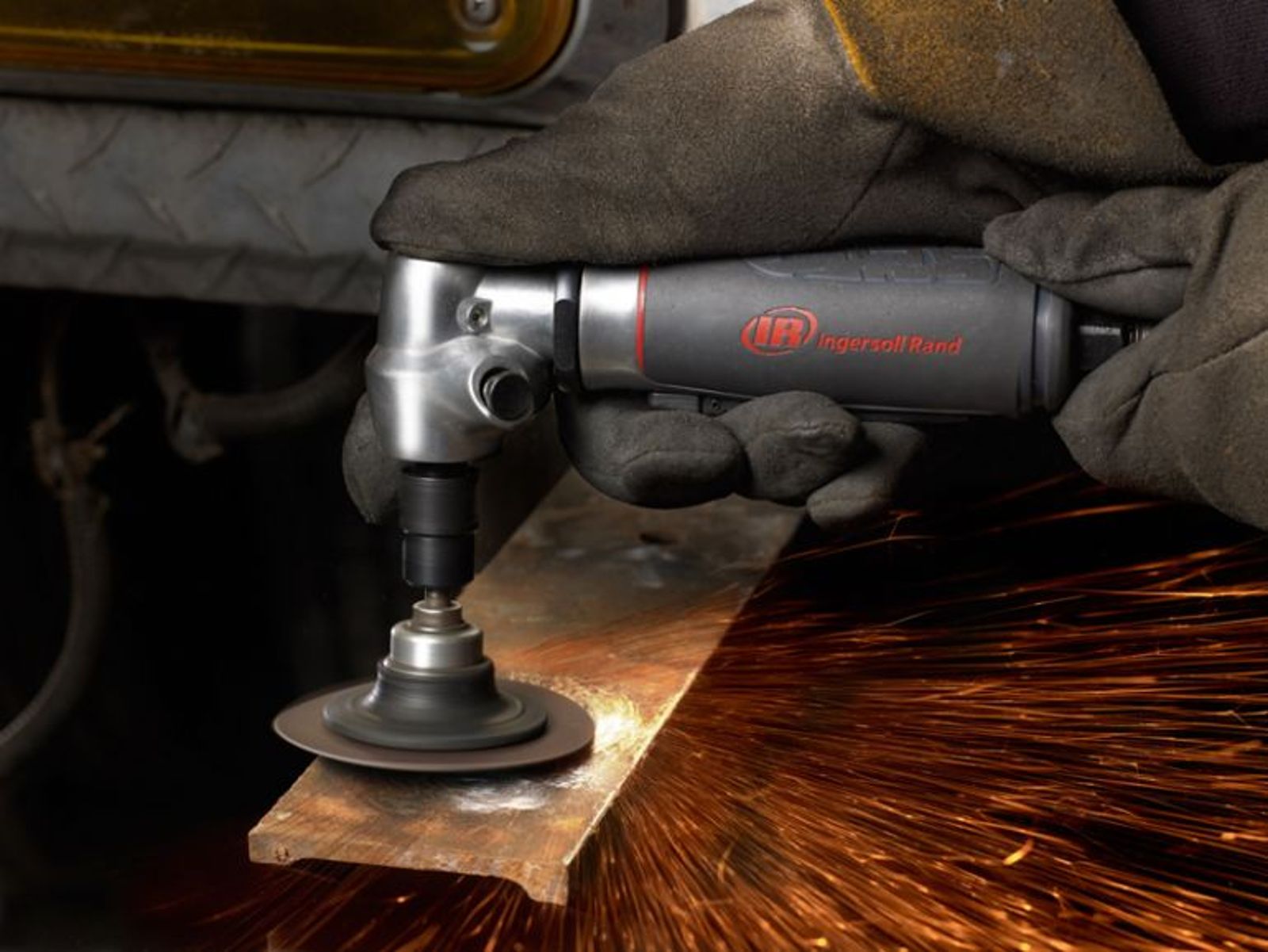

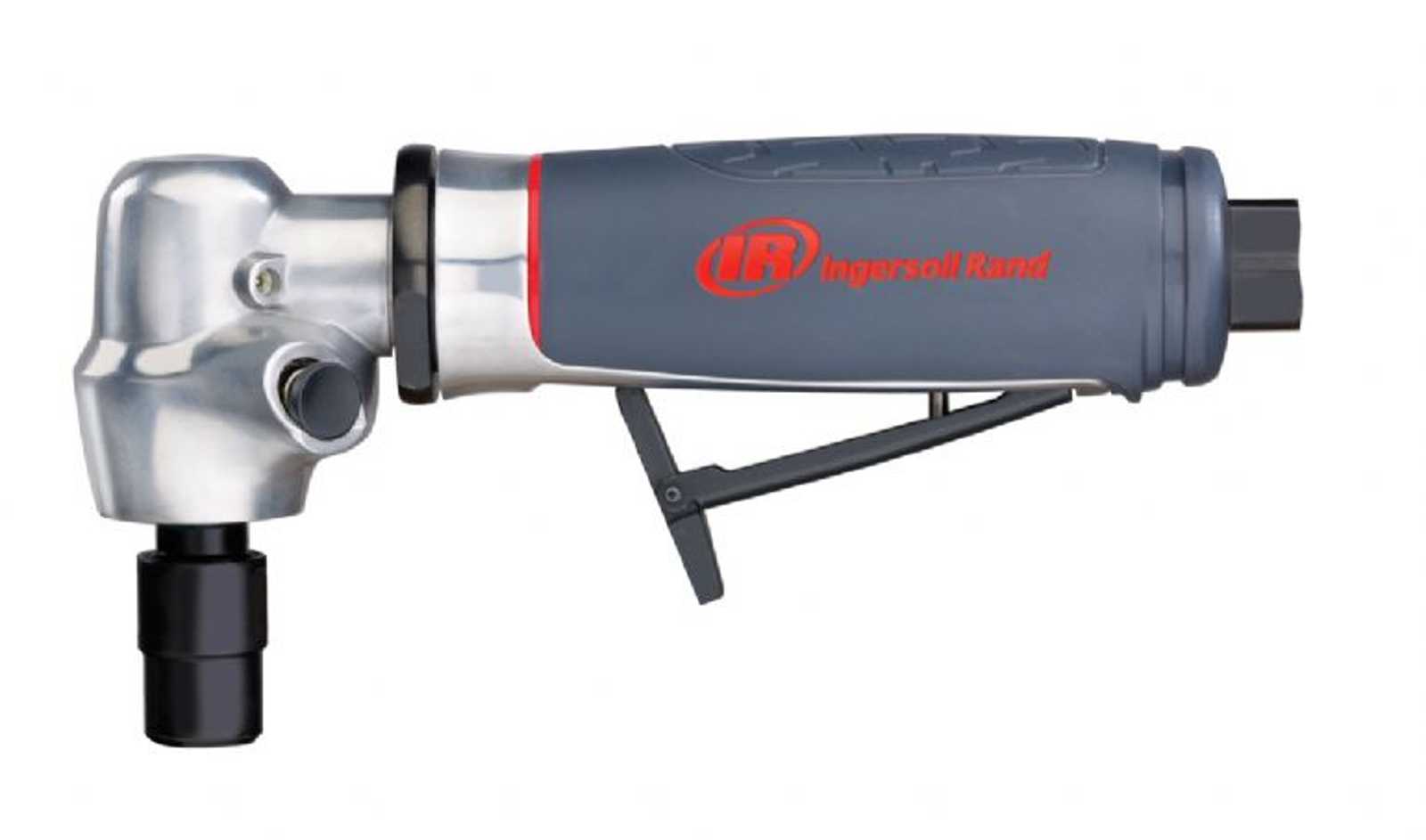

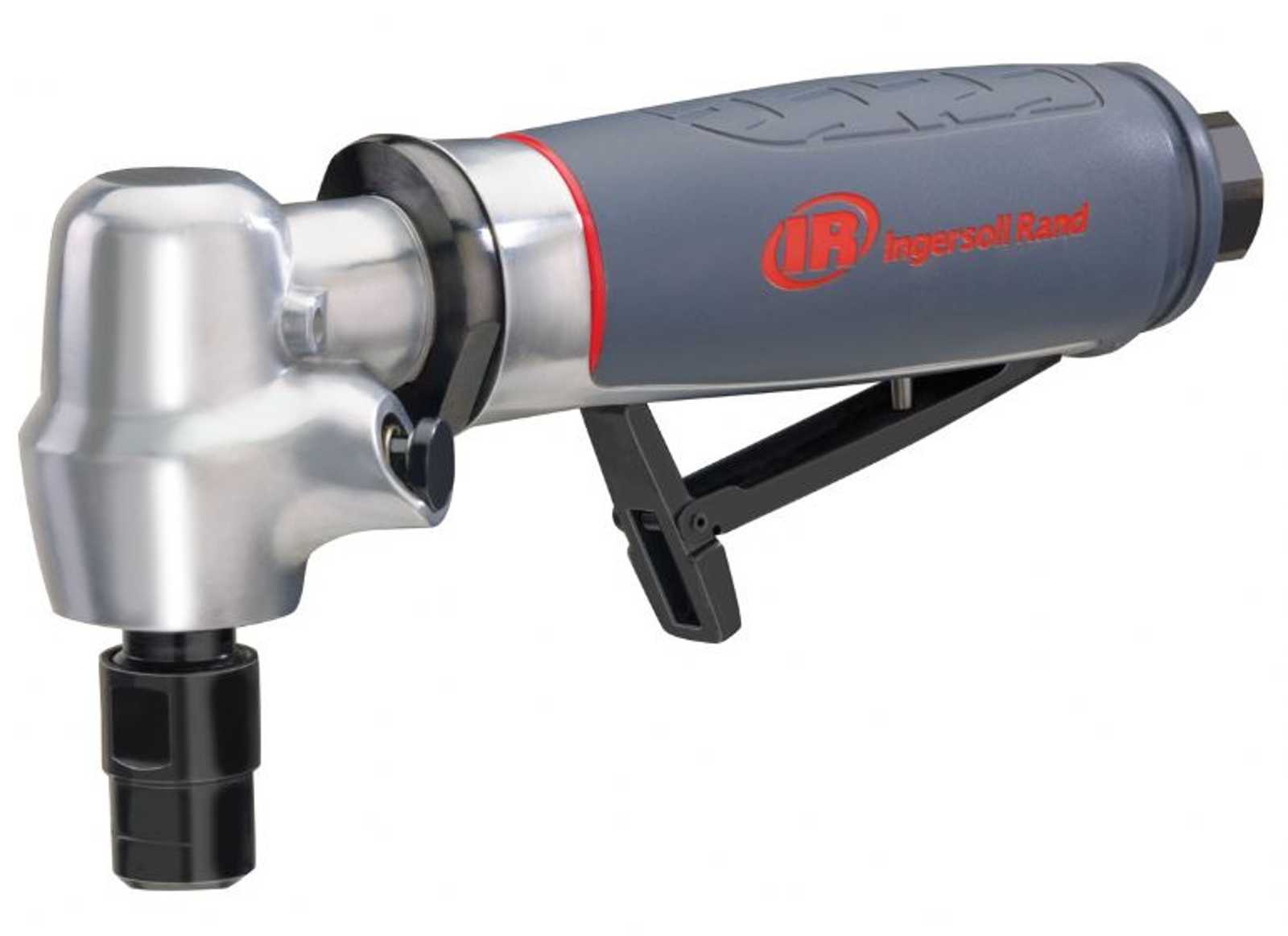

5102MAX

Safety Lever

Right Angle

0.4

20000

1.4

7

Die Grinder

Burr

1/4"

Composite

Rear

3.3

6

Variable Speed

3/8

1/4" NPT

5102MAX-24

Safety Lever

Right Angle

0.4

20000

1.4

7

Die Grinder

Burr

1/4"

Composite

Rear

3.3

6

Variable Speed

3/8

1/4" NPT

5103MAX-24

Safety Lever

Right Angle

0.4

20000

1.4

7

Die Grinder

Burr

1/4"

Composite

Rear

3.3

6

Variable Speed

3/8

1/4" NPT

5104MAX

Safety Lever

Right Angle

0.4

12000

1.4

7

Die Grinder

Burr

1/4"

Composite

Rear

4

6

Variable Speed

3/8

1/4" NPT

5106MAX

Safety Lever

Inline

0.4

35000

1

6.56

Die Grinder

Burr

1/4"

Composite

Rear

2.6

6

Variable Speed

3/8

1/4" NPT

5107MAX

Safety Lever

Inline

0.4

30000

1

6.56

Die Grinder

Burr

1/4"

Composite

Rear

3.5

6

Variable Speed

3/8

1/4" NPT

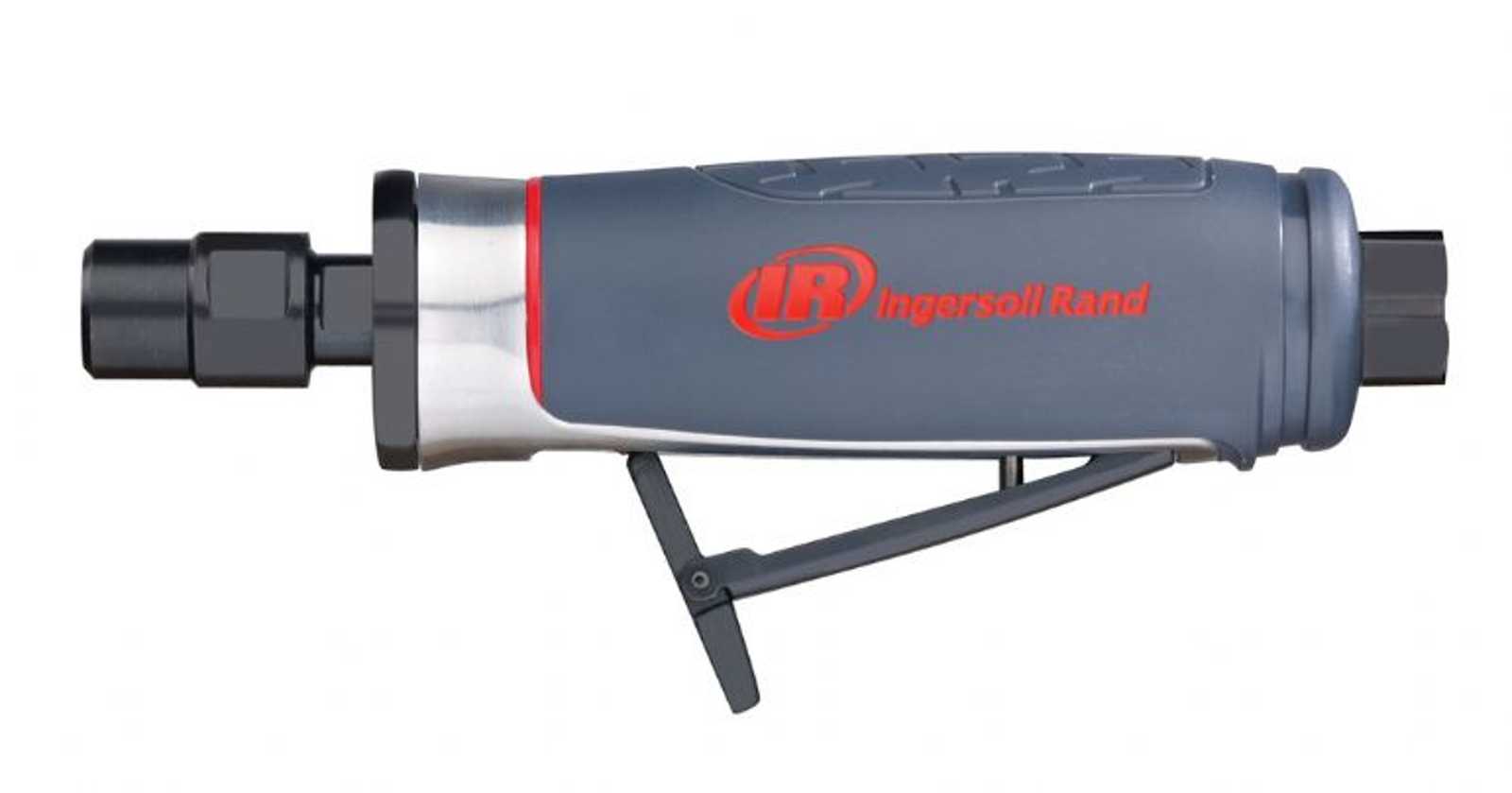

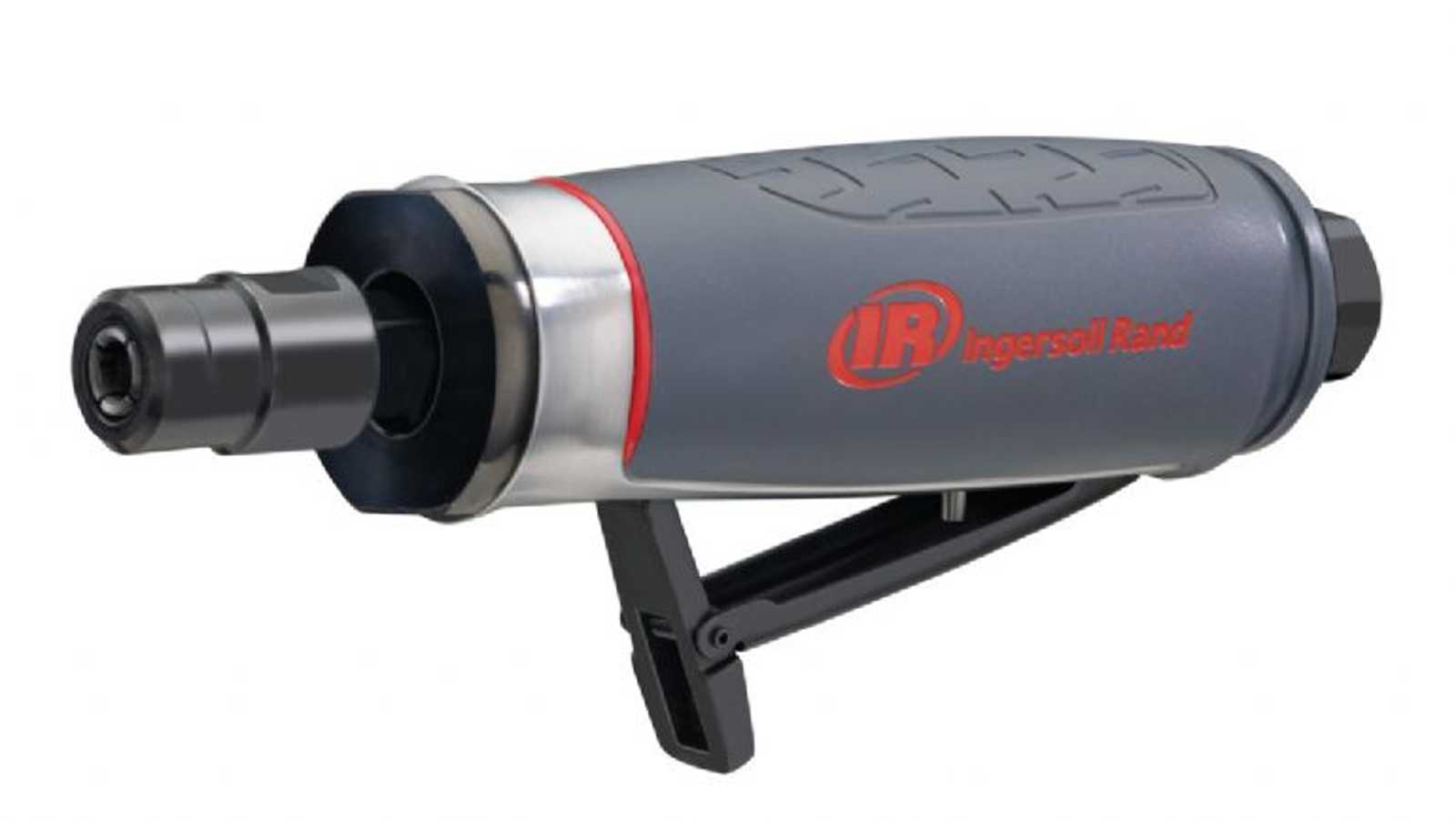

5108MAX

Safety Lever

Inline

0.4

25000

1

6.56

Die Grinder

Burr

1/4"

Composite

Rear

1.8

6

Variable Speed

3/8

1/4" NPT

5109MAX-24

Safety Lever

Inline

0.3

20000

1.1

6.6

Die Grinder

Burr

1/4"

Composite

Rear

1.8

5.3

Variable Speed

3/8

1/4" NPT

5208MAX

Safety Lever

Extended Inline

0.4

25000

1.4

9.6

Die Grinder

Burr

1/4"

Composite

Rear

2.98

6

Variable Speed

3/8

1/4" NPT
