2161, 2171 Series Air Impact Wrench

The metal housing and steel hammer case of the 2161 | 2171 Series Impact Wrench makes this one of the toughest tools on the market. You’ll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.
Durability:
  • This heavy-duty impact wrench is tough enough to handle harsh environments and repeated drops.
Versatility:
  • The 2161 | 2171 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
Increased Safety:
  • The square pin drive of the 2161 | 2171 Series provides the strongest connection to the socket to increase safety, especially when doing overhead work.

Model

Configuration

Actuation

Drive Size (in)

Anvil Length

Drive Type

Max Reverse Torque (ft-lbs)

Max Free Speed (rpm)

Free Speed Sound Pressure/Power Db(A)

Weight (lb)

Height (in)

Length (in)

Air Inlet

Min Hose Size (in)

Avg Air Consumption (cfm)

2161P

Pistol Grip

Trigger

3/4

Standard

Square

1,250

6,000

97.7 / 108.7

12.14

9.5

8.5

3/8" NPT

1/2

10

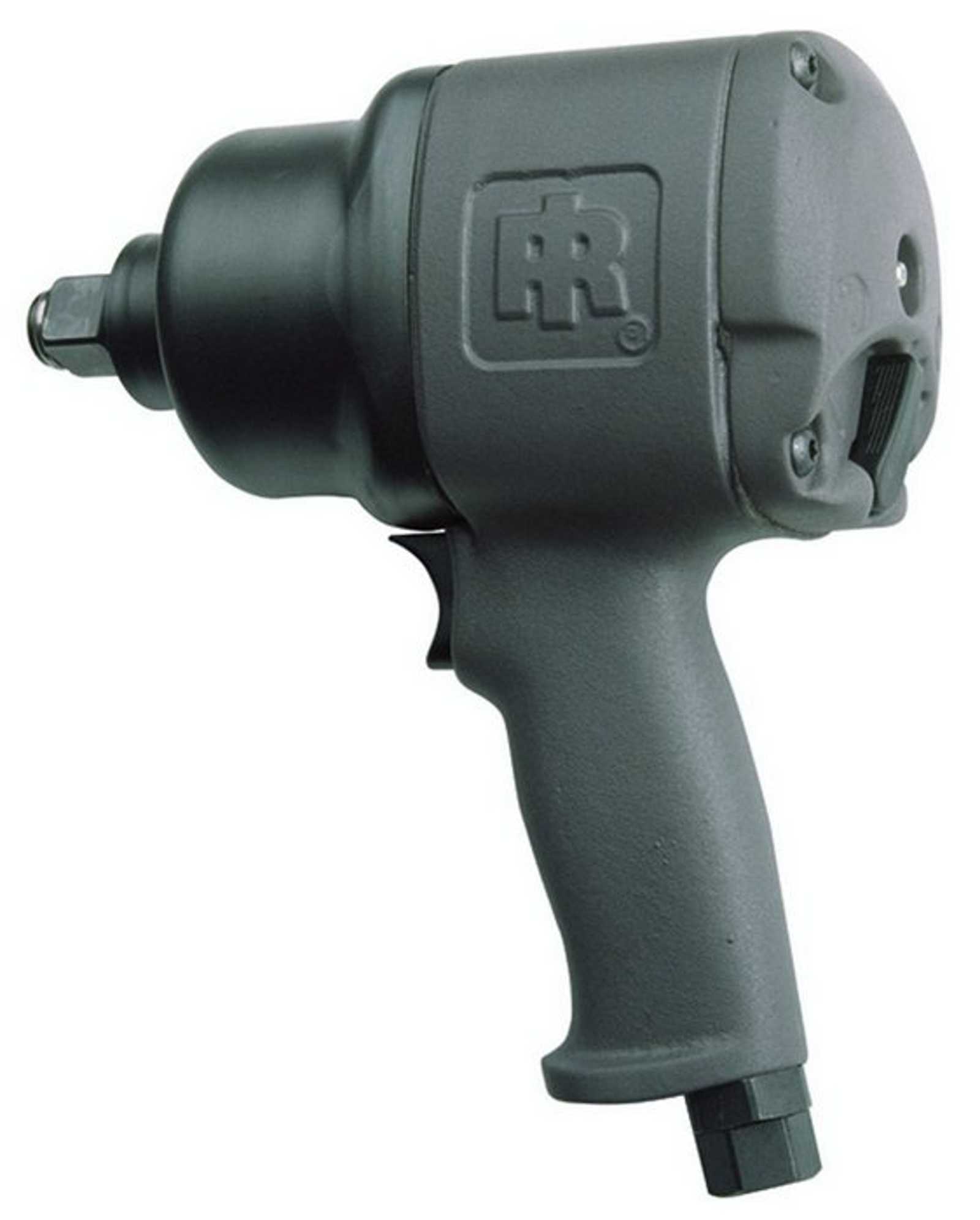

2161XP

Pistol Grip

Trigger

3/4

Standard

Square

1,250

6,000

97.2 / 108.2

12.14

9.5

8.5

3/8" NPT

1/2

10

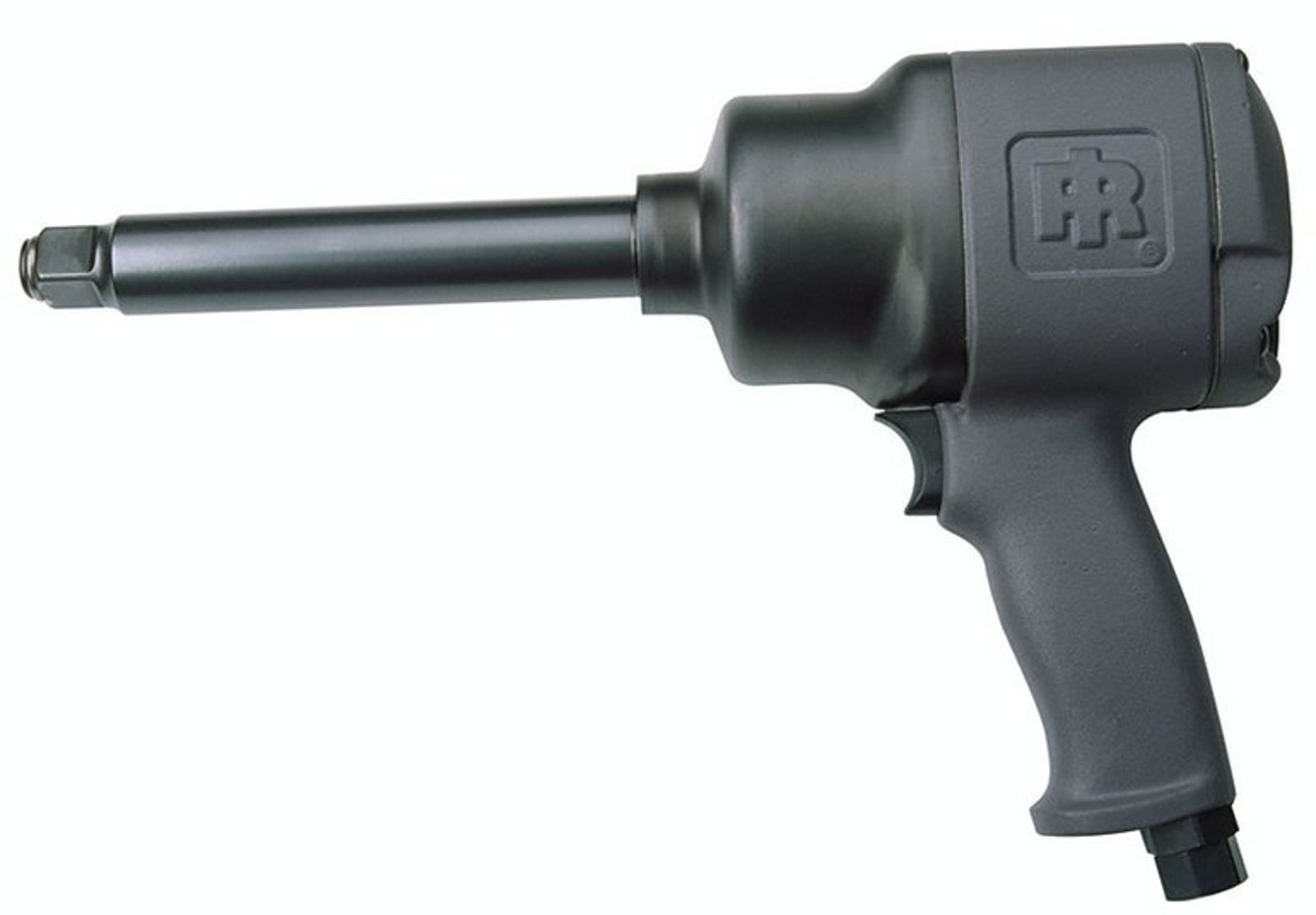

2161XP-6

Pistol Grip

Trigger

3/4

6" Extended

Square

1,250

6,000

97.2 / 108.2

13.11

9.5

14.5

3/8" NPT

1/2

10

2171P

Pistol Grip

Trigger

1

Standard

Square

1,250

6,000

97.7 / 108.7

12.32

9.5

8.5

3/8" NPT

1/2

10

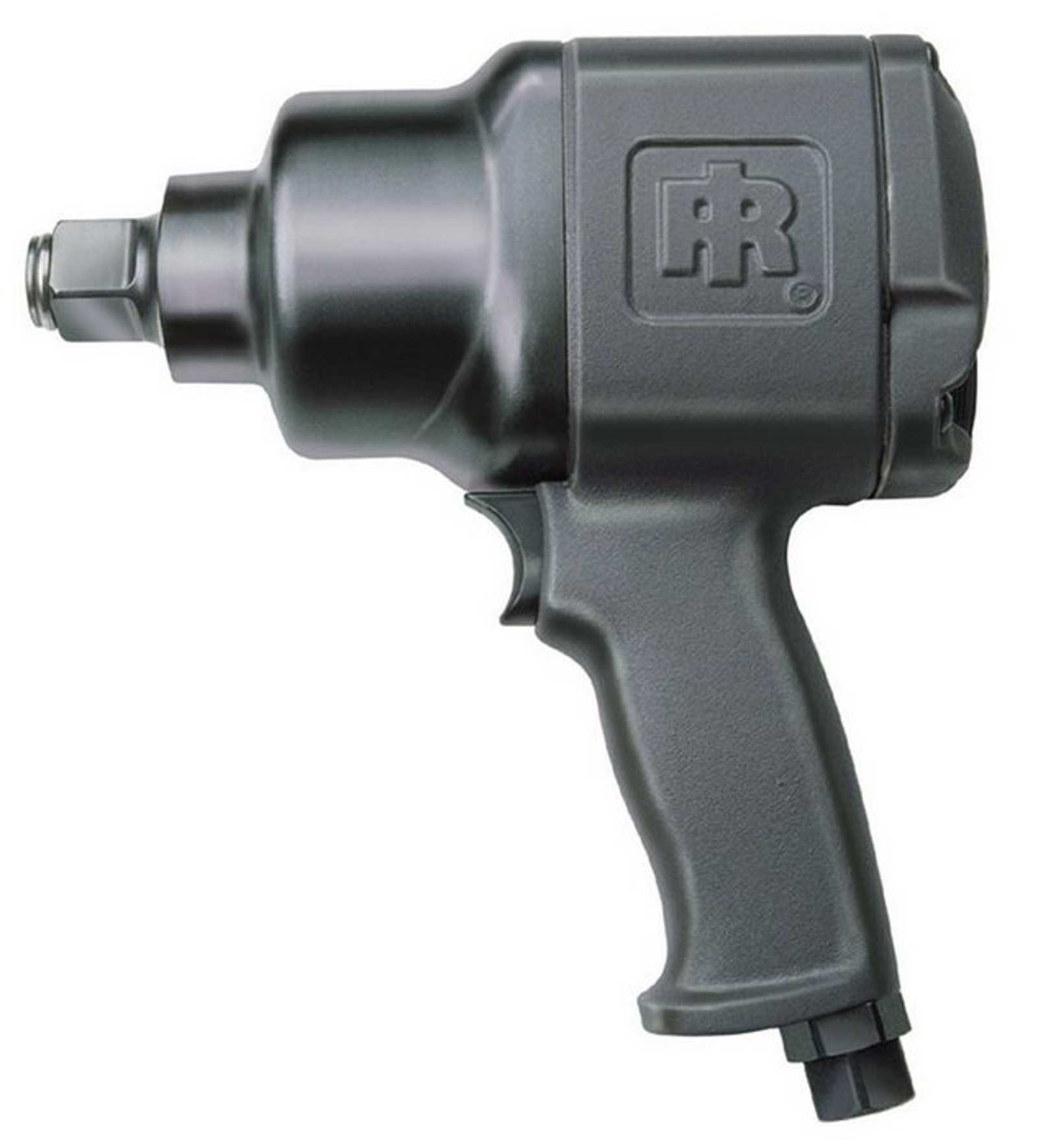

2171XP

Pistol Grip

Trigger

1

Standard

Square

1,250

6,000

96.4 / 106.3

12.32

9.5

8.5

3/8" NPT

1/2

10
