- Closed-loop transducer delivers a torque accuracy of +/- 5%.
- Enhanced quantitative feedback – displaying the actual measured torque or angle result.
- Integrated gearbox provides premium quality and accuracy.
- Brushless Motor offers maximum durability.
- Intuitive qualitative feedback using green, red, and yellow indicators.
- 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options.
- Standard or custom reaction arms available to match your application needs.
- Optional wireless communication for process control with I/O and data collections (USB connection standard).

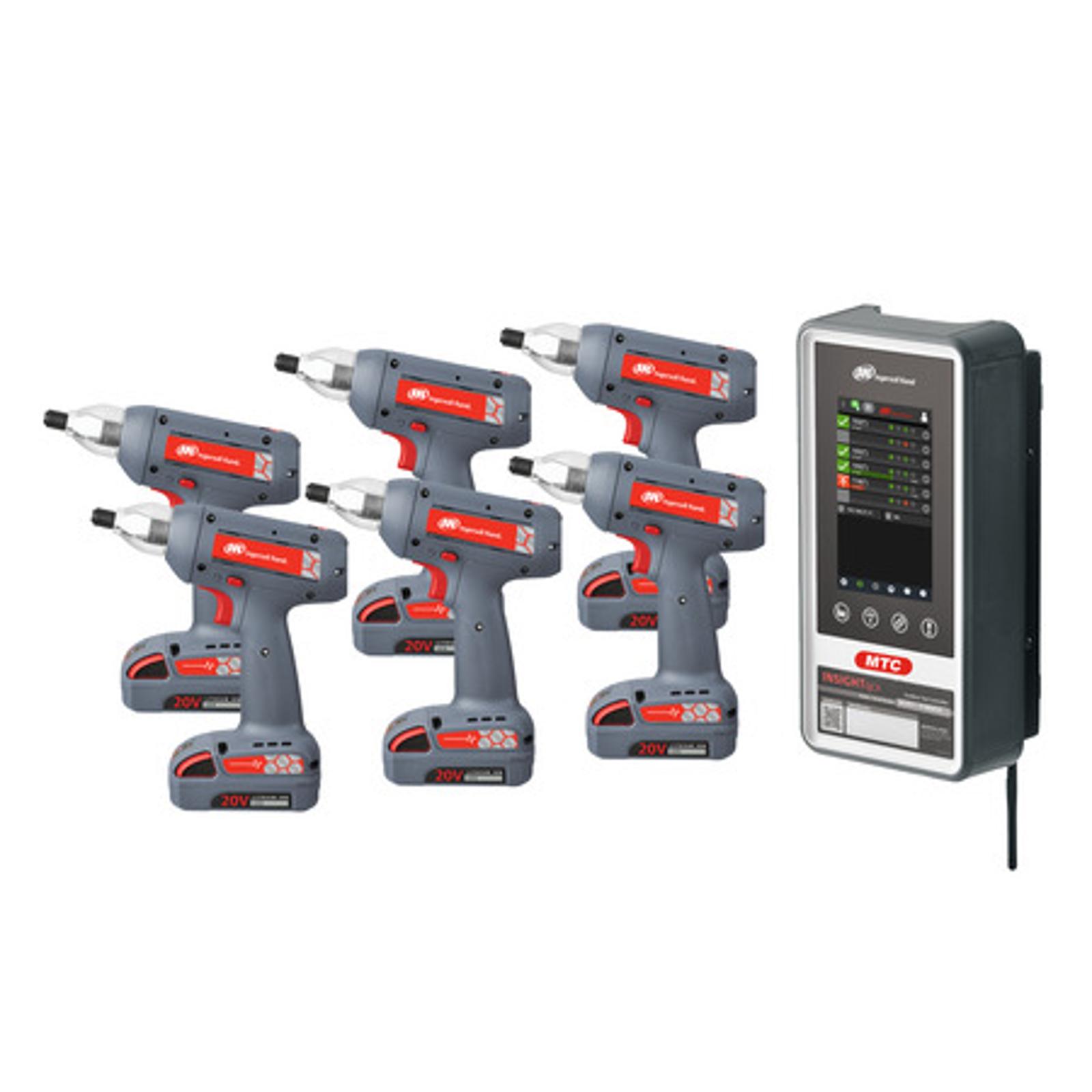

- Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key.
- Offer option for Insight Connect Android APP.

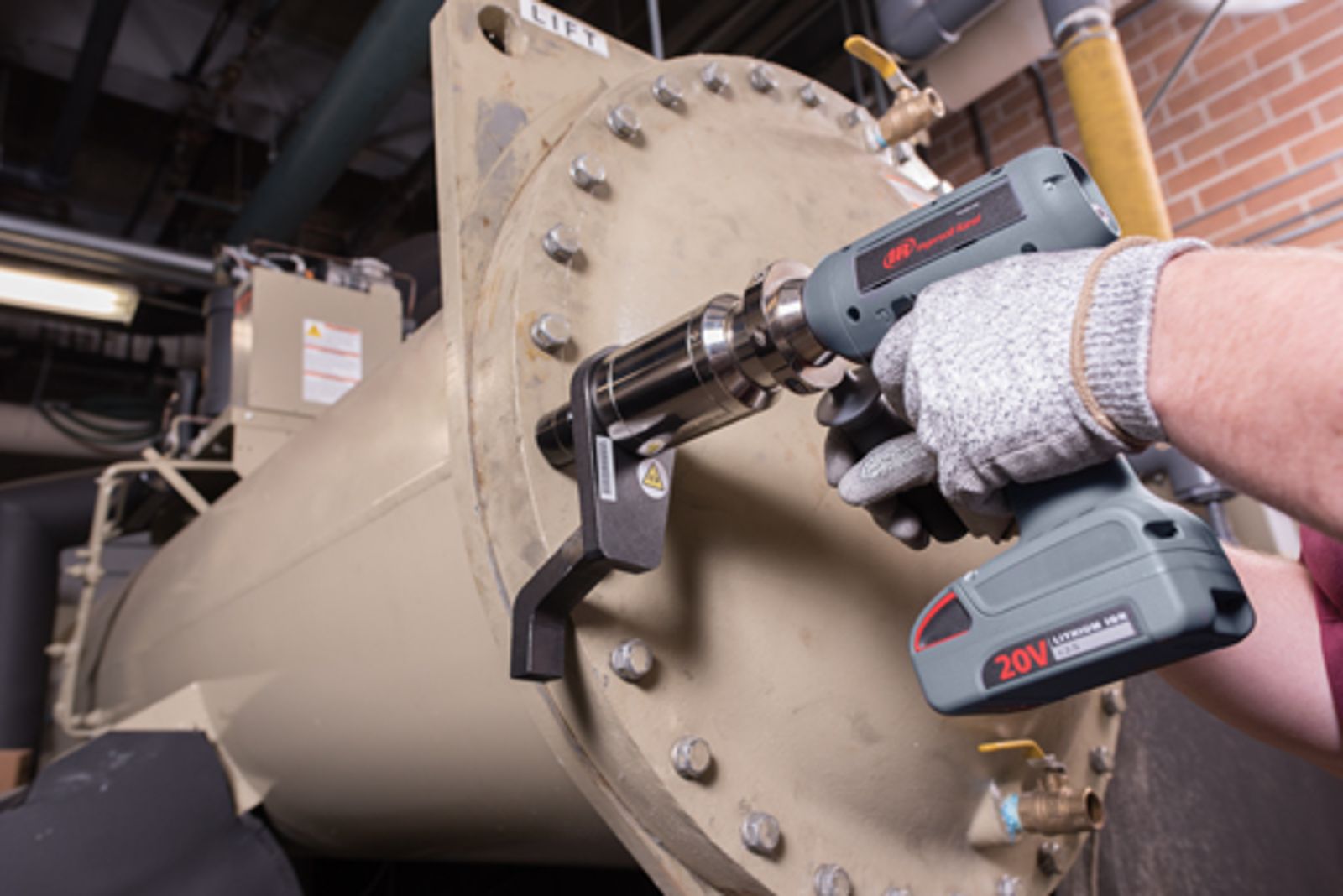

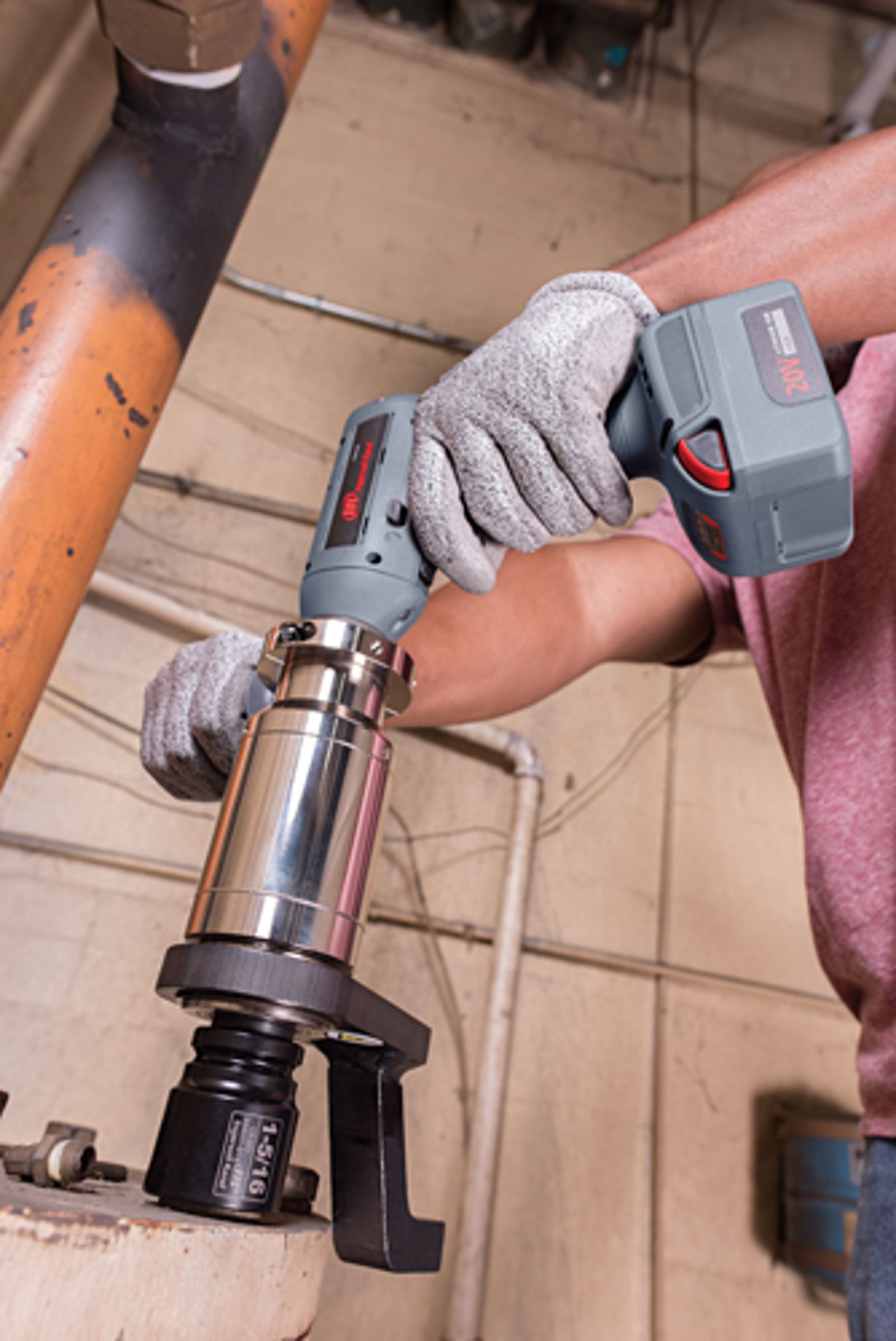

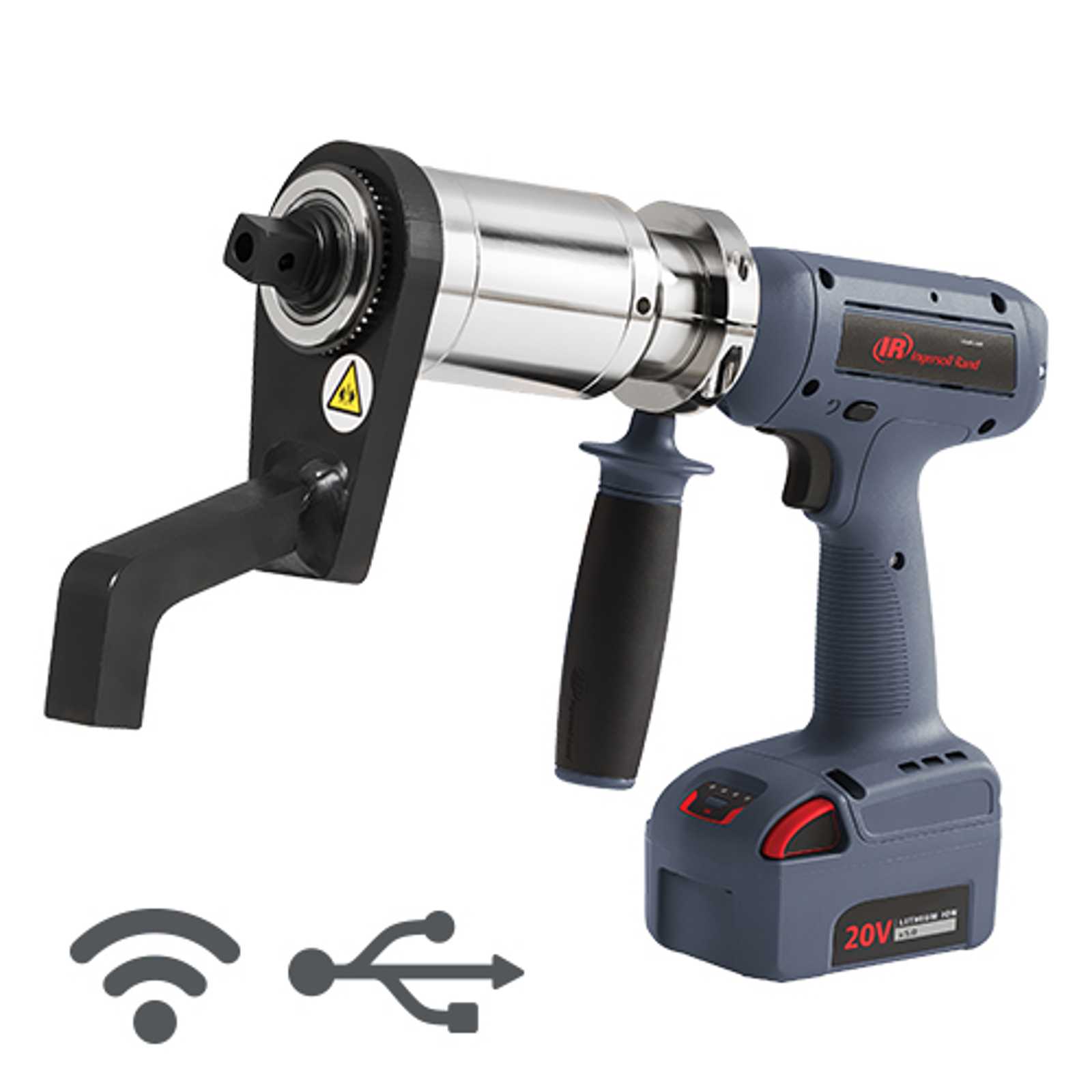

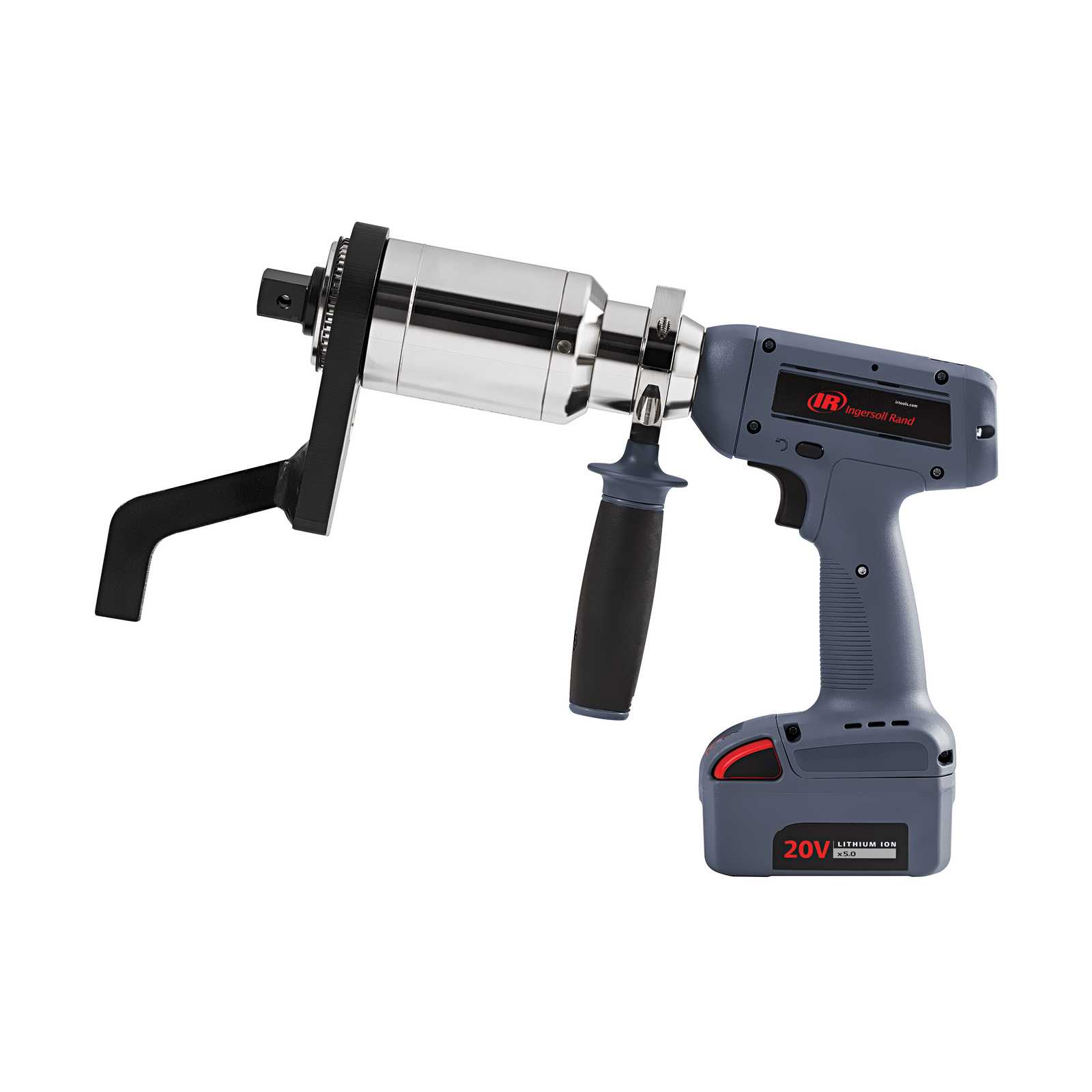

The QX Series™ 2-Speed Cordless Torque Multiplier consists of an automatically shifting two-speed gearbox that provides 5x faster run-down speeds and then automatically shifts down to a high torque speed for final torque.
Designed with a premium Norbar™ gearbox and an efficient, time-tested closed-loop transducer, this tool will fasten the bolt, validate, and record each result, managing your total operation.
Model | Item | Torque (ft-lb) | Torque (Nm) | RPM | Weight (lb) | Weight (kg) | Length (in) | Length (mm) | Width (in) | Width (mm) | Drive Size (in) | Voltage | Communication |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
QXC2PT200NPS12 QXX2PT200NPS12 QXC2P200PS12K2-EU | Bare Tool | 30 - 148 | 40 - 200 | 43 | 8 | 3.62 | 14.69 | 373 | 2.2 | 56 | 3/4" | 20V | Via USB Cable Only/ Wireless Enabled/ Via USB Cable Only |
QXC2PT500NPS12 QXX2PT500NPS12 QXC2P500PS12K2-EU | Bare Tool | 74 - 369 | 100 - 500 | 15 | 8 | 3.62 | 14.69 | 373 | 2.2 | 56 | 3/4" | 20V | Via USB Cable Only/ Wireless Enabled/ Via USB Cable Only |
QXC2PT1000NPS12 QXX2PT1000NPS12 QXC2P1000PS12K2-EU | Bare Tool | 148 - 738 | 200 - 1000 | 8 | 12 | 5.44 | 16.5 | 419 | 3.14 | 80 | 3/4" | 20V | Via USB Cable Only/ Wireless Enabled/ Via USB Cable Only |
QXC2PT1350NPS16 QXX2PT1350NPS16 QXC2P1350PS16K2-EU | Bare Tool | 200 - 996 | 270 - 1350 | 6 | 12 | 5.44 | 16.5 | 419 | 3.14 | 80 | 1" | 20V | Via USB Cable Only/ Wireless Enabled/ Via USB Cable Only |
QXC2PT2000NPS16 QXX2PT2000NPS16 QXC2P2000PS16K2-EU | Bare Tool | 295 - 1475 | 400 - 2000 | 4 | 15 | 6.8 | 17.8 | 452 | 3.14 | 80 | 1" | 20V | Via USB Cable Only/ Wireless Enabled/ Via USB Cable Only |
