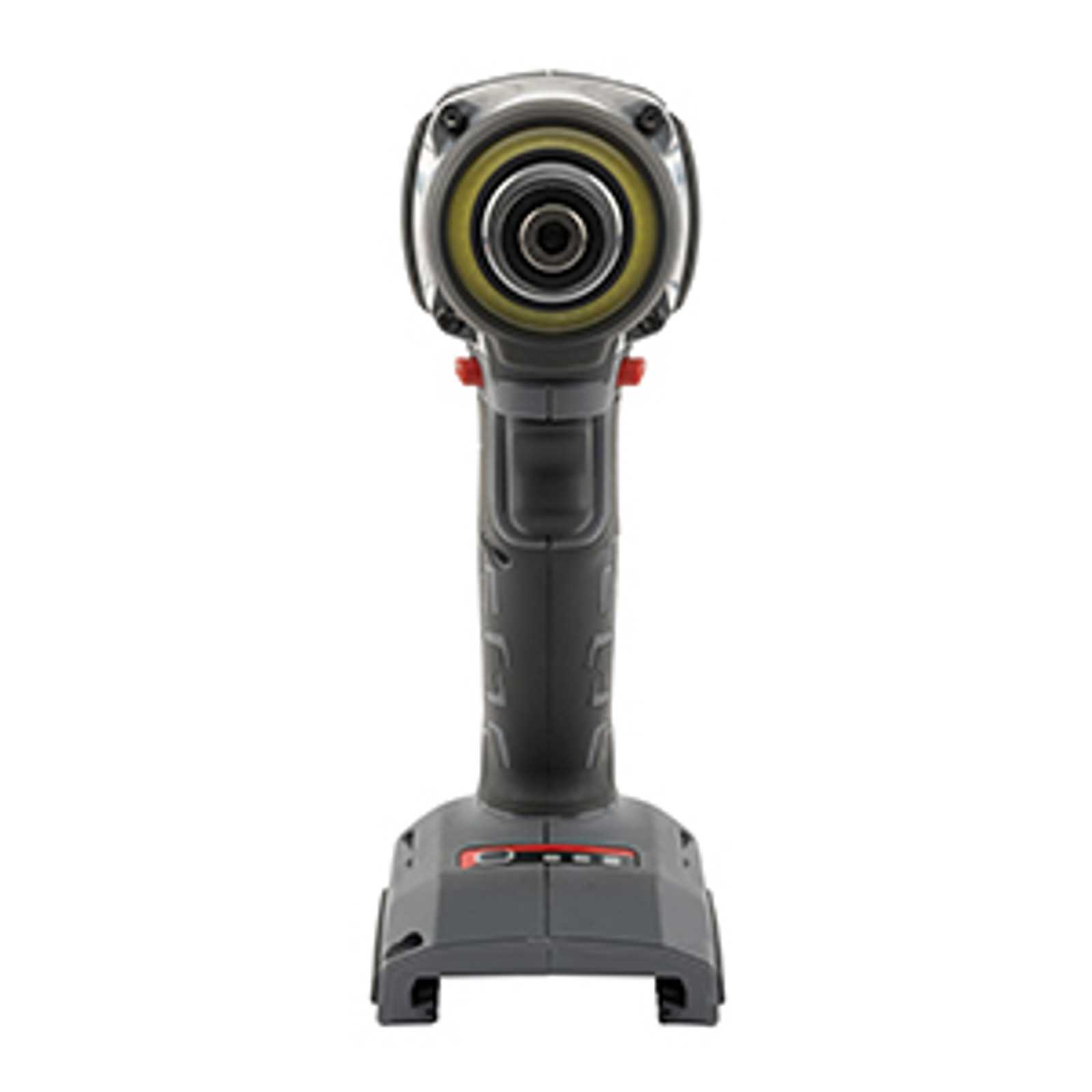

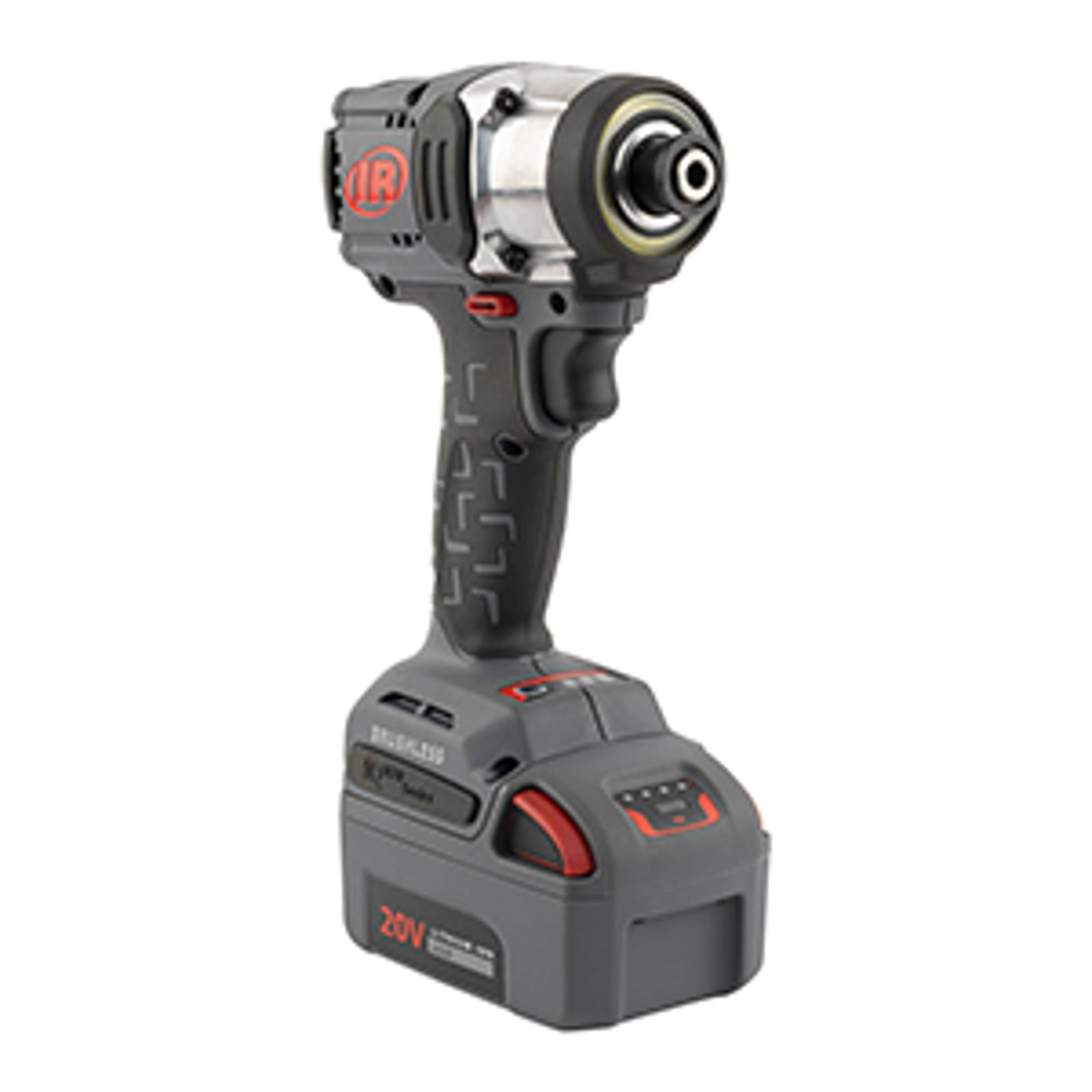

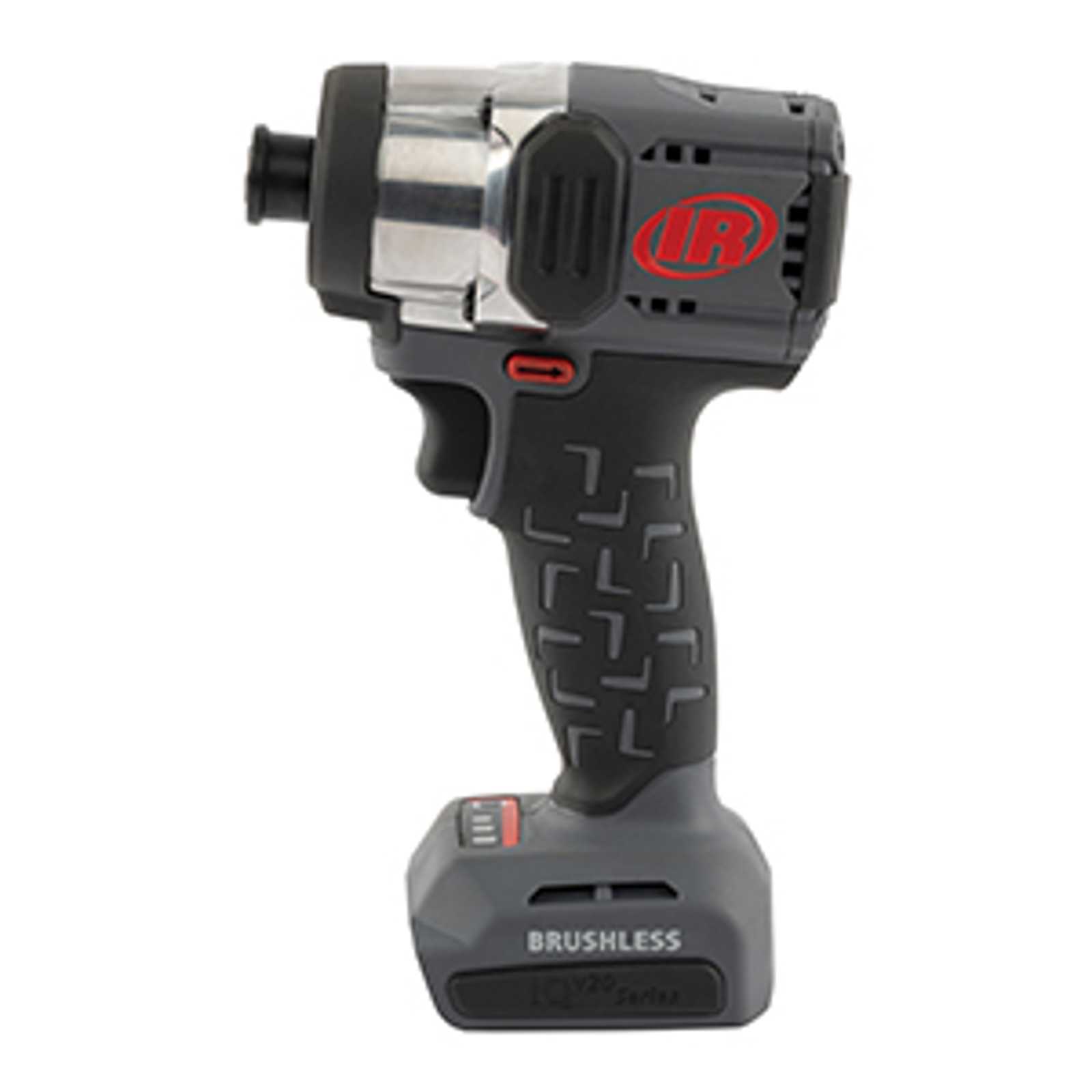

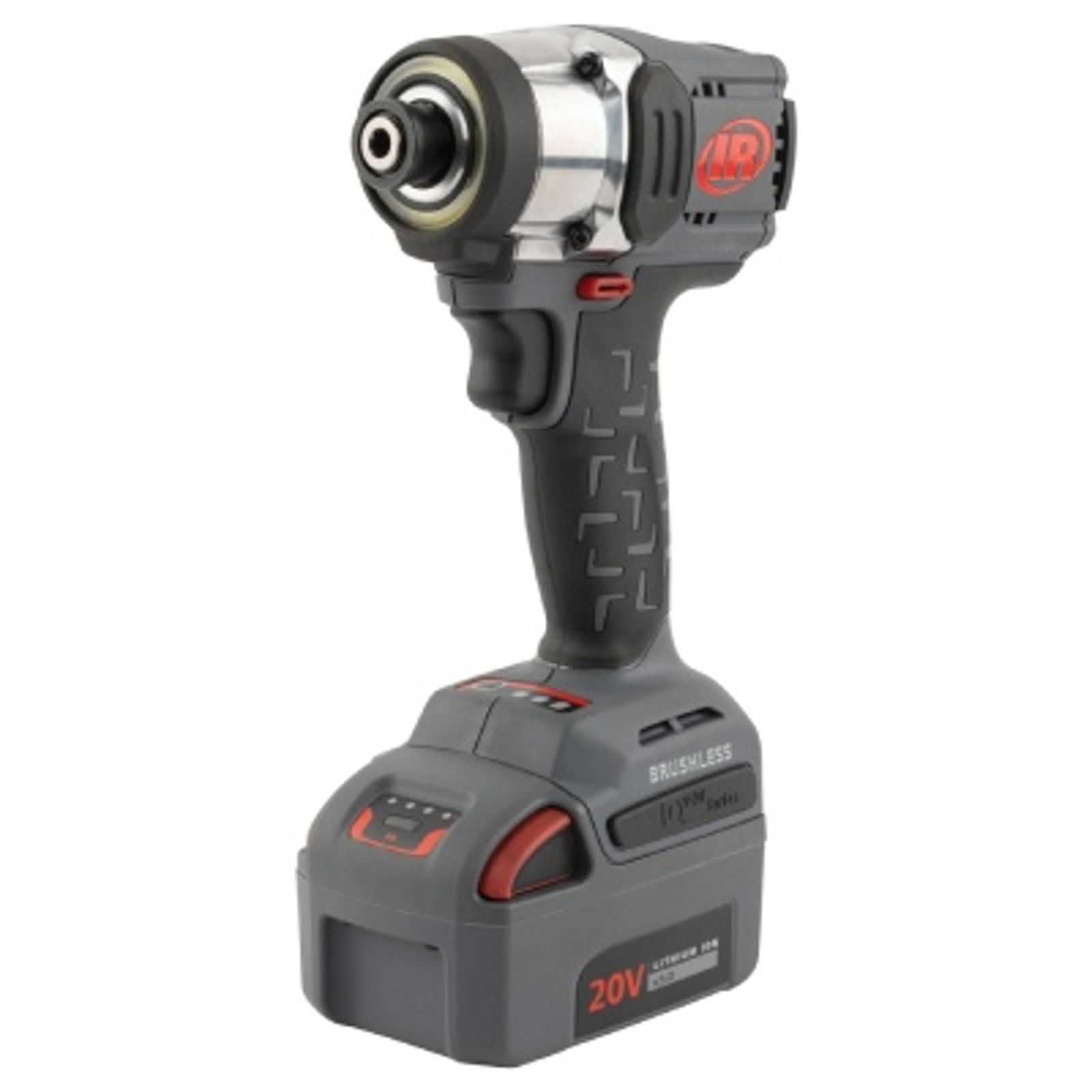

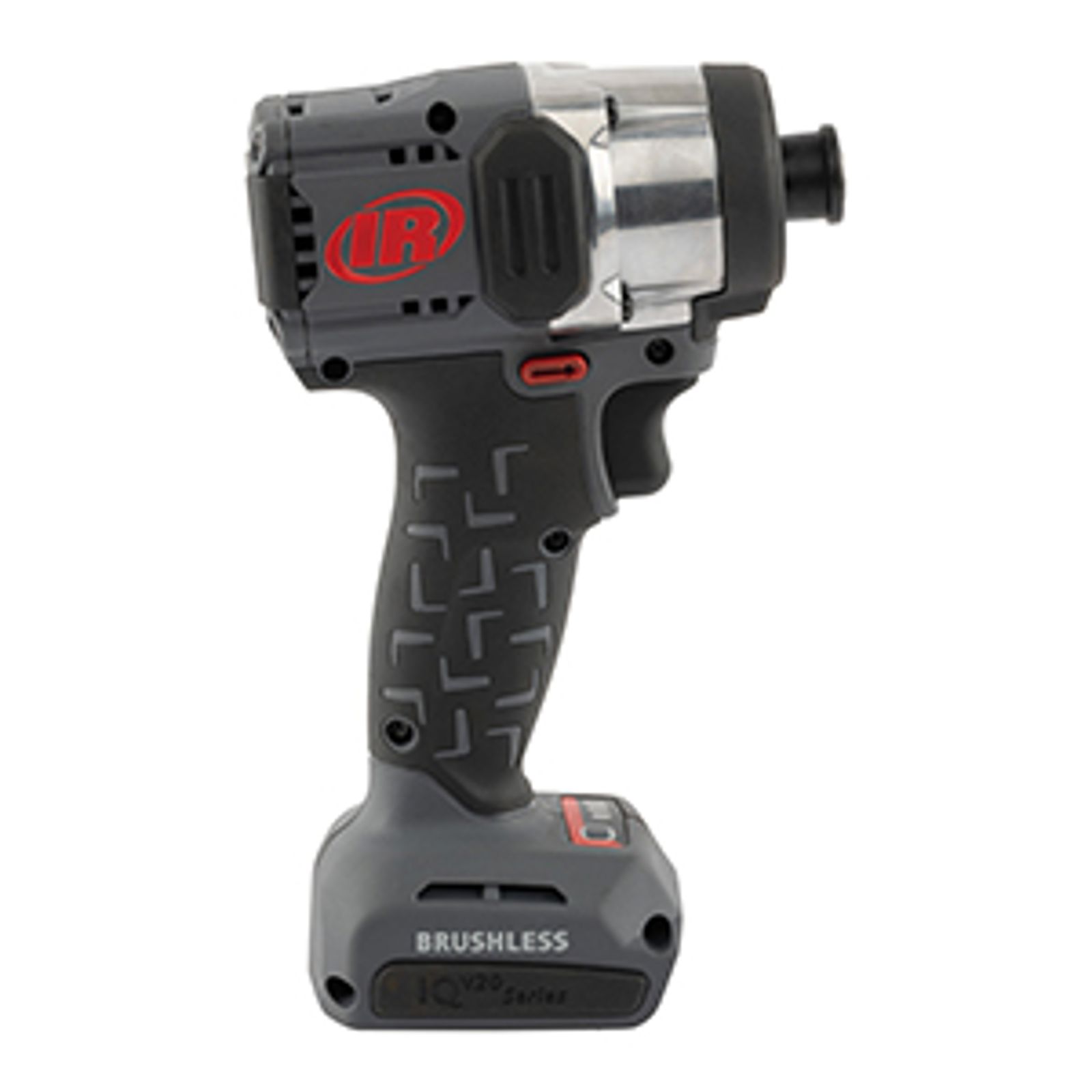

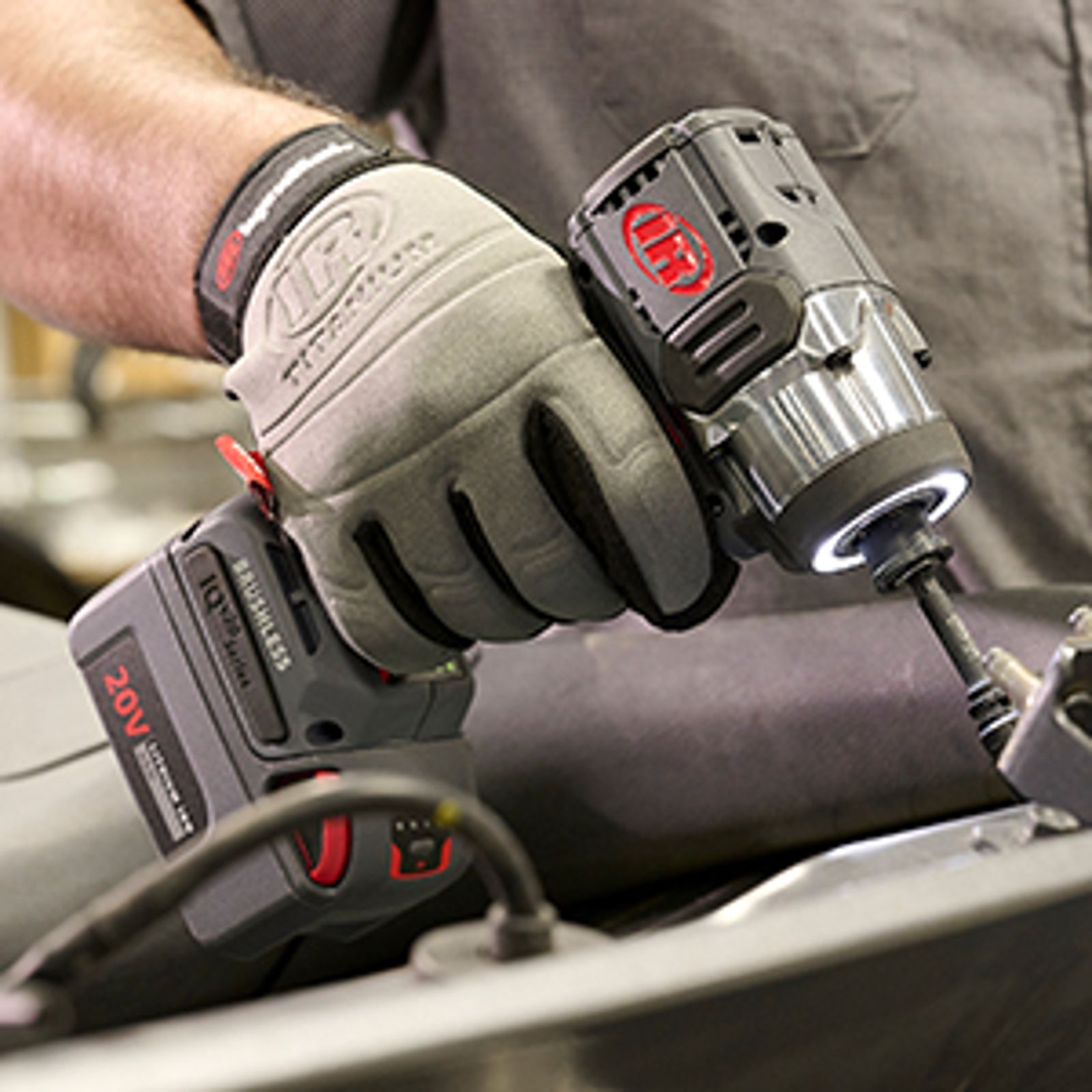

W3111 IQV20™ 1/4" Cordless Compact Impact Driver

Ingersoll Rand® grows its IQV20™ system with the W3111 IQV20™ 1/4" Compact Impact Driver. Its brushless motor delivers up to 4,200 in-lbs. of breakaway torque to quickly complete demanding applications. A compact form factor with 5.2" tip-to-tail length and weight under 2.3 lbs. provide excellent control and maneuverability in tight workspaces.

Cordless Performance:

  • 1/4" hex drive with quick release collet for use with impact rated bits
  • Efficient brushless motor technology delivers superb power and runtime
  • Fastening torque over 3,400 in-lbs, as powerful as pneumatic
  • Free speed of 2,800 RPM to quickly drive fasteners before impacting stage

Lightweight & Compact:

  • Lightest in its class at 2.3lbs, reduces fatigue and improves tool control
  • Easily access tight spaces with short 5.2” tip-to-tail length and overall compact size
  • Overmolded ergonomic grip provides comfort for extended periods of use

Versatility:

  • Patented 360⁰ shadowless LED light ring illuminates fastener from all sides
  • 3 speed options with variable speed trigger to cover a wide range of applications
  • Impact resistant bumpers on upper and lower house to maximize durability
  • Includes a 3-year limited warranty

Available in the following kits:

Model

System

Drive Type

Light

Breakaway Torque (in-lbs)

Fastening Torque (in-lbs)

Free Speed (rpm)

Impacts/Min (bpm)

Weight lbs (kg)

Length in (mm)

W3111

IQV20TM

1/4" Hex

360° LED

4,200

3,400

2,800

4,200

2.3 (1.0)

5.2 (132)

W3111 Flyer

2.1 MB, PDF

W3111, W3131, W3151 Product & Safety Manual (EN, FR)

2.2 MB, PDF

W3001 Series User Manual (EN, ES, FR, PT)

3.9 MB, PDF

W3111, W3131, W3151 Declaration of Conformity

703 KB, PDF
