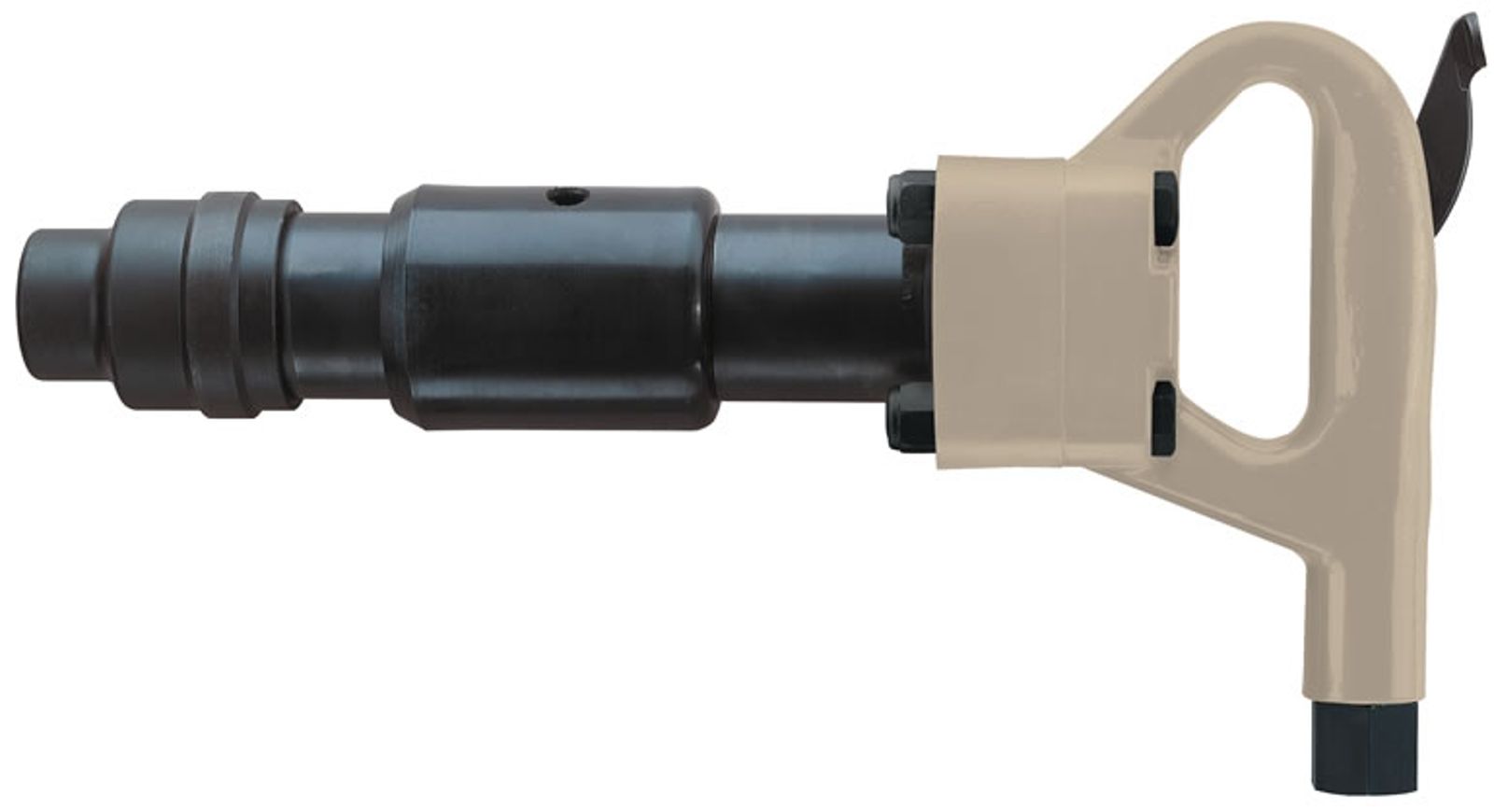

D-Series Chipping Air Hammer

Maximize efficiency on the job with the D Series Chipping Hammers, engineered for precision and reliability. These compact tools are perfect for a variety of applications, from light demolition to intricate metal removal. Experience the convenience of an easily serviceable D-handle and enjoy a cleaner work environment thanks to the directional exhaust feature. With their lightweight design, these chipping hammers promise ease of use and reduced operator fatigue, making them a dependable addition to your toolkit.

Versatile Application:

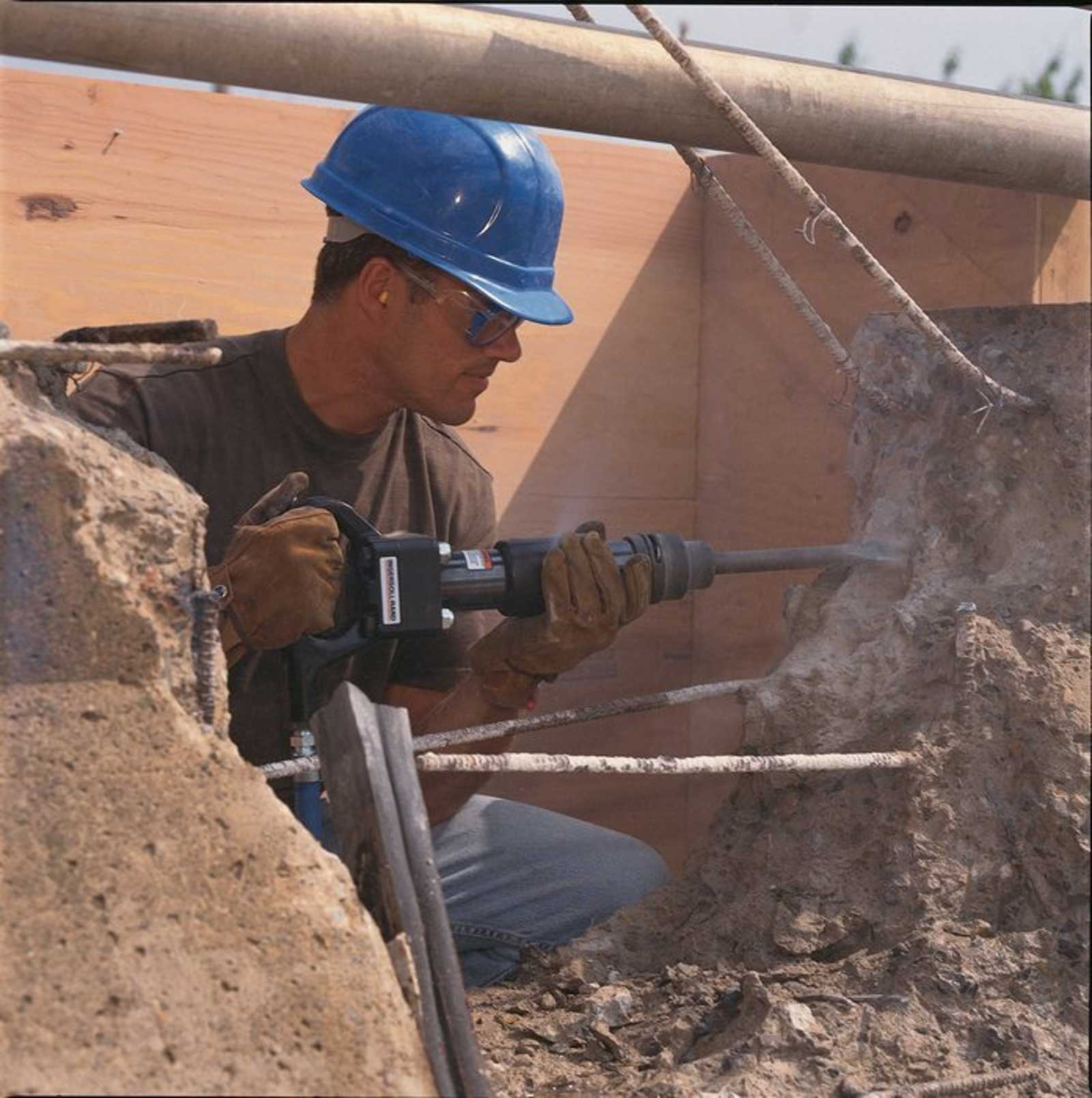

  • From light demolition to precise metal removal, these chipping hammers are great for wide range of construction and renovation tasks.

Ergonomic D-Handle:

  • Maintenance is simplified with an easily serviceable D-handle that also enhances user comfort during operation.

Directional Exhaust:

  • Keep your workspace free from air disturbances with a directional exhaust that channels air and debris away from the user and the job at hand.

Lightweight:

  • The D Series chipping hammers boast a design that minimizes user fatigue while maximizing maneuverability.

Steel Cone for Bit Security:

  • Equipped with a robust steel cone, these hammers ensure that the bit remains secure, providing uninterrupted performance and peace of mind during rigorous activities.

Precision Control:

  • Fine-tune your impact with tease throttles, granting you the ability to make precise adjustments for detailed work.

Model

Bore Diameter (in)

Bore Diameter (mm)

Stroke Length (in)

Stroke Length (mm)

Blows per Minute

Air Consumption @ Load (cfm)

Air Consumption @ Load (L/min)

Round Shank Size (in)

Round Shank Size (mm)

Hex Shank Size (in)

Hex Shank Size (mm)

Retainer Type

Length w/o Accessory (in)

Length w/o Accessory (mm)

Weight w/o Accessory (lb)

Weight w/o Accessory (kg)

Air Inlet NPT (in)

Minimum Hose Size (in)

Minimum Hose Size (mm)

2DA1SA

1.125

29

2

51

2200

28

793

n/a

n/a

0.58

15

Lock-spring (plain arrow)

13.75

349

11.75

5.3

7/8

1

25

2DA2SA

1.125

29

2

51

2200

28

793

0.68

17

n/a

n/a

Lock-spring (plain arrow)

13.75

349

11.75

5.3

7/8

1

25

3DA1SA

1.125

29

3

76

1900

31

878

n/a

n/a

0.58

15

Lock-spring (plain arrow)

17

432

13

5.9

7/8

1

25

3DA2SA

1.125

29

3

76

1900

31

878

0.68

17

n/a

n/a

Lock-spring (plain arrow)

17

432

13

5.9

7/8

1

25

4DA1SA

1.125

29

4

102

1600

34

963

n/a

n/a

0.58

15

Lock-spring (plain arrow)

18

457

14

6.4

7/8

1

25

4DA2SA

1.125

29

4

102

1600

34

963

0.68

17

n/a

n/a

Lock-spring (plain arrow)

18

457

14

6.4

7/8

1

25
