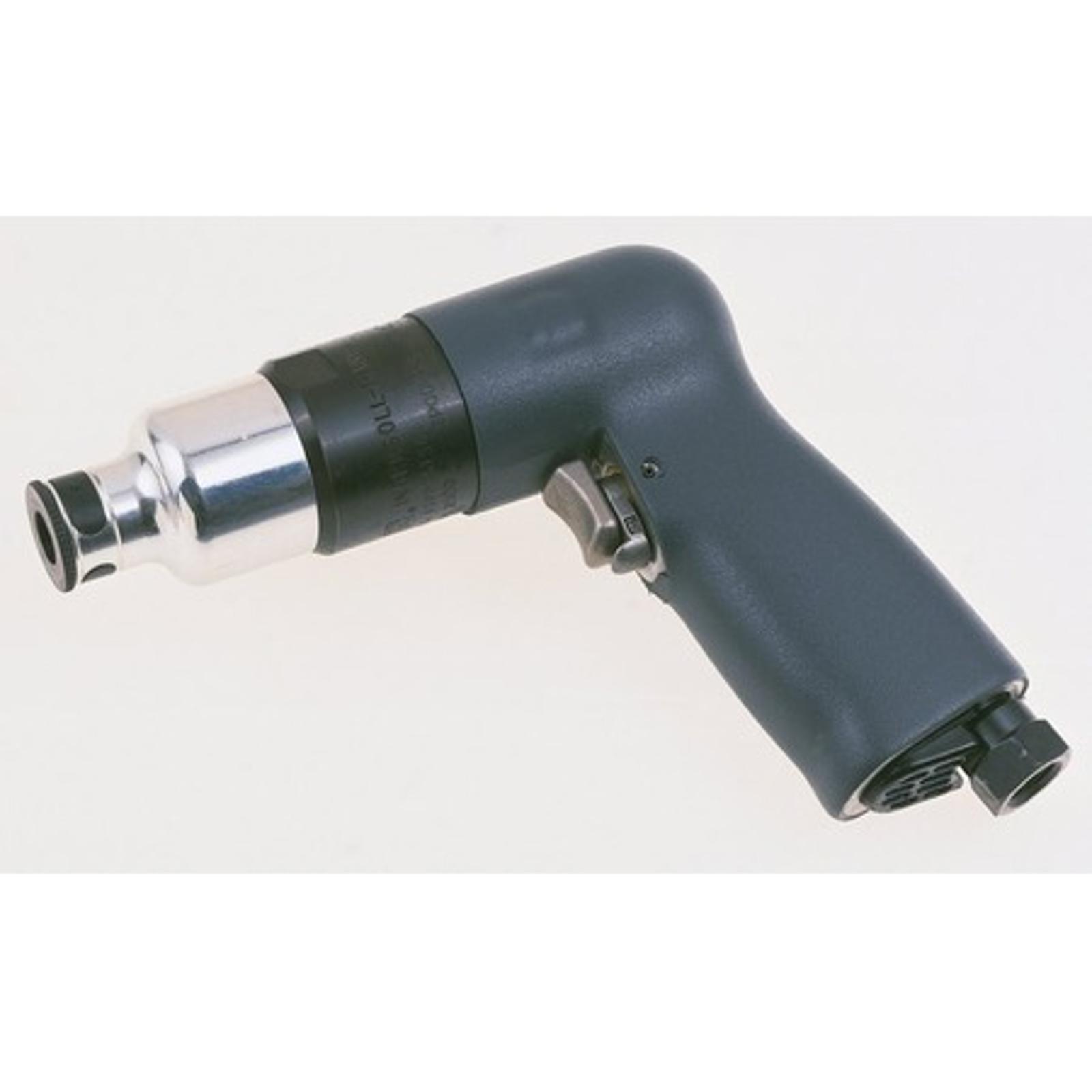

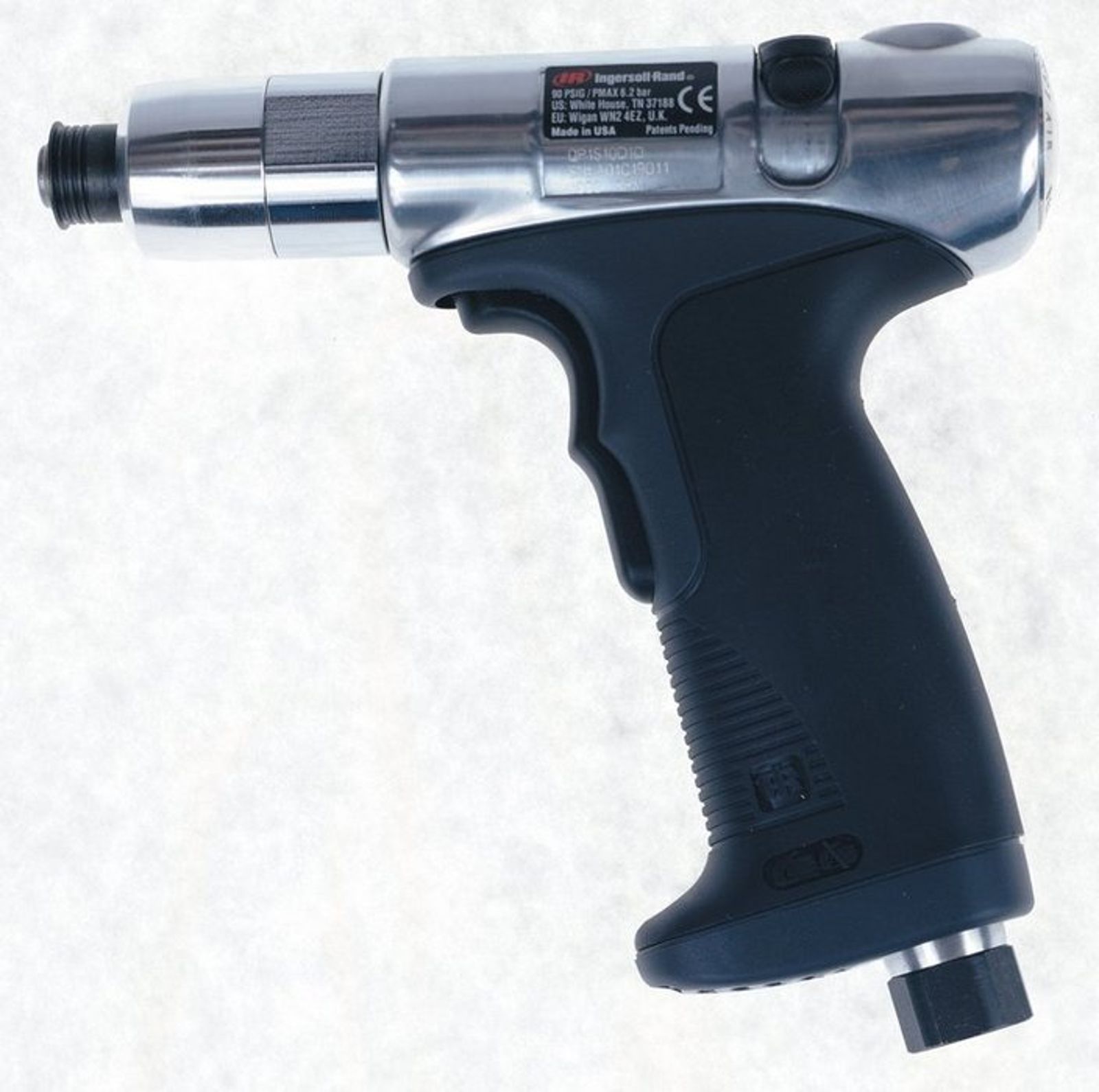

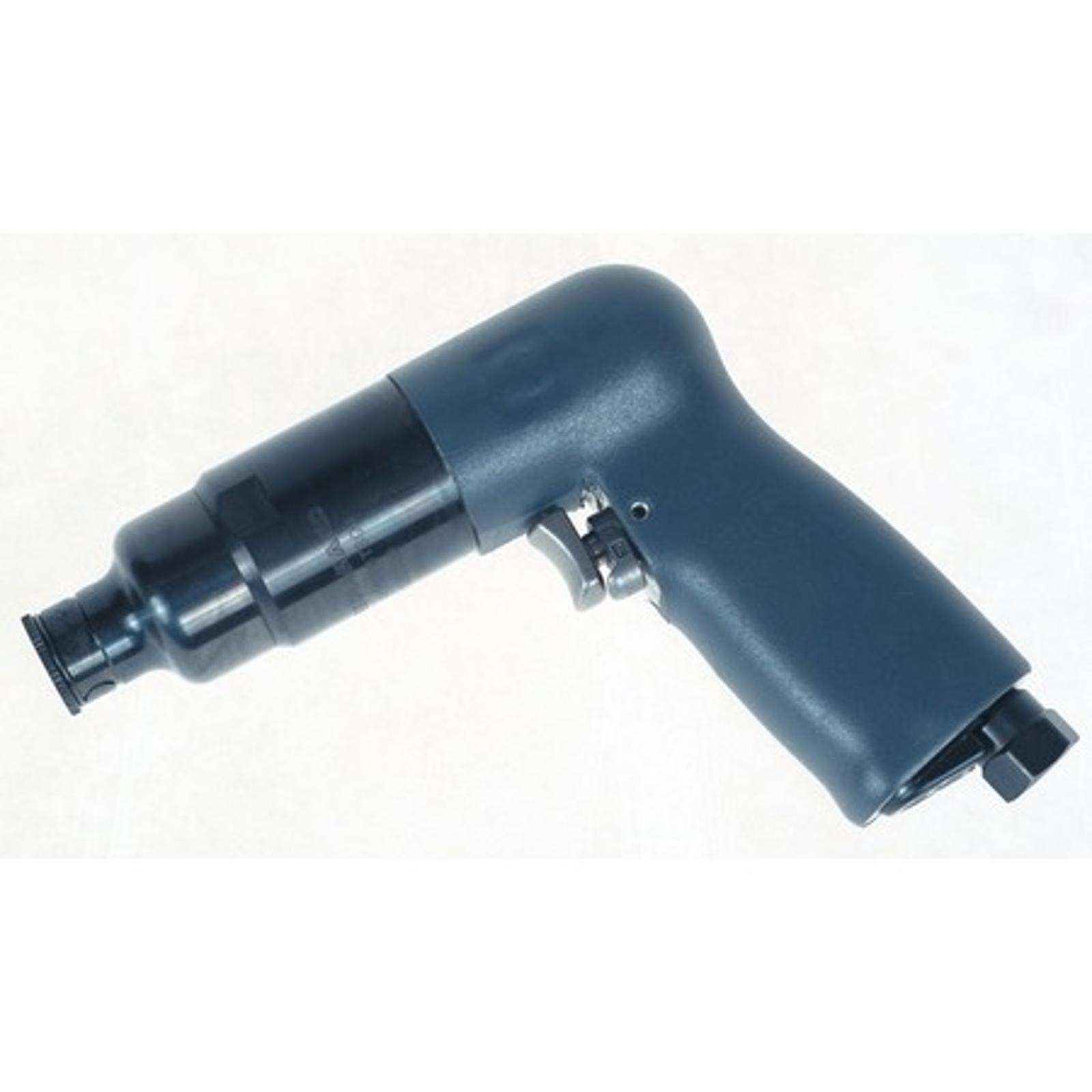

Q2 Series Direct Drive Air Screwdriver, Pistol Grip

The Q2 Series Pistol Direct Drive Screwdriver is great for soft-pull applications in wood and other materials not requiring critical torque control, with a motor that runs to stall, providing consistent torque repeatability.

User Experience:

  • The compact, well-balanced and lightweight design of these screwdrivers are optimal for user experience. Coupled with a two-finger trigger that reduces operator stress and interchangeable handles for various hand sizes, using these tools is a breeze.

Performance:

  • These fast and reliable screwdrivers will perform accurately whenever you use them.

Durable:

  • The superior durability of these tools ensures they'll work time and time again.

Model

Actuation

Torque Range (Nm)

Torque Range (in-lbs)

Free Speed (rpm)

Weight (kg)

Weight (lb.)

Length (mm)

Length (in)

Side to Center Distance (mm)

Side to Center Distance (in)

Spindle Type

Sound Level dB(A) @ Free Speed

Inlet Location

Air Inlet (NPTF/NPT)

CFM

QP1S05D1TD

Trigger Start

0 - 9.8

0 - 86.7

500

0.7

1.5

162

6.4

15

0.6

1/4 in. Hex Quick Change

75

Top

1/4 in. NPT

16

QP1S10D1TD

Trigger Start

0 - 5.2

0 - 46

1000

0.7

1.5

162

6.4

15

0.6

1/4 in. Hex Quick Change

75

Top

1/4 in. NPT

16

QP1S20D1TD

Trigger Start

0 - 2.9

0 - 25.7

2000

0.7

1.5

162

6.4

15

0.6

1/4 in. Hex Quick Change

75

Top

1/4 in. NPT

16

QP1S15D1TD

Trigger Start

0 - 3.4

0 - 30

1500

0.7

1.5

162

6.4

15

0.6

1/4 in. Hex Quick Change

75

Top

1/4 in. NPT

16
