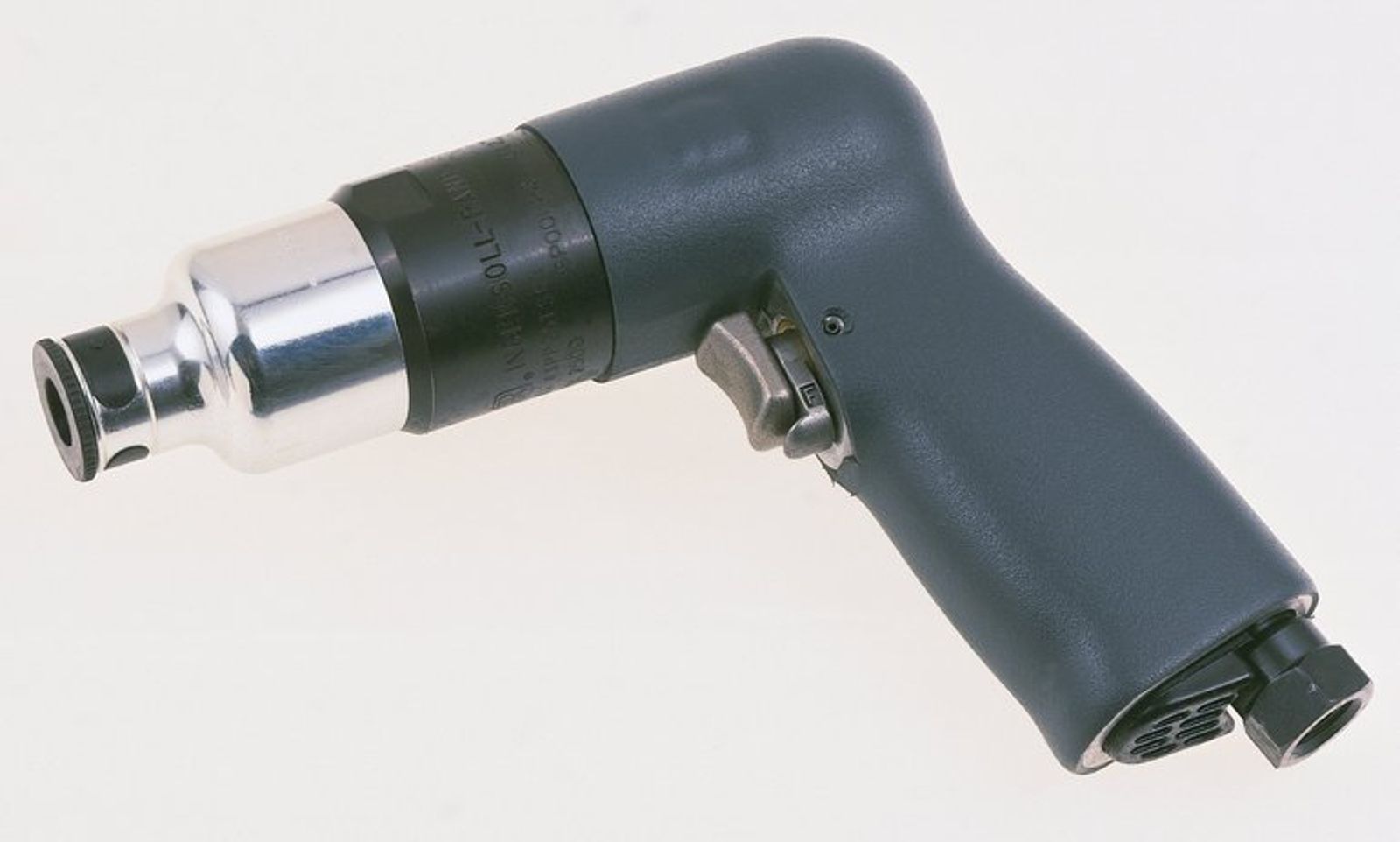

The adjustable cushion clutch on the 41 Series Pistol Cushion Clutch Screwdriver is a torque-limiting feature that minimizes the amount of vibration experienced by the operator. Recommended for applications that require more driving torque than final seating torque.
Durability:
Accuracy:
Performance:
Well-Balanced & Lightweight Design:
Model | Actuation | Torque Range (Nm) | Torque Range (in-lbs) | Free Speed (rpm) | Weight (kg) | Weight (lb.) | Length (mm) | Length (in) | Side to Center Distance (mm) | Side to Center Distance (in) | Spindle Type | Chuck Type | Sound Level dB(A) @ Free Speed | Inlet Location | Air Inlet (NPTF/NPT) | CFM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
41PP10TSQ4 | Trigger Start | 0 - 10.2 | 0 - 90.3 | 1000 | 1.1 | 2.4 | 193 | 7.6 | 20 | 0.8 | 1/4 in. Hex Quick Change | 78 | Std | 1/4 in. NPT | 20 | |
41PP17TSQ4 | Trigger Start | 0 - 7.3 | 0 - 64.6 | 1700 | 1.1 | 2.4 | 193 | 7.6 | 20 | 0.8 | 1/4 in. Hex Quick Change | 78 | Std | 1/4 in. NPT | 20 | |
41PP25TSQ4 | Trigger Start | 0 - 5.1 | 0 - 45.1 | 2500 | 1 | 2.2 | 183 | 7.2 | 20 | 0.8 | 1/4 in. Hex Quick Change | 78 | Std | 1/4 in. NPT | 20 |
