RoHS Compliant
Ergonomics: You can work all day with this tool’s unique egg-shaped housing. It just feels like a natural fit.
Performance: Made for speed and performance, this tool will increase your productivity.
Comfort: Once you see how comfortable this tool feels in the hand, you’ll want to use it on every job.
Model | Actuation | Voltage | Torque Range (Nm) | Torque Range (in-lbs) | Free Speed (rpm) | Weight (kg) | Weight (lb.) | Length (mm) | Length (in) | Side to Center Distance (mm) | Side to Center Distance (in) | Spindle Type | Sound Level dB(A) @ Free Speed | Controller Required | Controller Input Voltage | Controller Output Voltage | Controller Weight (kg) | Controller Weight (lbs) | Controller Dimensions L x W x H (mm) | Controller Dimensions L x W x H (in) | Controller Soft Start | Controller Speed Adjustment | ESD Control |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ES100P | Pistol - Push to Start | 115 V AC | 1.9 - 4.5 | 15.0 - 40.0 | 400 | 0.75 | 1.65 | 254 | 10 | 20.6 | 0.81 | 1/4 in. Hex Quick Change | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | |
ES100T | Pistol - Trigger Start | 115 V AC | 1.9 - 4.5 | 15.0 - 40.0 | 400 | 0.76 | 1.68 | 254 | 10 | 20.6 | 0.81 | 1/4 in. Hex Quick Change | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | |

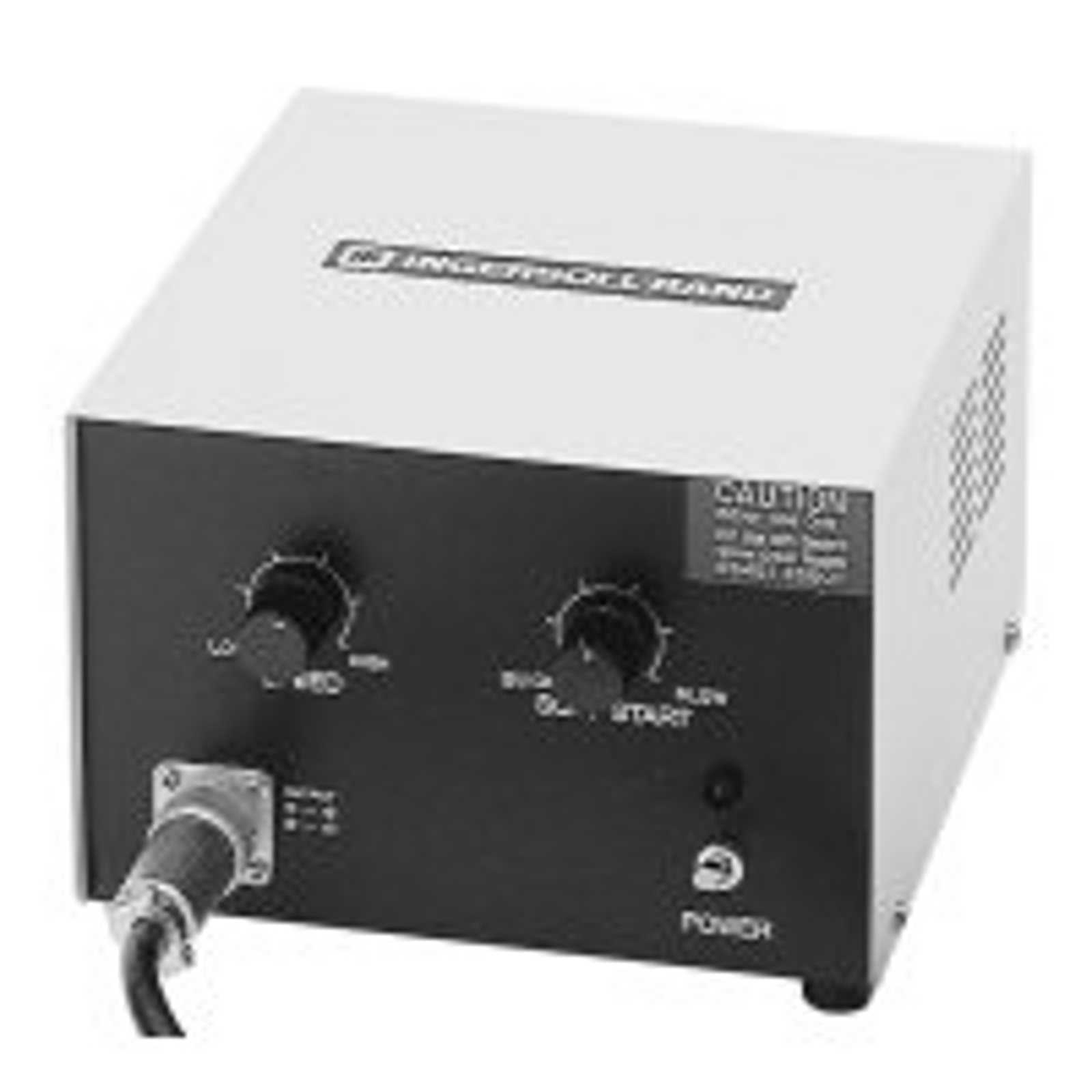

ES45T | Inline - lever start | 24 V DC | 0.06-0.68 | 0.5-6.0 | 600-900 | 0.34 | 0.75 | 225 | 8.87 | 16.8 | 0.66 | 1/4 in. Hex Quick Change | ESCB50 | 115 V AC | 24 V DC | 1.9 | 4.4 | 171 x 146 x 108 | 6.8 x 5.8 x 4.3 | Yes | yes | No | |
ES50T | Inline - lever start | 24 V DC | 0.05-1.02 | 0.4-9.0 | 500-650 | 0.35 | 0.75 | 226 | 8.88 | 19.8 | 0.78 | 1/4 in. Hex Quick Change | ESCB50 | 115 V AC | 24 V DC | 1.9 | 4.4 | 171 x 146 x 108 | 6.8 x 5.8 x 4.3 | Yes | yes | No | |
ES50TC | Inline - lever start | 24 V DC | 0.05 - 1.02 | 0.4 - 9.0 | 500 - 650 | 0.4 | 0.88 | 267 | 10.5 | 19.8 | 0.78 | 1/4 in. Hex Quick Change | ESCB50 | 115 V AC | 24 V DC | 1.9 | 4.4 | 171 x 146 x 108 | 6.8 x 5.8 x 4.3 | Yes | yes | No | |
ES60P | Inline -Push to Start | 115 V AC | 0.5 - 1.9 | 4.4 - 17.0 | 1000 | 0.68 | 1.5 | 254 | 10 | 20.6 | 0.81 | 1/4 in. Hex Quick Change | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | |
ES60T | Inline - Lever Start | 115 V AC | 0.5 - 1.9 | 4.4 - 17.0 | 1000 | 0.69 | 1.53 | 254 | 10 | 20.6 | 0.81 | 1/4 in. Hex Quick Change | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | |
ES70P | Inline -Push to Start | 115 V AC | 1.1 - 2.9 | 10.0 - 26.0 | 700 | 0.68 | 1.5 | 254 | 10 | 20.6 | 0.81 | 1/4 in. Hex Quick Change | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | |

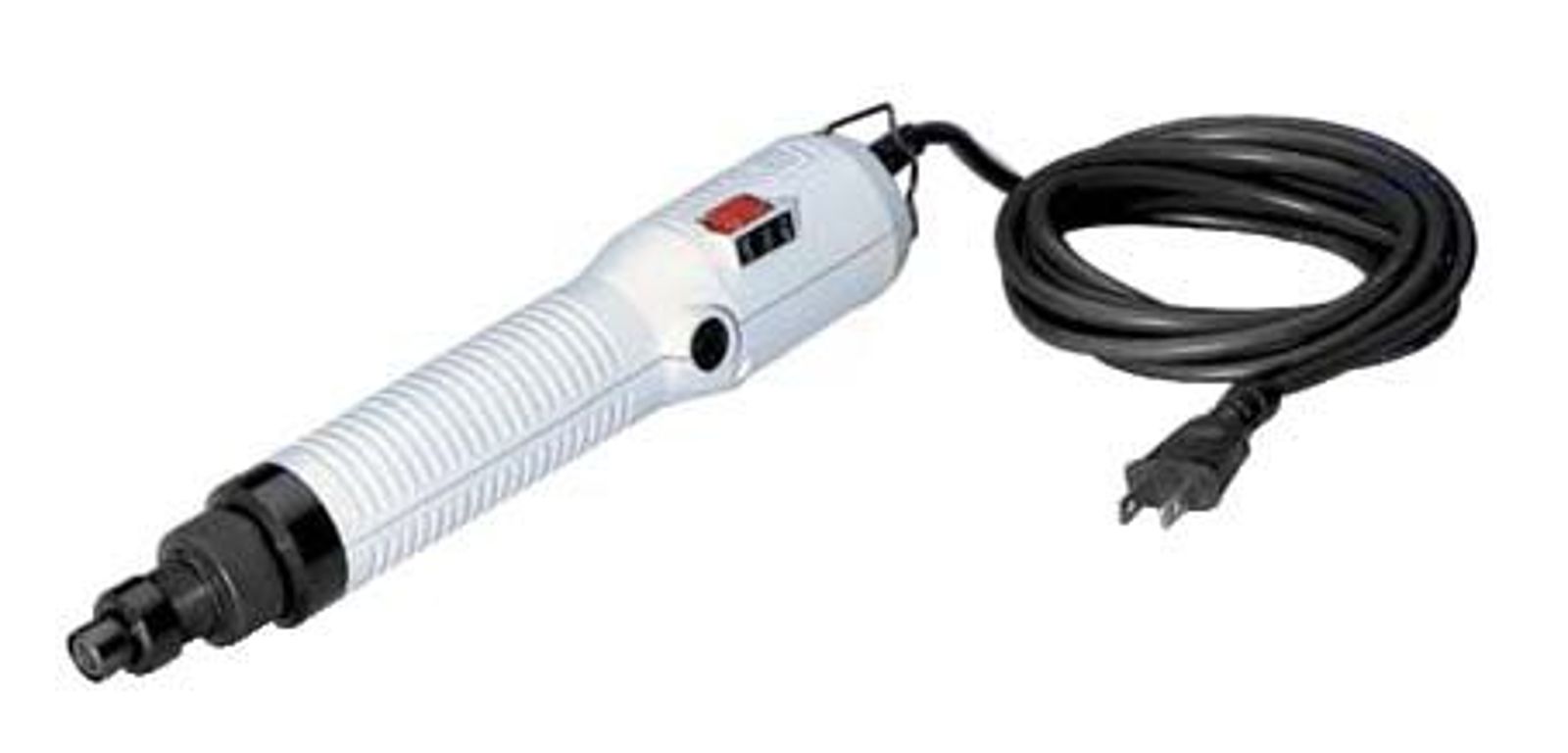

ES70T | Inline - Lever Start | 115 V AC | 1.1 - 2.9 | 10.0 - 26.0 | 700 | 0.69 | 1.53 | 254 | 10 | 20.6 | 0.81 | 1/4 in. Hex Quick Change | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | |
ES80P | Inline -Push to Start | 115 V AC | 1.4 - 2.7 | 12.0 - 24.0 | 1200 | 0.68 | 1.5 | 254 | 10 | 20.6 | 0.81 | 1/4 in. Hex Quick Change | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | |
ES90P | Inline -Push to Start | 115 V AC | 0.5 - 1.8 | 4.4 - 16.0 | 2000 | 0.68 | 1.5 | 254 | 10 | 20.6 | 0.81 | 1/4 in. Hex Quick Change | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | |
ES90T | Inline - Lever Start | 115 V AC | 0.5 - 1.8 | 4.4 - 16.0 | 2000 | 0.69 | 1.53 | 254 | 10 | 20.6 | 0.81 | 1/4 in. Hex Quick Change | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
