Safety
RoHS Compliant
Ergonomics
Designed for maximum operator comfort, the egg-shaped housing of these screwdrivers feels like a natural fit.
Accuracy

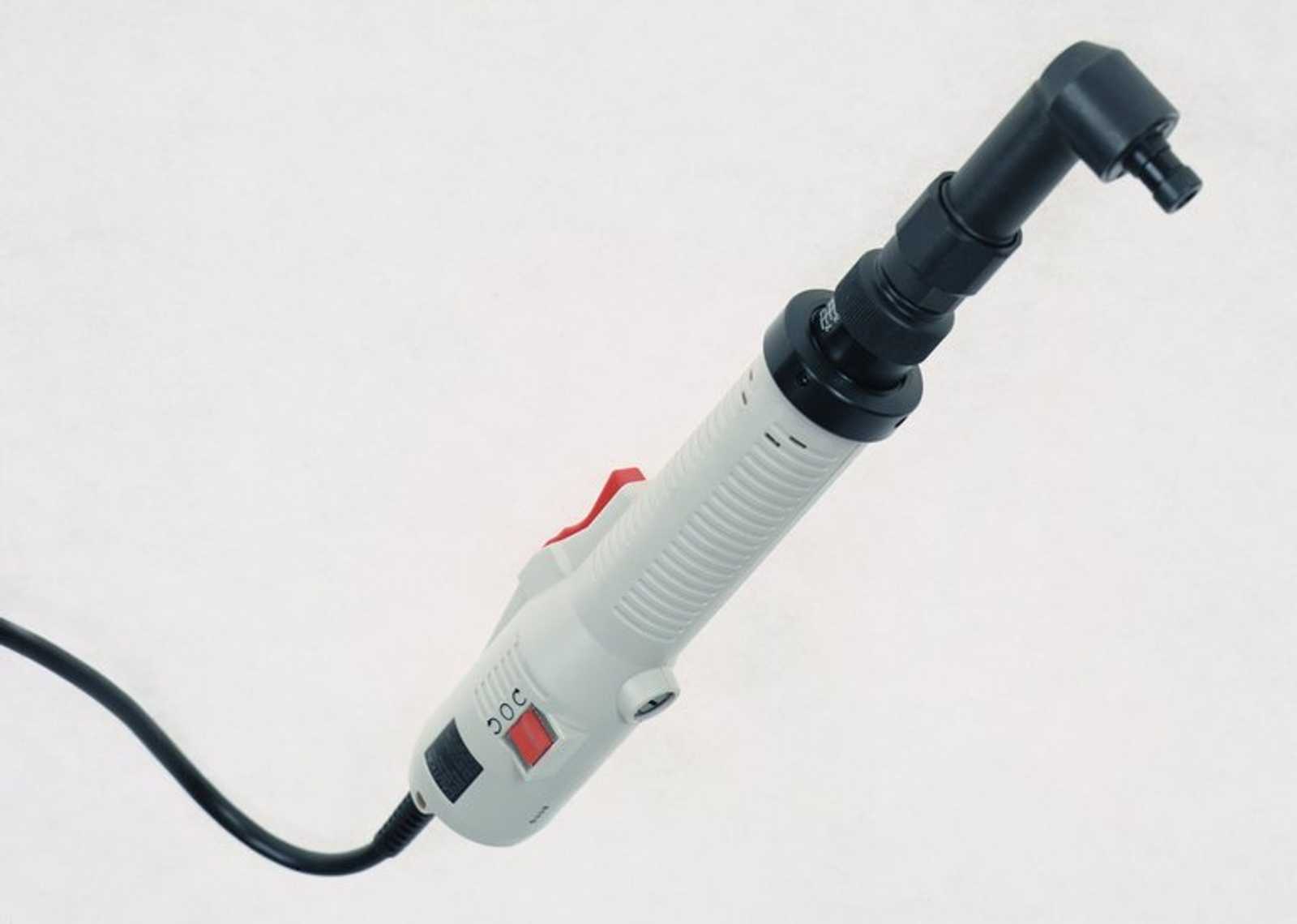

Angled for accuracy, you can count on this screwdriver — even in the tightest of spaces. Comfort
This screwdriver is so comfortable, you’ll be able to use it all day without fatigue.
Model | Actuation | Voltage | Torque Range (Nm) | Torque Range (in-lbs) | Free Speed (rpm) | Weight (kg) | Weight (lb.) | Length (mm) | Length (in) | Side to Center Distance (mm) | Side to Center Distance (in) | Height (in) | Spindle Type | Controller Required | Controller Input Voltage | Controller Output Voltage | Controller Weight (kg) | Controller Weight (lbs) | Controller Dimensions L x W x H (mm) | Controller Dimensions L x W x H (in) | Controller Soft Start | Controller Speed Adjustment | ESD Control |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ES100T2S3 | Angle (large head) - Lever Start | 115 V AC | 1.6 - 6.3 | 14 - 56 | 250 | 0.95 | 2.1 | 429 | 16.89 | 13.21 | 0.52 | 1.99 | 1/4 in. Hex Quick Change | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
ES100T2S5 | Angle (large head) - Lever Start | 115 V AC | 1.6 - 6.3 | 14 - 56 | 250 | 0.95 | 2.1 | 429 | 16.89 | 13.21 | 0.52 | 1.73 | 1/4 in. Square | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
ES60T1S5 | Angle (small head) - Lever Start | 115 V AC | 0.45 - 1.9 | 4 - 17 | 950 | 0.86 | 1.9 | 424 | 16.7 | 8.38 | 0.33 | 1.47 | 1/4 in. Square | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
ES60T2S3 | Angle (large head) - Lever Start | 115 V AC | 0.68 - 2.6 | 6 - 23 | 650 | 0.95 | 2.1 | 429 | 16.89 | 13.21 | 0.52 | 1.99 | 1/4 in. Hex Quick Change | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
ES60T2S5 | Angle (large head) - Lever Start | 115 V AC | 0.68 - 2.6 | 6 - 23 | 650 | 0.95 | 2.1 | 429 | 16.89 | 13.21 | 0.52 | 1.73 | 1/4 in. Square | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
ES70T2S3 | Angle (large head) - Lever Start | 115 V AC | 1.2 - 4.1 | 11 - 36 | 450 | 0.95 | 2.1 | 429 | 16.89 | 13.21 | 0.52 | 1.99 | 1/4 in. Hex Quick Change | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
ES90T2S3 | Angle (large head) - Lever Start | 115 V AC | 0.68 - 2.2 | 6 - 19 | 1300 | 0.95 | 2.1 | 429 | 16.89 | 13.21 | 0.52 | 1.99 | 1/4 in. Hex Quick Change | None | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
