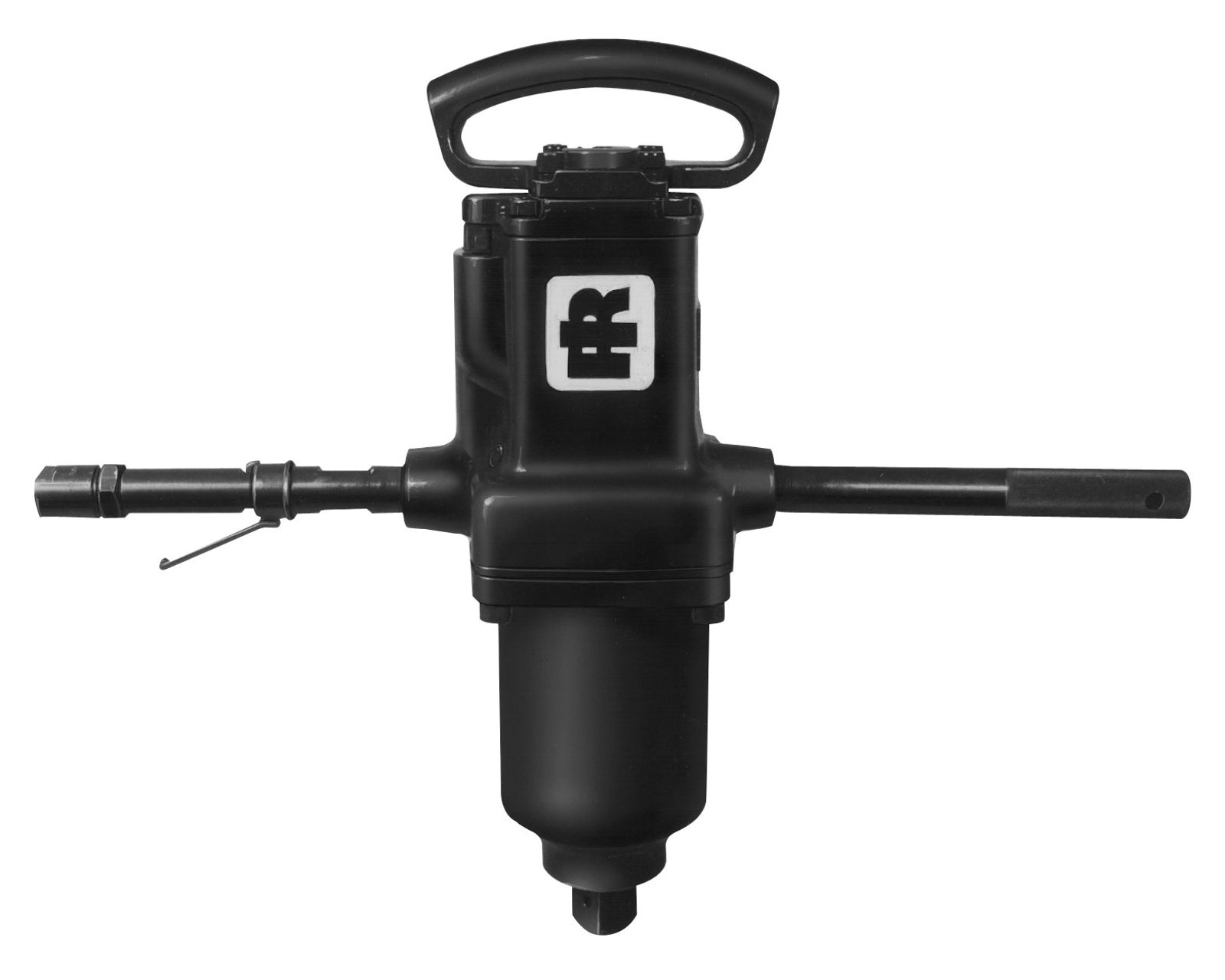

5980 Series Impact Wrench

The 5980 series is not only one of the most powerful impacts in the industry, they are also one of the most durable and reliable.

Durability:

  • With a steel hammer case, metal housing, and bronze end-plate, this series is corrosion resistant. It will last through just about anything.

Reliability:

  • Ingersoll Rand products are built to last, and this series is no different. These tools will deliver the right amount of power every time you pull the trigger.

Power:

  • This series has a high torque output and the planetary gear drive delivers smooth constant speed from the motor, so you never have to worry about power.
  • Up to 27120 Nm of maximum torque in reverse

Model

Configuration

Actuation

Drive Size

Drive Type

Forward Torque (ft-lb)

Forward Torque (Nm)

Max Reverse Torque (ft-lb)

Max Reverse Torque (Nm)

Blows per minute

Free Speed (RPM)

Impacting Sound Level dB(A) -- ISO15744 (pressure/power)

Vibration Level (ISO28927) (m/s2)

Weight (lb)

Weight (kg)

Length (in)

Length (mm)

Air Inlet (NPTF/ NPT)

Min Hose Size (in)

Min Hose Size (mm)

Average Air Consumption (cfm)

Average Air Consumption (L/min)

5980A1-EU

T-Handle

Lever

1-1/2 in.

Square, Thru-Hole

5500

7460

10000

13560

1000

830

103.1/114.1

20.5

88

39.9

23

584

3/4 in.

1

25

138

3908

5982A1-EU

T-Handle

Lever

2-1/2 in.

Square, Thru-Hole

10000

13560

20000

27120

850

830

102.1/113.1

20.5

120

54.5

25.38

645

3/4 in.

1

25

130

3681
