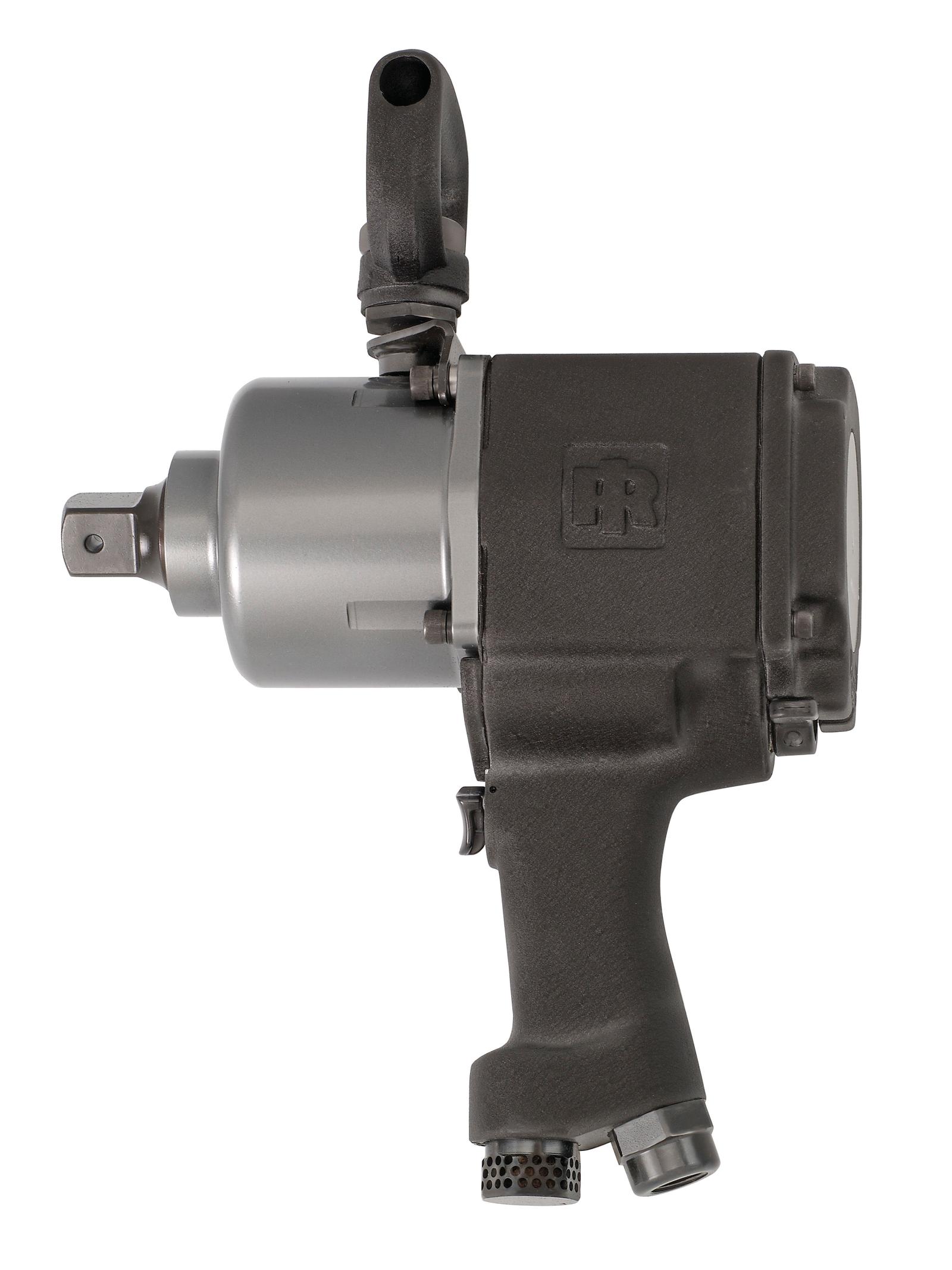

290 Series Impact Wrench

With a steel hammer case and metal housing, the 290 Series is built for heavy duty jobs. Through repeated drops in the garage or harsh outdoor weather conditions, this wrench will see you through every job.

Reliability:

  • Built to last, the 290 Series will work like new every time you use it.

Great Power-to-Weight Ratio:

  • Thanks to the 290 Series’ jumbo hammer impact mechanism, these wrenches fit in your hand like a dream, and work with minimal exertion.

Increased Control:

  • Thanks to its power-to-weight ratio and power regulator, this tool provides increased control without an increase of effort.

Multiple Retention Methods:

  • With a combination of multiple anvils, the 290 Series features an increase of reach, a stronger connection to the socket, and less torque loss.

Model

Configuration

Actuation

Drive Size (in)

Drive Type

Max Forward Torque ft-lbs (Nm)

Max Reverse Torque ft-lbs (Nm)

Blows Per Minute

Free Speed (RPM)

Impacting Sound Level dB(A) -- ISO15744 (pressure/power)

Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)

Vibration Level m/s2

Weight lbs (kg)

Length in (mm)

Air Inlet NPT (in)

Min Hose Size (in)

Air Consumption @ Load cfm (L/min)

Avg Air Consumption cfm (L/min)

PSI

Bar

290

Pistol Grip

Trigger

1

Square

1000 (1365)

1600 (2169)

800

6000

N/A

101.6 / 112.6

22.7

21.9 (9.9)

9.75 (248)

1/2

1/2

55 (1557)

10 (283)

90

6.2
