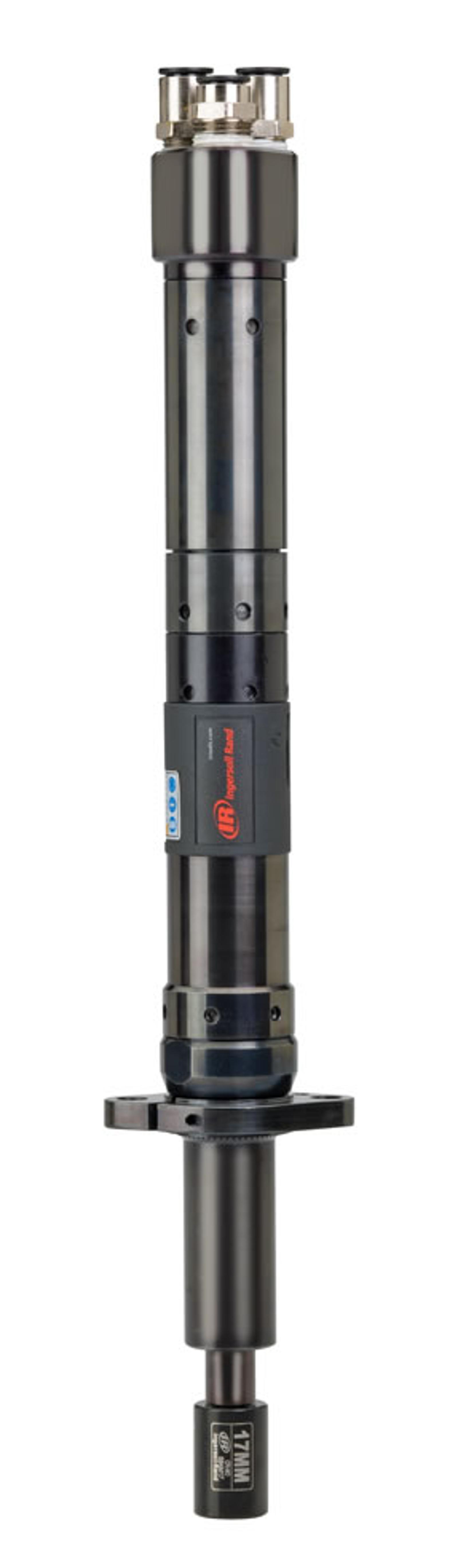

QA8 Series - Fixtured Inline Remote Stall

The QA8 Series Inline Fixtured Stall Nutrunners include a special stall feature that allows the user to control applied torque. Great for applications involving wood.

Durable:

  • Tested to a million cycles without failure, you can be sure this series will deliver.

Easy to Maintain:

  • With non-lube motors and easy servicing with a spanner wrench, the QA8 Series Inline Fixtured Stall is easy to maintain.

Easy to Use:

  • The 360-degree indexing of angle head allows you to position the tool the way you want, while the position of the reverse ring is optimized for user comfort.

Model

Actuation

Torque Range (Nm)

Torque Range (ft-lb)

Free Speed (rpm)

Weight (kg)

Weight (lb)

Length (mm)

Length (in)

Head Side to Center (mm)

Head Side to Center (in)

Air Inlet

cfm

Spindle Type

Common Fastener Size

Sound (dBA)

QA8ASRD090NF41S08

Remote Start

80 - 90

59.0 - 66.4

230

3.42

7.53

518

20.4

43

1.69



46

1/2 in. Square

M10 - M12

87
