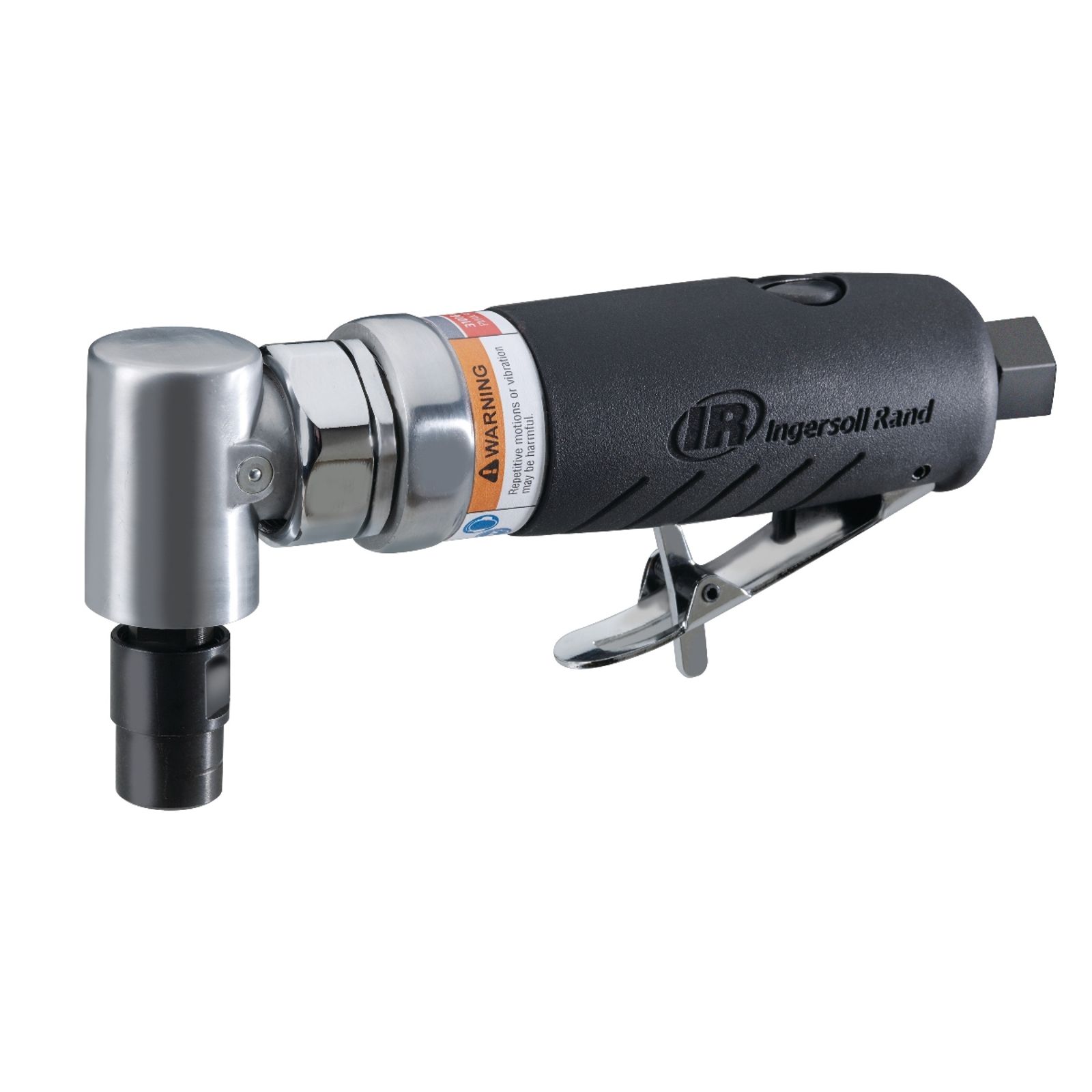

3101G EDGE Series™ Air Angle Die Grinder

Ingersoll Rand’s EDGE Series 3101G 1/4" Air Angle Die Grinder is the right tool for the job. The angled shape of this powerful, 20,000 rpm angle die grinder lets you get to those hard-to-reach places. The 3101G has a 0.3 horsepower motor, a 1/4-inch collet, a rear exhaust, and a self-locking throttle. A grease fitting allows you to keep the gears properly lubricated. An ergonomic grip makes the tool comfortable to hold and use. Use the 3101G pneumatic grinder in various applications including finishing, cutting, porting, weld breaking, deburring, polishing, and grinding.

Precision Engineering:

  • Expertly designed for accuracy and control, perfect for detailed grinding, porting, and polishing tasks.

Versatile Performance:

  • Whether you're smoothing sharp edges, deburring, or finishing, this air grinder is your go-to tool for a variety of applications.

Ergonomic Design:

  • Comfortable ergonomic grip, reducing fatigue and increasing productivity during extended use.

High Power-to-Weight Ratio:

  • Lightweight yet powerful, this air grinder delivers top performance without adding extra bulk to your toolbox.

Durable Construction:

  • Built with a robust aluminum housing to withstand the rigors of the home garage and workshop environments.

Easy Accessibility:

  • Reach tight spaces and intricate areas with the angled design, ensuring your projects are completed with a professional touch.

Model

Actuation

Configuration

Rated Power (hp)

Weight (lbs)

Length (in)

Max Free Speed (rpm)

Height Over Spindle (in)

Bearing Type

Exhaust Location

Sound Pressure/Power dB(A)

Avg Air Consumption (cfm)

Vibration Level (m/s²)

Air Inlet

Min Hose Size (in)

3101G

Lever

Right Angle

0.33

1.3

6.8

20,000

3

Ball Bearing

Rear

93.1 / 114.1

3

1.8

1/4" NPT

3/8
