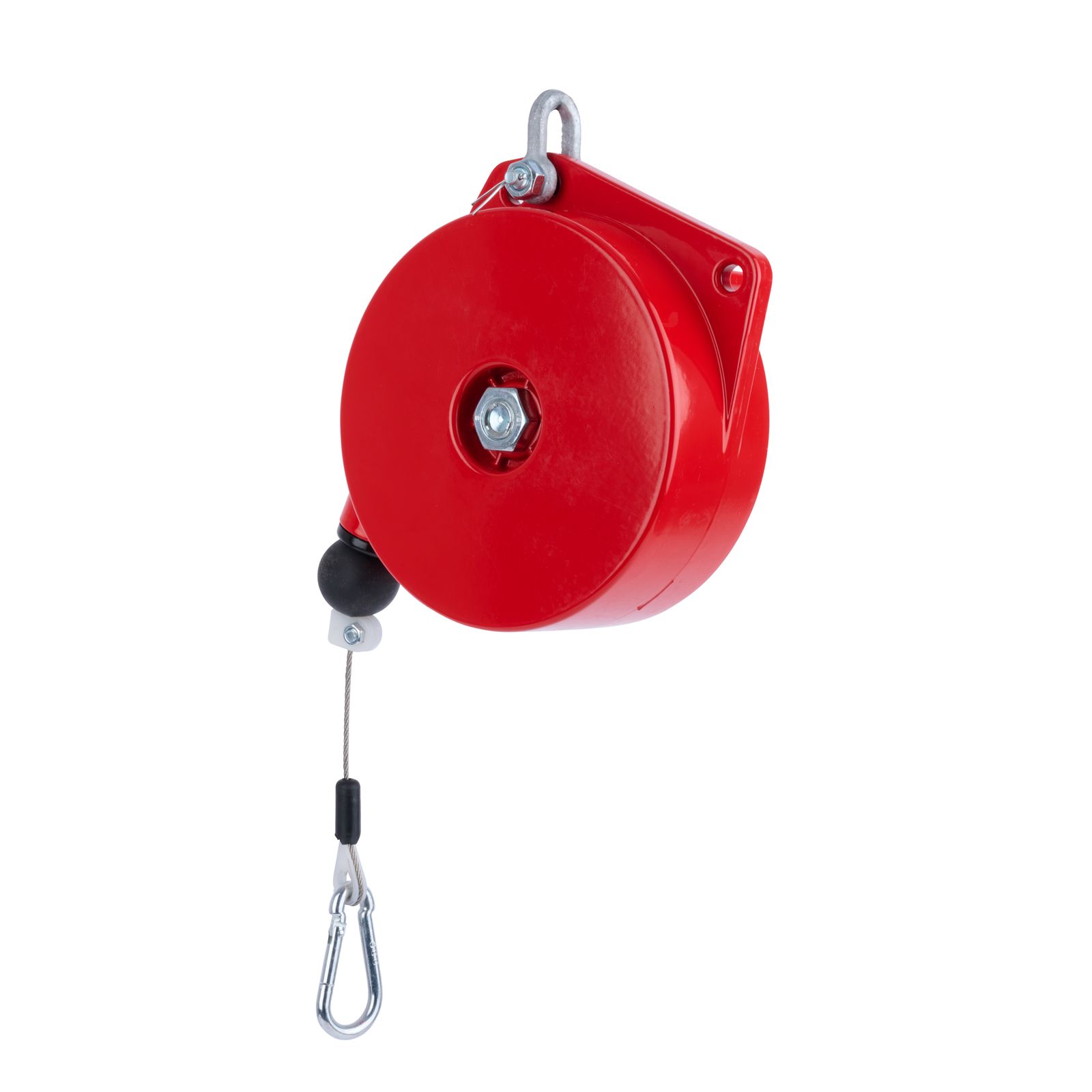

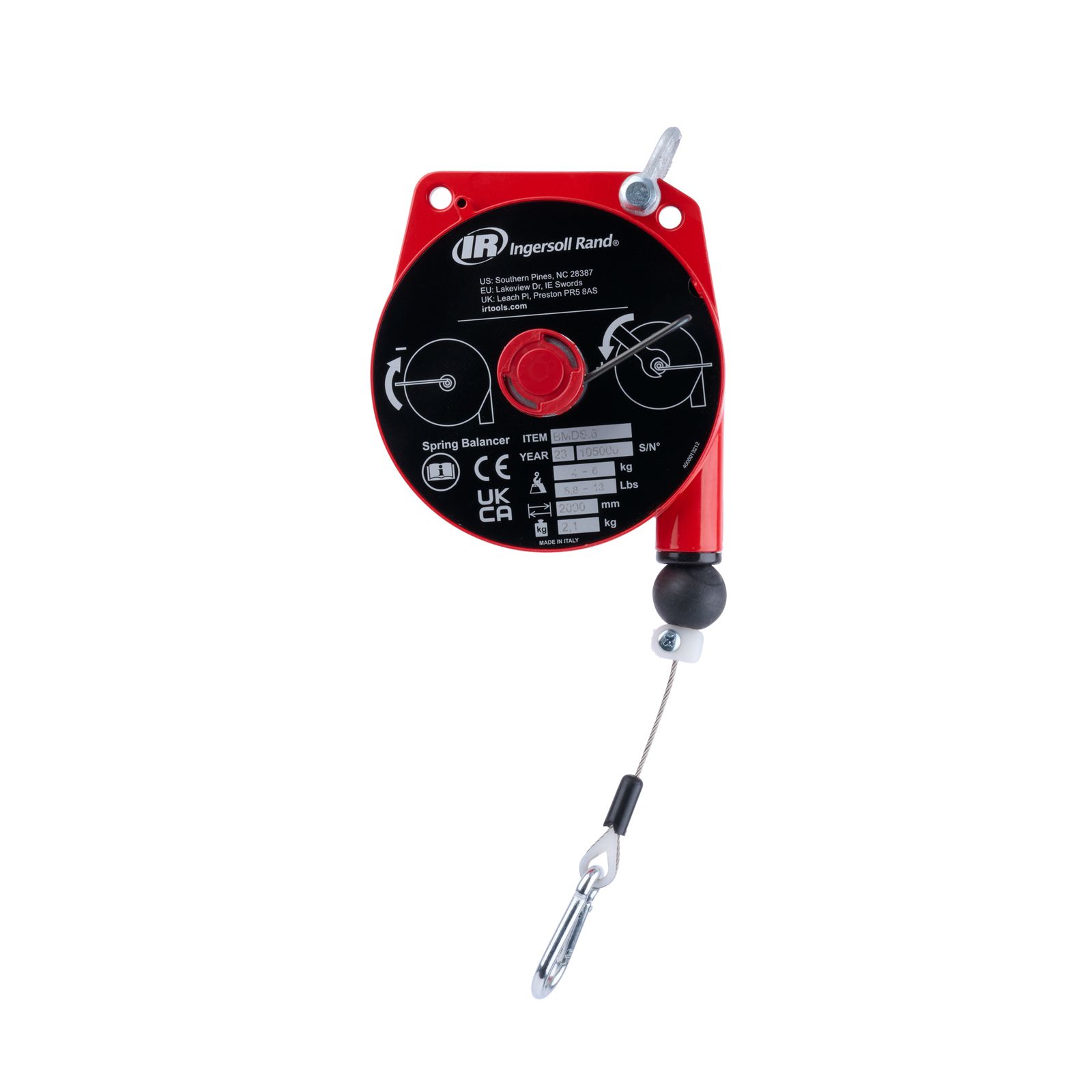

BMDS, BMDL Series Medium-Duty Spring Balancers

The Spring Balancer line from Ingersoll Rand® has been upgraded with new adjustments that take its fine-tuning capabilities and safety innovations up a notch and its tight space potential down to even smaller spots. Designed with greater durability and a higher weight capacity, these newly improved accessories will put even more spring, safety and strength in your step.

Safety:

  • Safety caps prevent collisions with other objects when the balancer is moved on rails

Ergonomics:

  • Upper suspension shackle included on balancer for ease of installation
  • Weight Capacity Range: 2.2 - 30 lbs. (1 - 13.6 kg)
  • Stroke Range: 5.2 ft. (1.6 m); 6.5 ft. (2m); 8.2 ft. (2.5 m); 9.8 ft. (3 m)

Durability:

  • Stainless-steel cable provides durability
  • Axial mounting circlip ensures greater resistance to impact
  • Screw lock system guarantees a high level of reliability of balancers, even with persistent vibrations

Model

Capacity lb (kg)

Weight lb (kg)

Lift ft (mm)

Housing Material

Cable Material

BMDS-2

2.2 - 5.5 (1 - 2.5)

4.4 (2)

6.5 (2000)

Aluminum

Stainless Steel

BMDS-4

4.4 - 8.8 (2 - 4)

4.4 (2)

6.5 (2000)

Aluminum

Stainless Steel

BMDS-6

8.8 - 13.2 (4 -6)

5.1 (2.3)

6.5 (2000)

Aluminum

Stainless Steel

BMDS-8

13.2 - 17.6 (6 - 8)

5.5 (2.5)

6.5 (2000)

Aluminum

Stainless Steel

BMDLN-4

4.4 - 8.8 (2 - 4)

6.4 (2.9)

8.2 (2500)

Aluminum

Stainless Steel

BMDLN-6

8.8 - 13.2 (4 - 6)

7.1 (3.2)

8.2 (2500)

Aluminum

Stainless Steel

BMDLN-8

13.2 - 17.6 (6 - 8)

7.7 (3.5)

8.2 (2500)

Aluminum

Stainless Steel

BMDLN-10

17.6 - 22 (8 - 10)

8.2 (3.7)

8.2 (2500)

Aluminum

Stainless Steel

BMDLN-12

22 - 30 (10 - 13.6)

8.8 (4)

8.2 (2500)

Aluminum

Stainless Steel

BMDLLN-4

4.4 - 8.8 (2 - 4)

6.6 (3)

8.2 (2500)

Aluminum

Stainless Steel

BMDLLN-6

8.8 - 13.2 (4 - 6)

7.3 (3.3)

8.2 (2500)

Aluminum

Stainless Steel

BMDLLN-8

13.2 - 17.6 (6 - 8)

7.9 (3.6)

8.2 (2500)

Aluminum

Stainless Steel

BMDLLN-10

17.6 - 22.0 (8 - 10)

8.4 (3.8)

8.2 (2500)

Aluminum

Stainless Steel
