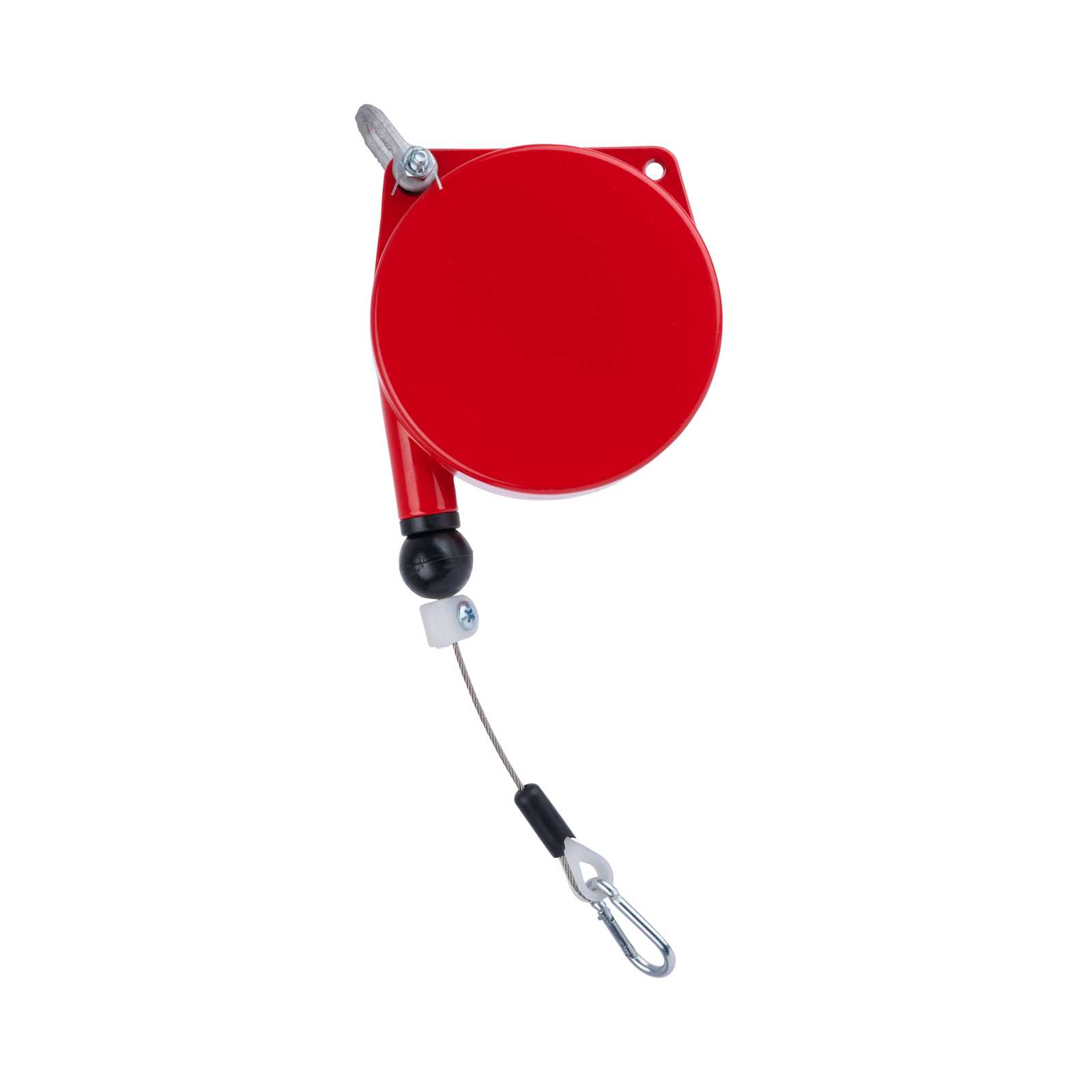

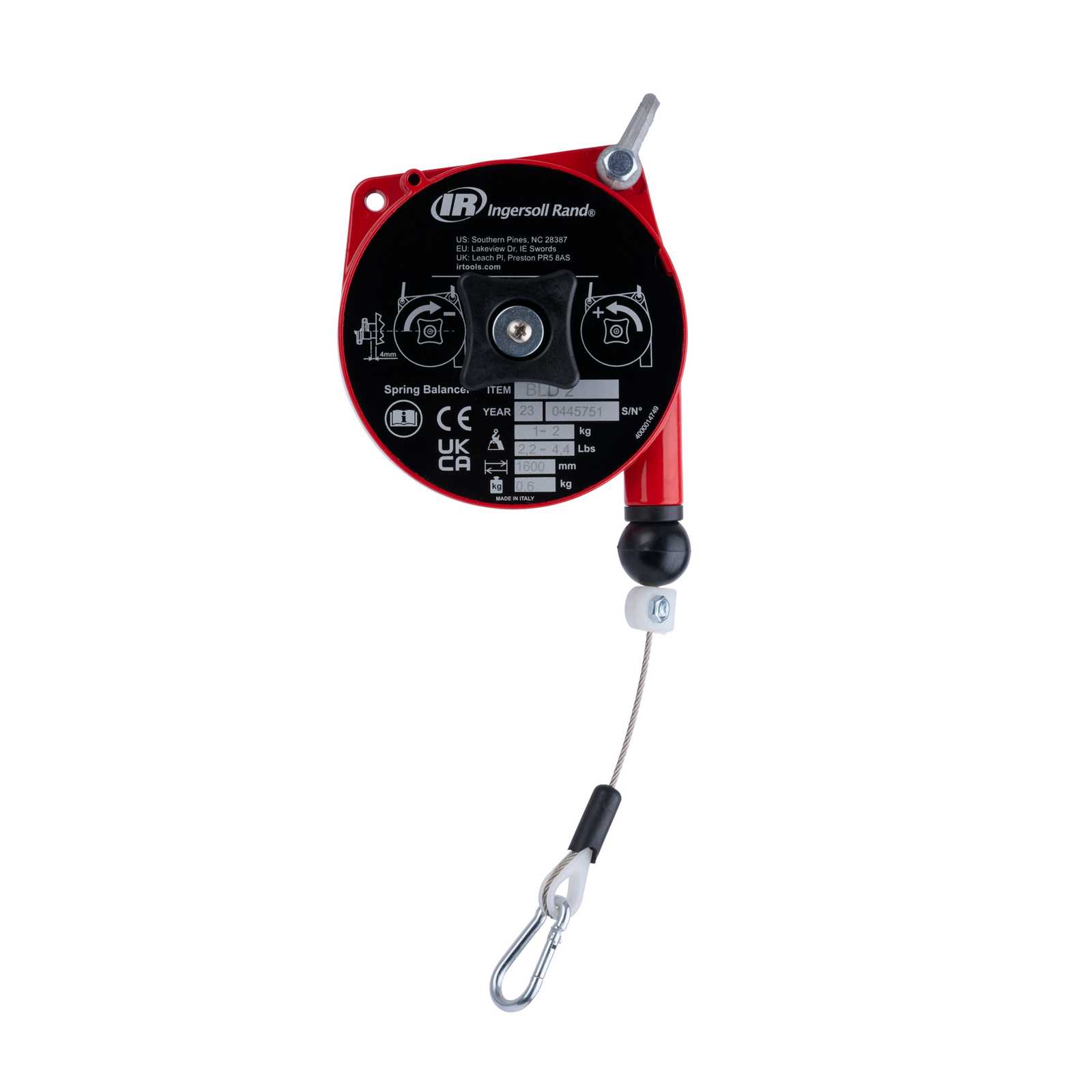

BLD Series Light Duty Spring Balancers

The Spring Balancer line from Ingersoll Rand® has been upgraded with new adjustments that take its fine-tuning capabilities and safety innovations up a notch and its tight space potential down to even smaller spots. Designed with greater durability and a higher weight capacity, these newly improved accessories will put even more spring, safety and strength in your step.

Safety:

  • Cable guide in anti-friction material
  • Upper suspension shackle included on balancer for ease of installation
  • Flat casing on the back of the balancer to make it easier to pack on rails

Ergonomics:

  • Adjustable capacity
  • Adjustable stroke limiting capacity
  • 4-sided 6-way adjustment knob for smoother response and better ergonomics

Durability:

  • Rugged construction, cast aluminum
  • Stainless-steel cable; nylon cable option available for the 2.2 lbs (1 kg) capacity model; order BLD1/P for this option

Model

Capacity lb (kg)

Weight lb (kg)

Lift ft (mm)

Housing Material

Cable Material

BLD1

0.9 - 2.2 (0.4 - 1)

1.3 (0.6)

5.2 (1600)

Aluminum

Stainless Steel

BLD1/P

0.9 - 2.2 (0.4 - 1)

1.3 (0.6)

5.2 (1600)

Aluminum

Nylon

BLD2

2.2 - 4.4 (1 - 2)

1.3 (0.6)

5.2 (1600)

Aluminum

Stainless Steel

BLD3

4.4 - 6.6 (2 - 3)

1.5 (0.7)

5.2 (1600)

Aluminum

Stainless Steel
