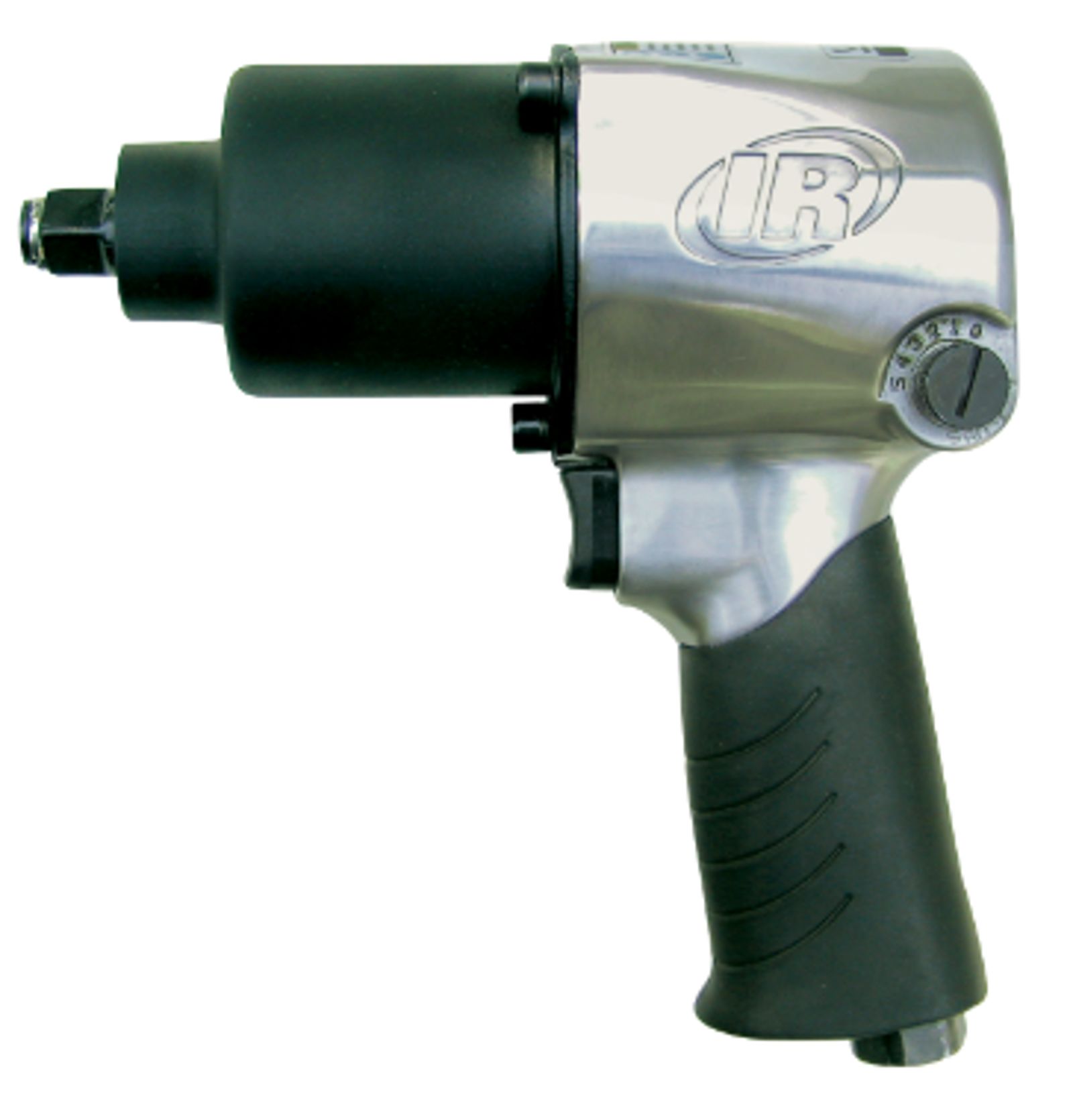

231GXP 1/2″ Air Impact Wrench

The heavy duty 231GXP Impact Wrench has the reliability and durability you’ve come to expect from the Ingersoll Rand name. The powerful tool provides an even impact and is durable enough to last through the toughest work environments.

Reliability:

  • Every time you pull the trigger, the 231GXP will deliver the same high-quality output time.

Durability:

  • Built to withstand harsh environments and repeated drops, this impact wrench won't let you down.

Other Features:

  • 610 Nm of maximum reverse torque
  • Powerful reverse-bias 6-vane motor delivers even more power in reverse
  • Rubber handle grip offers great operator comfort and protects from cold air
  • 5-position power regulator and forward/reverse control
  • Silenced through-handle exhaust reduces the noise level

Available as combo kits:

  • 231GXP-K : kit with 10 sockets (10, 11, 12, 13, 14, 17, 19, 21, 22, 24 mm) in carrying case

Model

Configuration

Actuation

Drive Size

Drive Type

Max Reverse Torque (ft-lb)

Max Reverse Torque (Nm)

Blows per minute

Free Speed (RPM)

Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)

Vibration Level (ISO28927) (m/s²)

Weight (lb)

Weight (kg)

Width (in)

Width (mm)

Height (in)

Height (mm)

Length (in)

Length (mm)

Air Inlet (NPTF/ NPT)

Min Hose Size (in)

Min Hose Size (mm)

Air Consumption @ Load (cfm)

Air Consumption @ Load (L/min)

Average Air Consumption (cfm)

Average Air Consumption (L/min)

231GXP

Pistol

Trigger

1/2 in.

Square, Hog-Ring

450

610

1200

8000

99/110

4.7

5.8

2.63

2.81

71

7.7

195.6

7.3

185

1/4 in.

3/8

10

22

623

4.2

119
