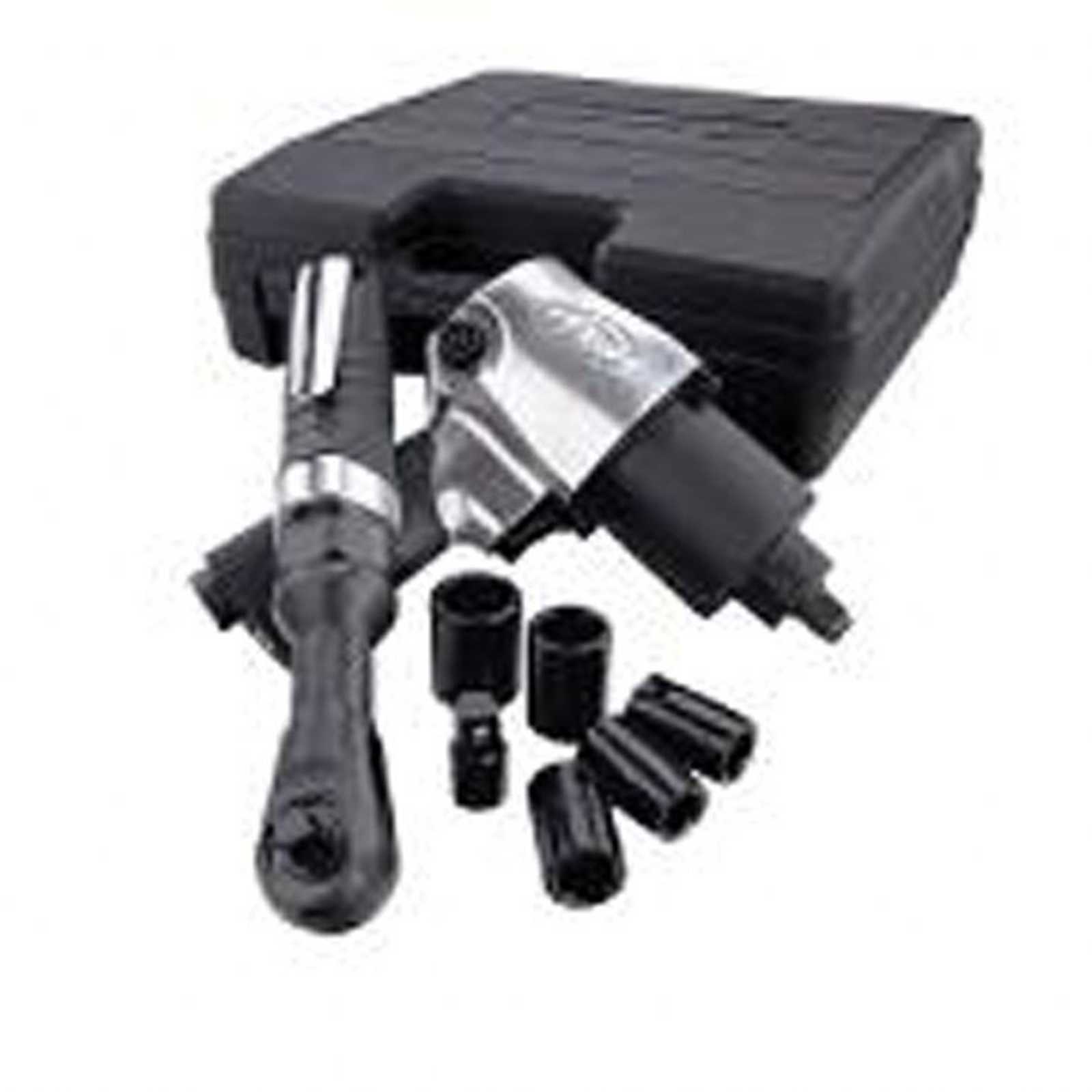

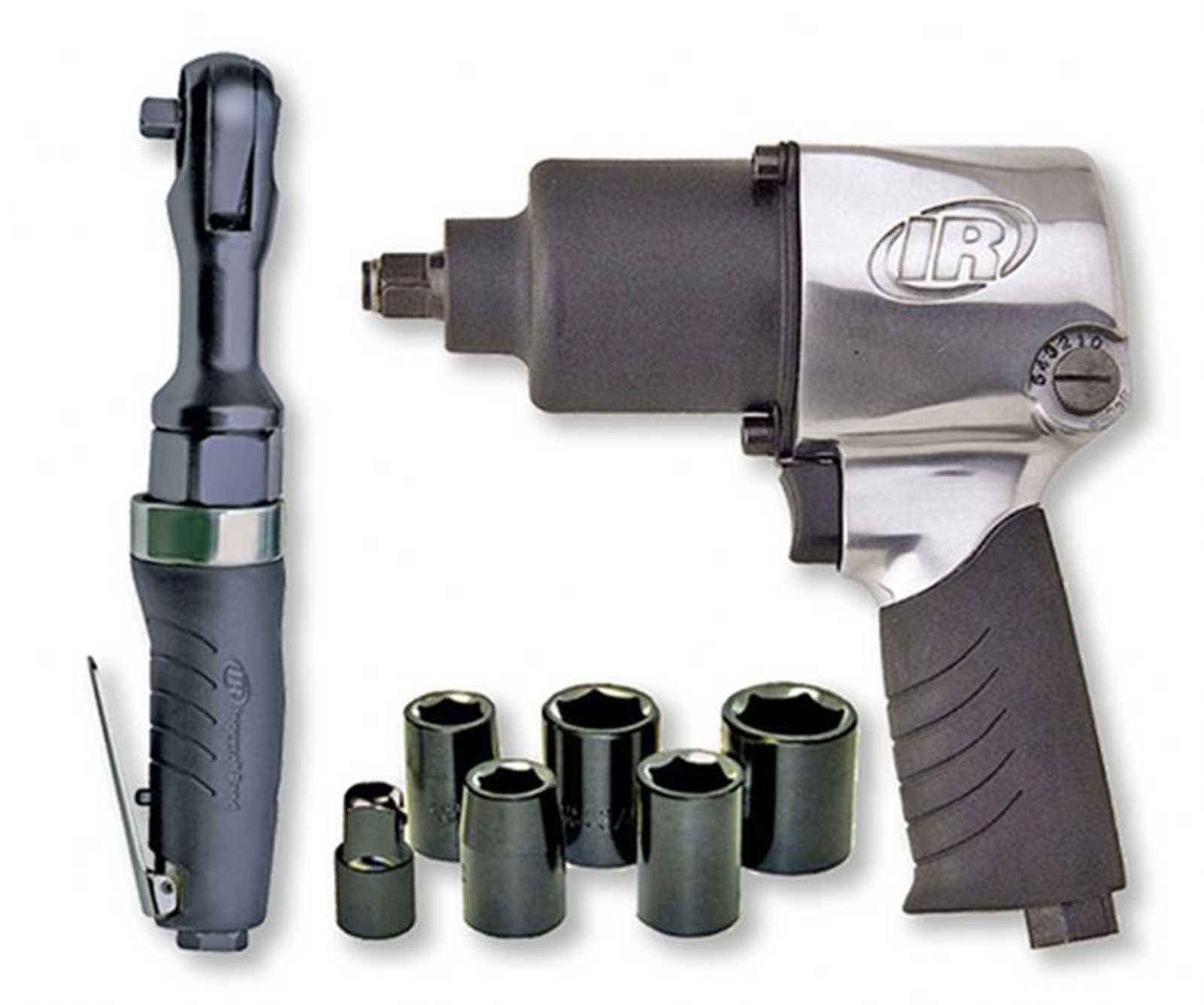

- The Ingersoll Rand Edge Series 2317G Air combo kit comes with (1) 231G Air Impact Wrench and (1) 170G Air Ratchet Wrench plus a 5-piece socket set. Also includes a blow molded storage carrying case.
- The 231G Impact Wrench delivers 500 ft-lbs. of max torque output and has an exclusive twin hammer impact mechanism that delivers a balanced blow. Its powerful 6 vane motor is durable and tough to complete the task at hand.
- The 170G Ratchet Wrench is compact, weighs only 2.6 lbs and rugged. It has a 3/8" drive and a Twin Pawl Plus ratchet head that’s been heat-treated for a longer life. Its powerful motor delivers 55 ft-lbs of torque and 170 rpm for max performance.
- Contoured grip gives greater comfort and control and its ergonomic design delivers exceptional torque precision as well as increased productivity and safety.
- This combo kit is best for car maintenance jobs and backed by a 1-year limited product warranty.
This set includes a 231G air impact wrench and a 170G air ratchet wrench along with a five-piece socket set. The impact wrench's 6-vane motor yields an optimal power-to-weight ratio, while the ratchet wrench's motor delivers 55 foot pounds of torque and 170 RPM of free speed. Both tools sport an ergonomic design for greater comfort. A blow-molded storage case makes carrying the set easy.
Model | Configuration | Actuation | Drive Size (in) | Drive Type | Max Forward Torque ft-lbs (Nm) | Max Reverse Torque ft-lbs (Nm) | Blows Per Minute | Free Speed (RPM) | Impacting Sound Level dB(A) -- ISO15744 (pressure/power) | Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power) | Vibration Level m/s2 | Weight lbs (kg) | Length in (mm) | Air Inlet NPT (in) | Min Hose Size (in) | Air Consumption @ Load cfm (L/min) | Avg Air Consumption cfm (L/min) | PSI | Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
231G | Pistol Grip | Trigger | 1/2 | Square | 300 (407) | 500 (678) | 1200 | 8000 | N/A | 94.5 | N/A | 5.8 (2.63) | 7.29 (185) | 1/4 | 3/8 | 22 (623) | 5 (142) | 90 | 6.2 |
170G | Right Angle | Lever | 3/8 | Square | 55 (75) | 55 (75) | N/A | 170 | N/A | N/A | 2.8 | 2.6 (1.18) | 10.4 (264) | 1/4 | 3/8 | 20 (566) | 3 (85) | 90 | 6.2 |
