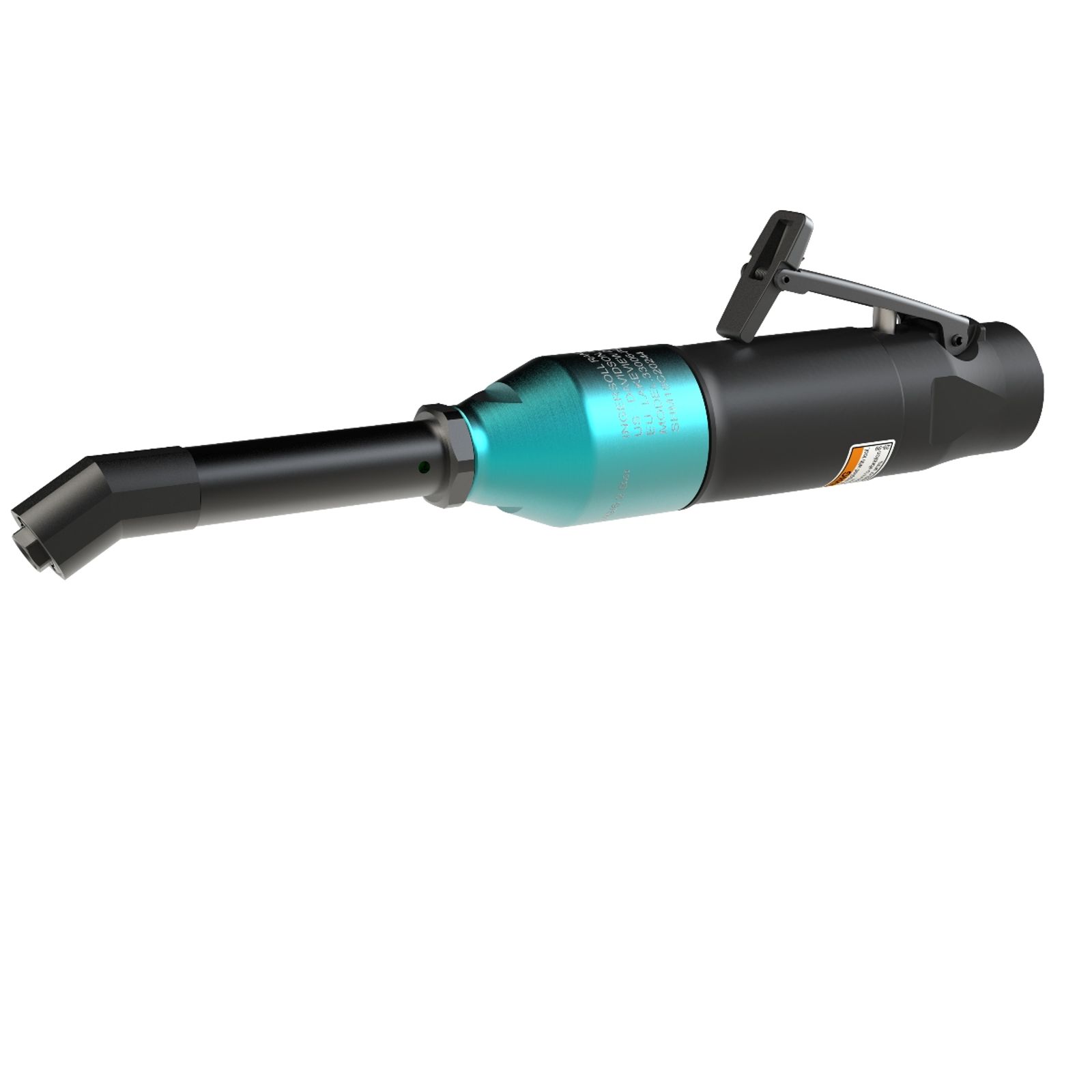

P33N Precision Drills Non Modular with 30° Angle Head

From aircraft manufacturing to aerospace maintenance, P33N is designed to offer flexibility and to answer for requirements of precise drilling and reaming of high technology materials for the aerospace industry.

P33N Series The New Generation of Precision Drills:

  • When Engineering know-how, state of the art design and ergonomics meet along with quality and new requirements of flexible production: Ingersoll-Rand provides you with it’s latest P33N generation of precision drills.
  • The Ingersoll Rand P33N drill range, originates as an evolution from successful P33 drill range, providing the same ideal flexibility, power and durability but with a better tool identification as well as an outstanding new ergonomics.

Flexibility and Interchangeability:

  • One motor type 330W
  • Pistol, Straight or Angle version
  • Wide range of speeds available, from 660 to 18000 rpms
  • 30°, 90°, 180° angle heads
  • P33N is the ideal tool for the multi-task drilling environment, it matches operator needs for accuracy and precise drilling operations according to material and application requirements

Operator Comfort and Ergonomics:

  • Lube free motor for a clean working environment
  • Soft touch housing for better ergonomic grip

Economic Effectiveness:

  • P33N range share same motor and gears to reduce inventory cost

Model

Speed (rpm)

Torque (Nm)

MAX capacity (mm)

Weight (Kg)

Length (mm)

Air consumption (l/s)

P33N006-DASL030P45

660

16

5.0

0.80

284

10

P33N006-DASL030P64

660

16

6.4

0.81

296

10

P33N011-DASL030P45

1100

9.5

5.0

0.80

284

10

P33N011-DASL030P64

1100

9.5

6.4

0.81

296

10

P33N016-DASL030P45

1600

6.8

5.0

0.80

284

10

P33N016-DASL030P64

1600

6.8

6.4

0.81

296

10

P33N022-DASL030P45

2200

4.5

5.0

0.69

269

10

P33N022-DASL030P64

2200

4.5

6.4

0.70

281

10

P33N032-DASL030P45

3200

3.2

5.0

0.69

269

10

P33N032-DASL030P64

3200

3.2

6.4

0.70

281

10

P33N054-DASL030P45

5400

1.9

5.0

0.69

269

10

P33N054-DASL030P64

5400

1.9

6.4

0.70

281

10

P33N Series Air Drill Product Information

1.7 MB, PDF

P33N Series Air Drill Parts Information

2.2 MB, PDF

Air Drill Safety Information

6.5 MB, PDF
