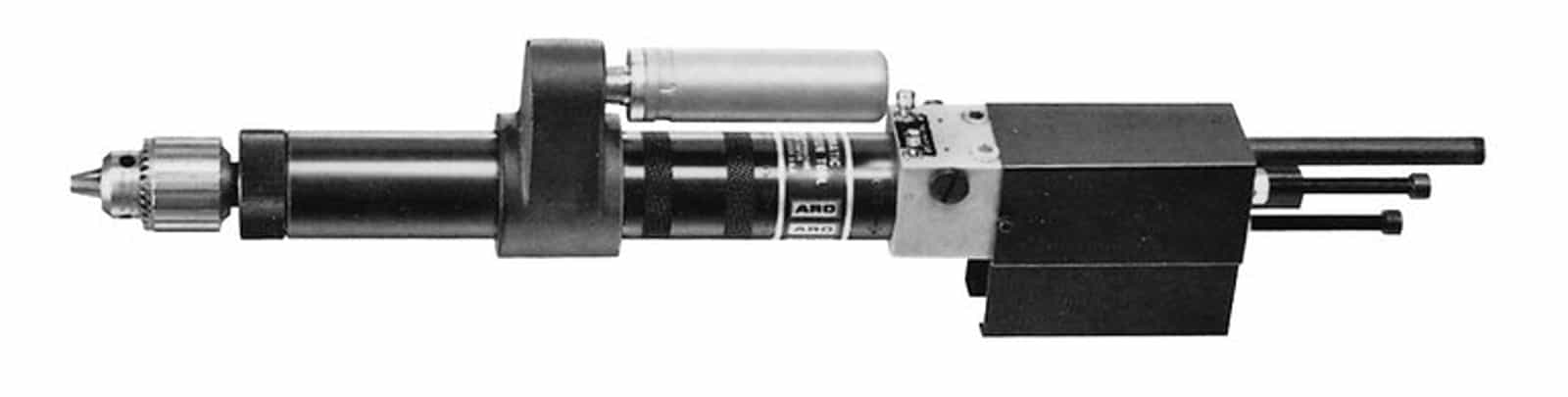

drilling tools 8245B452SelfFeedDrillp001l

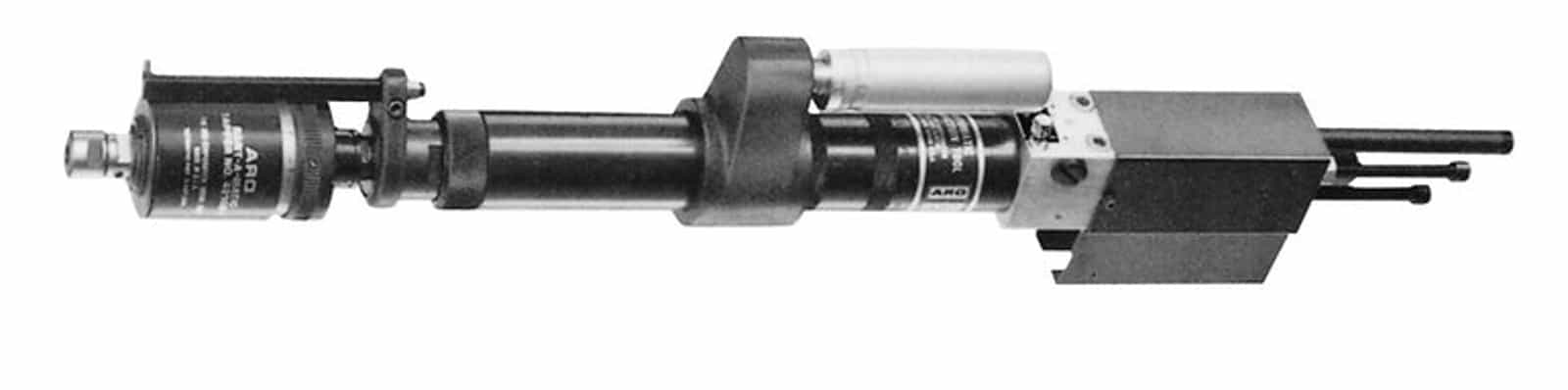

drilling tools 8246D82ClutchTappingHeadp001l

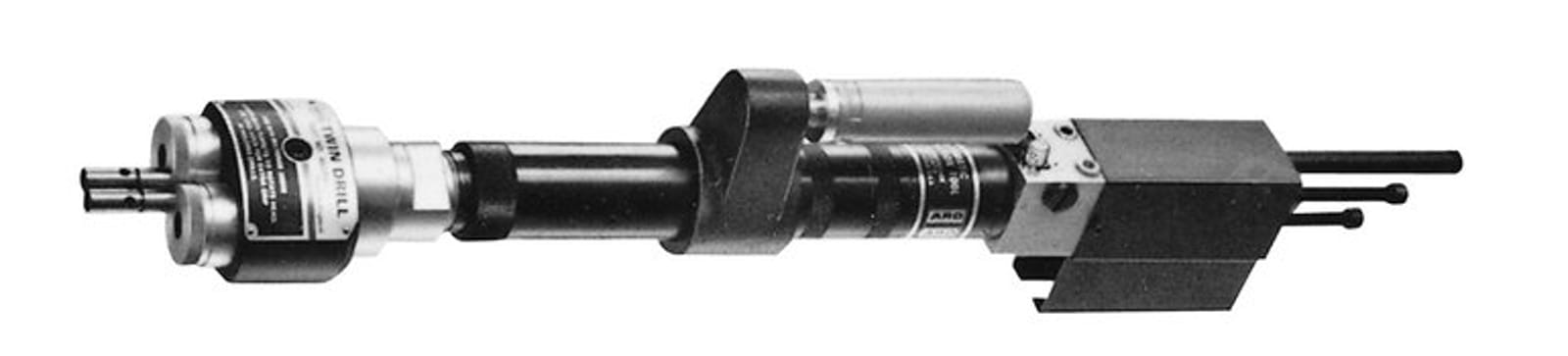

drilling tools 8248B302SelfFeedTwinDrillp001l

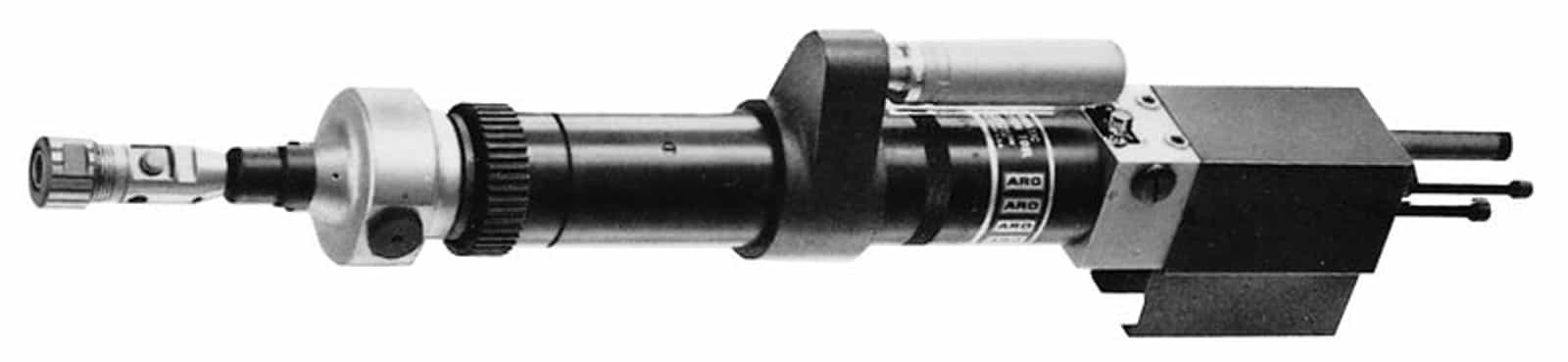

drilling tools 8257A8JawTappingHeadp001l

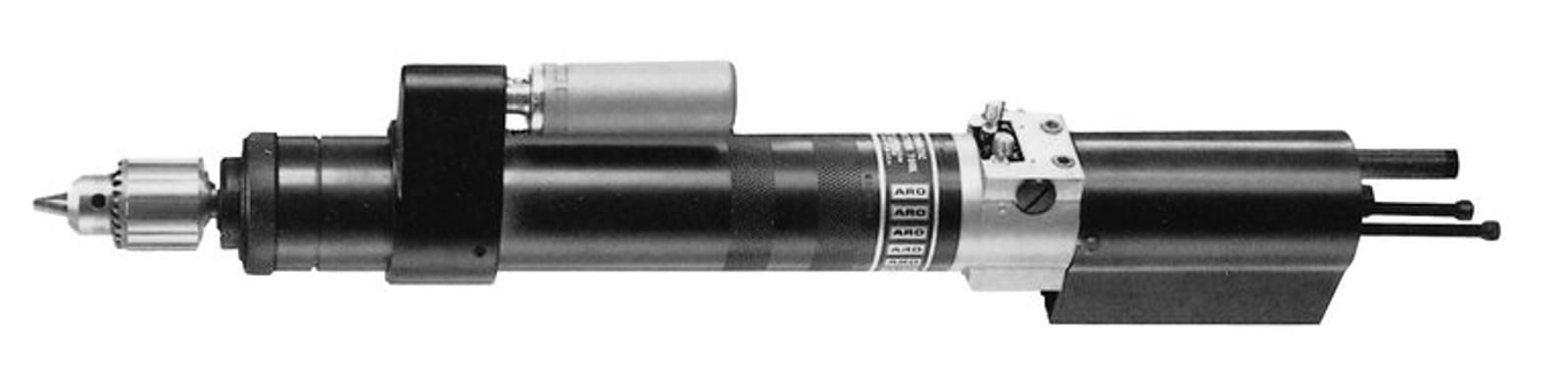

drilling tools 8265253SelfFeedDrillp001l

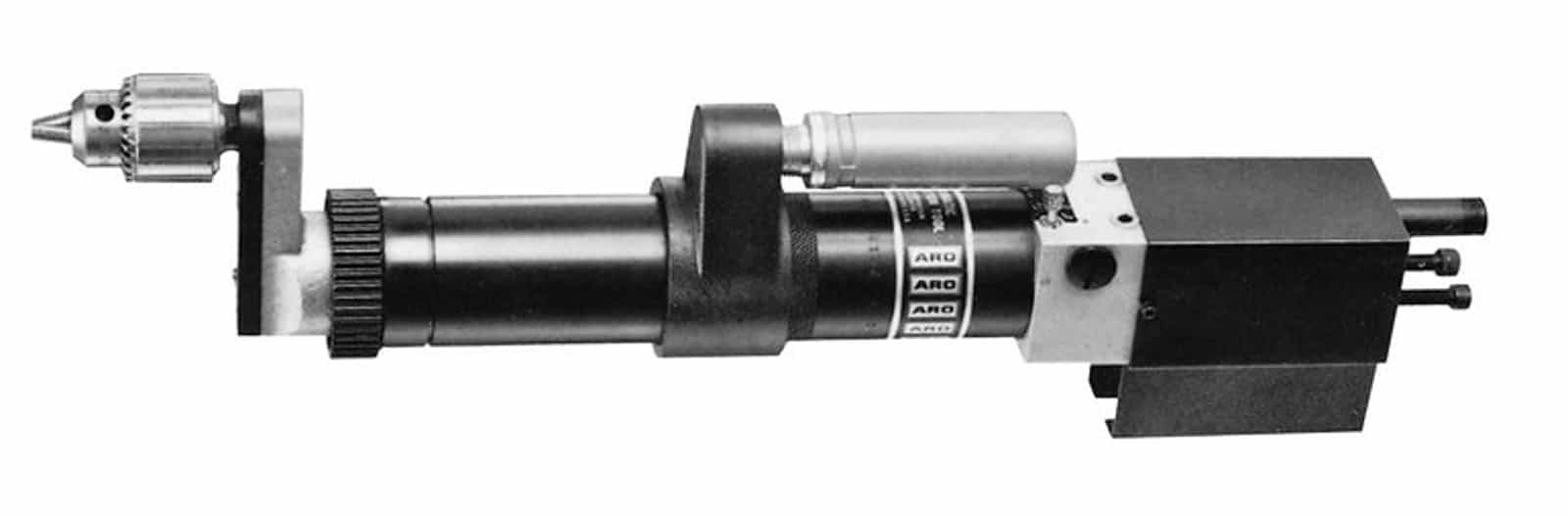

drilling tools 8266A172SelfFeedOffsetDrillp001l

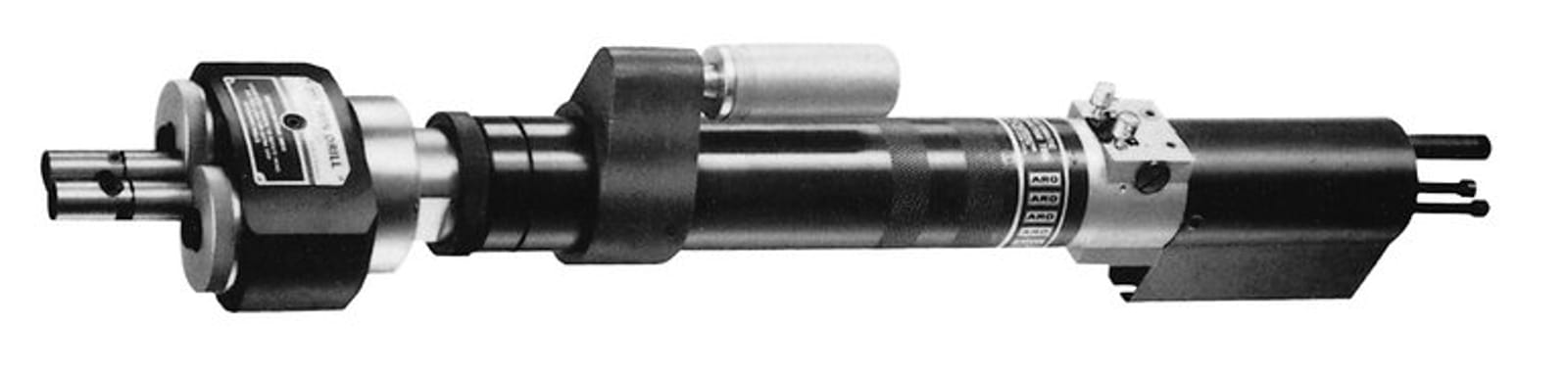

drilling tools 8268A253SelfFeedTwinDrillp001l

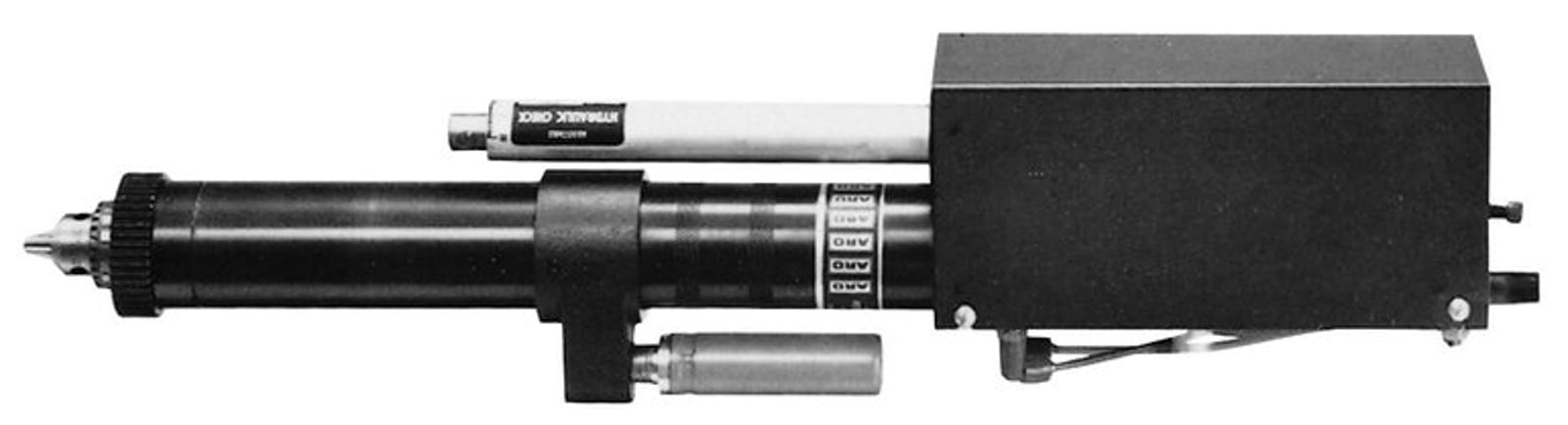

drilling tools 8360A283PeckFeedDrillp001l

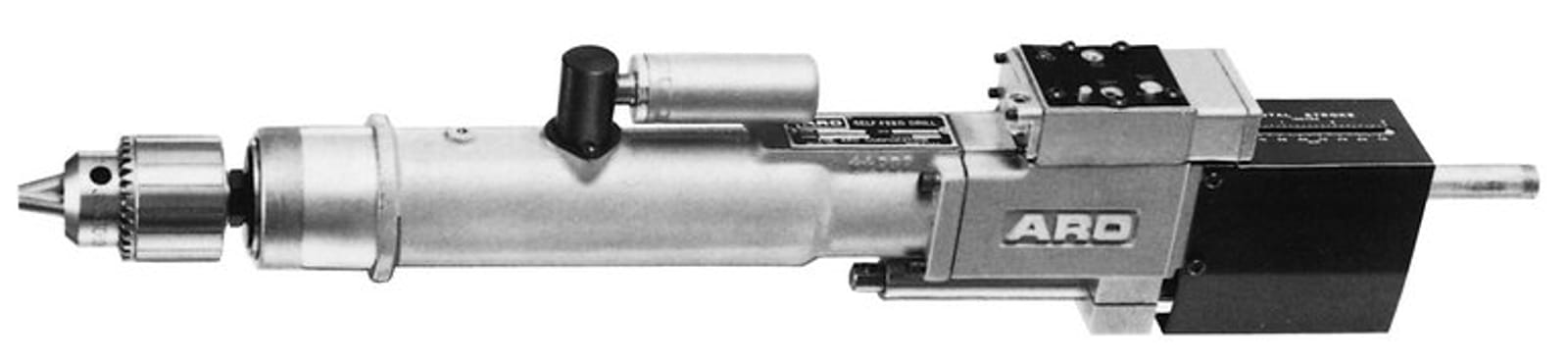

drilling tools 8670281SelfFeedDrillp001l

Ingersoll Rand’s line of feed drills provide the selection, performance, and degree of precision to automate a wide range of secondary machining applications simply and economically. They utilize compressed air for both the spindle rotation and feed / control functions. The reliable rotary-vane air motor offers high power-to-size performance, which minimizes tool size and weight for added machine design flexibility. The tools install easily, requiring only simple pneumatic circuitry.

Request Service, Parts or Support

Bant-A-Matic: 3/16" (4.8 mm) Capacity, Steel .25 HP (.20 kW)

Par-A-Matic: 5/16" (7.9 mm) Capacity, Steel .50 HP (.37 kW)

Super Par-A-Matic Drills: 1/2" (12.7 mm) Capacity, Steel .75 HP (.56 kW)

Hi-Thrust: 5/8" (15.9 mm) Capacity, Steel 1.25 HP (.93 kW)

Double-acting air piston provides smooth, controlled forward and retract strokes.
Needle valve controls allows adjustment of forward and retract strokes.
Adjustment screw provides infinite stroke length settings.
Ball bearing spindle support offers precision and long service life.
Muffled exhaust for a quieter work environment.
Custom models and accessories are available.

Looking for drawings? Download here.

Models

Models & Stroke Length in. (mm)

Models & Stroke Length in.(mm)

Free Speed (RPM)

Nominal Drilling Capabilities (Stnls. Stel Type 34)

Nominal Drilling Capabilities (Steal SAE 1213)

Nominal Drilling Capabilities (Alum. 2024-T4)

Nominal Drilling Capabilities (Wood, Med. Or FRP)

Thrust at 90 PSI LB. (N)

Air Consp. At Working Speed ft(3)/cycle (L/cycle)

Sound Level dB(A)

STD. Chuck Capacity in.(mm)

Gear Reduction

Bant-A-Matic: 8245 Series

…

1-1/4" (32 mm)

2.0" (51 mm)

3.0" (76 mm)

*8245-203-1

8245-203-2

8245-203-3

19000

1/64(0.4)

1/32 (0.8)

1/16 (1.6)

90 (400)

1.5 (42)

1/4 (6.4)

Single

8245-101-1

8245-101-2

8245-101-3

10000

1/64 (0.4)

1/32 (0.8)

1/16 (1.6)

1/8 (3.2)

90 (400)

1.5 (42)

1/4 (6.4)

Double

8245-B45-1

8245-B45-2

8245-B45-3

4400

1/32 (0.8)

1/16 (1.6)

1/8 (3.2)

5/32 (4.0)

90 (400)

1.5 (42)

1/4 (6.4)

Single

8245-B30-1

8245-B30-2

8245-B30-3

2700

1/16 (1.6)

1/8 (3.2)

3/16 (4.8)

90 (400)

1.5 (42)

1/4 (6.4)

Single

8245-B8-1

8245-B8-2

8245-B8-3

990

3/32 (2.4)

3/16 (4.8)

1/4 (6.4)

5/16 (7.9)

90 (400)

1.5 (42)

1/4 (6.4)

Double

Par-A-Matic 8255: Series

…

1-1/4" (32 mm)

2.0" (51 mm)

3.0" (76 mm)

*8255-172-1

8255-172-2

8255-172-3

17000

1/64 (0.4)

1/32 (0.8)

1/16 (1.6)

170 (756)

2.3 (65)

5/16 (79)

Single

8255-101-1

8255-101-2

8255-101-3

10000

1/32 (0.8)

1/16 (1.6)

5/32 (4.0)

170 (756)

2.3 (65)

5/16 (79)

Double

8255-A50-1

8255-A50-2

8255-A50-3

5000

5/64 (2.0)

3/16 (4.8)

170 (756)

2.3 (65)

5/16 (79)

Single

8255-A28-1

8255-A28-2

8255-A28-3

2800

1/16 (1.6)

9/64 (3.6)

1/4 (6.4)

170 (756)

2.3 (65)

5/16 (79)

Single

8255-A21-1

8255-A21-2

8255-A21-3

2100

7/64 (2.8)

7/32 (5.6)

9/32 (7.1)

5/16 (7.9)

170 (756)

2.3 (65)

5/16 (79)

Single

8255-A14-1

8255-A14-2

8255-A14-3

1450

5/32 (4.0)

1/4 (6.4)

5/16 (7.9)

3/8 (9.5)

170 (756)

2.3 (65)

5/16 (79)

Double

8255-A8-1

8255-A8-2

8255-A8-3

850

11/64 (4.4)

9/32 (7.1)

21/64 (8.3)

25/64 (9.9)

170 (756)

2.3 (65)

5/16 (79)

Double

8255-A5-1

8255-A5-2

8255-A5-3

500

1/4 (6.4)

5/16 (7.9)

11/32 (8.7)

13/32 (10.3)

170 (756)

2.3 (65)

5/16 (79)

Double

Super Par-A-Matic: 8265 Series

…

1-1/2" (38 mm)

3.0" (76 mm)

*8265-171-1

8265-171-3

17000

1/64 (0.4)

3/32 (2.4)

250 (1112)

2.9 (82)

1/2 (12.7)

Single

8265-46-1

8265-46-3

4600

1/8 (3.2)

1/4 (6.4)

5/16 (7.9)

250 (1112)

2.9 (82)

1/2 (12.7)

Single

8265-25-1

8265-25-3

2500

3/32 (2.4)

3/16 (4.8)

5/16 (7.9)

7/16 (11.1)

250 (1112)

2.9 (82)

1/2 (12.7)

Single

8265-12-1

8265-12-3

1200

5/32 (4.0)

5/16 (7.9)

3/8 (9.5)

9/16 (14.3)

250 (1112)

2.9 (82)

1/2 (12.7)

Double

8265-6-1

8265-6-3

650

17/64 (6.7)

7/16 (11.1)

9/16 (14.3)

5/8 (15.9)

250 (1112)

2.9 (82)

1/2 (12.7)

Double

8265-3-1

8265-3-3

350

5/16 (7.9)

1/2 (12.7)

5/8 (15.9)

11/16 (17.5)

250 (1112)

2.9 (82)

1/2 (12.7)

Double

Hi-Thrust: 8670 Series

…

8670-47-3

3.0 (76)

4700

3/16 (4.75)

7/16 (11.1)

1/2 (12.7)

500 (2224)

5.0 (142)

3/4 (19.0)

8670-28-3

3.0 (76)

2800

3/16 (4.8)

1/4 (6.35)

9/16 (14.3)

5/8 (15.9)

500 (2224)

5.0 (142)

3/4 (19.0)

8670-13-3

3.0 (76)

1350

5/16 (7.9)

11/32 (8.73)

5/8 (15.9)

3/4 (19.0)

500 (2224)

5.0 (142)

3/4 (19.0)

8670-8-3

3.0 (76)

800

3/8 (9.5)

7/16 (11.11)

3/4 (19.0)

7/8 (22.2)

500 (2224)

5.0 (142)

3/4 (19.0)

8670-4-3

3.0 (76)

450

1/2 (12.7)

5/8 (15.87)

7/8 (22.2)

1.0 (25.4)

500 (2224)

5.0 (142)

3/4 (19.0)

Consumption in cubic feet during a typical 6 second cycle time. Note: Performance data given at 90 PSI (6.2 bar) air pressure.
