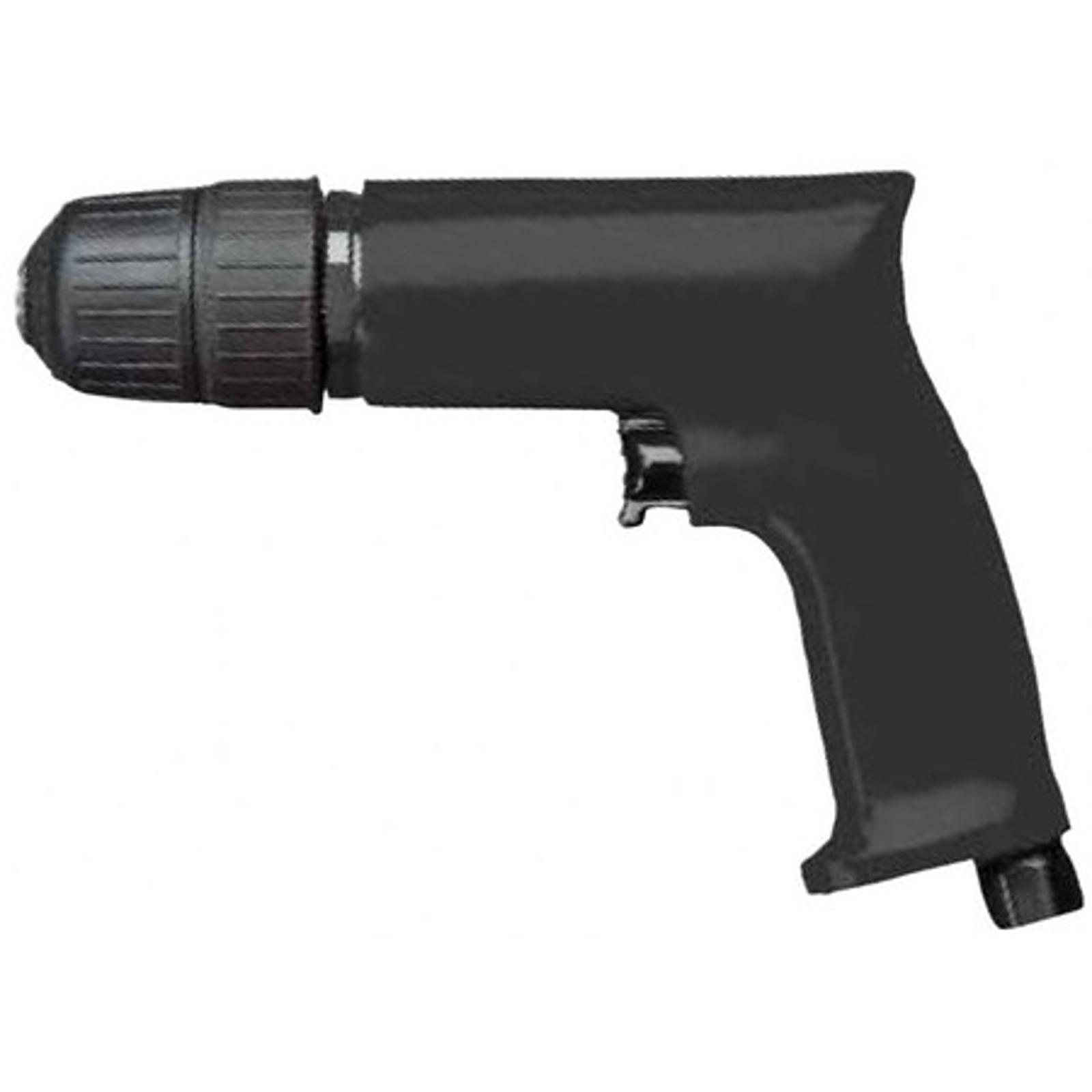

1/4″ Reversible Mini Air Drill/Driver, Pistol Grip

This reversible ¼” Mini Air Drill/Driver is a compact drill that is great for automotive services. Featuring a keyed chuck for a secure connection and an adjustable speed setting to provide variability for a broad range of applications.

Performance:

  • 1875 RPM, 0.25 HP, 16.2 CFM, Variable Speed Trigger

Access:

  • This compact air drill/driver measures 7.6" in length and is great for working in tight spaces.

Comfort:

  • With a composite housing that insulates from the cold air, you can use this tool for prolonged periods of time without getting fatigued or uncomfortable.



Also available in the 7804KA 22-piece kit which includes drill bits, phillips bits, slotted bits, hex bits, torx bits, 3/8" socket adaptor and a magnetic bit extender.

Model

Actuation

Rated Power (hp)

Rated Power (kW)

Chuck Capacity (in)

Chuck Capacity (mm)

Length (in)

Length (mm)

Free Speed (rpm)

Chuck Type

Weight (lb)

Weight (kg)

Product Width (in)

Product Width (mm)

Product Height (in)

Product Height (mm)

Sound Pressure/Power dBA

Configuration

Reversible

Average Air Consumption (cfm)

Average Air Consumption (L/min)

Vibration m/s2 (uncertainty K)

Air Inlet

Min. Hose Size (in)

Min. Hose Size (mm)

7804XPA

Trigger

0.25

0.19

1/4

6

7.6

193

1875

Standard

1.8

0.82

1.7

43

6.4

163

84.3 / 95.3

Pistol

No

16.2

459

2.9

1/4 in. NPTF

3/8

10
