ATEX Reversible Air Drill

A classic pistol grip air drills, specifically designed to meet ATEX Zone 1 or Zone 2 requirements, come in multiple configurations and is great for honing, reaming or drilling holes.

Multiple Configurations:

  • Whether you want the solid connection of a keyed chuck or the versatility of a keyless version, this series of Air Drills have an option for you.

Reversible:

  • The Air Drills offer a reversible option that allows you more flexibility.

Reliable:

  • With a sturdy aluminum housing and variable speed throttle, you can be sure you’ll be able to control your tool and trust that it’ll perform the way you want it to.

ATEX marking:

  • 014/34/EU
  • Ex h IIA T6 Gb X

Model

Actuation

Chuck Type

Chuck Capacity in (mm)

Reversible

Rated Power (hp)

Free Speed (RPM)

Weight lb (kg)

Length in (mm)

Min Hose size in (mm)

Sound Level dB(A)

Air Inlet (in)

Average Air Consumption (CFM)

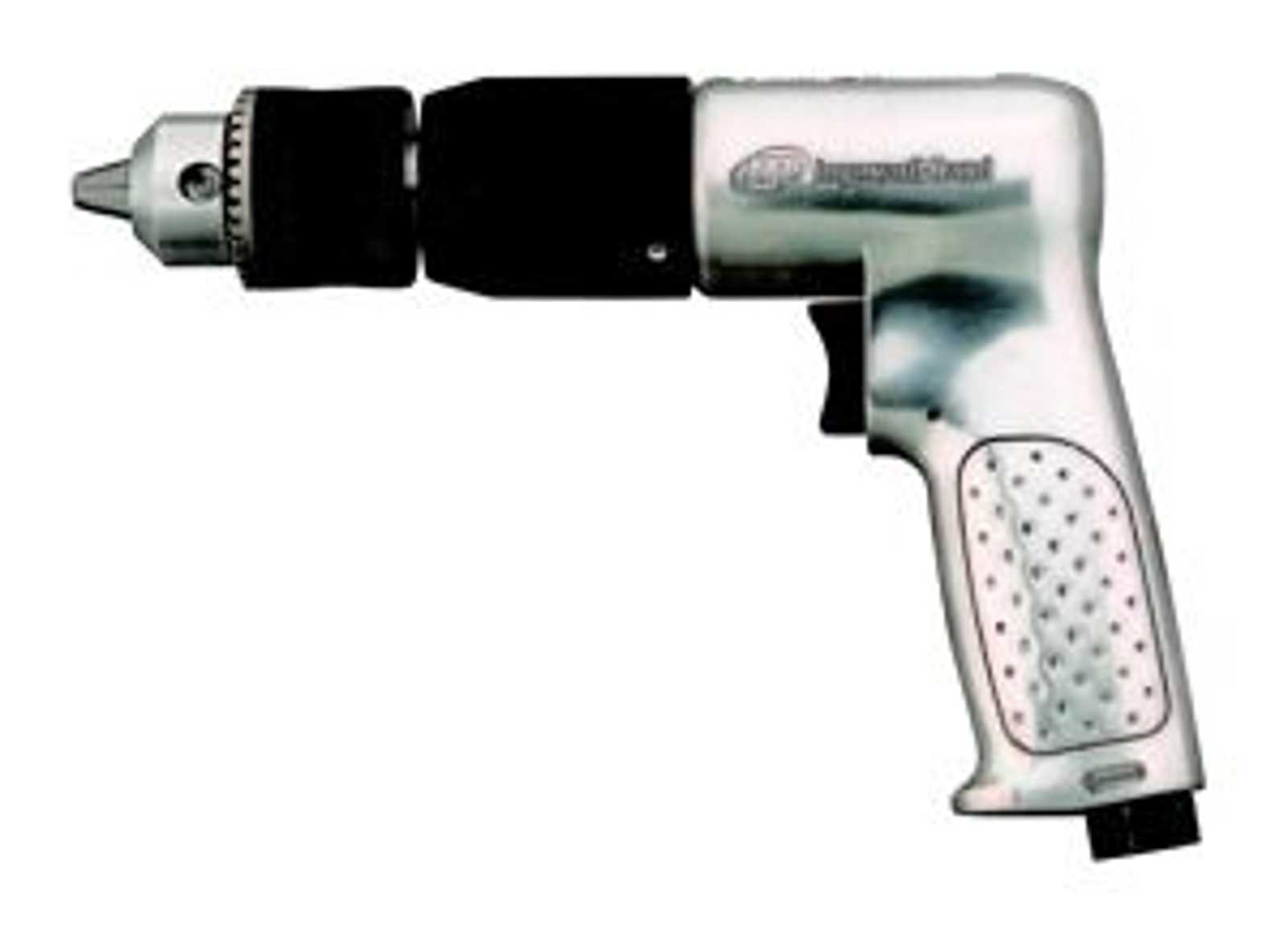

7803RAKCEX

Trigger

Keyless

½" (13)

Yes

0.5

500

3.3 (1.5)

8.7 (221)

3/8" (10)

83.0 / 94.0

¼"

4

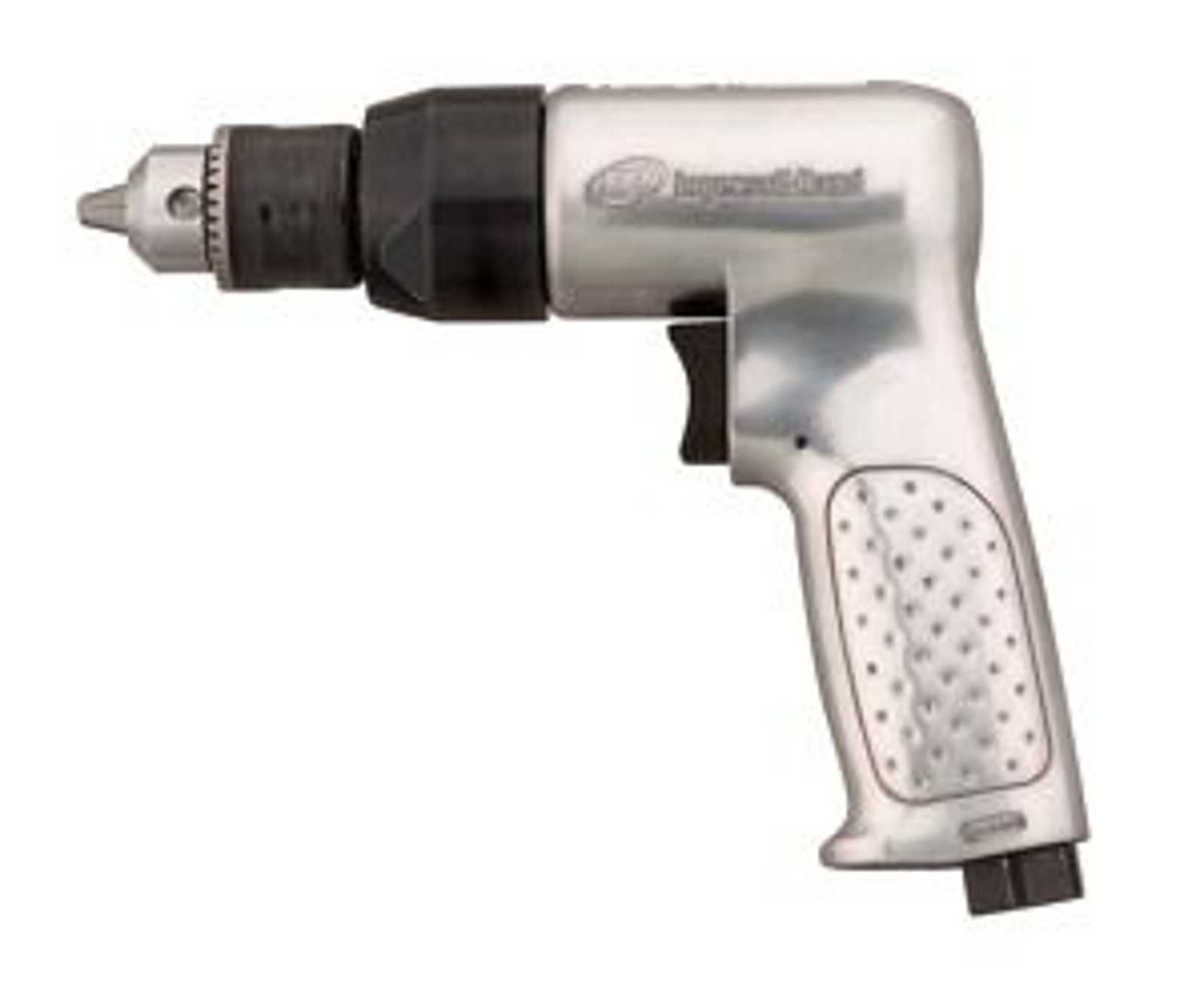

7802RAKCEX

Trigger

Keyless

3/8" (10)

Yes

0.5

2000

2.9 (1.2)

7.4 (188)

3/8" (10)

82.0 / 93.0

¼"

4
