G1 Series Die Grinders

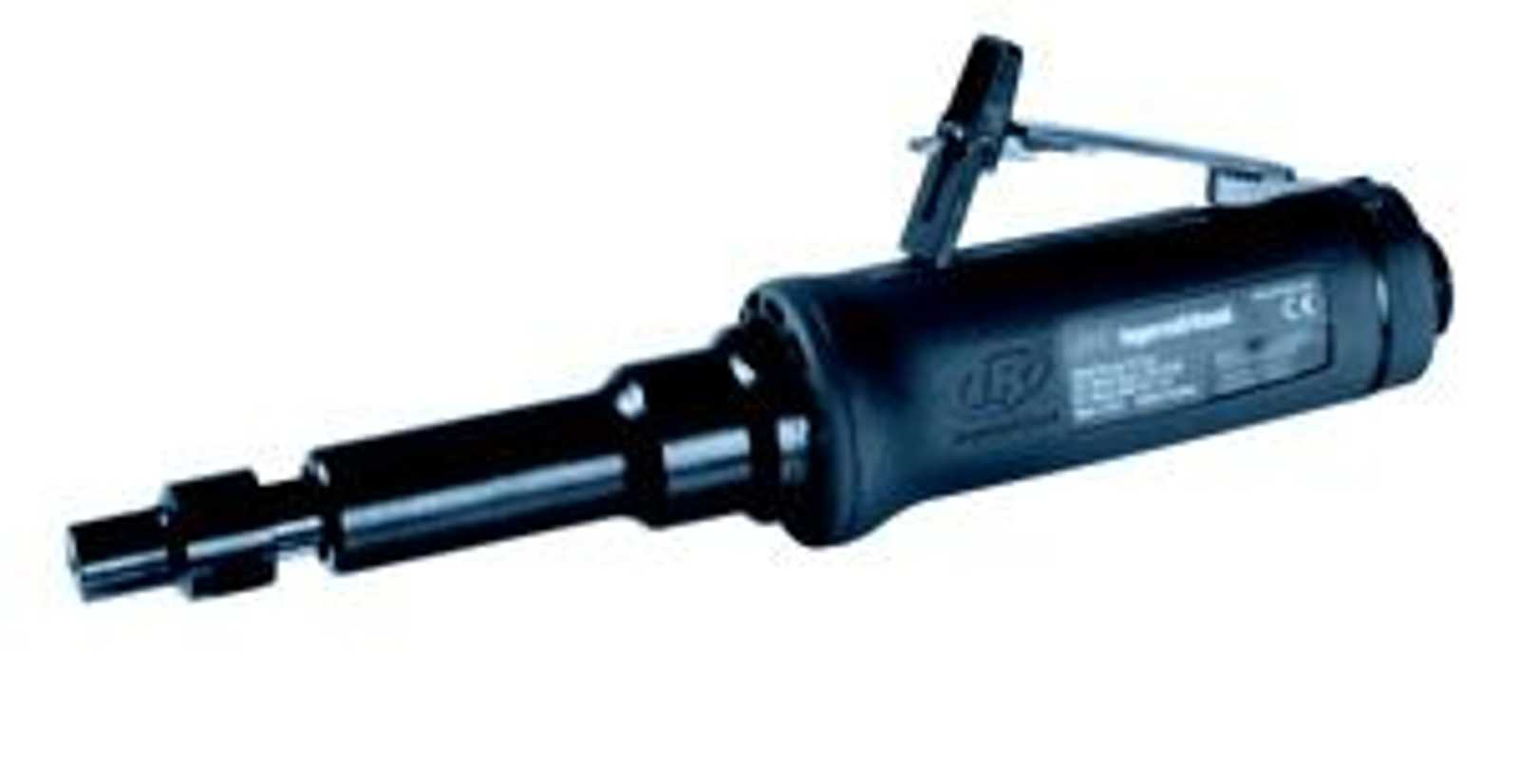

grinders G1X350RG4ExtendedHorizontalGrinderp001l

The G-Series grinder deliver more power and precision for enhanced performance. They are easier to service, which means less downtime for users. And the grinder's ergonomic design makes them more comfortable to use.

Durability:

Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.

Reliability:

Built to last, this tool performs well job after job, which is why it’s right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.

Comfort:

These die grinders have a comfortable, ergonomic body shape that ensures you’ll get more done with less fatigue.

Other Features:

At 0.3 KW, the G1 Series packs a lot of power in a small package
Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Ergonomically designed D-shaped grip
One-nut access for all motor servicing

Model	Rated Power (hp)	Rated Power (kW)	Max Free Speed (rpm)	Output	Weight (lbs)	Weight (kg)	Length (in)	Length (mm)	Air Consumption @ Load (cfm)	Air Consumption @ Load (L/min)	Air Inlet Size (in)	Exhaust	Vibration m/s2	Min Hose Size (in)	Min Hose Size (mm)
G1A120FG4	0.4	0.3	12000	Collet- 1/4 in.	1.1	0.5	6	152	19	538	1/4	Front	3.4	uncertainty: 0.9	3/8
G1A120RG4	0.4	0.3	12000	Collet- 1/4 in.	1.1	0.5	6	152	19	538	1/4	Rear	3.4	uncertainty: 0.9	3/8
G1A200FG4	0.4	0.3	20000	Collet- 1/4 in.	1.1	0.5	6	152	25	708	1/4	Front	5.6	uncertainty: 1.1	3/8

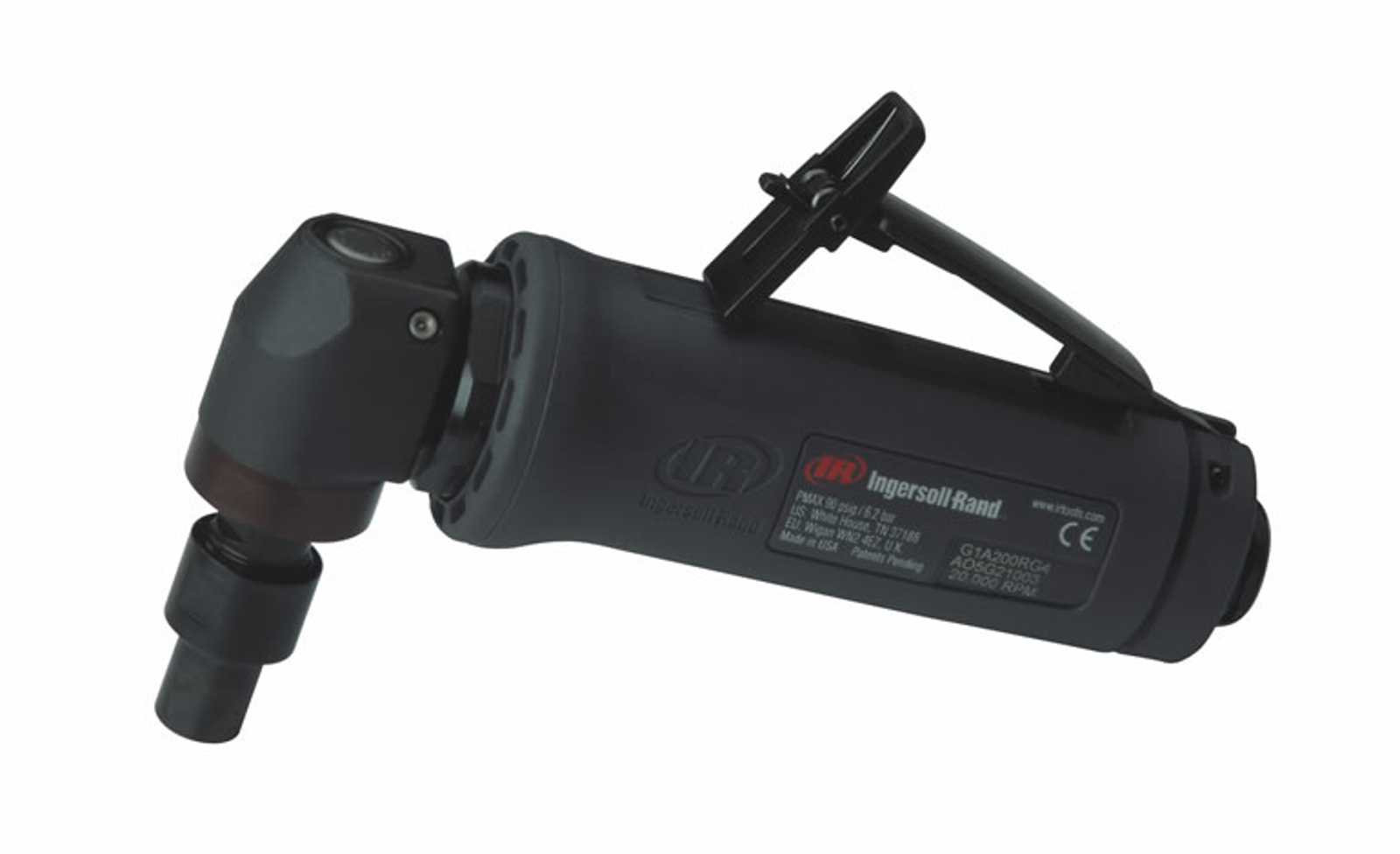

G1A200RG4	0.4	0.3	20000	Collet- 1/4 in.	1.1	0.5	6	152	25	708	1/4	Rear	5.6	uncertainty: 1.1	3/8
G1H200FG4	0.4	0.3	20000	Collet- 1/4 in.	0.9	0.4	6.13	155	19	538	1/4	Front	2.9	uncertainty: 1.7	3/8
G1H200PG4M	0.4	0.3	20000	Collett- 6 mm	0.9	0.41	6.13	156			1/4	Piped Away	2.9	5/16
G1H200RG4	0.4	0.3	20000	Collet- 1/4 in.	0.9	0.4	6.13	155	19	538	1/4	Rear	2.9	uncertainty: 1.7	3/8
G1H250PG4M	0.4	0.3	25000	Collett- 6 mm								Piped Away	2.5
G1H250RG4	0.4	0.3	25000	Collet- 1/4 in.	0.9	0.4	6.13	155	20	566	1/4	Rear	2.5	uncertainty: 1.4	3/8
G1H350FG4	0.4	0.3	35000	Collet- 1/4 in.	0.9	0.4	6.13	155	25	708	1/4	Front	< 2.5	3/8	10

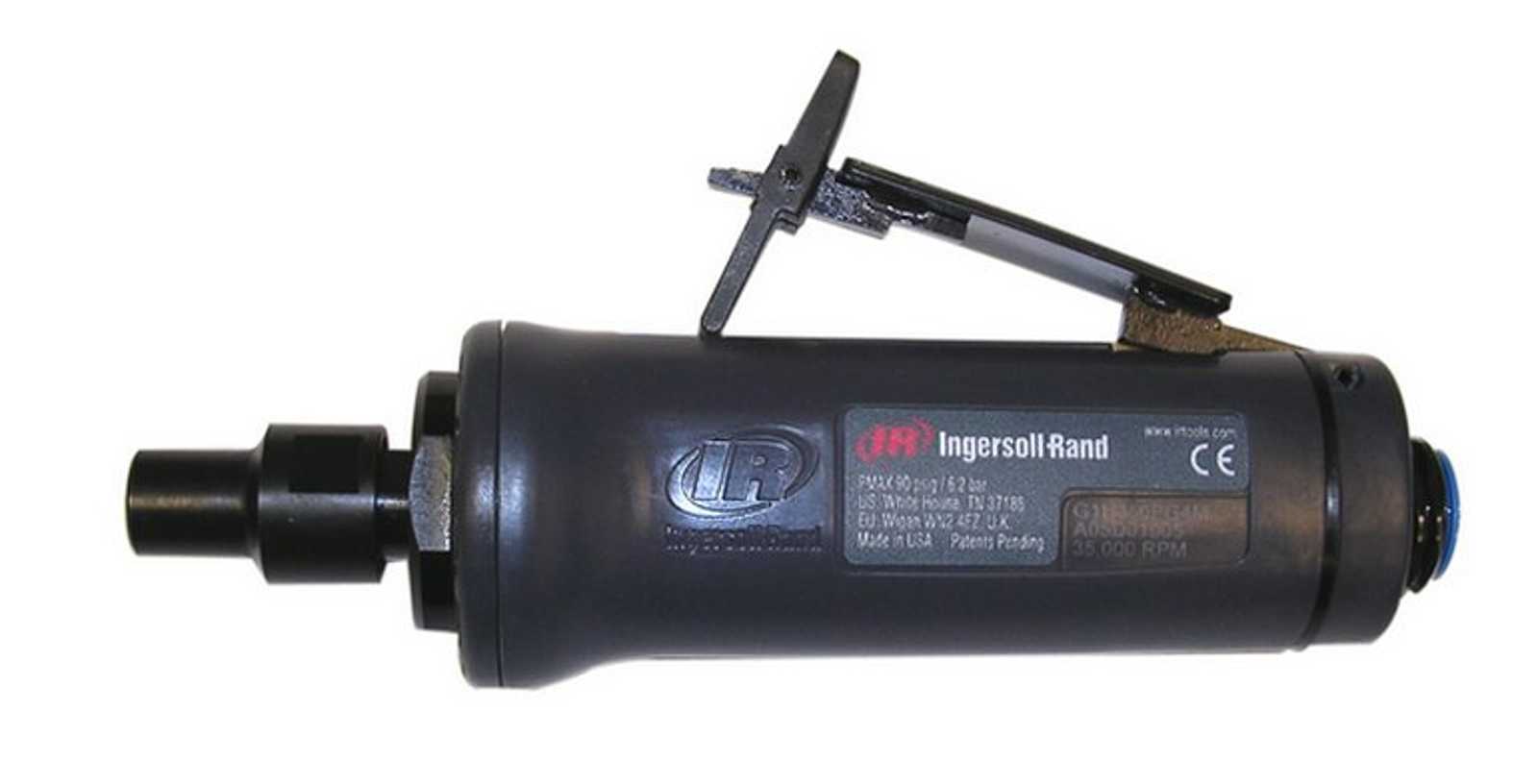

G1H350PG4M	0.4	0.3	35000	Collett- 6 mm								Piped Away	<2.5
G1H350RG4	0.4	0.3	35000	Collet- 1/4 in.	0.9	0.4	6.13	155	25	708	1/4	Rear	< 2.5	3/8	10
G1X200RG4	0.4	0.3	20000	Collet- 1/4 in.	1.3	0.6	9.13	231	25	708	1/4	Rear	< 2.5	3/8	10
G1X250RG4	0.4	0.3	25000	Collet- 1/4 in.	1.3	0.6	9.13	231	25	708	1/4	Rear	< 2.5	3/8	10
G1X350RG4	0.4	0.3	35000	Collet- 1/4 in.	1.3	0.6	9.13	231	25	708	1/4	Rear	< 2.5	3/8	10
G1A200PG4M	0.40	0.30	20000	6mm	1.10	0.50	5.98	152	25	708	1/4"	Piped Away	5.6/1.1	0.31	8
G1X350PG4M	0.40	0.30	35000	6mm	1.3	0.59	9.1	232	9.1	232	1/4"	Piped Away	<2.5	0.31	8
G1A120PS4	0.40	0.30	12000	1/4"-20	1.10	0.50	5.98	152	18.96	537	1/4"	Piped Away	3.0/1.0	0.31	8
G1A200PG4M	0.40	0.30	20000	6mm	1.10	0.50	5.98	152	25	708	1/4"	Piped Away	5.6/1.1	0.31	8
G1A200PS4	0.40	0.30	20000	1/4"-20	1.10	0.50	5.98	152	25	708	1/4"	Piped Away	<2.5	0.31	8
G1A120PG4M	0.40	.30	12000	6mm	1.10	0.50	5.98	152	18.96	537	1/4"	Piped Away	3.4/0.9	0.39	10
