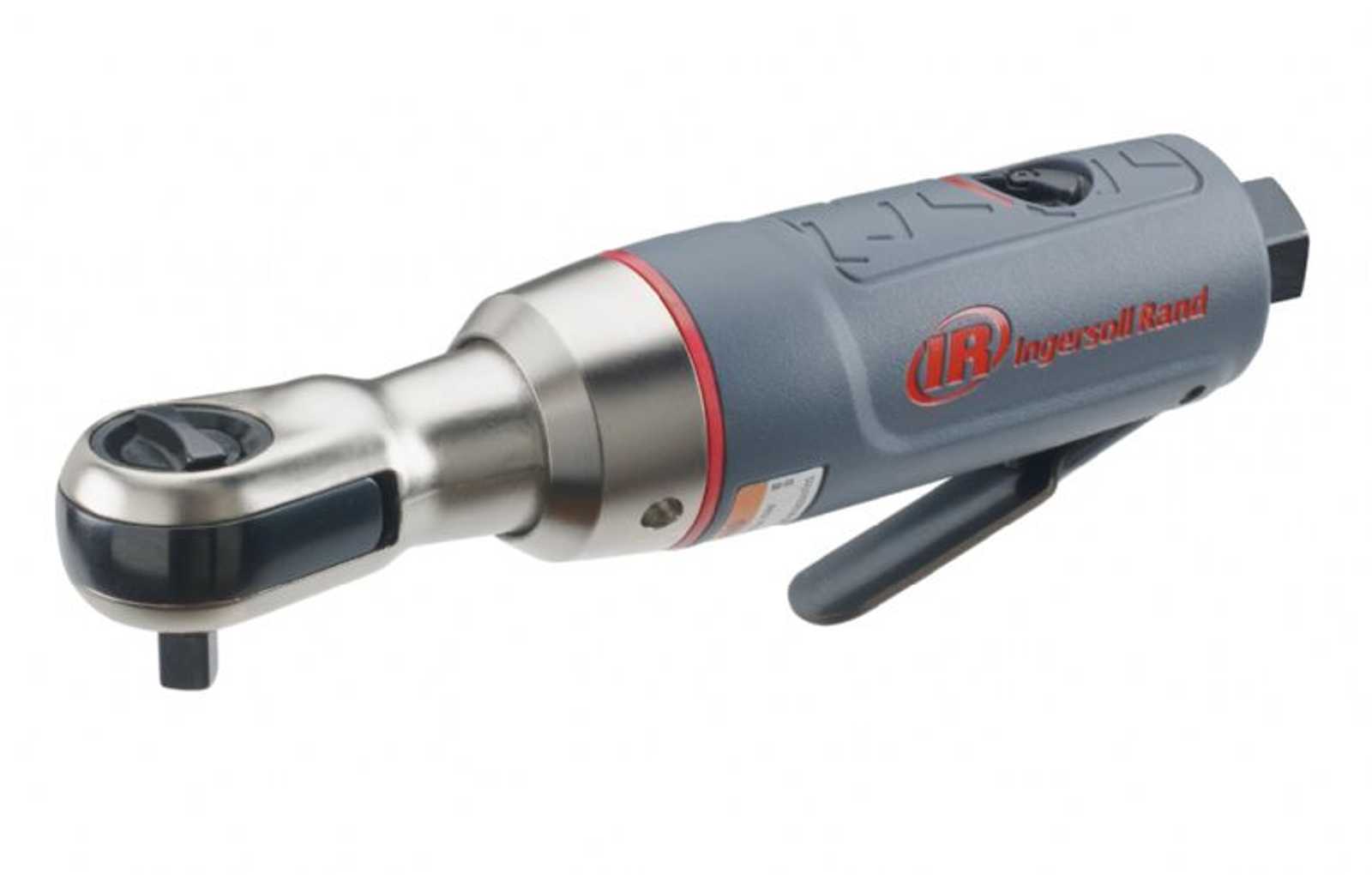

1105MAX Series Premium Mini Ratchet Wrench

The 1105MAX Series is our top-of-the-line, premium mini impact wrenches. These air ratchets offer best-in-class power and speed with features like enhanced corrosion resistance and an ultra-comfortable housing.

Increased Access & Reach:

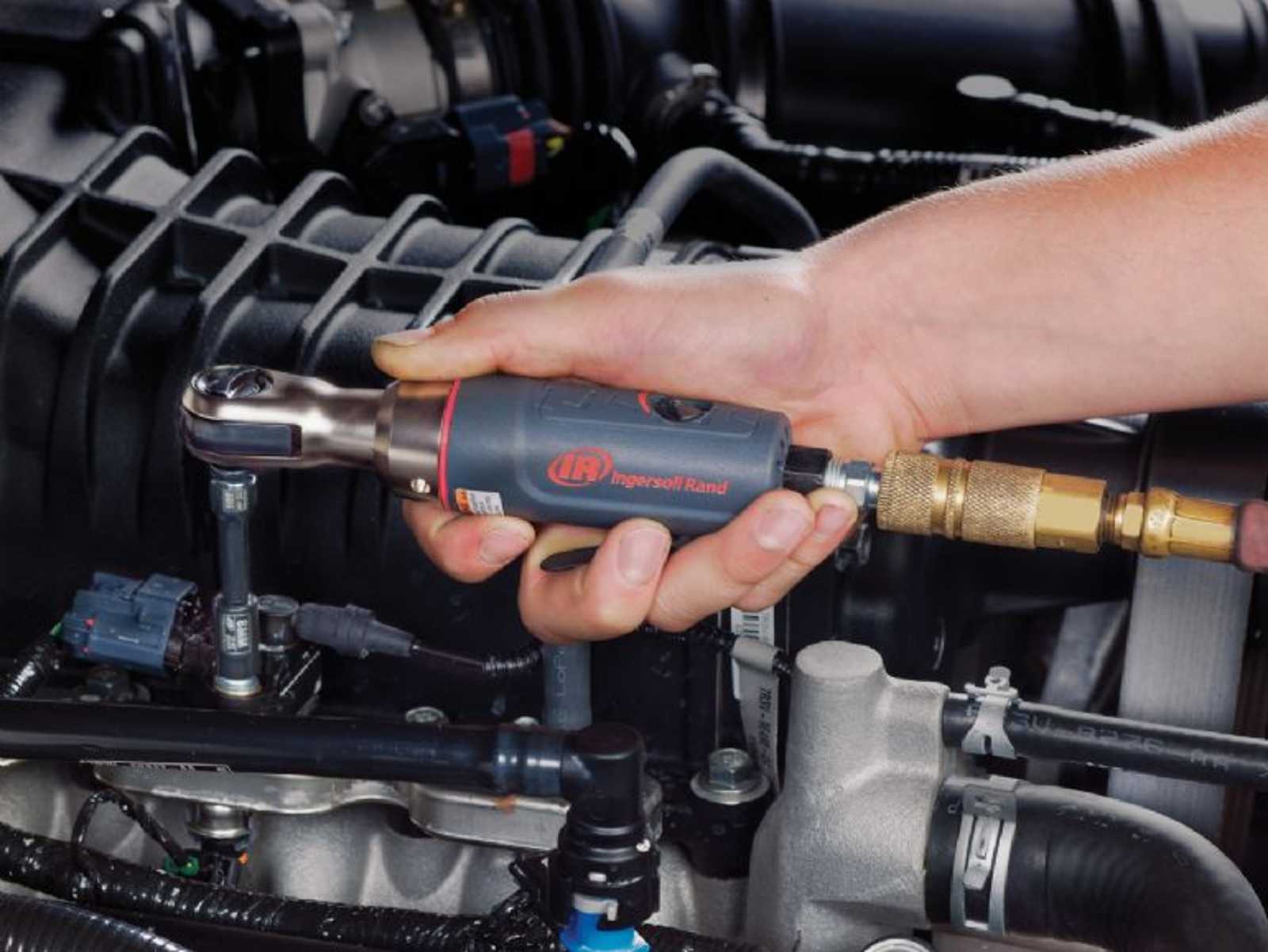

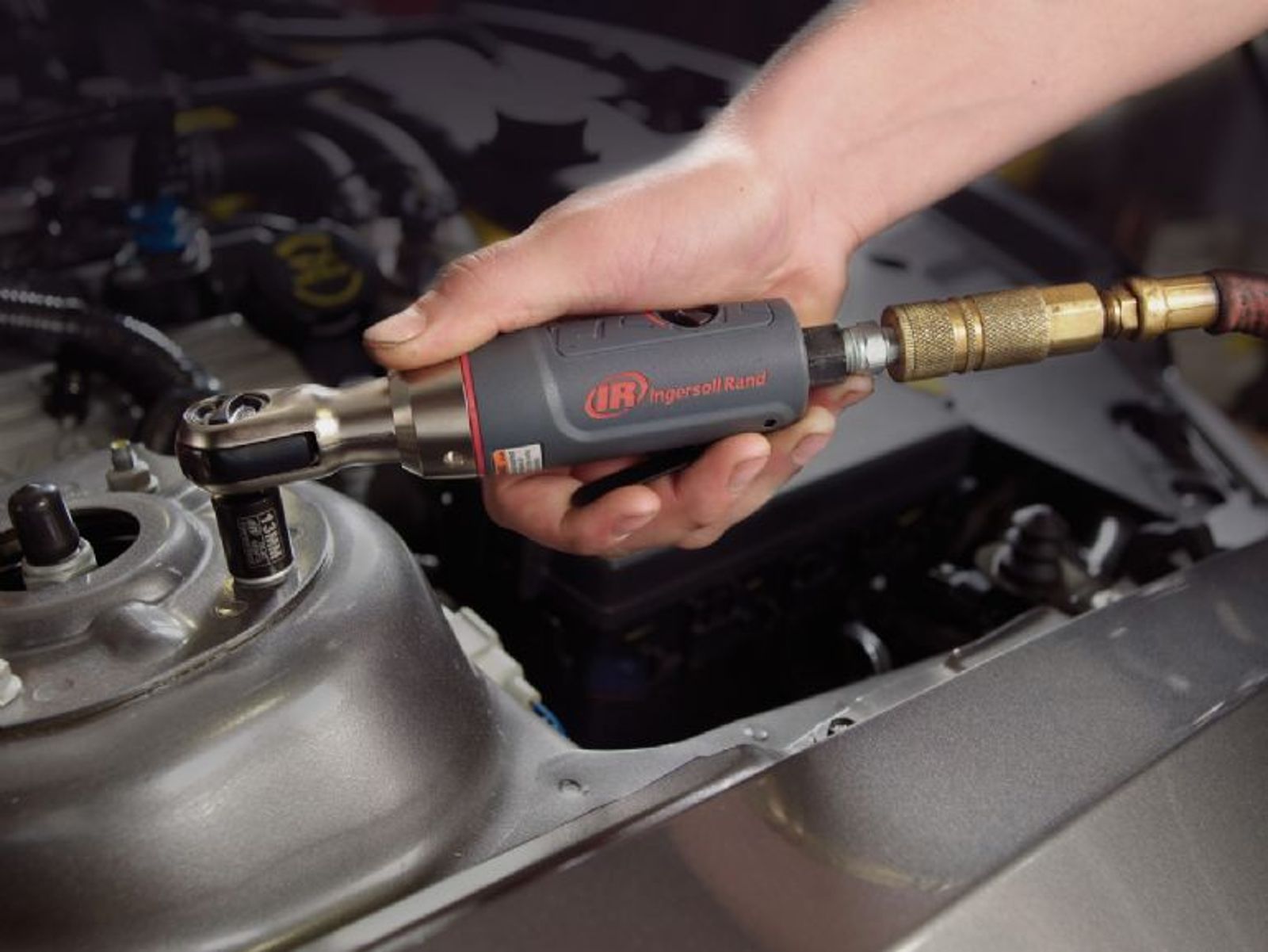

  • These mini ratchet wrenches let you get into deep, tight, and hard-to-reach places.

Long-Lasting Comfort:

  • The composite housing and handle insulates from the cold and ensures operator comfort even during extended use.

Trusted Durability:

  • The 1105MAX Series can withstand harsh environments and repeated drops thank to a unique head construction that improving durability and a nickel-plated housing that provides enhanced corrosion resistance.

Model

Drive Size (in)

Switch Type (actuation)

Free Speed (rpm)

Recomm. Torque Range (ft-lb)

Recomm. Torque Range (Nm)

Max Torque (ft-lb)

Max Torque (Nm)

Free Speed Sound Level (dBA)

Vibration Level m/s2 (K)

Weight (lb)

Weight (kg)

Length (in)

Length (mm)

Average Air Consumption (cfm)

Average Air Consumption (L/min)

Free Speed Air Consumption (cfm)

Free Speed Air Consumption (L/min)

Air Inlet NPTF (in)

Min Hose Size (in)

Min Hose Size (mm)

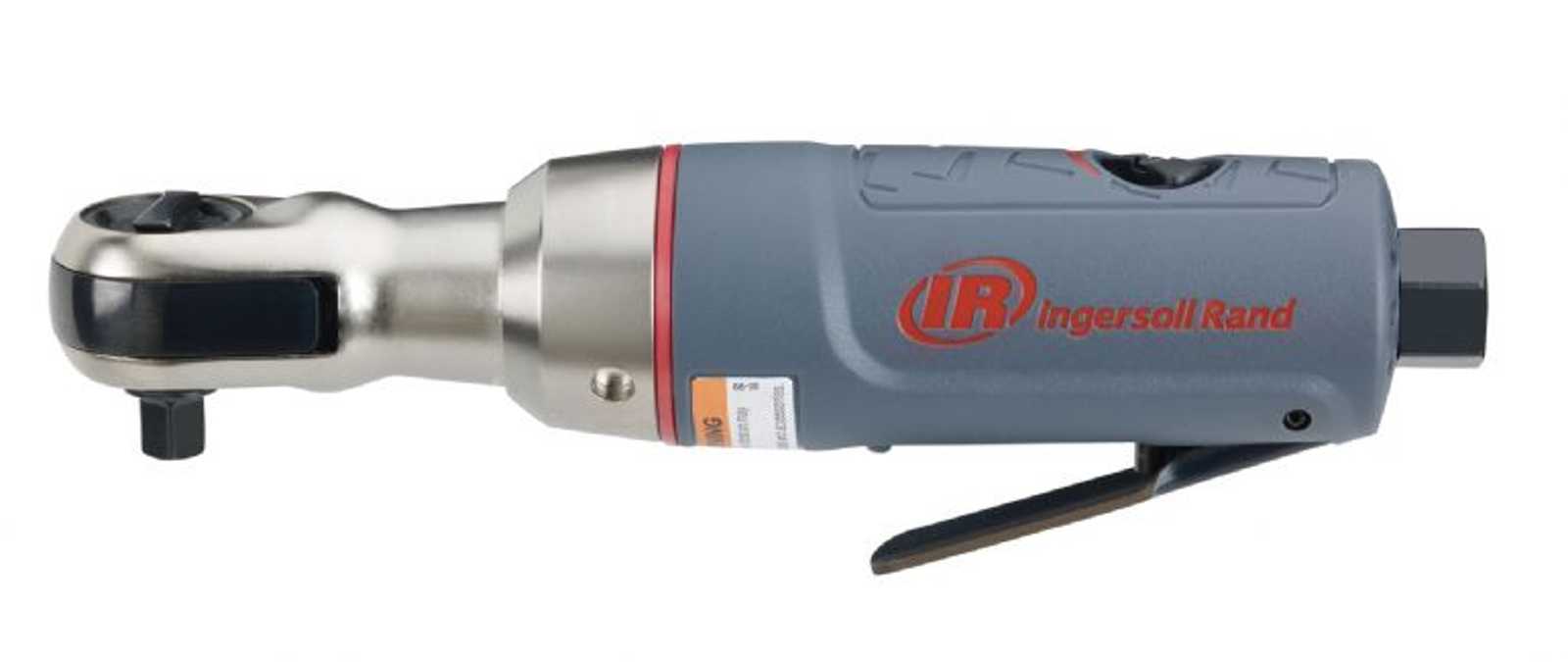

1105MAX-D2

1/4

Lever actuation; variable speed

300

5-25

7-34

30

41

88.9

5.7 (1.0)

1.43

0.65

7.36

187

3.5

99

20

566

1/4

3/8

10

1105MAX-D3

3/8

Lever actuation; variable speed

300

5-25

7-34

30

41

88.9

5.7 (1.0)

1.43

0.65

7.36

187

3.5

99

20

566

1/4

3/8

10
