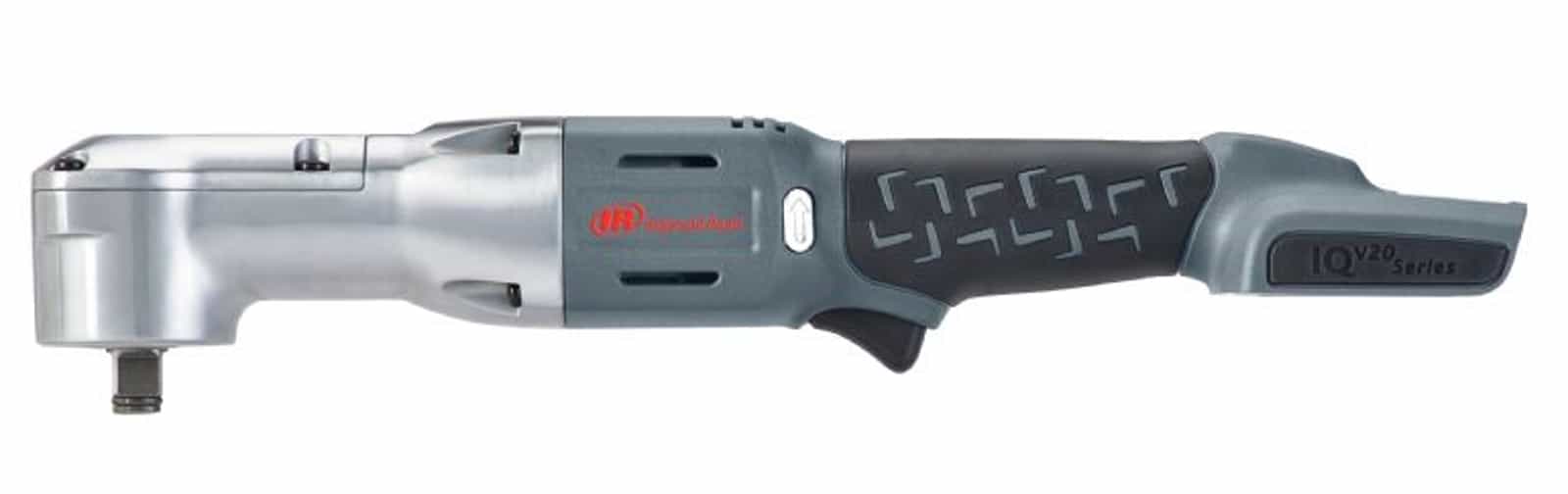

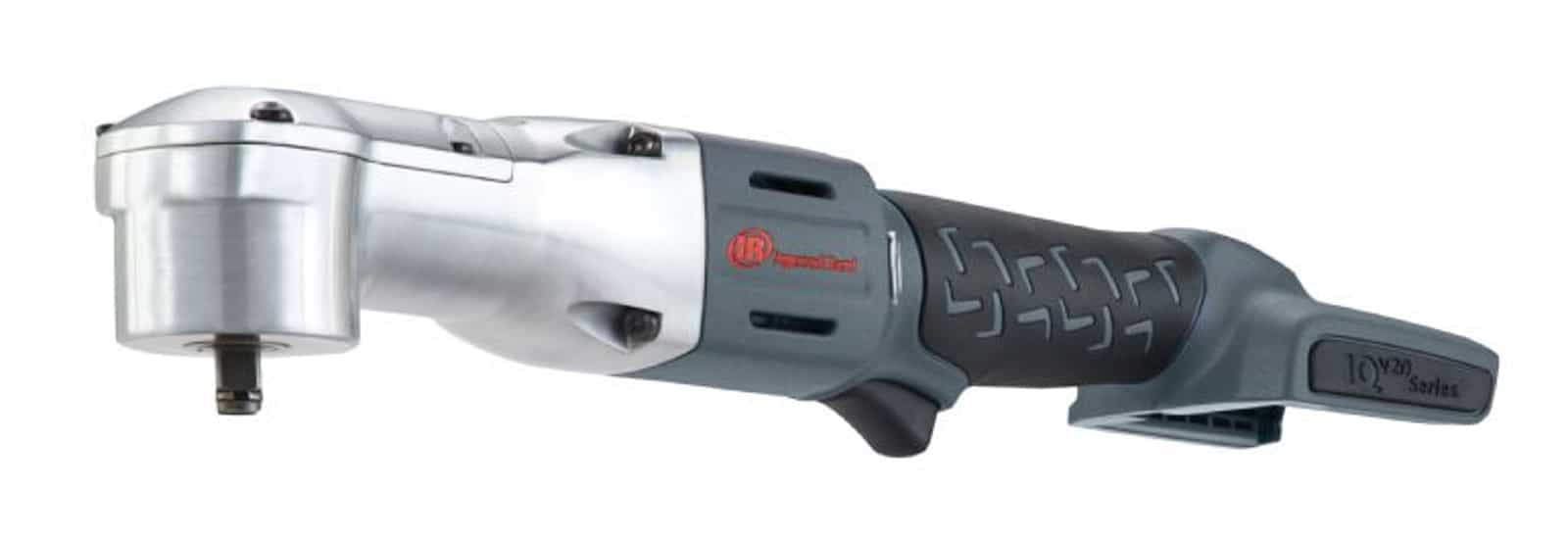

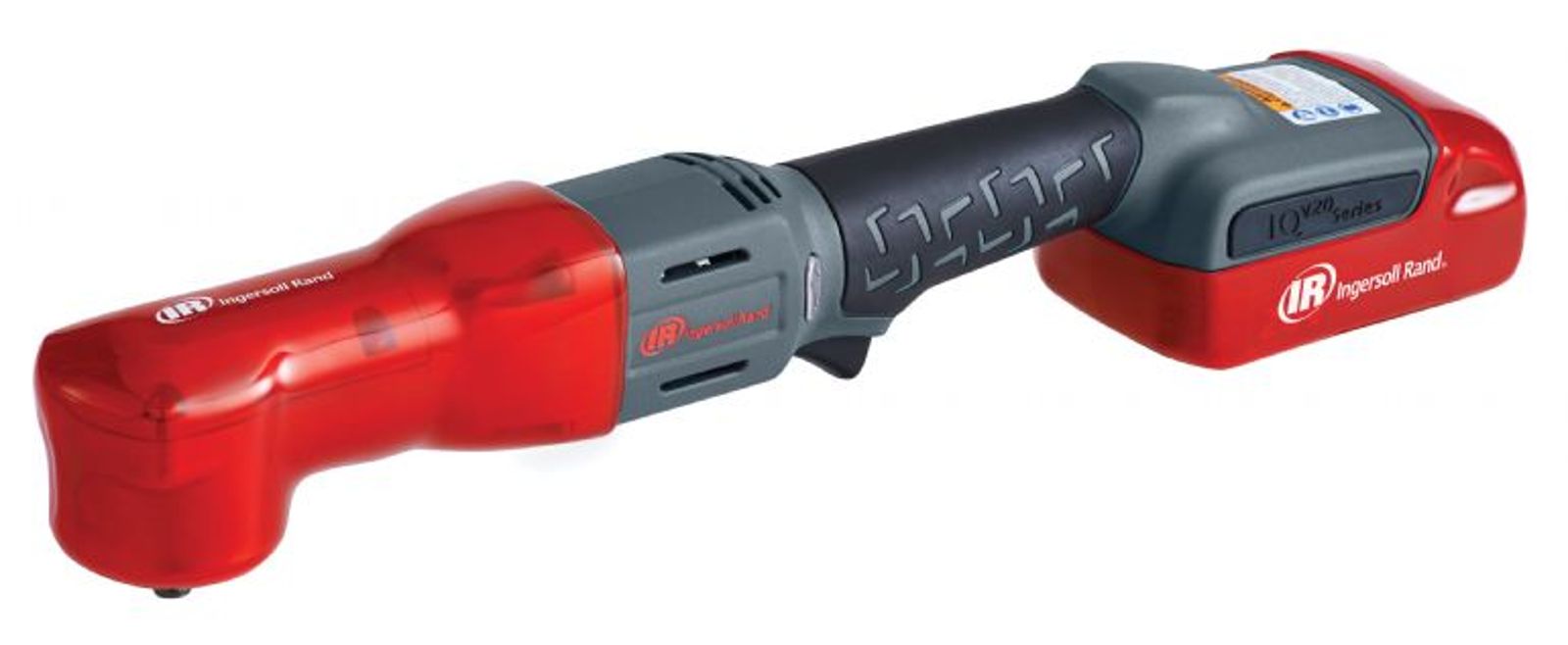

W5330 & W5350 IQV20™ Cordless Right Angle Impact Wrench

The W5330 & W5350 impacts with a right angle design and reactionless torque will spare your knuckles while getting those hard-to-reach jobs done.

Reliability:

  • Built to last, this wrench featuring a durable aluminum hammer case, will deliver the right power every time you pull the trigger.

Access:

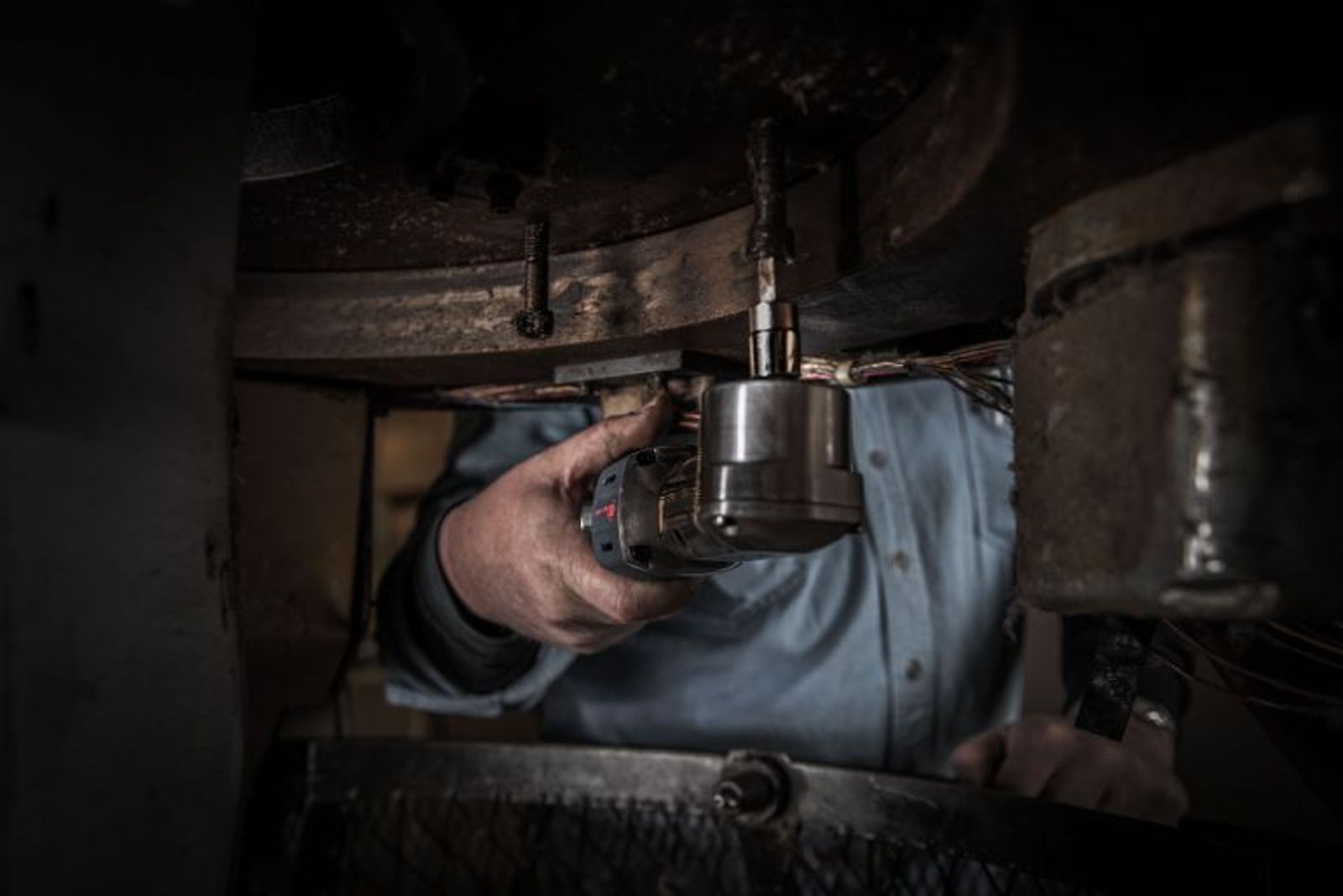

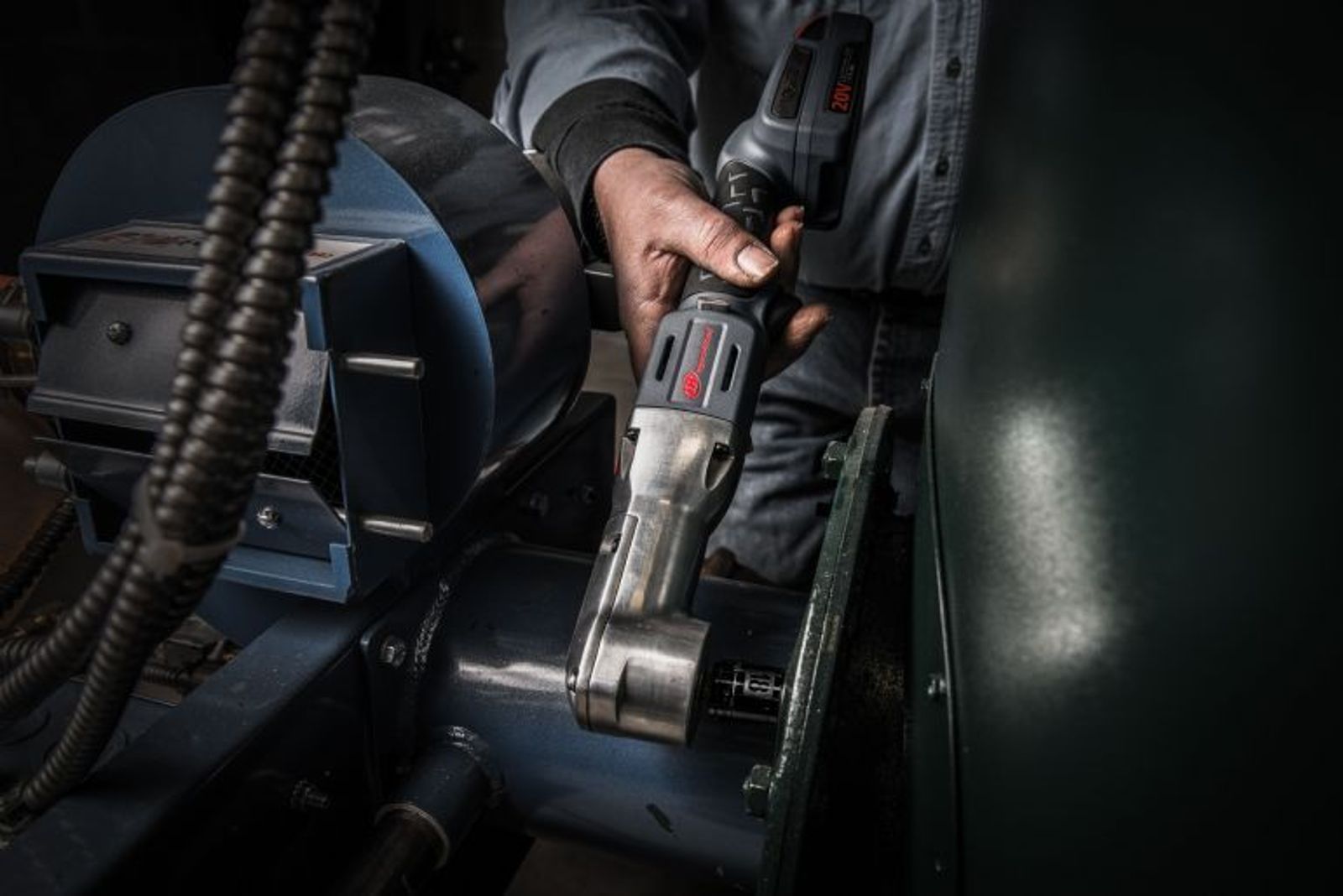

  • Thanks to its ergonomic build, this wrench can easily reach any tight spaces you need to work on.

Power:

  • With a high torque output and great power-to-weight ratio, you’ll be able to work quickly and efficiently without having to over-exert yourself.

Other Features:

  • 245 NM of maximum torque
  • Fully Serviceable Head for extended life
  • Finely tuned impact mechanism and motor deliver more torque, durability, and efficiency

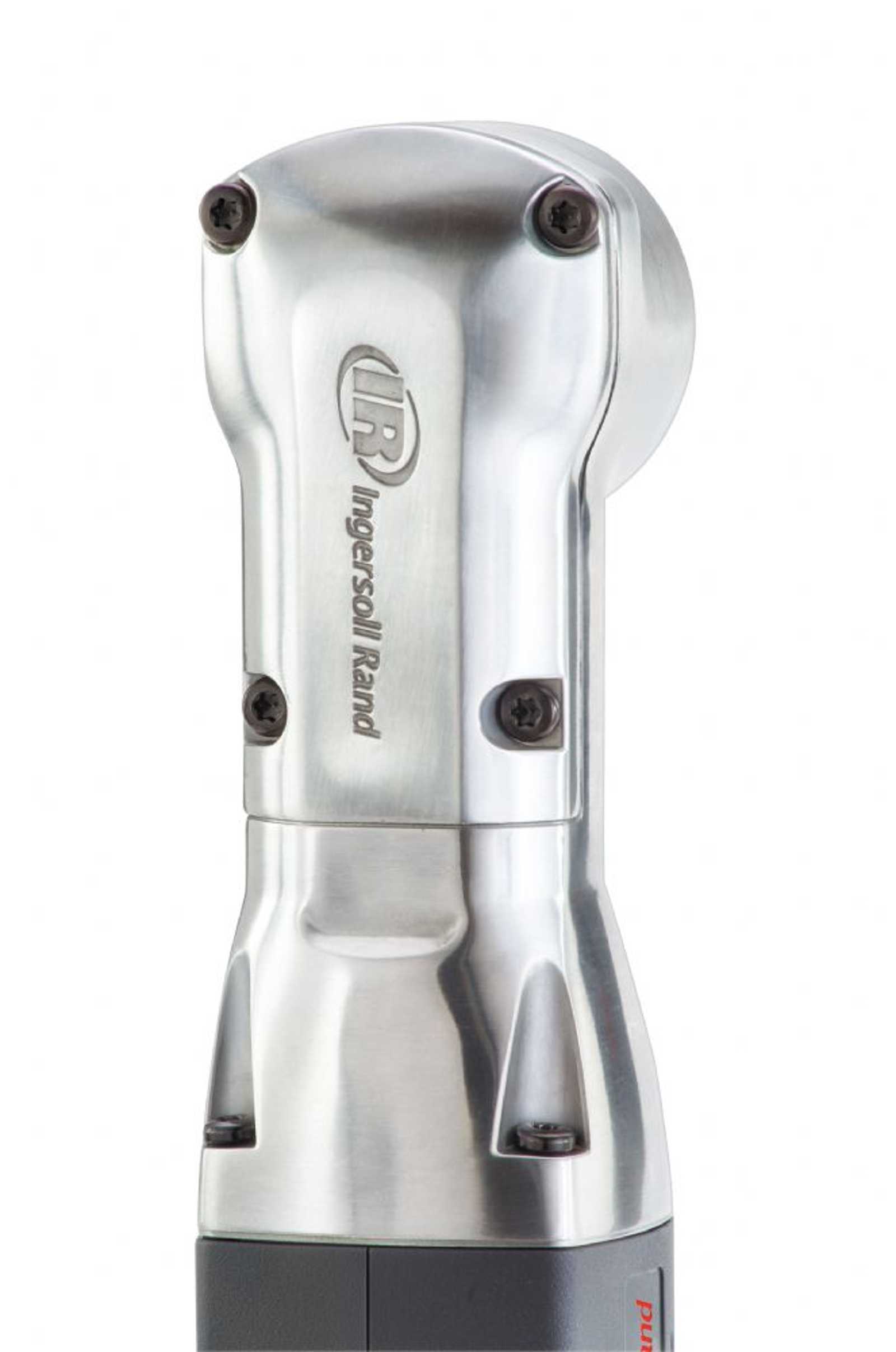

  • Steel-lined aluminum hammer case is designed to be strong and lightweight, while protecting interior components of this cordless impact wrench
  • Impact- and chemical-resistant housing protects against repeated drops and exposure to shop fluids
  • Conveniently located forward/reverse switch for maximum control
  • Ergonomic handle and comfort grip offers the same reach as a ratchet
  • High-power, extended-life 20-volt lithium-ion battery is compatible with BL2012 and BL2022
  • From 0-1900 rpm instantly. Just like your favorite cordless impact wrench, the W5330 & W5350 flies through bolts

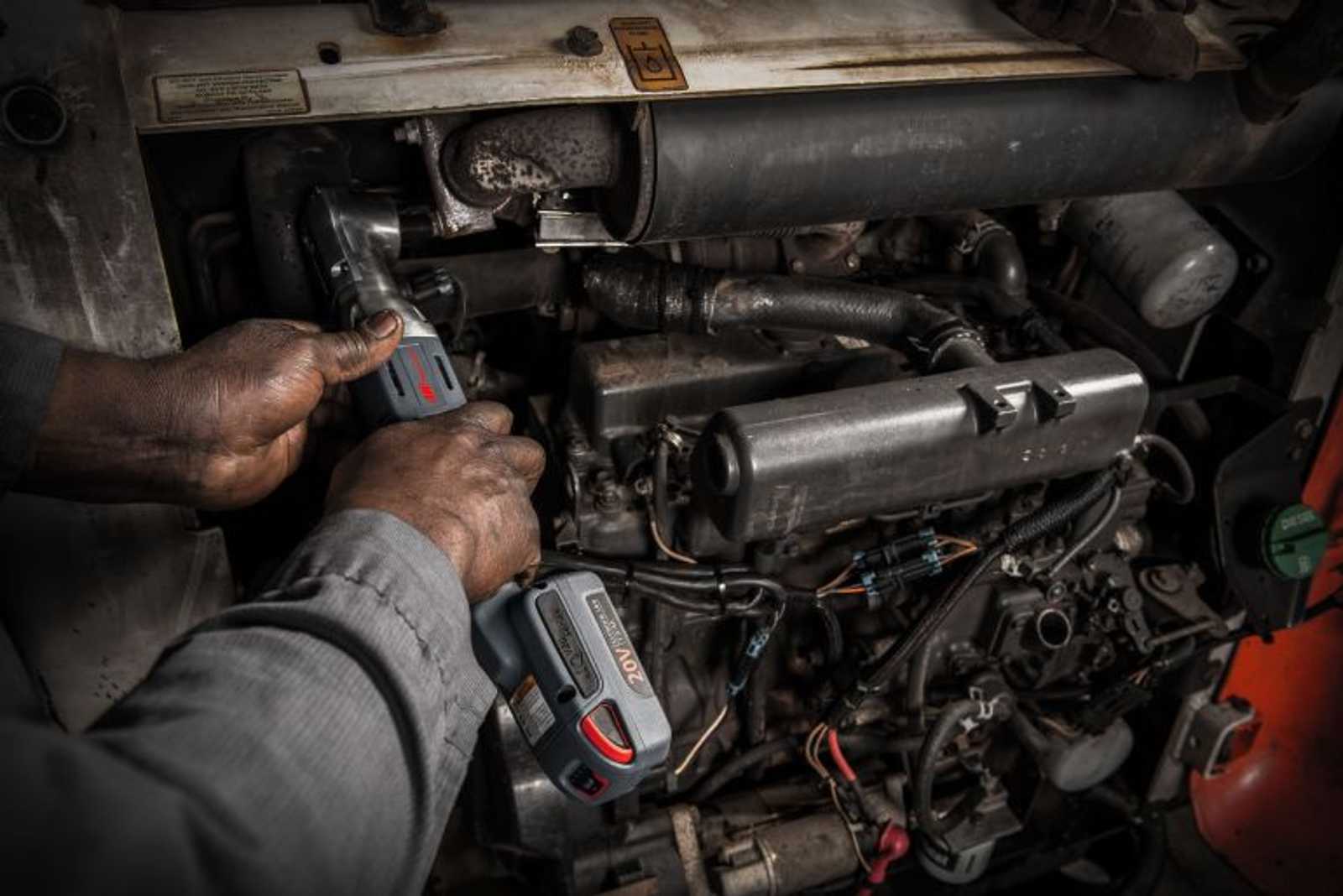

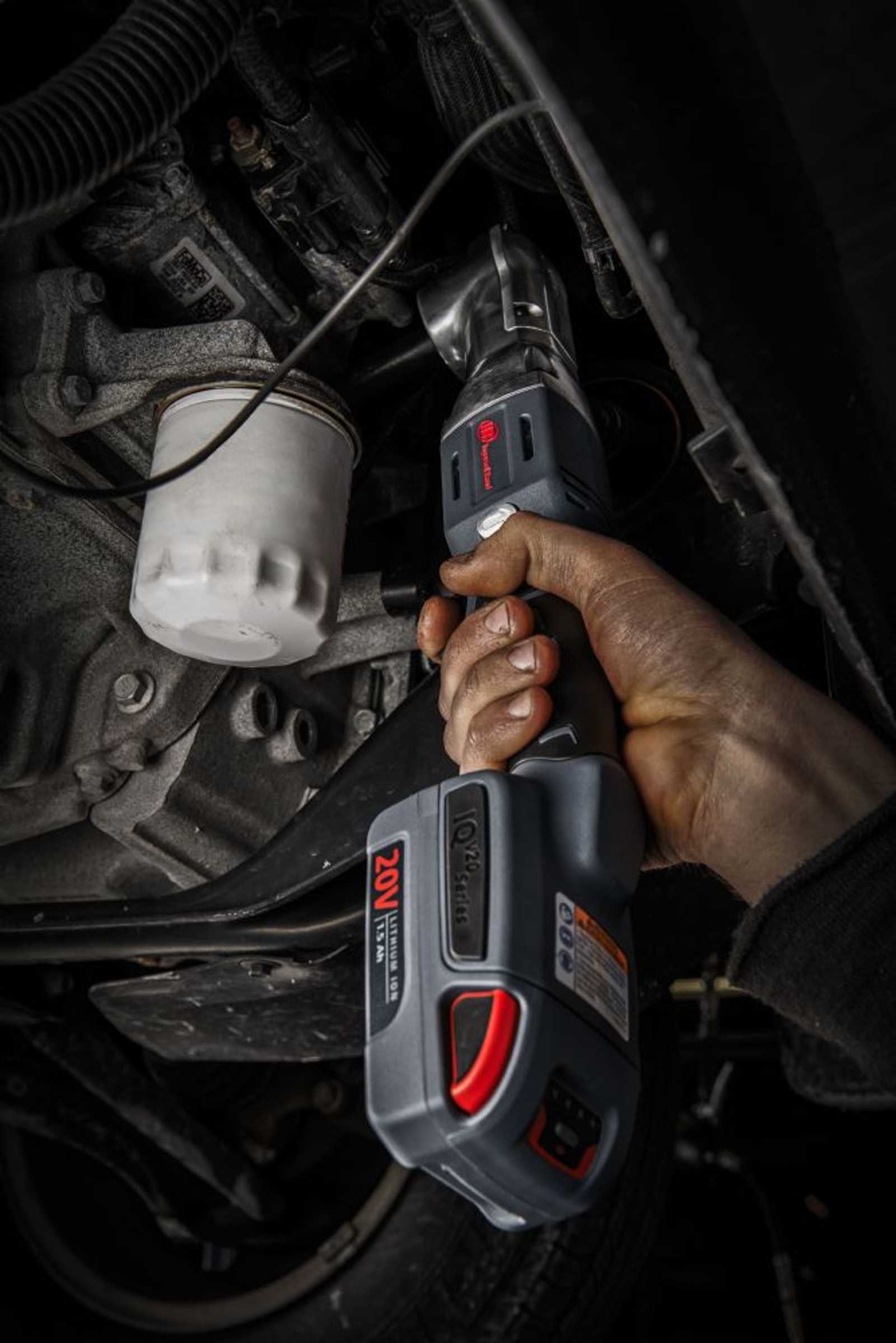

  • Optimized for the vehicle repair industry, fleet maintenance, body shops, general industrial use, and MRO
  • Patented Inline™ battery design can go places other cordless impact guns only dream of—spaces that used to be reserved for a traditional ratchet or your bare hands
  • 3-year warranty

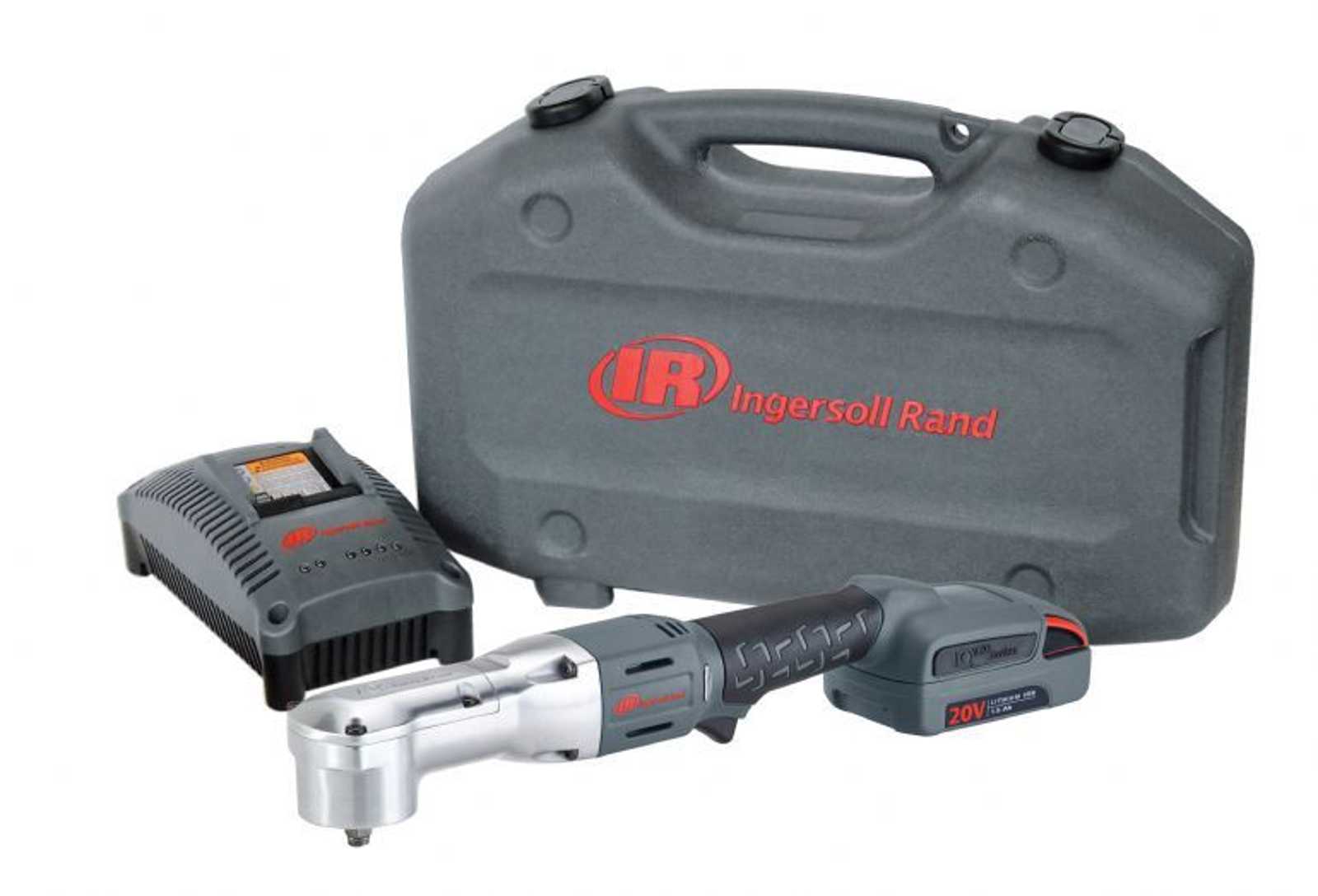

Available in the following kits:

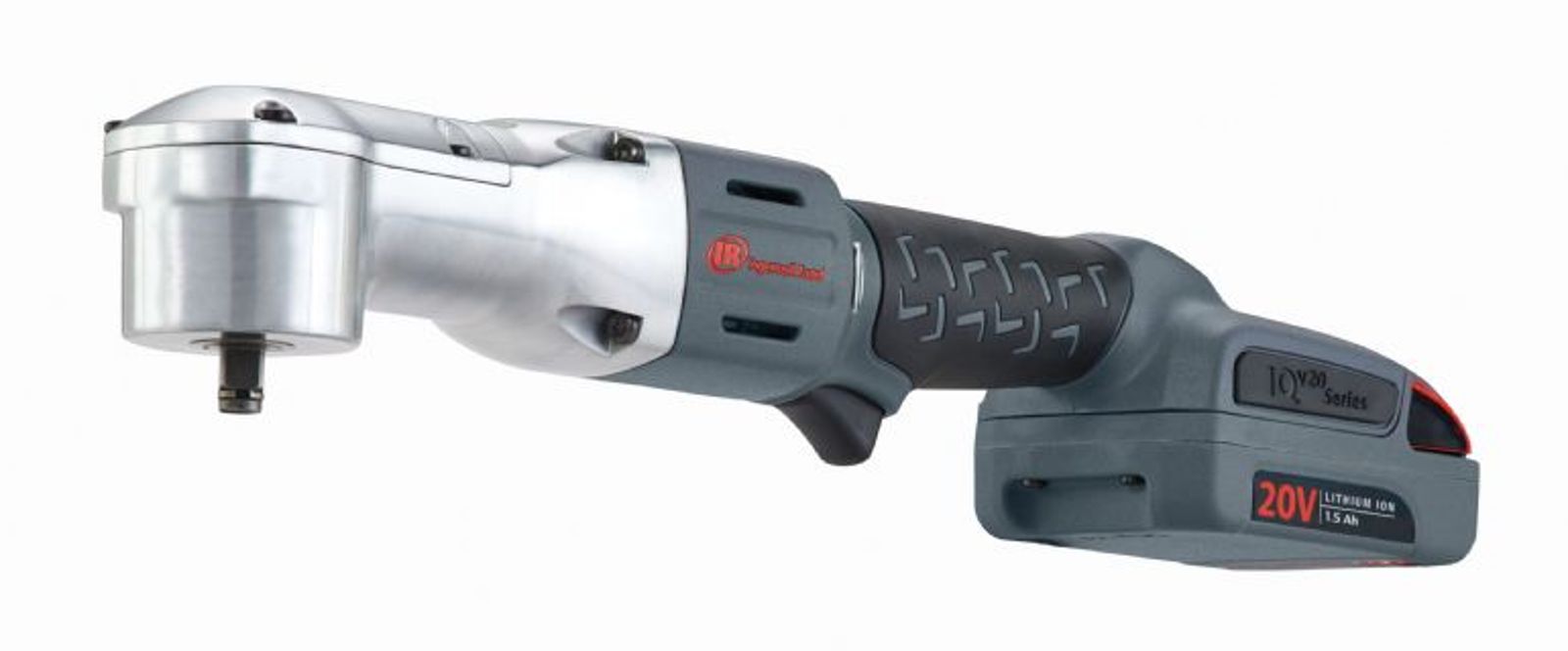

  • W5330-K12-EU: 3/8" Impact Wrench, 1 BL2012 Battery, Charger & Case

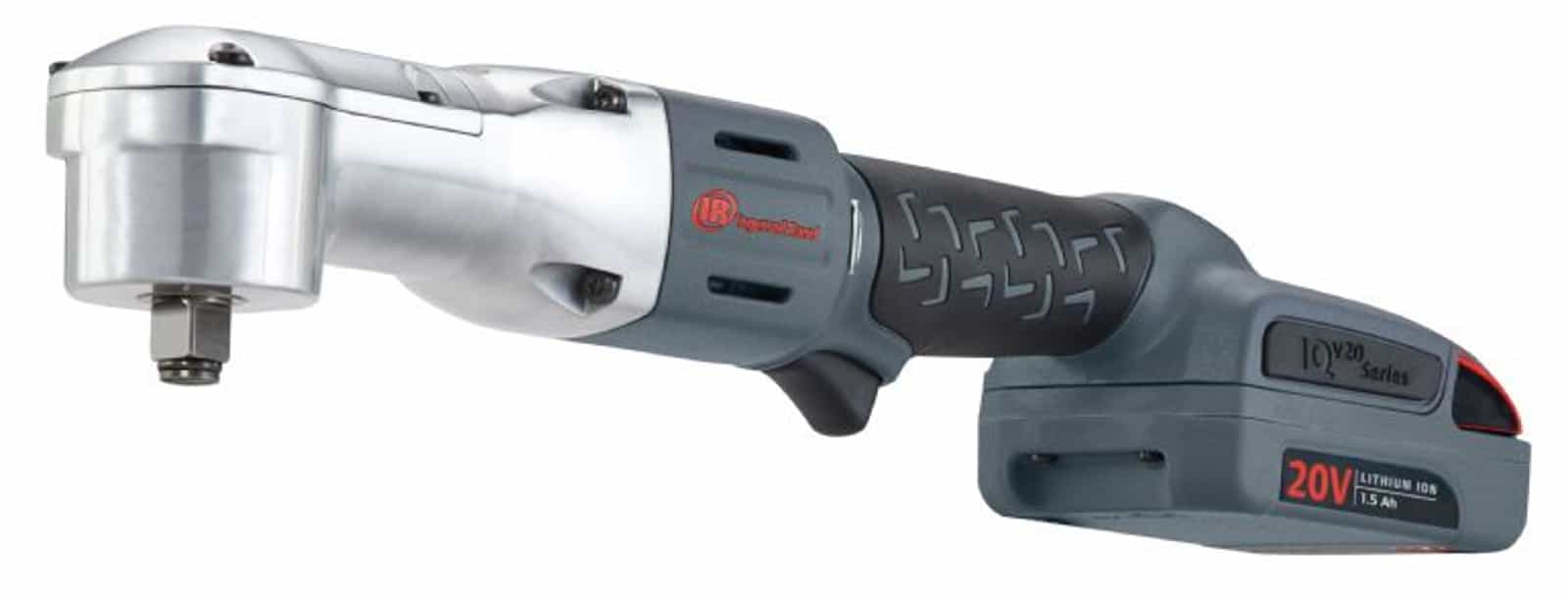

  • W5350-K12-EU: 1/2" Impact Wrench, 1 BL2012 Battery, Charger & Case
iqv-series-warranty

Model

Voltage DC

Battery model

Configuration

Drive Size (in)

Drive Type

Forward Torque (ft-lbs)

Forward Torque (Nm)

Max Reverse Torque (ft-lbs)

Max Reverse Torque (Nm)

Blows per minute

Free Speed (RPM)

Sound Level dB(A) (EN60745)

Vibration Level m/s2 (K)

Weight w/out Battery (lbs)

Weight w/out Battery (kg)

Weight w/ Battery (lbs)

Weight w/ Battery (kg)

Width (in)

Width (mm)

Height w/out Battery (in)

Height w/out Battery (mm)

Height w/ Battery (in)

Height w/ Battery (mm)

Length w/out battery (in)

Length w/out battery (mm)

Length w/ battery (in)

Length w/ battery (mm)

W5330

20

BL2012

Right Angle

3/8

Square, Socket Retainer Ring

170

230

170

230

3000

1850

85/96

10.0 (6.3)

3.7

1.7

4.6

2.1

2.13

54

2.2

55.9

2.2

55.9

15.8

402

17.25

439

W5330

20

BL2010, BL2022

Right Angle

3/8

Square, Socket Retainer Ring

180

245

180

245

3000

1850

85/96

10.0 (6.3)

3.7

1.7

5.2

2.3

2.13

54

2.2

55.9

2.2

55.9

15.8

402

17.25

439

W5350

20

BL2012

Right Angle

1/2

Square, Socket Retainer Ring

170

230

170

230

3000

1850

85/96

10.0 (6.3)

3.7

1.7

4.6

2.1

2.13

54

2.2

55.9

2.2

55.9

15.8

402

17.25

439

W5350

20

BL2010, BL2022

Right Angle

1/2

Square, Socket Retainer Ring

180

245

180

245

3000

1850

85/96

10.0 (6.3)

3.7

1.7

5.2

2.3

2.13

54

2.2

55.9

2.2

55.9

15.8

402

17.25

439
