Mini Impact Wrench

Despite its small size, this Mini Impact Wrench packs a punch. Thanks to its rocking dog impact mechanism and finely tuned vane motor, this wrench is as compact as it is powerful.

Access:

  • Thanks to its small size, this wrench can fit in even the toughest to reach spaces.

Reliability:

  • These parts will stand the test of time. The rocking dog impact mechanism is easy to maintain and delivers a powerful burst with low air needs.

Increased Productivity:

  • The less time you have to worry about changing parts, the more time you have to work.
  • 75 Nm of max reverse torque
  • Low weight with only 0.7 kg will reduce operator's fatigue
  • Ergonomic composite housing
  • One hand forward/reverse switch for easy operation

Available In the Following Kits:

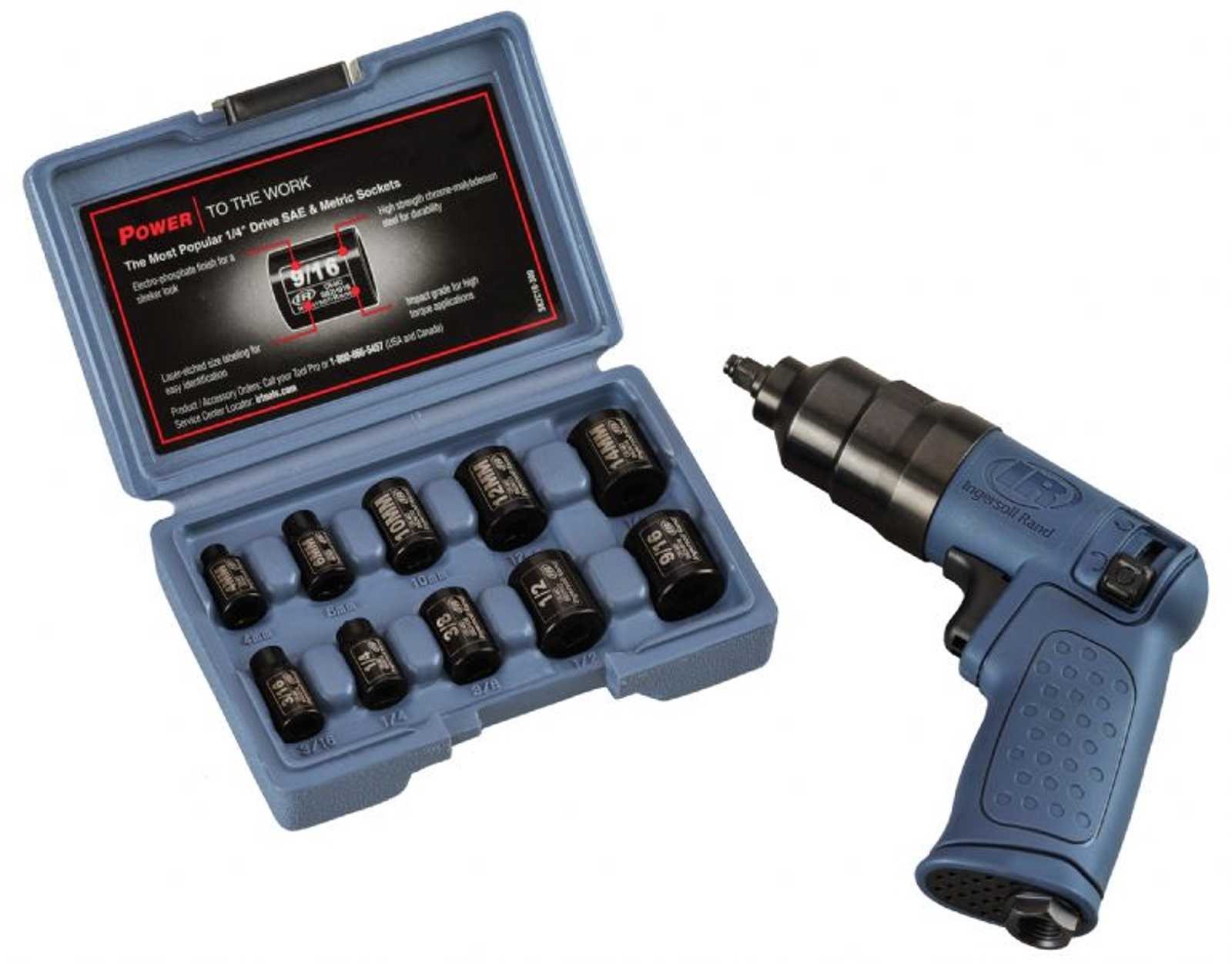

  • 2101KA: 2101XPA Mini Impact Wrench and set of 10 Standard Sockets

Model

Configuration

Actuation

Drive Size

Drive Type

Max Forward Torque (ft-lbs)

Max Reverse Torque (ft-lbs)

Blows per minute

Max Free Speed (RPM)

Free Speed Sound Pressure dB(a)

Vibration Level (m/s2)

Weight (lbs)

Exhaust Location

Air Inlet

Min Hose Size (in)

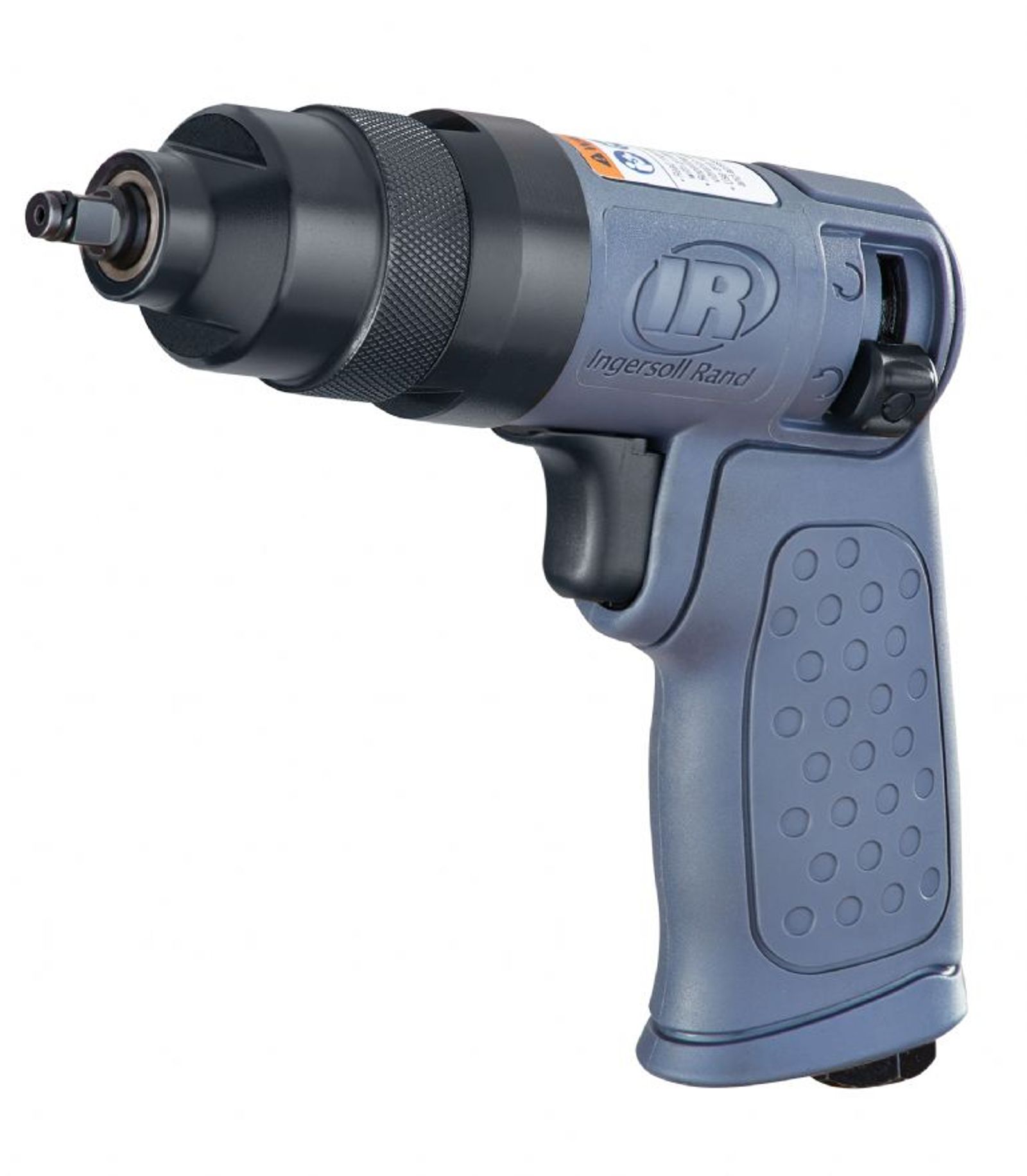

2101XPA

Pistol Grip

Trigger

1/4 in

Square

50

55

3650

14500

83.5

3

1.5

Bottom

1/4" NPT

3/8

2101XPA-QC

Pistol Grip

Trigger

1/4 in

Hex

50

55

3650

14500

83.6

3

1.54

Handle

1/4" NPT

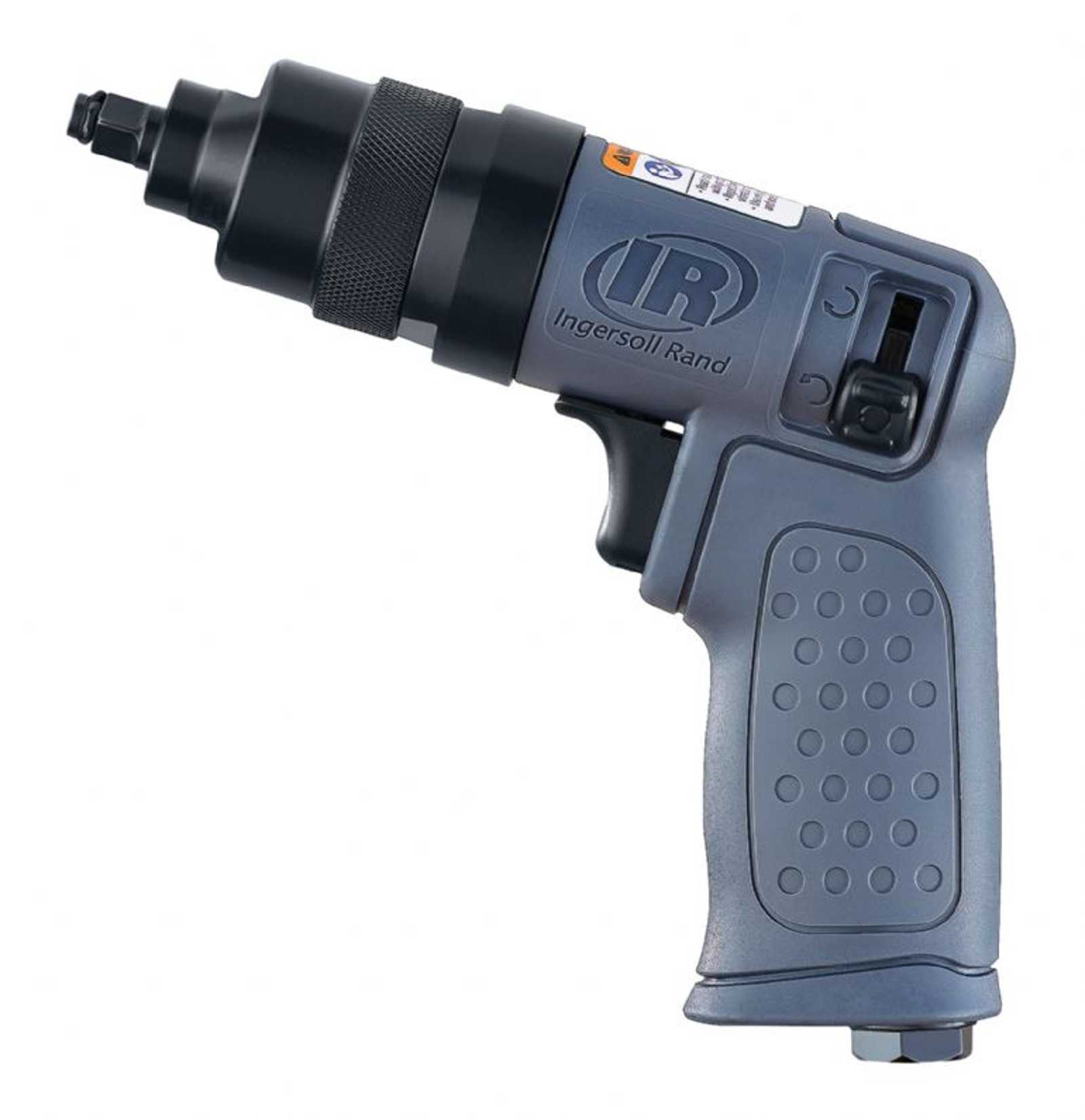

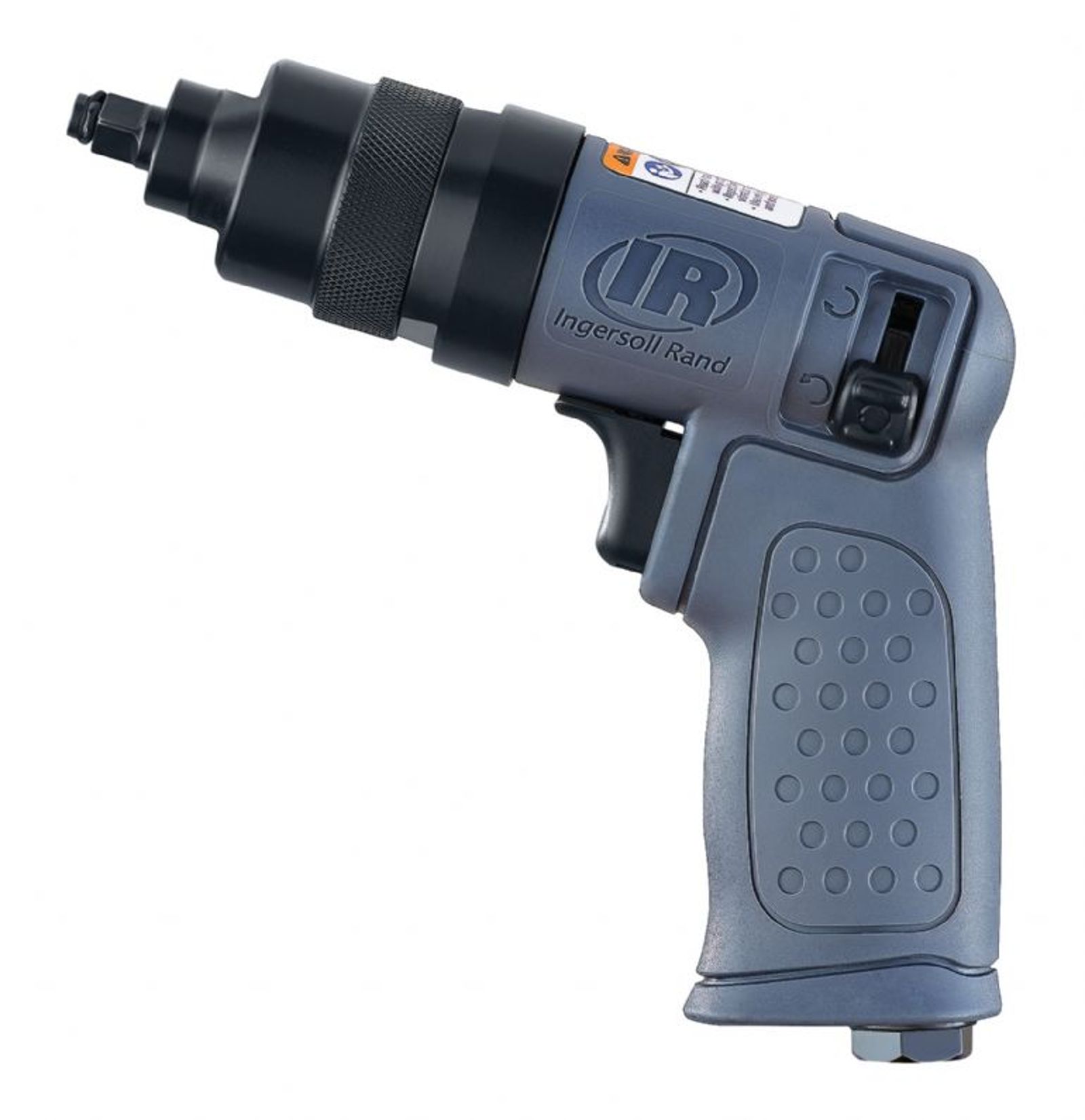

2102XPA

Pistol Grip

Trigger

3/8 in

Square

50

55

3650

14500

83.5

3

1.6

Bottom

1/4" NPT

3/8
