Compact, lightweight and high-speed, the QE2 Series provide superior accuracy, ergonomics and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 0.3 Nm to 15 Nm. Available in Inline, Pistol and Angle Configuration and speeds up to 3000 RPM

Accuracy:

  • The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control and Angle strategies.

Efficient:

  • Built with a variety of features to enhance user operation such as TactAlert, LED headlights and indicator light options, the QE2 Series allows you to work efficiently with minimum distraction.

Reliable:

  • The brushless DC motor, non-contacting switches and heavy-duty gear train make this tool reliable, and the preventative maintenance alarms make sure you’ll always know when it’s in need of a tune up.

Versatile:

  • With this tool you can choose torque output, body style, actuation and spindle type, so you can customize your tool for any application.

Safety:

  • ESD-Safe & RoHS compliant

Model

Torque Range (Nm)

Torque Range (in-lbs)

Torque Range (ft-lbs)

Max Torque (Nm)

Actuation

Configuration

Free Speed (rpm)

Spindle Length (mm)

Float (mm)

Overall Length (mm)

Length (in)

Weight (kg)

Weight (lbs)

Drive (size/style)

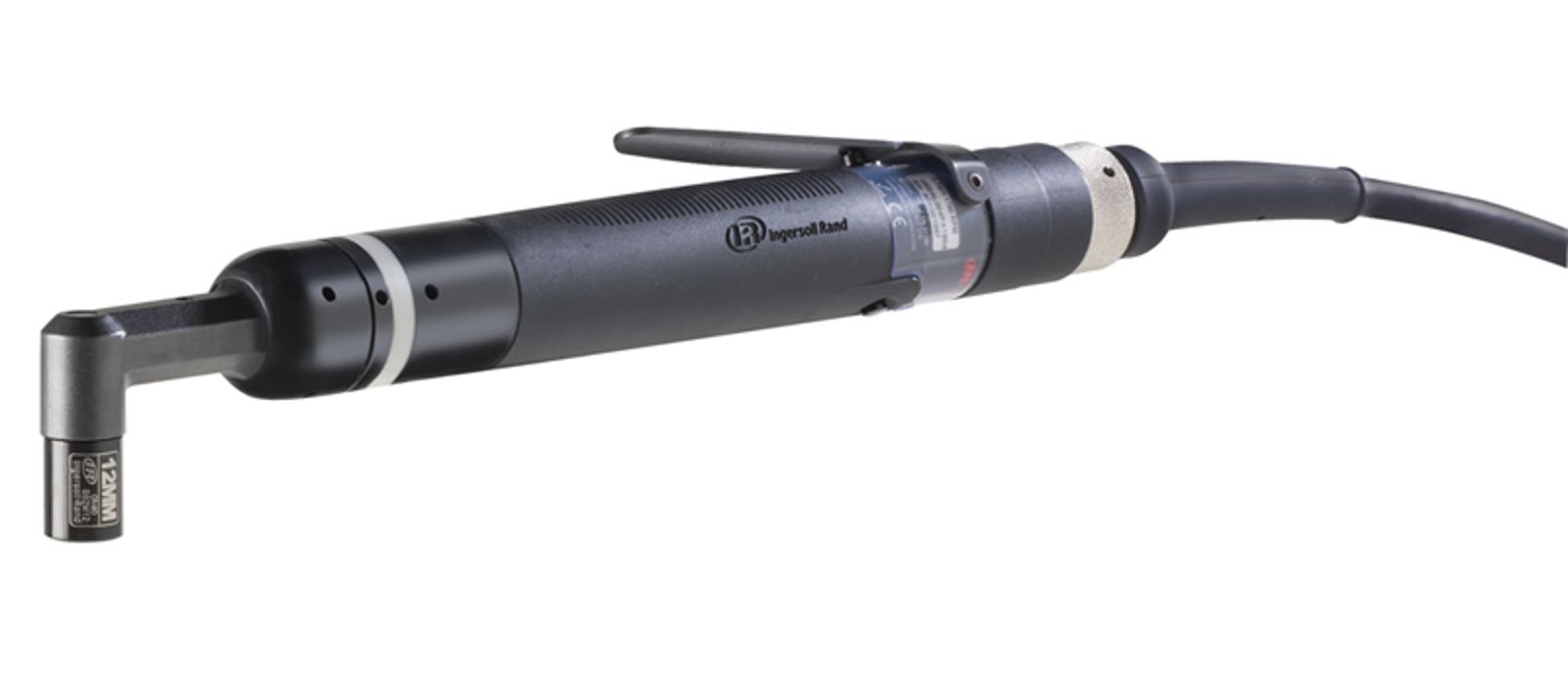

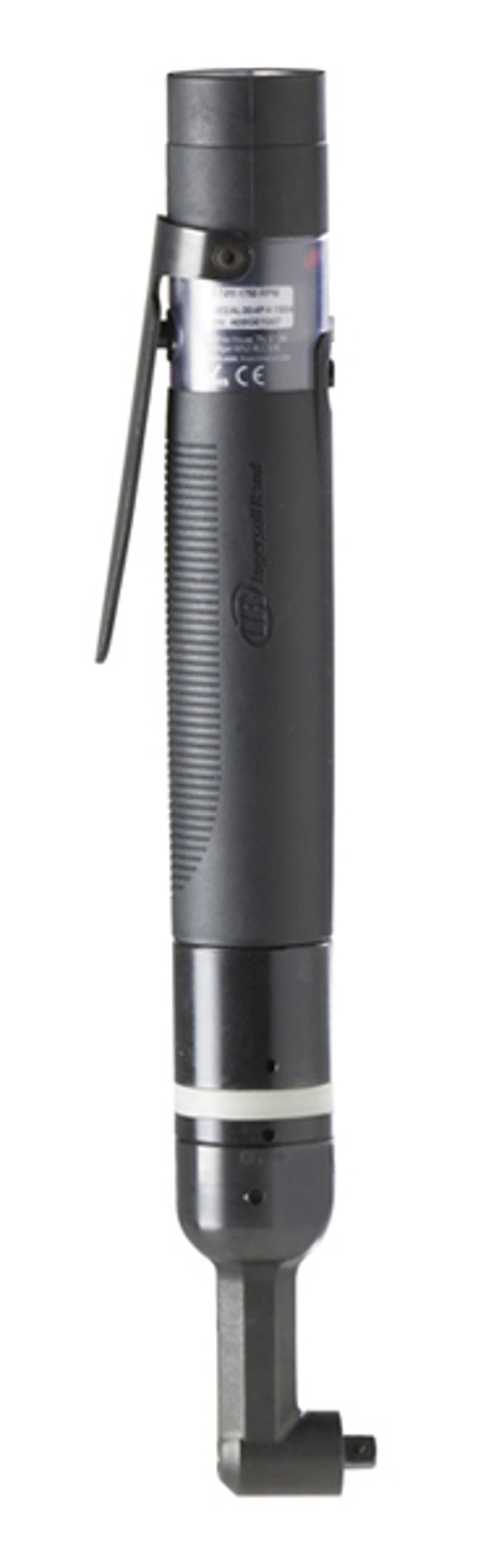

QE2AL003PA1S04

0.8 - 4

7.1 - 35.4

0.6-3.0

3

Lever Start

Angle

2000

N/A

N/A

312

12.283464566929135

0.83

1.82

1/4 in. Square

QE2AL005PA3H04

1.0 - 5.0

8.9 - 44.3

0.7-3.7

5

Lever Start

Angle

1590

N/A

N/A

318

12.51968503937008

0.95

2.10

1/4 in. Hex Detent

QE2AL005PA3Q04

1.0 - 5.0

8.9 - 44.3

0.7-3.7

5

Lever Start

Angle

1590

N/A

N/A

318

12.51968503937008

0.95

2.10

1/4 in. Quick Change

QE2AL005PA3S04

1.0 - 5.0

8.9 - 44.3

0.7-3.7

5

Lever Start

Angle

1590

N/A

N/A

318

12.51968503937008

0.95

2.10

1/4 in. Square

QE2AL005PA3S06

1.0 - 5.0

8.9 - 44.3

0.7-3.7

5

Lever Start

Angle

1590

N/A

N/A

318

12.51968503937008

0.95

2.10

3/8 in. Square

QE2AL007PA3H04

1.4 - 7.0

12.4 - 62.0

1.0-5.2

7

Lever Start

Angle

1100

N/A

N/A

318

12.51968503937008

0.95

2.10

1/4 in. Hex Detent

QE2AL007PA3Q04

1.4 - 7.0

12.4 - 62.0

1.0-5.2

7

Lever Start

Angle

1100

N/A

N/A

318

12.51968503937008

0.95

2.10

1/4 in. Quick Change

QE2AL007PA3S04

1.4 - 7.0

12.4 - 62.0

1.0-5.2

7

Lever Start

Angle

1100

N/A

N/A

318

12.51968503937008

0.95

2.10

1/4 in. Square

QE2AL007PA3S06

1.4 - 7.0

12.4 - 62.0

1.0-5.2

7

Lever Start

Angle

1100

N/A

N/A

318

12.51968503937008

0.95

2.10

3/8 in. Square

QE2AL010PA3H04

2.0 - 10.0

17.7 - 88.5

1.5-7.4

10

Lever Start

Angle

800

N/A

N/A

318

12.51968503937008

0.95

2.10

1/4 in. Hex Detent

QE2AL010PA3Q04

2.0 - 10.0

17.7 - 88.5

1.5-7.4

10

Lever Start

Angle

800

N/A

N/A

318

12.51968503937008

0.95

2.10

1/4 in. Quick Change

QE2AL010PA3S04

2.0 - 10.0

17.7 - 88.5

1.5-7.4

10

Lever Start

Angle

800

N/A

N/A

318

12.51968503937008

0.95

2.10

1/4 in. Square

QE2AL010PA3S06

2.0 - 10.0

17.7 - 88.5

1.5-7.4

10

Lever Start

Angle

800

N/A

N/A

318

12.51968503937008

0.95

2.10

3/8 in. Square

QE2AL015PA3H04

3.0 - 15.0

26.6 - 132.8

2.2-11.1

15

Lever Start

Angle

560

N/A

N/A

318

12.51968503937008

0.95

2.10

1/4 in. Hex Detent

QE2AL015PA3Q04

3.0 - 15.0

26.6 - 132.8

2.2-11.1

15

Lever Start

Angle

560

N/A

N/A

318

12.51968503937008

0.95

2.10

1/4 in. Quick Change

QE2AL015PA3S04

3.0 - 15.0

26.6 - 132.8

2.2-11.1

15

Lever Start

Angle

560

N/A

N/A

318

12.51968503937008

0.95

2.10

1/4 in. Square

QE2AL015PA3S06

3.0 - 15.0

26.6 - 132.8

2.2-11.1

15

Lever Start

Angle

560

N/A

N/A

318

12.51968503937008

0.95

2.10

3/8 in. Square
