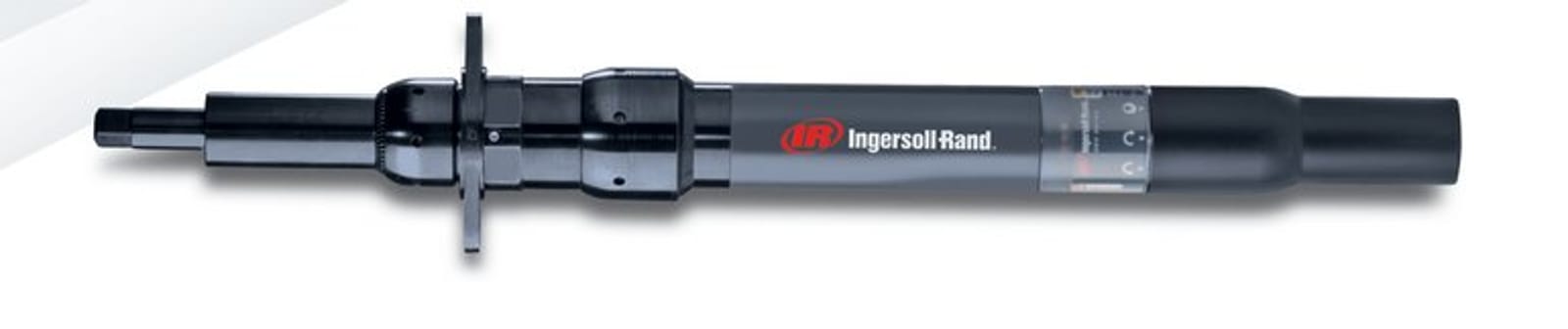

QE Fixtured Inline

Compact, lightweight and high-speed, the QE Fixtured Angle wrenches provide superior accuracy and durability to meet your fastening requirements. They are easily mountable to a fixture or reaction arm, and have a torque range from 0.3 Nm to 400 Nm.

Accuracy:

  • The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control and Angle strategies.

Efficient:

  • Built with a variety of features to enhance user operation such as TactAlert, LED headlights and indicator light options, the QE2 Series allows you to work efficiently with minimum distraction.

Reliable:

  • The brushless DC motor, non-contacting switches and heavy-duty gear train make this tool reliable, and the preventative maintenance alarms make sure you’ll always know when it’s in need of a tune up.

Versatile:

  • With this tool you can choose torque output, body style, actuation and spindle type, so you can customize your tool for any application.

Model

Recommended Torque Range (Nm)

Recommended Torque Range (ft-lbs)

Max Torque (Nm)

Actuation

Configuration

Free Speed (rpm)

Spindle Length (mm)

Float (mm)

Overall Length (mm)

Weight (kg)

Drive (size/style)

QE2SC002F32S06

0.3 - 1.2

0.2-0.8

1.5

Controller Remote Start

Inline

3000

47

19

342

0.91

3/8 in. square

QE2SC003F32S06

0.6 - 2.4

0.4-1.7

3

Controller Remote Start

Inline

2450

47

19

342

0.91

3/8 in. square

QE2SC005F32S06

1.0 - 4.0

0.7-2.9

5

Controller Remote Start

Inline

1700

47

19

342

0.91

3/8 in. square

QE2SC007F32S06

1.3 - 5.2

1.0-3.8

6.5

Controller Remote Start

Inline

1250

47

19

342

0.91

3/8 in. square

QE2SC010F32S06

2.0 - 8.30

1.5-6.1

10

Controller Remote Start

Inline

850

47

19

342

0.91

3/8 in. square

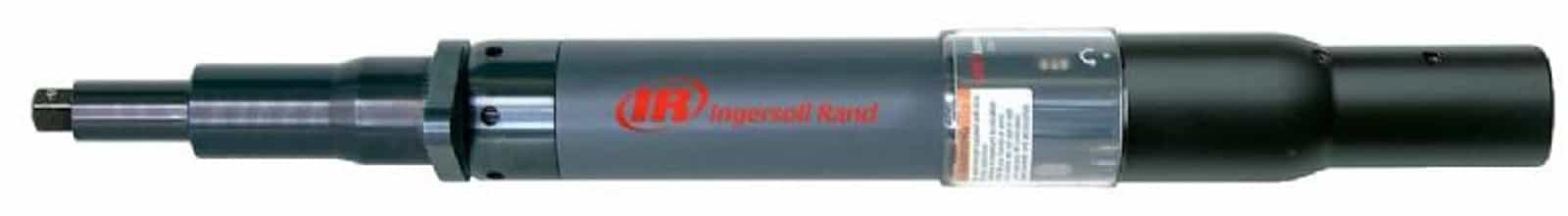

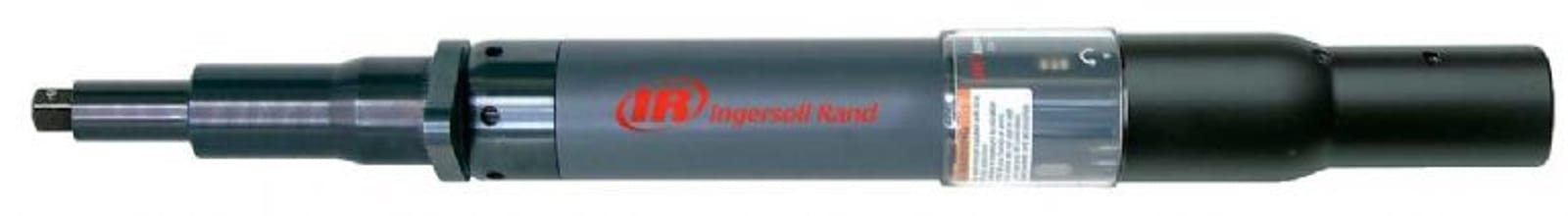

QE4SC010B41S06

2.0 - 8.0

1.5-5.9

10

Controller Remote Start

Inline

1820

111

23

437

1.2

3/8 in. square

QE4SC015B41S06

3.0 - 12.0

2.2-8.9

15

Controller Remote Start

Inline

1220

111

23

437

1.2

3/8 in. square

QE4SC020B41S06

4.0 - 16.0

3.0 - 11.8

20

Controller Remote Start

Inline

900

111

23

437

1.2

3/8 in. square

QE4SC025B41S06

5.0 - 20.0

3.7 - 44.1

25

Controller Remote Start

Inline

710

111

23

437

1.2

3/8 in. square

QE6SC020F61S06

4.0 - 16.0

3.0 - 11.8

20

Controller Remote Start

Inline

1840

154

39.5

544.2

2.1

3/8 in. square

QE6SC028F61S06

5.6 - 22.4

4.1 - 16.5

28

Controller Remote Start

Inline

1360

154

39.5

544.2

2.1

3/8 in. square

QE6SC033F61S06

6.6 - 26.4

4.9 - 19.5

33

Controller Remote Start

Inline

1130

154

39.5

544.2

2.1

3/8 in. square

QE6SC050F61S08

10.0 - 40.0

7.4 - 29.5

50

Controller Remote Start

Inline

760

153

39.5

544.2

2.1

1/2 in. Square

QE8SC055F61S08

11.0 - 44.0

8.1 - 32.5

55

Controller Remote Start

Inline

1470

153

39

608.3

3

1/2 in. Square

QE8SC070F61S08

14.0 - 56.0

10.3 - 41.3

70

Controller Remote Start

Inline

1160

153

39.5

608.3

3

1/2 in. Square

QE8SC090F61S08

18.0 - 72.0

13.3 - 53.1

90

Controller Remote Start

Inline

900

153

39

608.3

3

1/2 in. Square

QE8SC090F81S08

18.0 - 72.0

13.3 - 53.1

90

Controller Remote Start

Inline

900

238.8

39.8

659

3.1

1/2 in. Square

QE8SC150F61S08

30.0 - 120.0

22.1 - 88.5

150

Controller Remote Start

Inline

500

153

39

642.9

3.4

1/2 in. Square
