Comfortable
Speedy
Reliable
Model | Configuration | Common Fastener Size | Torque Range (Nm) | Torque Range (ft-lb) | Free Speed (rpm) | Hard Slam Torque Range (Nm) | Soft Draw Torque Range (Nm) | Weight (kg) | Weight (lb) | Length (mm) | Length (in) | Side to Center (mm) | Side to Center (in) | Drive Size/Style | Air Consumption (cfm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
140P6 | Pistol | M16 | 160 - 270 | 118 - 199 | 3200 | NA | NA | 3.1 | 6.8 | 226 | 8.9 | 36 | 1.4 | 3/4 in. Square | 26 |

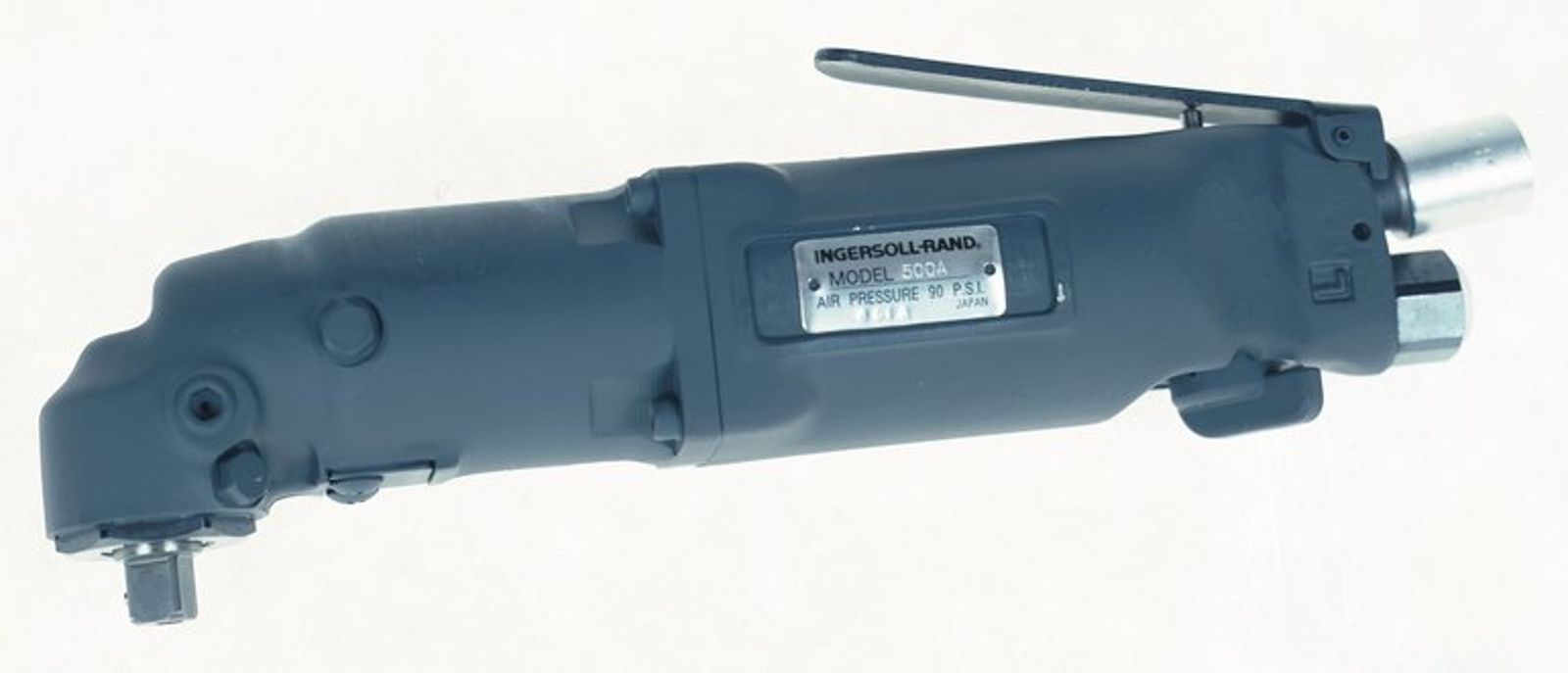

500A | Angle | M6 - M8 | 29 - 39 | 21 - 29 | 7000 | 30-41 | 16-33 | 1.5 | 3.3 | 267 | 10.5 | 27 | 1.1 | 3/8 in. Square | 11 |
Q110P4 | Pistol | M10 - M12 | 60 - 95 | 44-70 | 5500 | NA | NA | 1.4 | 3 | 164 | 6.5 | 27 | 1.1 | 1/2 in. Square | 20 |
Q120P4 | Pistol | M12 | 95 - 130 | 70 - 95 | 6600 | NA | NA | 1.7 | 3.7 | 175 | 6.9 | 29 | 1.3 | 1/2 in. Square | 20 |
Q140P4 | Pistol | M14 | 130 - 160 | 95 - 118 | 5400 | NA | NA | 2.2 | 4.9 | 190 | 7.5 | 33 | 1.3 | 1/2 in. Square | 30 |
Q60P3 | Pistol | M6 | 13 - 22 | 10-16 | 4000 | NA | NA | 0.8 | 1.8 | 130 | 5.1 | 22 | 0.9 | 3/8 in. Square | 11 |
Q60PQ1 | Pistol | M6 | 11-20 | 8-15 | 4000 | NA | NA | 0.8 | 1.8 | 130 | 5.1 | 22 | 0.9 | 1/4 in. Quick Change | 11 |
Q70P3 | Pistol | M6 - M8 | 24- 35 | 18 - 25 | 7000 | NA | NA | 0.8 | 1.8 | 131 | 5.2 | 22 | 0.9 | 3/8 in. Square | 11 |
Q70PQ1 | Pistol | M6 - M8 | 20 - 28 | 15 - 20 | 7000 | NA | NA | 0.8 | 1.8 | 131 | 5.2 | 22 | 0.9 | 1/4 in. Quick Change | 12 |

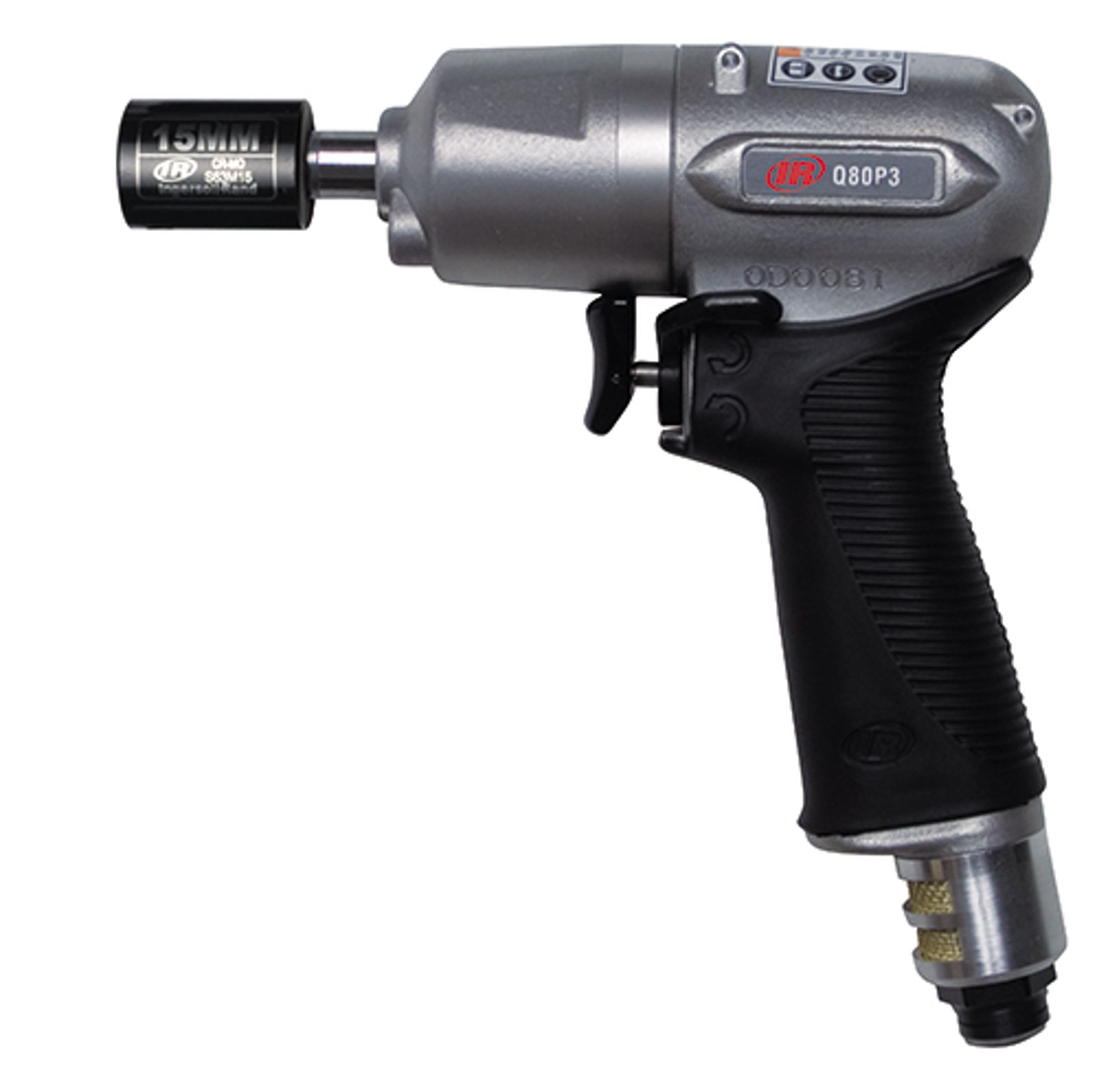

Q80P3 | Pistol | M8 | 34 - 50 | 24 - 37 | 7000 | NA | NA | 0.9 | 1.9 | 138 | 5.4 | 22 | 0.9 | 3/8 in. Square | 12 |
