Why Standard Tool Heads Are Sometimes Not Enough

Many assembly lines rely on nutrunners, screwdrivers, and torque tools but real‑world applications often involve tight clearances, obstructions, angled fasteners, or recessed joints that standard tools can’t reach. When operators are forced into workarounds, throughput slows, torque quality suffers, and ergonomic risk increases. Ingersoll Rand customized assembly tool heads solve these access and fitment challenges, enabling precise, repeatable fastening in confined or complex environments while protecting productivity, quality, and worker safety.

The Symphony of the Assembly Line

The assembly line is a fast-paced and frenetic symphony of fastening, drilling, soldering, laminating and more; an orchestra of nutrunners, cordless screwdrivers, pulse tools and torque wrenches, all working in unison to bring new products to life.

However, even the most reliable tools can be challenged by certain product designs – and whenthat happens, minor issues can escalate to major problems that reduce line speed and delayproduction. More time, less profit.

Fortunately, it is possible to address these challenges. The solution is highly customised headsthat are engineered on demand to restore peak performance; ensuring all of the necessaryinstruments on your line are in tune.

Below we will outline six indicators that your assembly line may benefit from a custom engineeredhead.

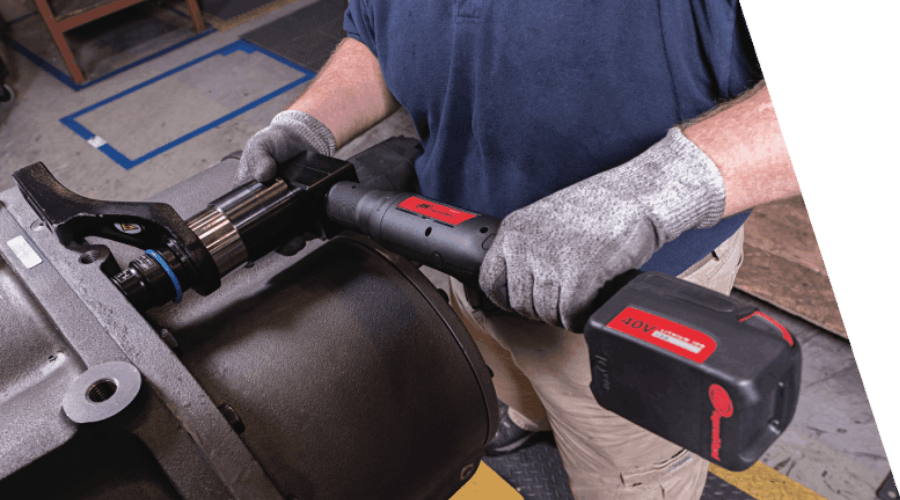

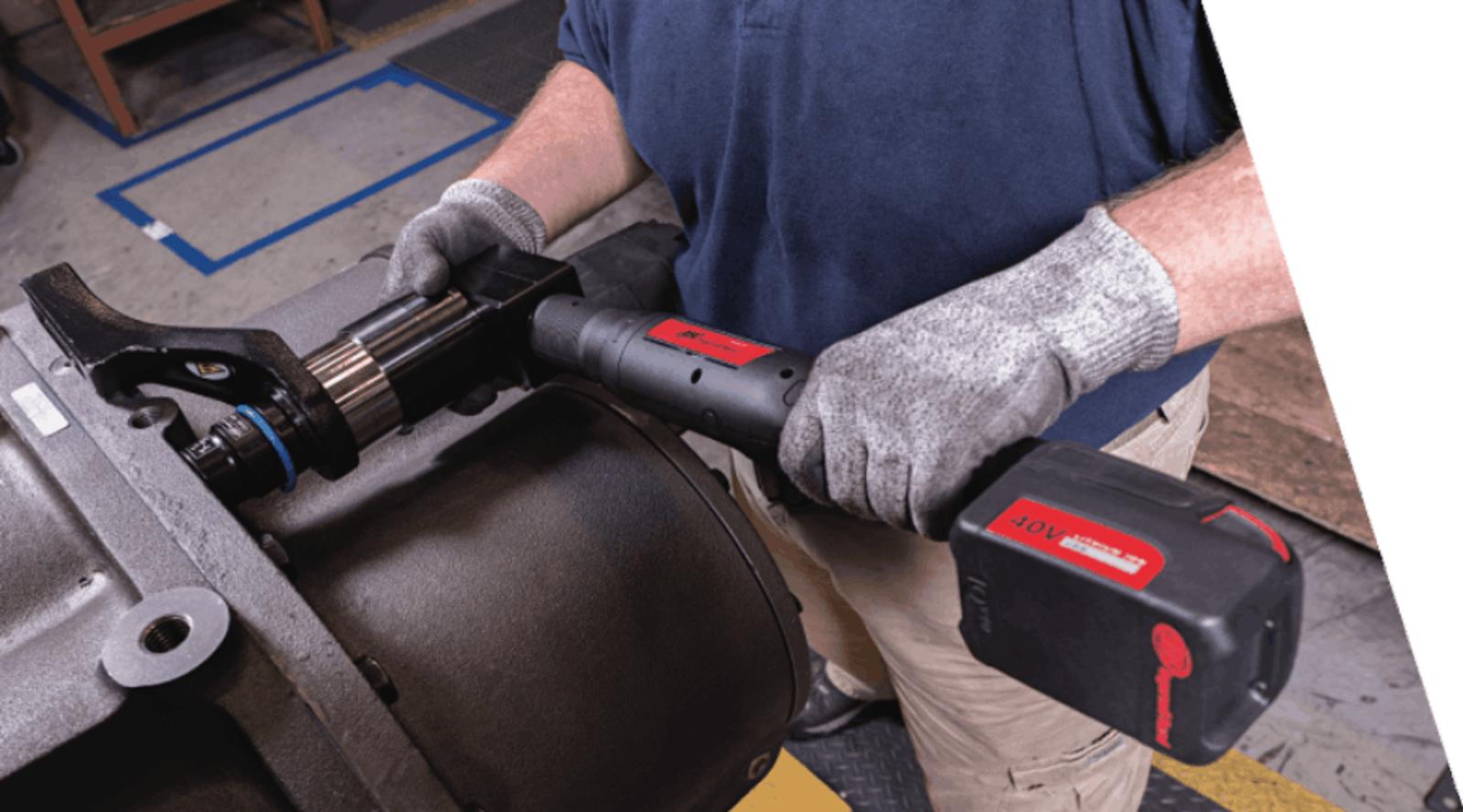

assembly operator using a hoist

Obvious Spatial Constraints

The clearest sign that you may require a custom tool head is when you are experiencing spatial constraints. For example, you may be struggling to access a fastener that is obstructed by other parts of the assembly. Or perhaps your tools are slightly too large for a deeply recessed area that you need to access. Alternatively, you could be working on a pipe fitting where you cannot use a conventional socket and need an open-end “crowfoot” style head to tighten a nut. When a process that typically requires minimal effort has become fiddly and time consuming, it is a clear indication that you need to take action.

Process Time Is Increasing

Process time should be uniform and consistent for each product. If you are noticing time on the line increasing, it is likely that there is a problem with a certain component of your assembly line. This typically occurs when certain tools are not appropriately tuned for a particular element of the assembly.

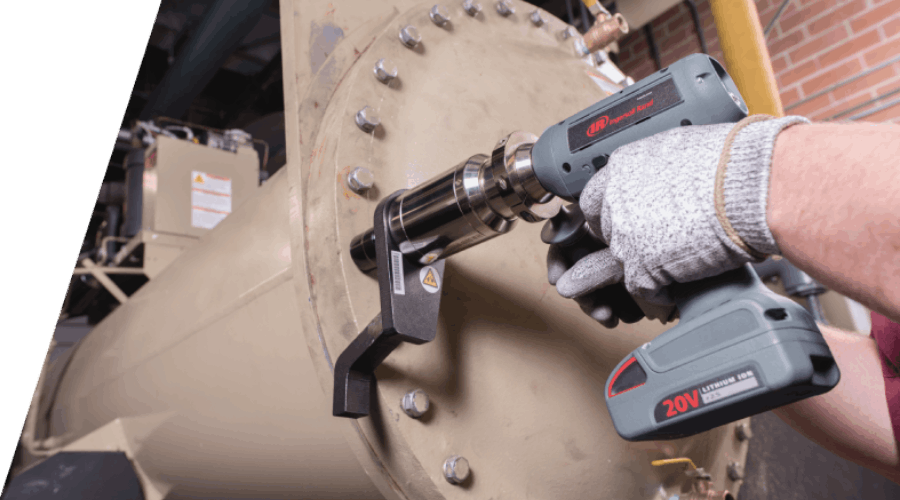

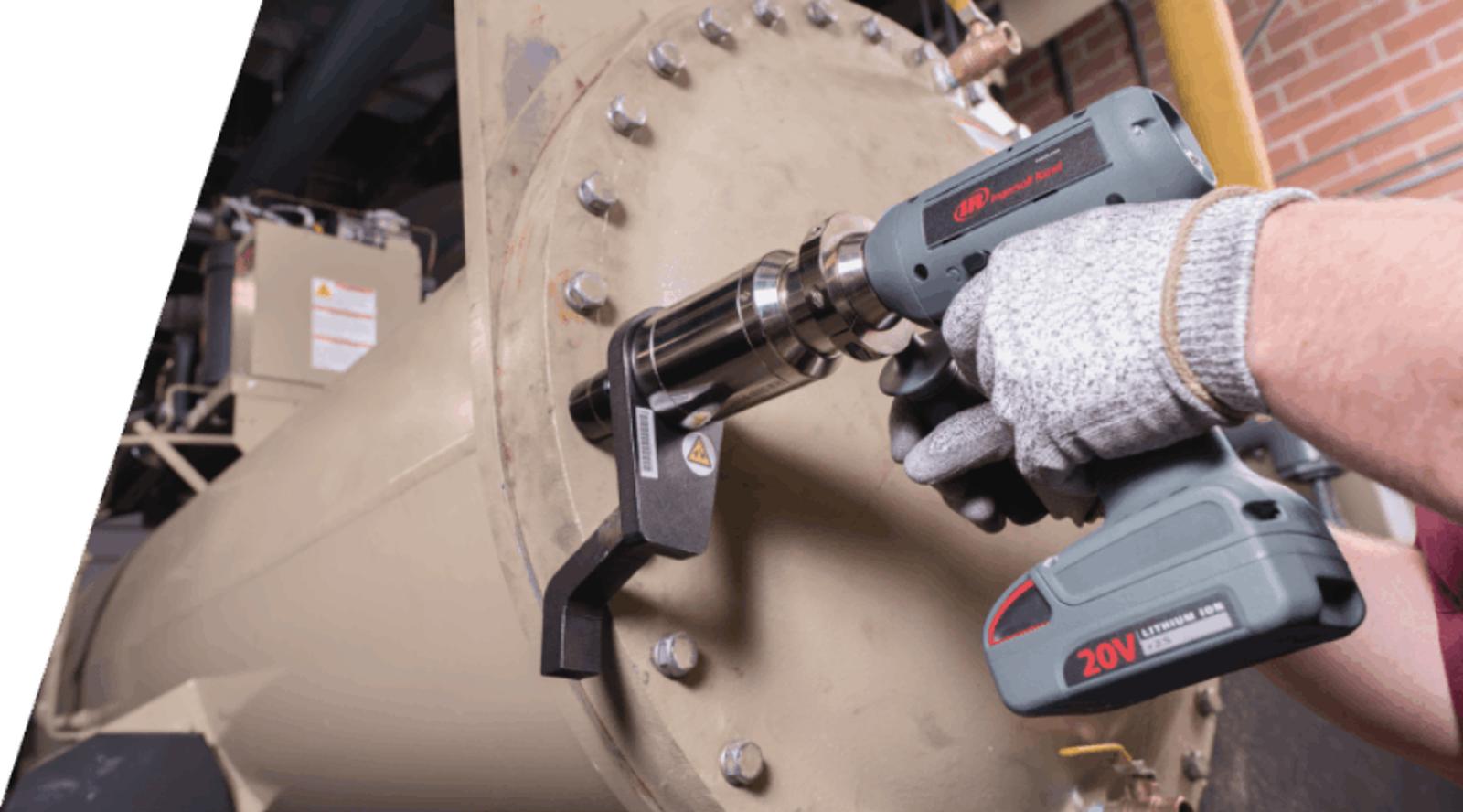

technician working

You Are Using Improvised or Inappropriate Tools

You may have found yourself trying to adopt workarounds, in-house modifications and manual tools instead of a peroperly engineered custom head. But these workarounds are rarely optimal, often reducing production line speed and generating further problems down the line.

Operator Fatigue and Injury Risks

Sometimes it is more than your profits that are on the line. Using inappropriate tools can produce significant consequences for assembly operators. Imperfect tools can easily slip and cause operators to lose control. That risks injuries such as pinched hands, trapped joints and strain injuries.

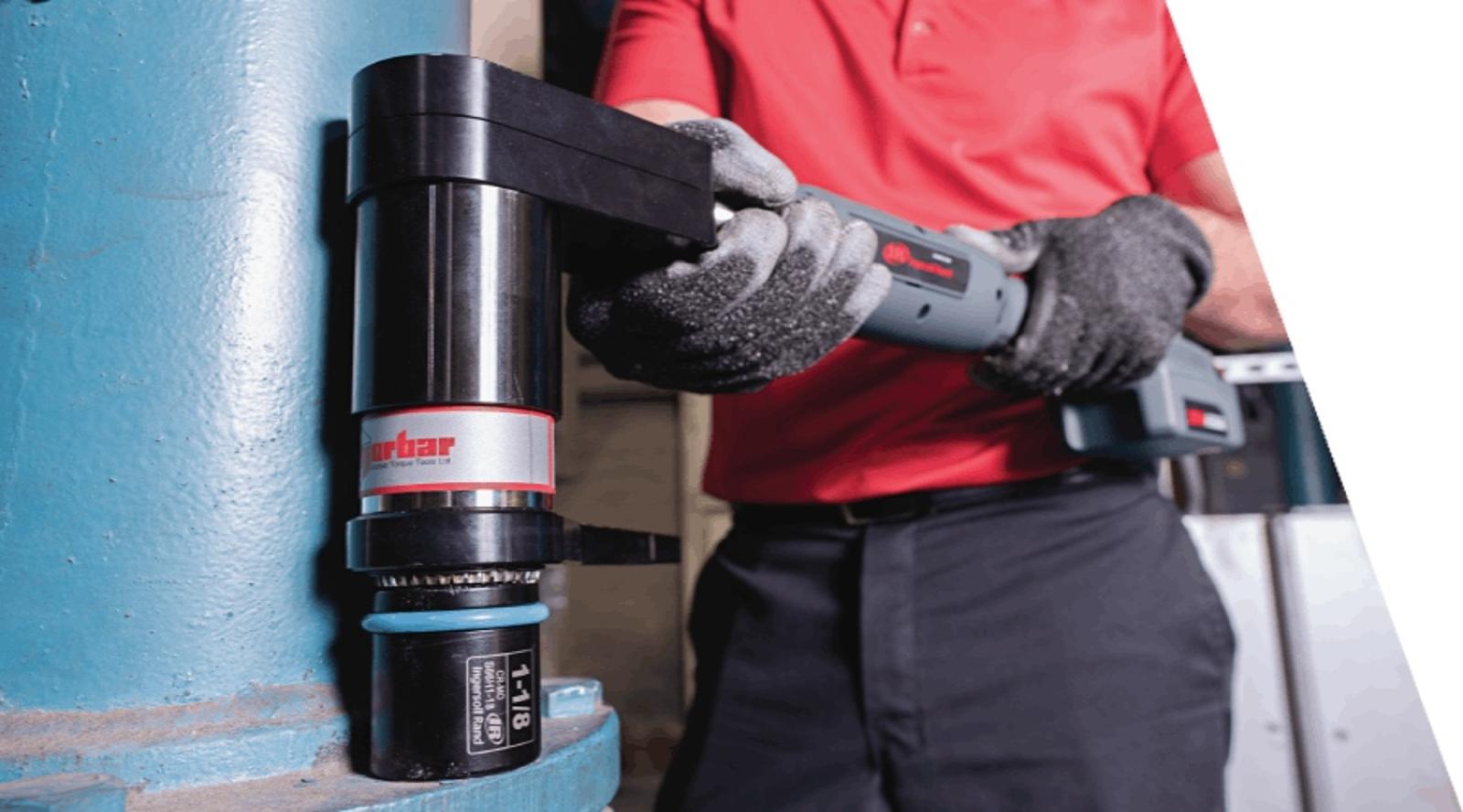

Operator using a custom head

Manufacturing Quality Is at Risk

Without appropriate tools, you may be unable to manufacture to your normal high standards. Perhaps in order to complete a project on time you feel forced to accept compromises that could negatively impact the quality, durability or lifespan of the product. Faced with a complicated assembly, ‘good enough’ becomes the modus operandi.

You Are Considering Redesigning the Product

The most extreme consequence of imperfect tools is simply being unable to assemble the product with your existing assembly line setup. You may find yourself attempting to find alternative ways to construct the product, retrospectively redesigning aspects of the item to try and evade unresolvable assembly challenges. Without question, that has significant impacts on production flow and timing.

Heavy industrial metal propellers hanging from chains on an assembly floor, surrounded by scaffolding and manufacturing equipment

Custom Solutions for Ingersoll Rand Power Tools

How our custom head process works:

  • Feasibility study (photos, measurements, CAD)
  • Concept and quotation
  • Prototype / production
  • Training and integration on the line

Talk to Our Custom Tooling Experts

From tight spaces to complex fastening angles, our experts are ready to help. Contact us to discuss customized assembly tooling solutions tailored to your exact application.
Request a Custom Consultation

You May Also Be Interested In:


Assembly Solutions

Discover Ingersoll Rand's range of high-precision assembly tools, including corded DC, transducerized systems, and durable non-transducerized solutions.


QX Limitless Wi-Fi 6 Series with Accessory Bus Cordless Screwdriver and Nutrunner

Discover the Ingersoll Rand® QX Limitless Series, a Wi-Fi 6-enabled transducerized fastening solution with an onboard accessory bus and integrated barcode scanner, streamline workflows, reduce cycle times, and boost operator efficiency effortlessly.

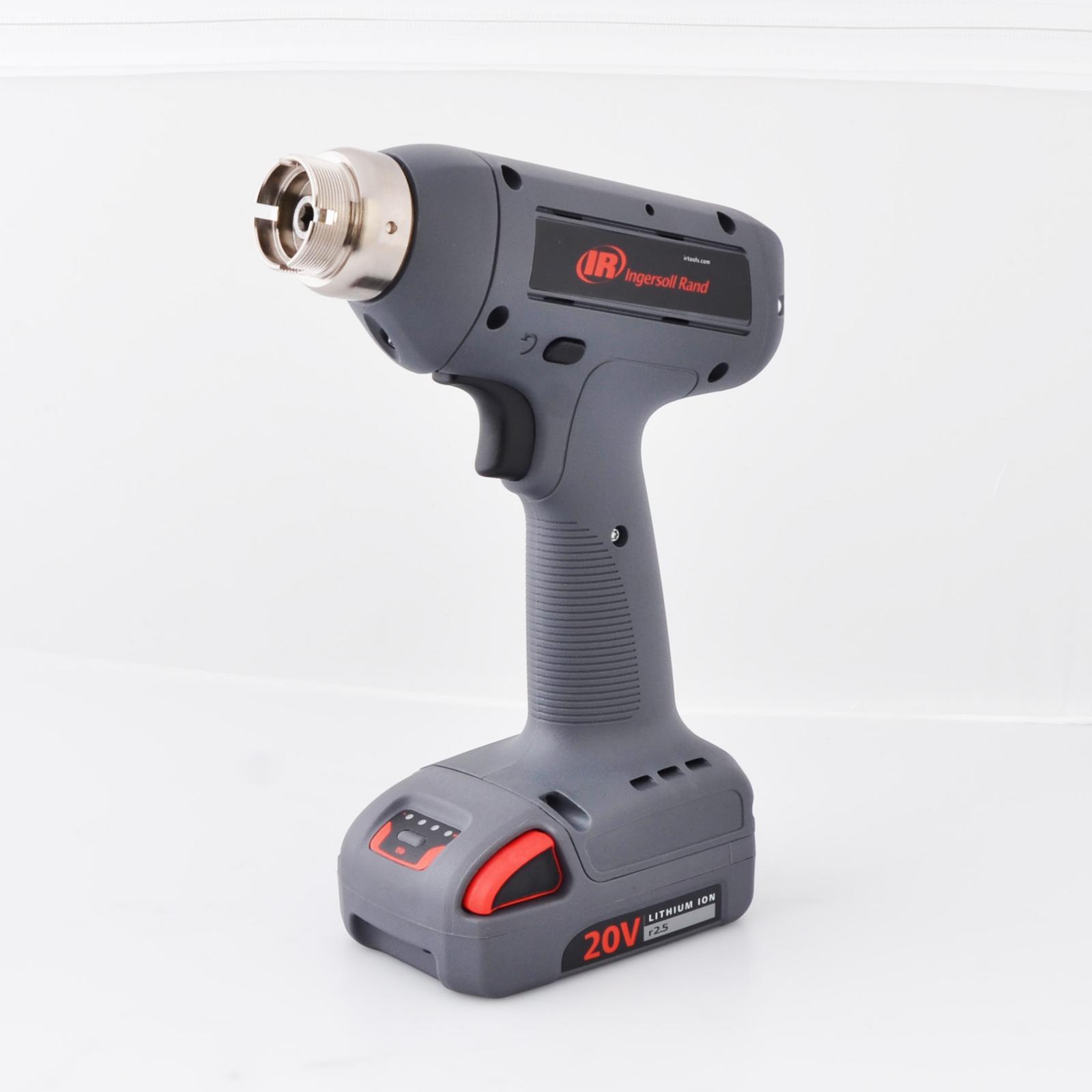

QX Pistol Special Head Adapter
