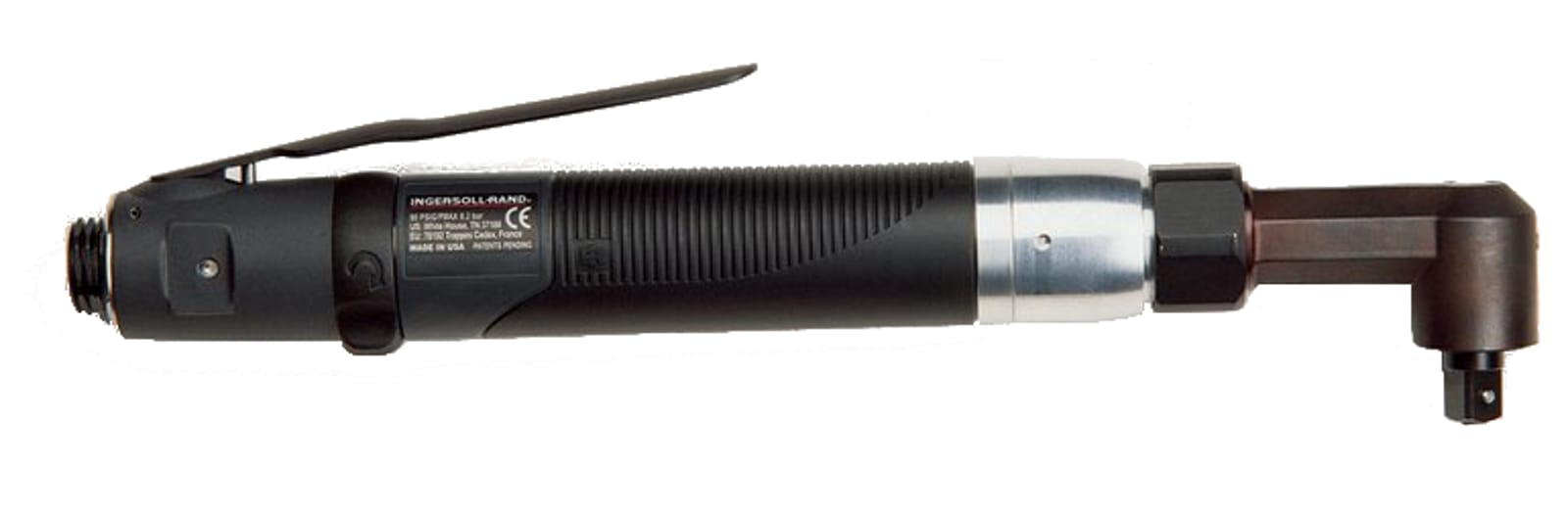

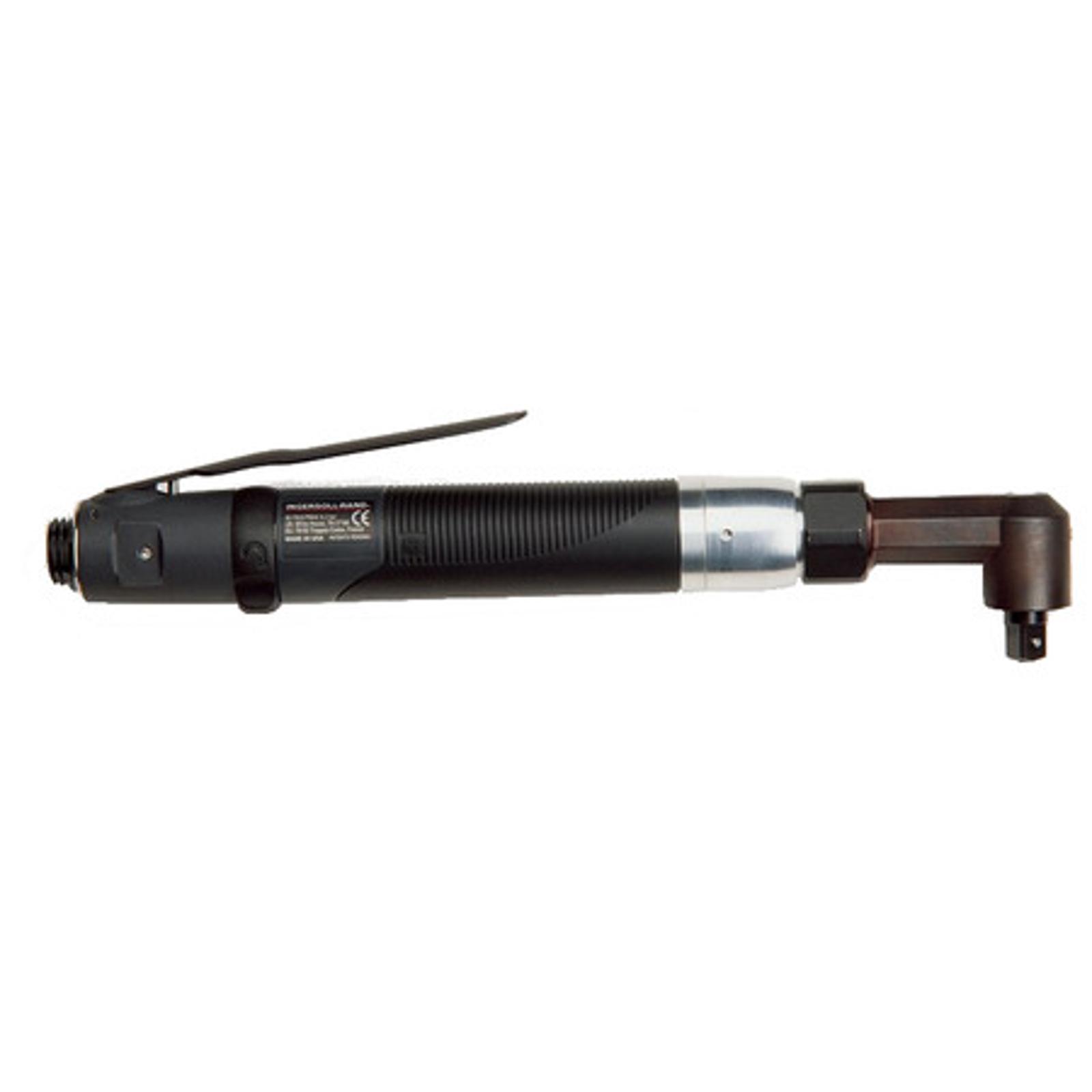

Q2 Series - Handheld Angle Stall

air nutrunners QA1L18S9LDSCREWDRIVERP001l

For a precise, reliable and quiet performance, look no further than the Q2 Series Angle Stall nutrunner. The wide torque range and fast speeds give you the power to complete any job.

Performance:

For all your fastening jobs, speeds of 250 to 1,750 rpm give you the power the task demands.

Ergonomic Grip:

This tool is made to fit comfortably in your hand for a secure hold as you work.

Accuracy:

Expect the same results each time, and this tool will deliver.

Compact:

The smaller dimensions are ideal for easy transportation and storage.

Lightweight:

Work all day without being weighed down.

Well-Balanced Design:

This tool is steady in your hand for a comfortable, stable feel each time.

Model	Actuation	Torque Range (Nm)	Torque Range (in-lb)	Free Speed (rpm)	Weight (kg)	Weight (lb)	Length (mm)	Length (in)	Angle Head Side to Center (mm)	Angle Head Side to Center (in)	Angle Head Height (mm)	Angle Head Height (in)	Height to Base of Bit (in)	Air Inlet	cfm	Spindle Type	Sound (dBA)
QA1L02D6LD	Lever Start	0 - 9.7	0 - 85.3	250	0.7	1.5	26	8.9	13.7	0.54	33	1.3	1.34	1/4 in. NPT	16	3/8 in. Square	75
QA1L05D1LD	Lever Start	0 - 11.6	0 - 102.3	500	0.7	1.54	226.8	8.93	13.7	0.54	33	1.3	1.34	1/4 in. NPT	16	1/4 in. Hex Quick Change	75
QA1L05D4LD	Lever Start	0 - 11.6	0 - 102.3	500	0.7	1.5	226	8.9	13.2	0.52	33	1.3	1.34	1/4 in. NPT	16	1/4 in. Square	75
QA1L05D6LD	Lever Start	0 - 11.6	0 - 102.3	500	0.7	1.5	226	8.9	13.2	0.52	33	1.3	1.34	1/4 in. NPT	16	3/8 in. Square	75
QA1L08D1LD	Lever Start	0 - 6.8	0 - 60.2	850	0.7	1.5	226	8.9	13.2	0.52	33	1.3	1.34	1/4 in. NPT	16	1/4 in. Hex Quick Change	75
QA1L08D4LD	Lever Start	0 - 6.8	0 - 60.2	850	0.7	1.5	226	8.9	13.2	0.52	33	1.3	1.34	1/4 in. NPT	16	1/4 in. Square	75
QA1L08D6LD	Lever Start	0 - 6.8	0 - 60.2	850	0.7	1.5	226	8.9	13.2	0.52	33	1.3	1.34	1/4 in. NPT	16	3/8 in. Square	75
QA1L12D1LD	Lever Start	0 - 4.0	0 - 35.4	1270	0.7	1.54	226	8.9	13.2	0.52	33	1.3	1.34	1/4 in. NPT	16	1/4 in. Hex Quick Change	75
QA1L12D4LD	Lever Start	0 - 4.0	0 - 35.4	1270	0.7	1.5	226	8.9	13.2	0.52	33	1.3	1.34	1/4 in. NPT	16	1/4 in. Square	75
QA1L12D6LD	Lever Start	0 - 4.0	0 - 35.4	1270	0.7	1.5	226	8.9	13.2	0.52	33	1.3	1.34	1/4 in. NPT	16	3/8 in. Square	75
