Conforme aux normes ATEX
Durable
La série 2200 résiste aux conditions difficiles du secteur de l'équipement de production.
Flexible
Grâce à la vitesse variable et options de couple, vous pourrez ajuster les performances selon votre application.

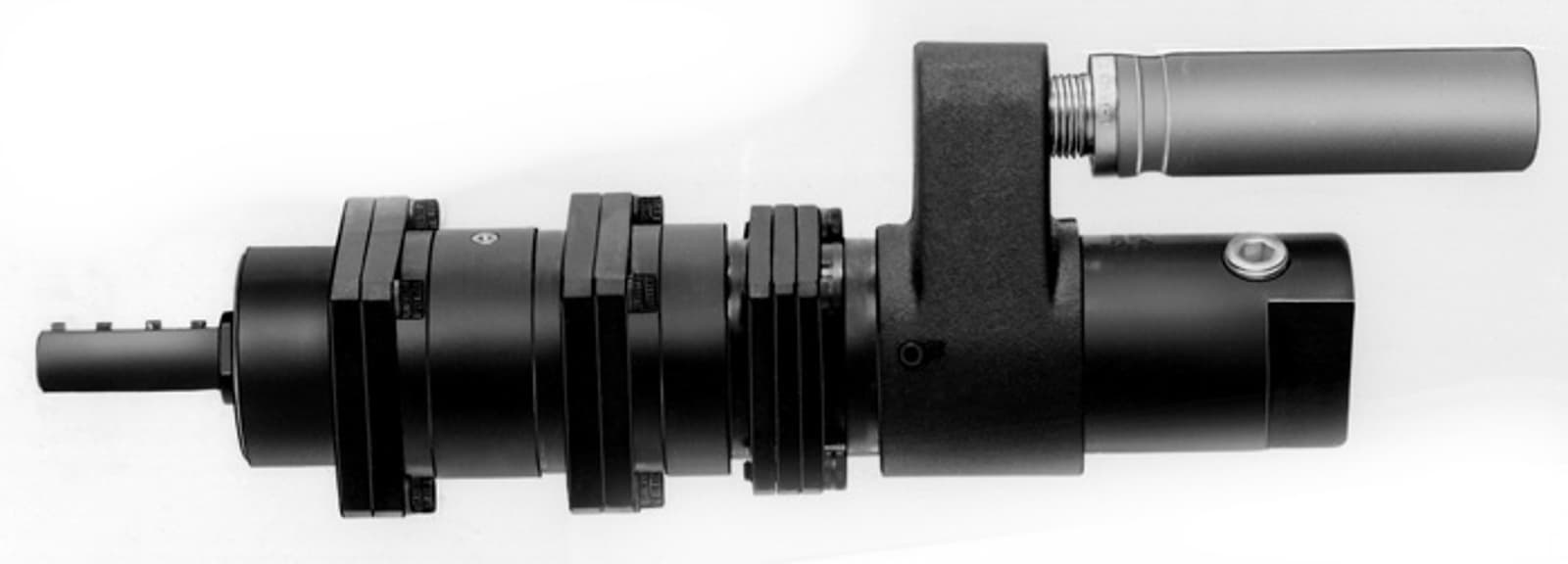

Moteurs pneumatiques série 2200
La série 2200 est facile d'entretien et polyvalente. Grâce à sa conception robuste permettant de réaliser des applications à couple élevé ou à grande vitesse, vous serez en mesure de mener à bien votre tâche facilement.
Model | Max. Power (hp) | Max. Power (kw) | Reversible | Torque Stall (ft-lb) | Torque Stall (Nm) | Free Speed (rpm) | Torque Output @ Max. H.P. (ft-lb) | Torque Output @ Max. H.P. (Nm) | Speed at Max. Power (rpm) | Spindle | Air Consumption at Max. Power (scfm) | Air Consumption at Max. Power (m^3/m) | Air Consumption @ Free Speed (scfm) | Air Consumption @ Free Speed (L/s) | Sound Level @ Free Speed dB(A) | Weight (lb) | Weight (kg) | Length (in) | Length (mm) | Diameter/Width (in) | Diameter/Width (mm) | Gear Reduction | In Line Motor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7800-1B | 0.85 | 0.63 | No | 1 | 1.4 | 18000 | 0.5 | 0.68 | 9000 | 1/2 in. Keyed | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | 8.13 | 206.5 | 3.5 | 88.9 | Single | Yes |
7800-B | 0.85 | 0.63 | No | 1 | 1.4 | 18000 | 0.5 | 0.68 | 9000 | 1/2 in. Keyed | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | 8 | 203.2 | 3.5 | 88.9 | Single | Yes |
7801-B | 0.85 | 0.63 | No | 4 | 5.5 | 4600 | 2 | 2.5 | 2300 | 1/2 in. Keyed | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | 8 | 203.2 | 3.5 | 88.9 | Single | Yes |
7802-1B | 0.85 | 0.63 | No | 7.5 | 10.3 | 2500 | 3.75 | 4.7 | 1250 | 1/2 in. Keyed | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | 8.13 | 206.5 | 3.5 | 88.9 | Single | Yes |
7802-B | 0.85 | 0.63 | No | 7.5 | 10.3 | 2500 | 3.75 | 4.7 | 1250 | 1/2 in. Keyed | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | 8 | 203.2 | 3.5 | 88.9 | Single | Yes |
7803-1B | 0.85 | 0.63 | No | 16 | 21.9 | 1200 | 8 | 10.2 | 600 | 1/2 in. Keyed | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | 9.91 | 251.6 | 3.5 | 88.9 | Double | Yes |
7803-B | 0.85 | 0.63 | No | 16 | 21.9 | 1200 | 8 | 10.2 | 600 | 1/2 in. Keyed | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | 9.75 | 247.7 | 3.5 | 88.9 | Double | Yes |
7804-B | 0.85 | 0.63 | No | 30 | 41.2 | 650 | 15 | 19.1 | 325 | 1/2 in. Keyed | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | 9.75 | 247.7 | 3.5 | 88.9 | Double | Yes |
7805-1B | 0.85 | 0.63 | No | 55 | 75.5 | 350 | 27.5 | 36 | 175 | 1/2 in. Keyed | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | 9.91 | 251.6 | 3.5 | 88.9 | Double | Yes |
7805-B | 0.85 | 0.63 | No | 55 | 75.5 | 350 | 27.5 | 36 | 175 | 1/2 in. Keyed | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | 9.75 | 247.7 | 3.5 | 88.9 | Double | Yes |
7806-1B | 0.7 | 0.52 | Yes | 1 | 1.4 | 13500 | 0.5 | 0.71 | 6750 | 1/2 in. Keyed | 37.3 | 1.06 | 37.3 | 17.6 | 85 | 4.36 | 1.96 | 8.13 | 206.5 | 3.44 | 87.4 | Single | Yes |
7806-B | 0.7 | 0.52 | Yes | 1 | 1.4 | 13500 | 0.5 | 0.71 | 6750 | 1/2 in. Keyed | 37.3 | 1.06 | 37.3 | 17.6 | 85 | 4.24 | 1.91 | 8 | 203.2 | 3.44 | 87.4 | Single | Yes |
7807-B | 0.7 | 0.52 | Yes | 4 | 5.5 | 3400 | 2 | 2.8 | 1700 | 1/2 in. Keyed | 37.3 | 1.06 | 37.3 | 17.6 | 85 | 4.24 | 1.91 | 8 | 203.2 | 3.44 | 87.4 | Single | Yes |
7808-1B | 0.7 | 0.52 | Yes | 7.4 | 10.2 | 1800 | 3.7 | 5 | 900 | 1/2 in. Keyed | 37.3 | 1.06 | 37.3 | 17.6 | 85 | 4.36 | 1.96 | 8.13 | 206.5 | 3.44 | 87.4 | Single | Yes |
7808-B | 0.7 | 0.52 | Yes | 7.4 | 10.2 | 1800 | 3.7 | 5 | 900 | 1/2 in. Keyed | 37.3 | 1.06 | 37.3 | 17.6 | 85 | 4.24 | 1.91 | 8 | 203.2 | 3.44 | 87.4 | Single | Yes |
7809-1B | 0.7 | 0.52 | Yes | 15.5 | 21.3 | 850 | 7.75 | 11.2 | 425 | 1/2 in. Keyed | 37.3 | 1.06 | 37.3 | 17.6 | 85 | 5.67 | 2.55 | 9.91 | 251.6 | 3.44 | 87.4 | Double | Yes |
7809-B | 0.7 | 0.52 | Yes | 15.5 | 21.3 | 850 | 7.75 | 11.2 | 425 | 1/2 in. Keyed | 37.3 | 1.06 | 37.3 | 17.6 | 85 | 5.17 | 2.33 | 9.75 | 247.7 | 3.44 | 87.4 | Double | Yes |
7810-1B | 0.7 | 0.52 | Yes | 29 | 39.8 | 450 | 14.5 | 21 | 225 | 1/2 in. Keyed | 37.3 | 1.06 | 37.3 | 17.6 | 85 | 5.67 | 2.55 | 9.91 | 251.6 | 3.44 | 87.4 | Double | Yes |
7810-B | 0.7 | 0.52 | Yes | 29 | 39.8 | 450 | 14.5 | 21 | 225 | 1/2 in. Keyed | 37.3 | 1.06 | 37.3 | 17.6 | 85 | 5.17 | 2.33 | 9.75 | 247.7 | 3.44 | 87.4 | Double | Yes |
7811-1B | 0.7 | 0.52 | Yes | 54 | 74 | 250 | 27 | 38.7 | 125 | 1/2 in. Keyed | 37.3 | 1.06 | 37.3 | 17.6 | 85 | 5.67 | 2.55 | 9.91 | 251.6 | 3.44 | 87.4 | Double | Yes |
7811-B | 0.7 | 0.52 | Yes | 54 | 74 | 250 | 27 | 38.7 | 125 | 1/2 in. Keyed | 37.3 | 1.06 | 37.3 | 17.6 | 85 | 5.17 | 2.33 | 9.75 | 247.7 | 3.44 | 87.4 | Double | Yes |
7812-1B | 0.85 | 0.63 | No | 55 | 75.5 | 350 | 27.5 | 36 | 175 | 1/2 in.-20 Thread | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | 8.94 | 227 | 3.5 | 88.9 | Double | Yes |
7812-B | 0.85 | 0.63 | No | 55 | 75.5 | 350 | 27.5 | 36 | 175 | 1/2 in. - 20 Threaded | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | 8.88 | 225.4 | 3.5 | 88.9 | Double | Yes |
7813-1B | 0.85 | 0.63 | No | 30 | 41.2 | 650 | 15 | 19.1 | 325 | 1/2 in.-20 Thread | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | 8.94 | 227 | 3.5 | 88.9 | Double | Yes |
7813-B | 0.85 | 0.63 | No | 30 | 41.2 | 650 | 15 | 19.1 | 325 | 1/2 in. - 20 Threaded | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 5.17 | 2.33 | 8.88 | 225.4 | 3.5 | 88.9 | Double | Yes |
7814-B | 0.85 | 0.63 | No | 1 | 1.4 | 18000 | 0.5 | 0.68 | 9000 | 1/2 in. - 20 Threaded | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | 7 | 177.8 | 3.5 | 88.9 | Single | Yes |
7817-1B | 0.85 | 0.63 | No | 7.5 | 10.3 | 2500 | 3.75 | 4.7 | 1250 | 1/2 in.-20 Thread | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | 7.16 | 181.8 | 3.5 | 88.9 | Single | Yes |
7817-B | 0.85 | 0.63 | No | 7.5 | 10.3 | 2500 | 3.75 | 4.7 | 1250 | 1/2 in. - 20 Threaded | 41.7 | 1.18 | 41.7 | 19.7 | 78 | 4.24 | 1.91 | 7 | 177.8 | 3.5 | 88.9 | Single | Yes |
8274-1A | 0.65 | 0.48 | Yes | 23 | 32 | 475 | 13.5 | 19 | 237.5 | 7/8 in. Keyed | 35 | 0.99 | 35 | 16.5 | 83 | 10.1 | 4.55 | 11.31 | 287.3 | 3.94 | 100.1 | Double | Yes |
8274-2A | 0.65 | 0.48 | Yes | 43 | 59 | 250 | 26 | 36 | 125 | 7/8 in. Keyed | 35 | 0.99 | 35 | 16.5 | 83 | 10.1 | 4.55 | 11.31 | 287.3 | 3.94 | 100.1 | Double | Yes |
8274-3A | 0.65 | 0.48 | Yes | 52 | 71 | 200 | 32 | 42 | 100 | 7/8 in. Keyed | 35 | 0.99 | 35 | 16.5 | 83 | 14.5 | 6.52 | 14.75 | 374.7 | 3.94 | 100.1 | Triple | Yes |
8274-4A | 0.65 | 0.48 | Yes | 91 | 125 | 120 | 53 | 78 | 60 | 7/8 in. Keyed | 35 | 0.99 | 35 | 16.5 | 83 | 14.5 | 6.52 | 14.75 | 374.7 | 3.94 | 100.1 | Triple | Yes |
8274-5A | 0.65 | 0.48 | Yes | 150 | 206 | 65 | 95 | 134 | 32.5 | 7/8 in. Keyed | 35 | 0.99 | 35 | 16.5 | 83 | 14.5 | 6.52 | 14.75 | 374.7 | 3.94 | 100.1 | Triple | Yes |
8274-6A | 0.65 | 0.48 | Yes | 150 | 206 | 35 | 150 | 206 | 17.5 | 7/8 in. Keyed | 35 | 0.99 | 35 | 16.5 | 83 | 14.5 | 6.52 | 14.75 | 374.7 | 3.94 | 100.1 | Triple | Yes |
8276-1A | 0.9 | 0.67 | No | 27 | 37 | 700 | 13.5 | 18.5 | 350 | 7/8 in. Keyed | 41.6 | 1.18 | 41.6 | 19.6 | 78 | 10.1 | 4.55 | 11.31 | 287.3 | 4 | 101.6 | Double | Yes |
8276-2A | 0.9 | 0.67 | No | 50 | 68 | 350 | 25 | 36 | 175 | 7/8 in. Keyed | 41.6 | 1.18 | 41.6 | 19.6 | 78 | 10.1 | 4.55 | 11.31 | 287.3 | 4 | 101.6 | Double | Yes |
8276-4A | 0.9 | 0.67 | No | 105 | 143 | 160 | 52.5 | 72 | 80 | 7/8 in. Keyed | 41.6 | 1.18 | 41.6 | 19.6 | 78 | 14.5 | 6.52 | 14.75 | 374.7 | 4 | 101.6 | Triple | Yes |
8276-5A | 0.9 | 0.67 | No | 150 | 206 | 100 | 98 | 130 | 50 | 7/8 in. Keyed | 41.6 | 1.18 | 41.6 | 19.6 | 78 | 14.5 | 6.52 | 14.75 | 374.7 | 4 | 101.6 | Triple | Yes |
8276-6A | 0.9 | 0.67 | No | 150 | 206 | 50 | 150 | 206 | 25 | 7/8 in. Keyed | 41.6 | 1.18 | 41.6 | 19.6 | 78 | 14.5 | 6.52 | 14.75 | 374.7 | 4 | 101.6 | Triple | Yes |
