Safety:
- Meets ATEX Standards
Durable:
- You don’t have to worry about the M002 Series. It’s a series you can count on.
Ease of Service:
- Without having to pause for long repairs, your productivity will increase exponentially.

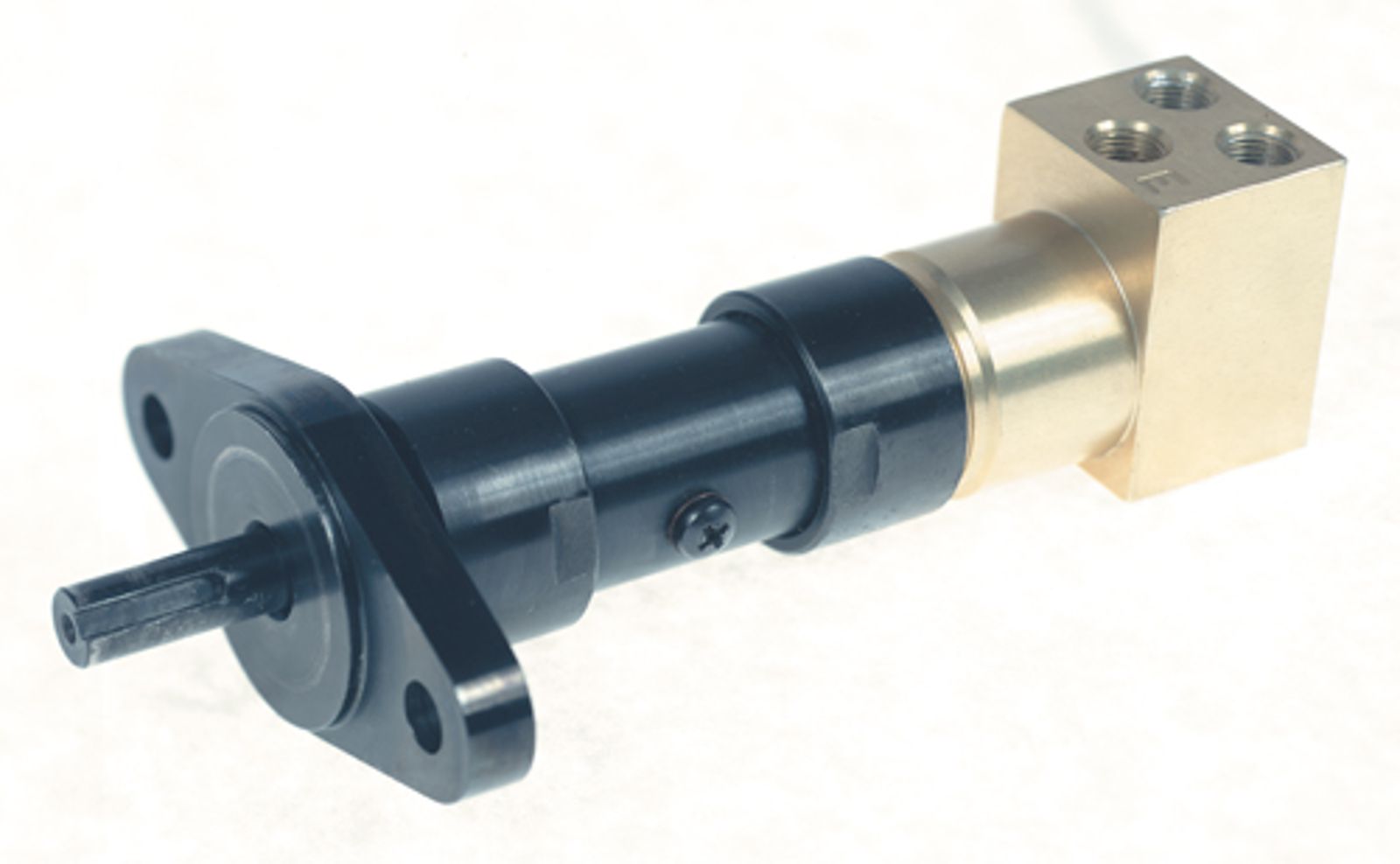

With both face and flange mounting options, you can use the M002 Series for a variety of applications. Coupled with an inline planetary gear and finely tuned vane motors, this tool does the hard work so you don’t have to. Also features instant starting and reversing.
Model | Max. Power (hp) | Max. Power (kW) | Reversible | Torque Stall (ft-lb) | Torque Stall (Nm) | Free Speed (rpm) | Torque Output @ Max. H.P. (ft-lb) | Torque Output @ Max. H.P. (Nm) | Speed at Max. Power (rpm) | Starting Torque (ft-lb) | Starting Torque (Nm) | Spindle | Air Consumption at Max. Power (scfm) | Air Consumption at Max. Power (m³/min) | Weight (lb) | Weight (kg) | Length (in) | Length (mm) | Diameter/Width (in) | Diameter/Width (mm) | In Line Motor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
M002RHR000AR3 | 0.25 | 0.19 | No | 0.2 | 0.27 | 26000 | 0.1 | 0.14 | 13000 | 0.15 | 0.2 | 3/8 in. Round Keyed | 12 | 0.34 | 1 | 0.46 | 4.99 | 126.7 | 1.5 | 38.1 | Yes |
M002RHR004AR3 | 0.22 | 0.16 | No | 0.61 | 0.83 | 6920 | 0.305 | 0.41 | 3460 | 0.45 | 0.61 | 3/8 in. Round Keyed | 11.9 | 0.34 | 1 | 0.46 | 4.99 | 126.7 | 1.5 | 38.1 | Yes |
M002RHR006AR3 | 0.22 | 0.16 | No | 0.96 | 1.3 | 4385 | 0.48 | 0.65 | 2192.5 | 0.72 | 0.98 | 3/8 in. Round Keyed | 11.9 | 0.34 | 1.125 | 0.5 | 4.99 | 126.7 | 1.5 | 38.1 | Yes |
M002RHR008AR3 | 0.22 | 0.16 | No | 1.31 | 1.78 | 3240 | 0.655 | 0.89 | 1620 | 0.98 | 1.33 | 3/8 in. Round Keyed | 11.9 | 0.34 | 1 | 0.46 | 5.51 | 139.9 | 1.5 | 38.1 | Yes |
M002RHR013AR3 | 0.19 | 0.14 | No | 1.82 | 2.47 | 1840 | 0.91 | 1.23 | 920 | 1.36 | 2.5 | 3/8 in. Round Keyed | 11.8 | 0.33 | 1.125 | 0.5 | 5.51 | 139.9 | 1.5 | 38.1 | Yes |
M002RHR021AR3 | 0.19 | 0.14 | No | 2.88 | 3.9 | 1165 | 1.44 | 1.95 | 582.5 | 2.16 | 2.93 | 3/8 in. Round Keyed | 11.8 | 0.33 | 1.125 | 0.5 | 5.51 | 139.9 | 1.5 | 38.1 | Yes |
M002RHR028AR3 | 0.19 | 0.14 | No | 3.9 | 5.29 | 860 | 1.95 | 2.64 | 430 | 2.92 | 3.96 | 3/8 in. Round Keyed | 11.8 | 0.33 | 1.125 | 0.5 | 5.51 | 139.9 | 1.5 | 38.1 | Yes |
M002RHR044AR3 | 0.19 | 0.14 | No | 6.15 | 8.34 | 545 | 3.075 | 4.17 | 272.5 | 4.61 | 6.25 | 3/8 in. Round Keyed | 11.8 | 0.33 | 1.125 | 0.5 | 5.51 | 139.9 | 1.5 | 38.1 | Yes |
M002RHR101AR3 | 0.16 | 0.12 | No | 11.1 | 15 | 228 | 5.55 | 7.52 | 114 | 8.32 | 11.2 | 3/8 in. Round Keyed | 11.7 | 0.33 | 1.1875 | 0.54 | 6.02 | 152.9 | 1.5 | 38.1 | Yes |
M002RHR159AR3 | 0.16 | 0.12 | No | 17.5 | 23.7 | 145 | 8.75 | 11.86 | 72.5 | 13.1 | 17.7 | 3/8 in. Round Keyed | 11.7 | 0.33 | 1.1875 | 0.54 | 6.02 | 152.9 | 1.5 | 38.1 | Yes |
M002RVR000AR3 | 0.2 | 0.15 | Yes | 0.18 | 0.24 | 23000 | 0.1 | 0.14 | 11500 | 0.13 | 0.18 | 3/8 in. Round Keyed | 9.8 | 0.28 | 1 | 0.46 | 4.99 | 126.7 | 1.5 | 38.1 | Yes |
M002RVR004AR3 | 0.17 | 0.13 | Yes | 0.54 | 0.73 | 6090 | 0.27 | 0.37 | 3045 | 0.4 | 0.54 | 3/8 in. Round Keyed | 9.7 | 0.27 | 1 | 0.46 | 4.99 | 126.7 | 1.5 | 38.1 | Yes |
M002RVR006AR3 | 0.17 | 0.13 | Yes | 0.86 | 1.17 | 3860 | 0.43 | 0.58 | 1930 | 0.64 | 0.87 | 3/8 in. Round Keyed | 9.7 | 0.27 | 1.125 | 0.5 | 4.99 | 126.7 | 1.5 | 38.1 | Yes |
M002RVR008AR3 | 0.17 | 0.13 | Yes | 1.16 | 1.57 | 2850 | 0.58 | 0.79 | 1425 | 0.87 | 1.18 | 3/8 in. Round Keyed | 9.7 | 0.27 | 1 | 0.46 | 5.51 | 139.9 | 1.5 | 38.1 | Yes |
M002RVR013AR3 | 0.14 | 0.1 | Yes | 1.56 | 2.11 | 1645 | 0.78 | 1.07 | 822.5 | 1.17 | 1.58 | 3/8 in. Round Keyed | 9.6 | 0.27 | 1.125 | 0.5 | 5.51 | 139.9 | 1.5 | 38.1 | Yes |
M002RVR021AR3 | 0.14 | 0.1 | Yes | 2.47 | 3.35 | 1045 | 1.235 | 1.67 | 522.5 | 1.85 | 2.51 | 3/8 in. Round Keyed | 9.6 | 0.27 | 1.125 | 0.5 | 5.51 | 139.9 | 1.5 | 38.1 | Yes |
M002RVR028AR3 | 0.14 | 0.1 | Yes | 3.34 | 4.53 | 770 | 1.67 | 2.26 | 385 | 2.5 | 3.39 | 3/8 in. Round Keyed | 9.6 | 0.27 | 1.125 | 0.5 | 5.51 | 139.9 | 1.5 | 38.1 | Yes |
M002RVR044AR3 | 0.14 | 0.1 | Yes | 5.28 | 7.16 | 485 | 2.64 | 3.58 | 242.5 | 3.96 | 5.37 | 3/8 in. Round Keyed | 9.6 | 0.27 | 1.125 | 0.5 | 5.51 | 139.9 | 1.5 | 38.1 | Yes |
M002RVR101AR3 | 0.11 | 0.08 | Yes | 9.05 | 12.2 | 209 | 4.525 | 6.14 | 104.5 | 6.78 | 9.19 | 3/8 in. Round Keyed | 9.5 | 0.27 | 1.1875 | 0.54 | 6.02 | 152.9 | 1.5 | 38.1 | Yes |
M002RVR159AR3 | 0.11 | 0.08 | Yes | 14.2 | 19.3 | 132 | 7.1 | 9.63 | 66 | 10.7 | 14.5 | 3/8 in. Round Keyed | 9.5 | 0.27 | 1.1875 | 0.54 | 6.02 | 152.9 | 1.5 | 38.1 | Yes |
