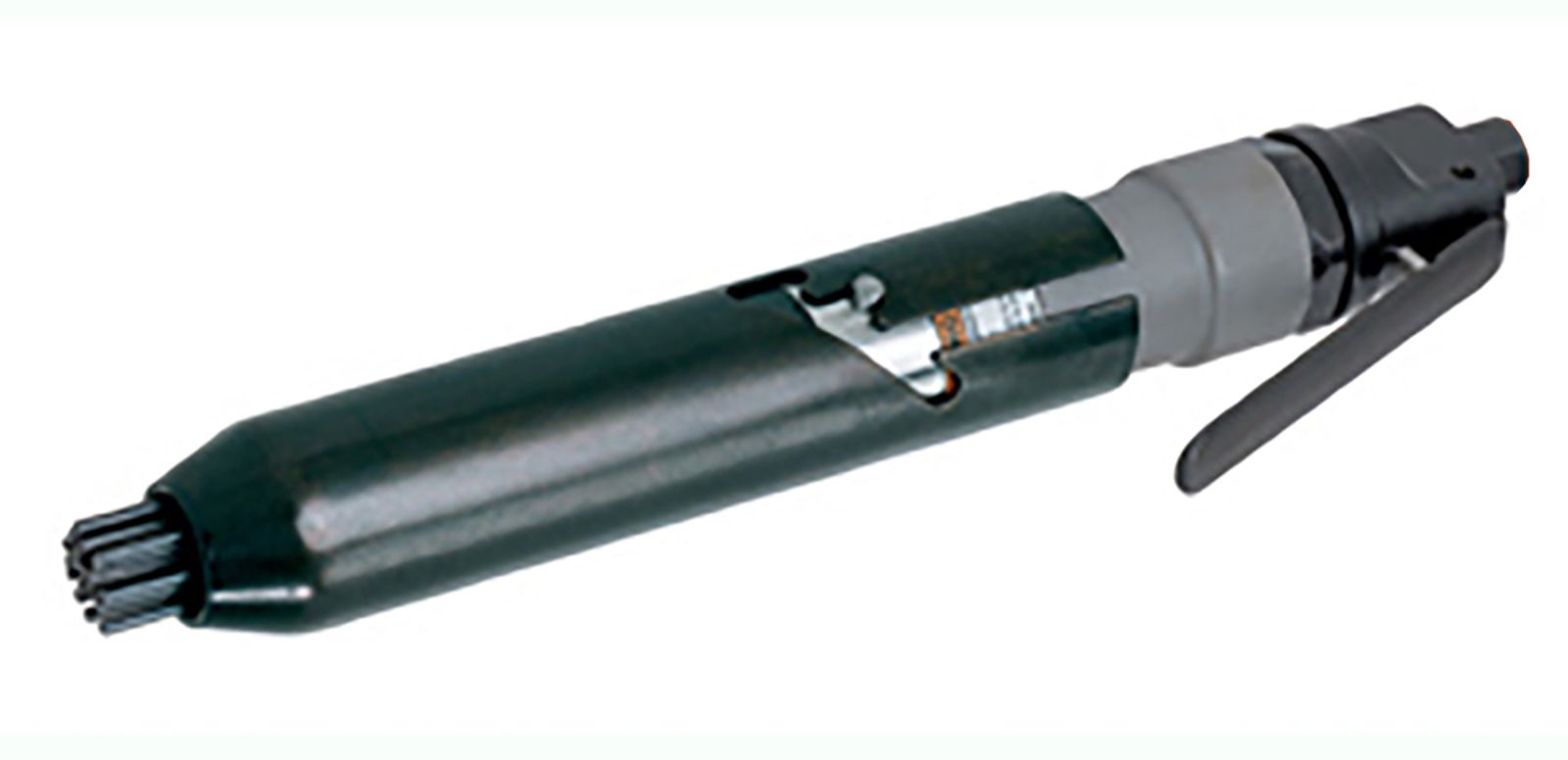

172 Series Needle Scaler

At 5,500 blows per minute, this lever-operated needle scaler is not only fast, but extremely durable and efficient.

Easy Adjustment:

  • The adjustable bayonet-type needle housing lock allows for easy adjustment without special tools.

Durability:

  • These scalers feature a rubber faced throttle valve to ensure positive sealing of internal components, along with a strengthened head block that will hold up in tough conditions.

Comfort:

  • Compact, well balanced and low vibration maximize operators comfort.

Model

Bore (in)

Bore (mm)

Blows per Minute

Piston Stroke (in)

Piston Stroke (mm)

Length (in)

Length (mm)

Weight Less Chisel (lb)

Weight Less Chisel (kg)

Throttle Style

Min Hose Size (in)

Min Hose Size (mm)

Air Inlet Size NPT (in)

Vibration m/s2 (uncertainty K)

Air Consumption @ Load (cfm)

Air Consumption @ Load (L/min)

172LNA1

0.94

24

5500

0.56

14

13.75

349

5.25

2.38

Lever

5/16

8

1/4

12.5 (uncertainty: 1.8)

12

340
