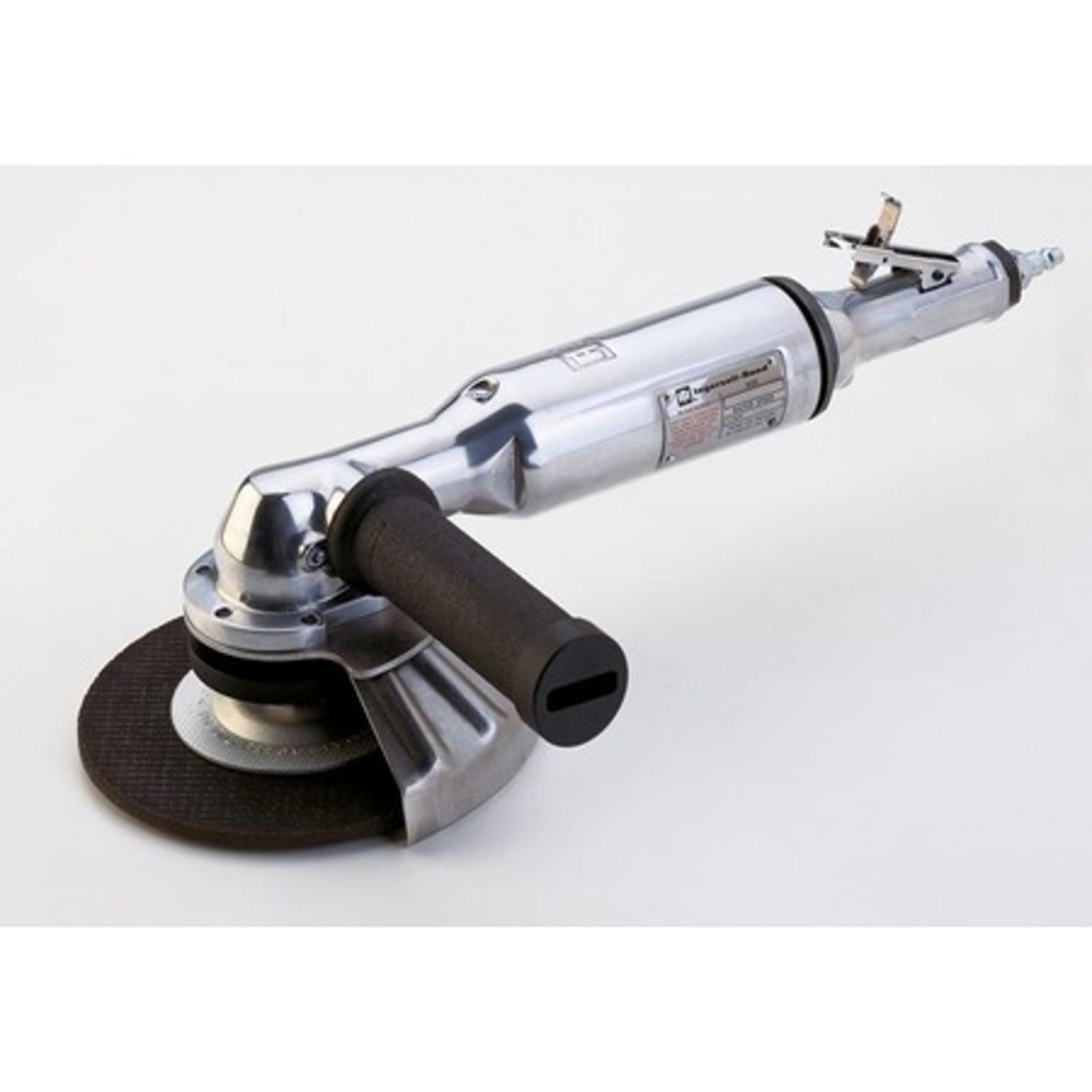

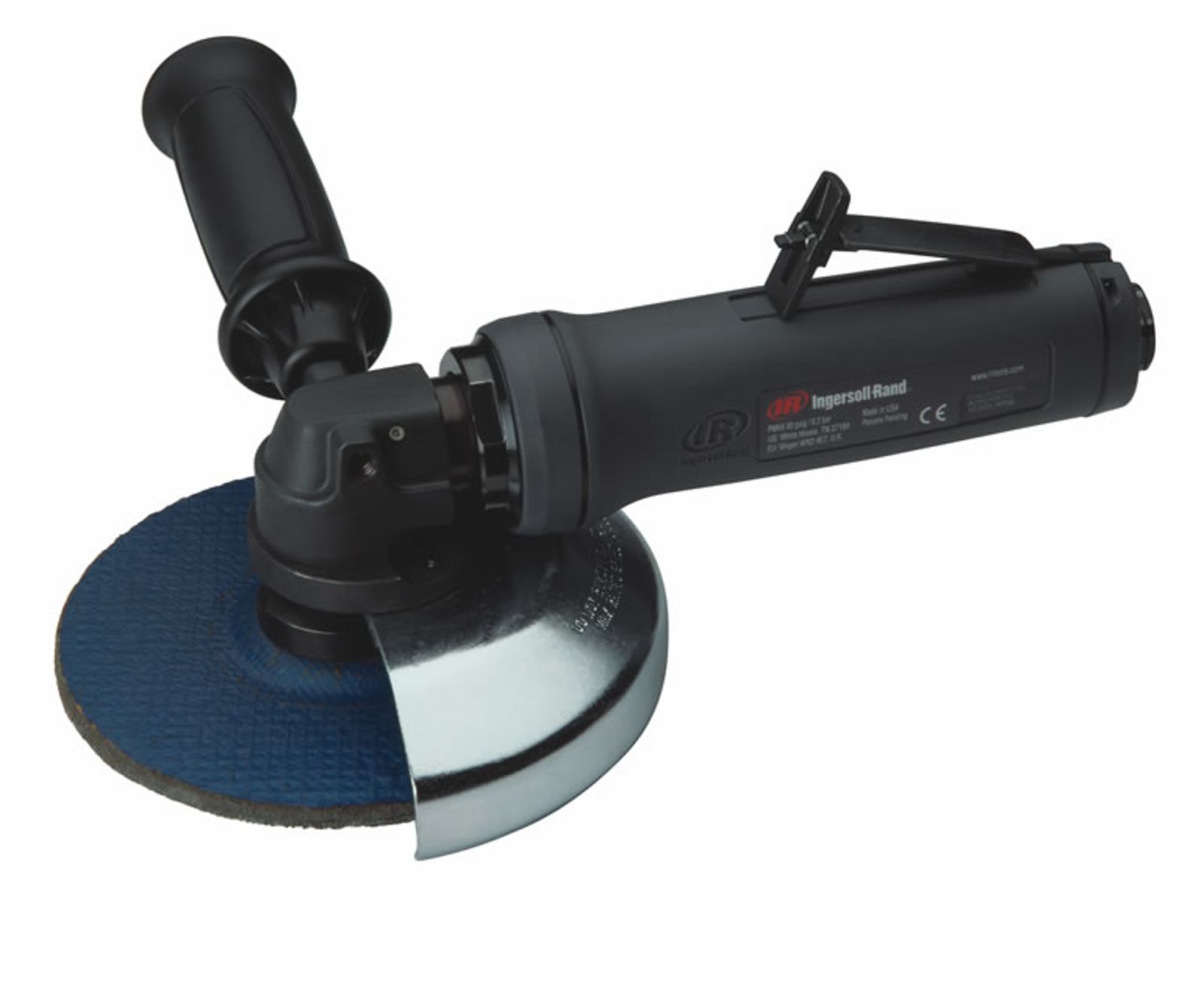

G3 Series Angle Air Grinder

The G-Series grinders deliver more power and precision for enhanced performance. They are easier to service, which means less downtime for users.
The G3 Series Angle Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Power:

  • You’ll love the incredible power-to-weight ratio of the G3 Series Angle Grinders and the powerful vane motor.

Comfort:

  • An ergonomic body and lightweight composite housing make these tools easy to hold and easier to use on long days.

Durability:

  • Take these tools anywhere you need to go. The G3 Series can withstand repeated drops, chemical spills and other harsh and abusive applications.

Reliability:

  • You can always count on the G3 Series angle grinders.

Model

Rated Power (kW)

Max Free Speed (rpm)

Wheel diameter( mm)

Collet capacity

Weight (kg)

Length (mm)

Air Inlet diameter (in)

Minimum Hose diamater (mm)

Max Air consumption (1/s)

Vibration m/s2

Sound pressure (dBa)

G3A100PP96AV

1.0

10000

150

M14

2.32

245

3/8"

13

26

4.8/1.9

86.1

G3L086PP95

1.0

8600

125

M14

2.32

330

3/8"

13

26

5.0/1.6

84.0

G3A120PP95AV

1.0

12000

125

M14

2.09

245

3/8"

13

26

5.0/1.9

88.7

G3A120PP945AV

1.0

12000

115

M14

2.18

245

3/8"

13

15.6

4.8/1.5

88.7
