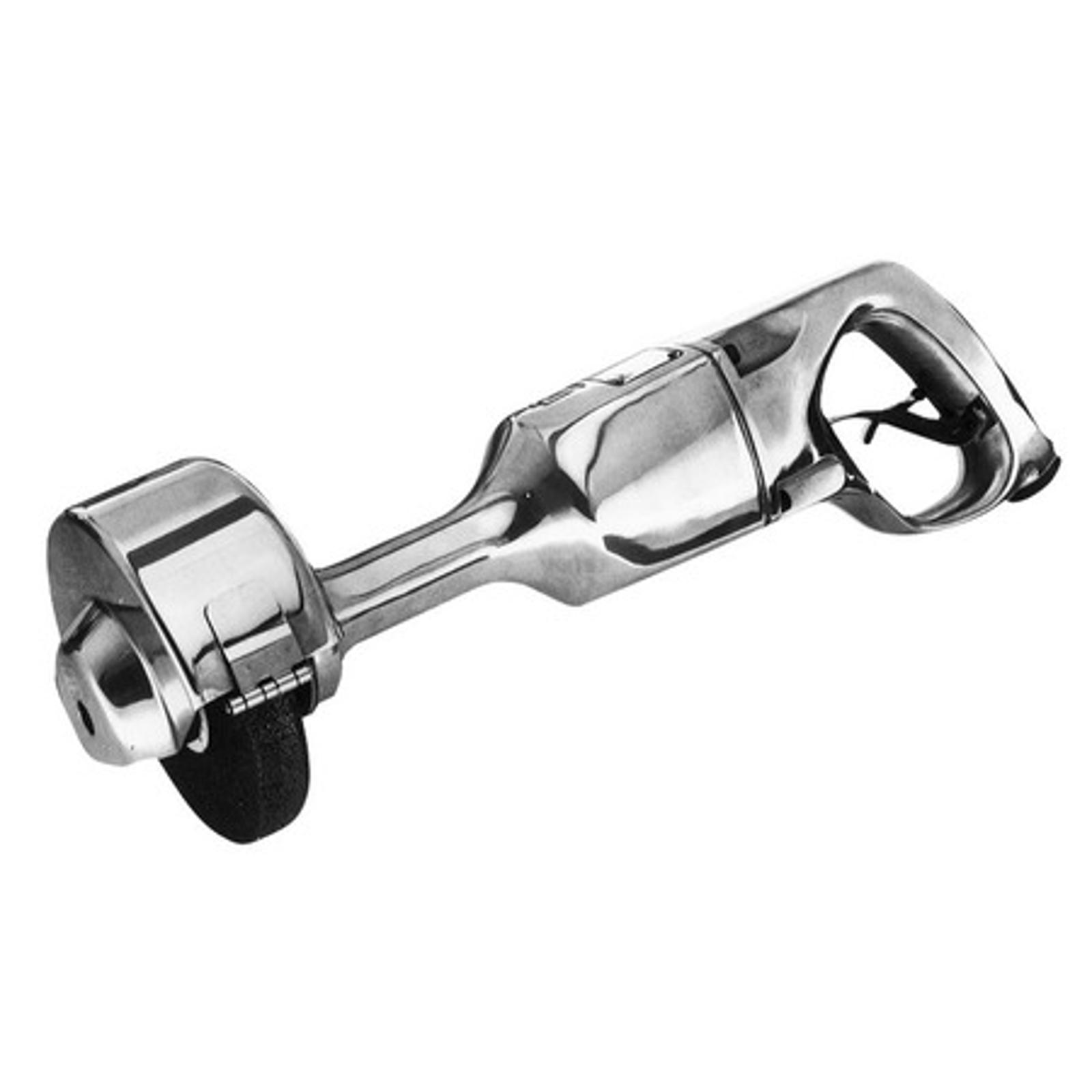

99 Series Type 1 Air Grinder

Ingersoll Rand Pro Series Grinders are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy-duty applications. Their superior power output suits them best for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills, or shipyards.

Safety:

  • A lock-out lever and guard safety provide extra safety measures and increased operator comfort.

Cleaner workspaces:

  • Compatible with piped-away exhaust kits to keep your worksite free from exhaust air.

Durability:

  • The 99 Series Type 1 Grinder’s built-in mist lubricator automatically oils the motor to keep your grinder in top condition.



Grinder type 1 wheel

Model

Rated Power hp (kW)

Max Free Speed (rpm)

Output

Wheel Diameter in (mm)

Weight lbs (kg)

Length in (mm)

Exhaust

Spindle Housing Diameter in (mm)

Air Consumption @ Load (cfm)

Air Consumption @ Load (L/min)

Air Inlet Size NPT (in)

Min Hose Size (in)

PSI

99HL60H106

3 (2.2)

6000

5/8 in.- 11 Thread

6 (152)

13.5 (6.1)

20.5 (520)

Side

3.9 (99)

84

2379

1/2

3/4

90

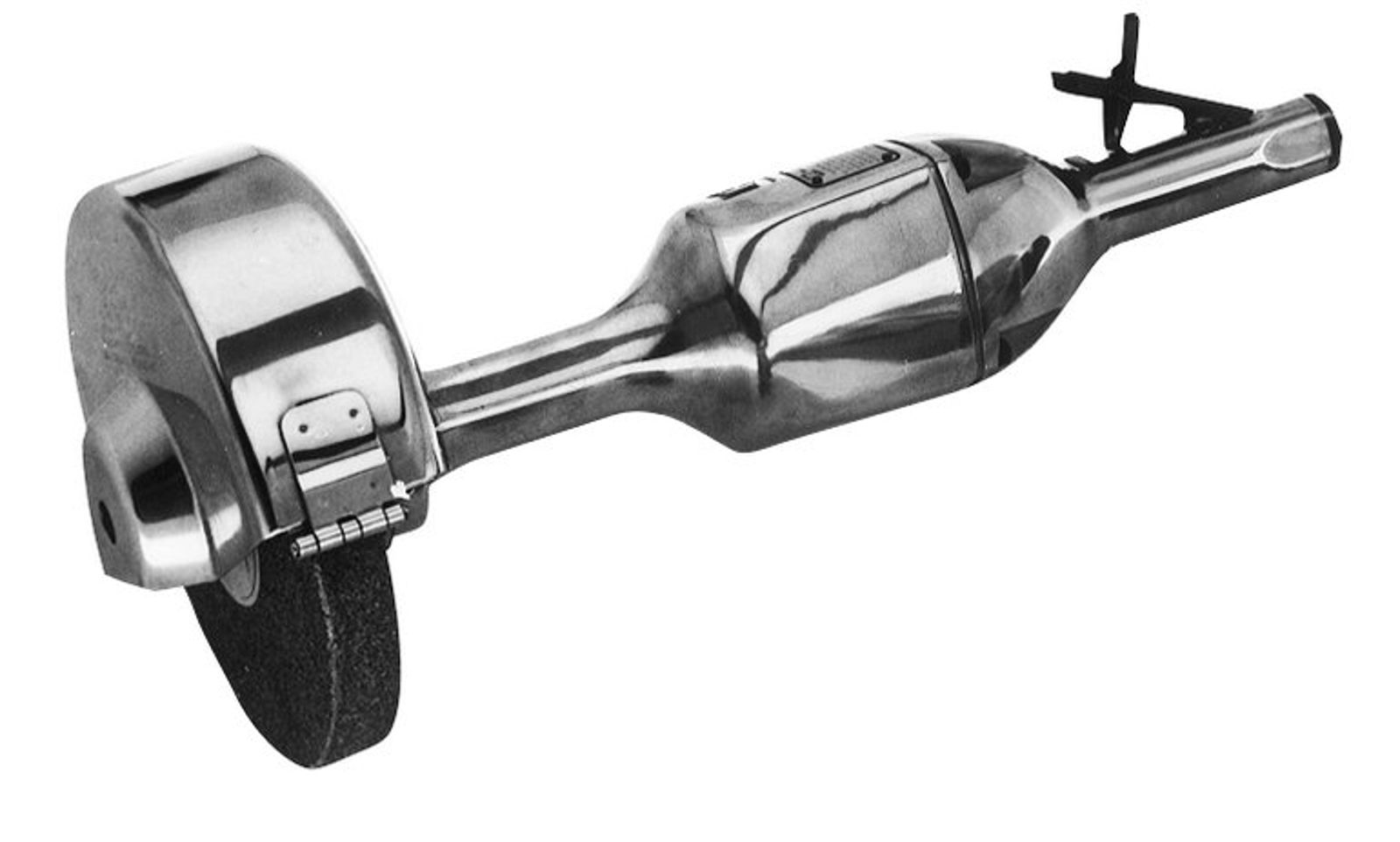

99HL60H108

3 (2.2)

6000

5/8 in.- 11 Thread

8 (203)

14.8 (6.73)

20.3 (516)

Side

3.9 (99)

84

2379

1/2

3/4

90

61H, 77H, 88H, and 99H Product Information

997 KB, PDF

99H Series Parts Information

957 KB, PDF

99H Series Maintenance Information

269 KB, PDF

Air Grinder Safety Information

5.7 MB, PDF
