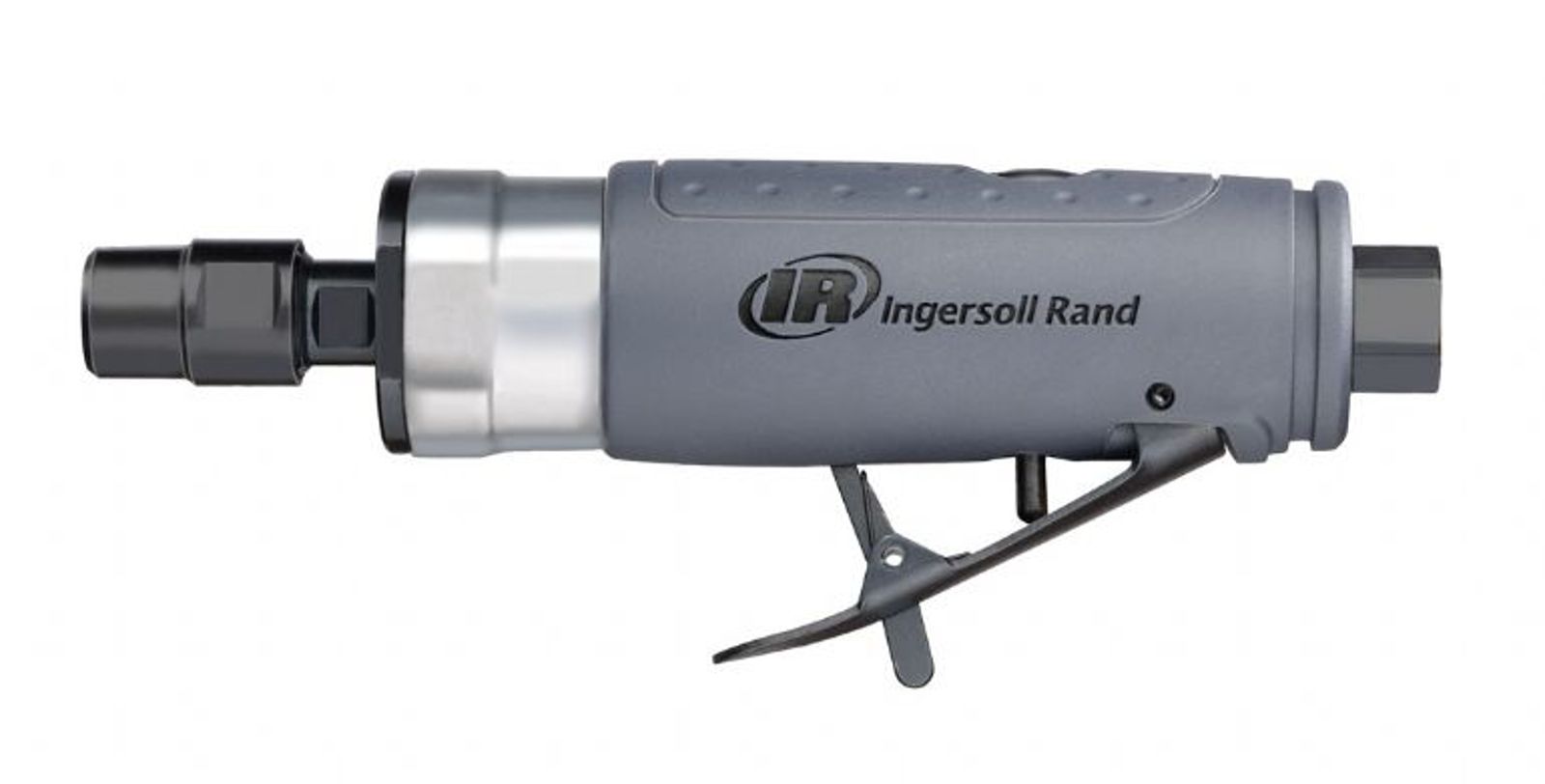

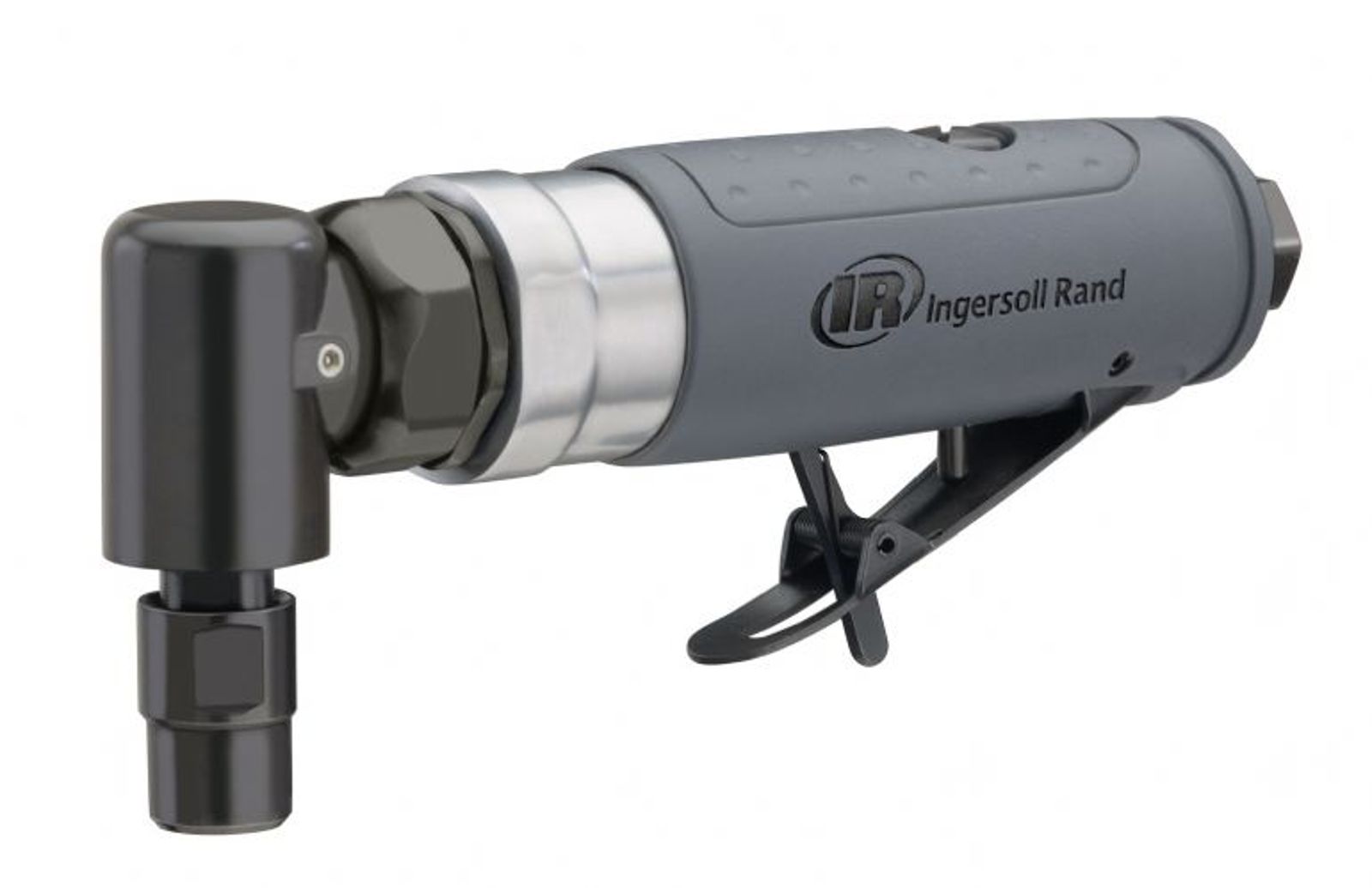

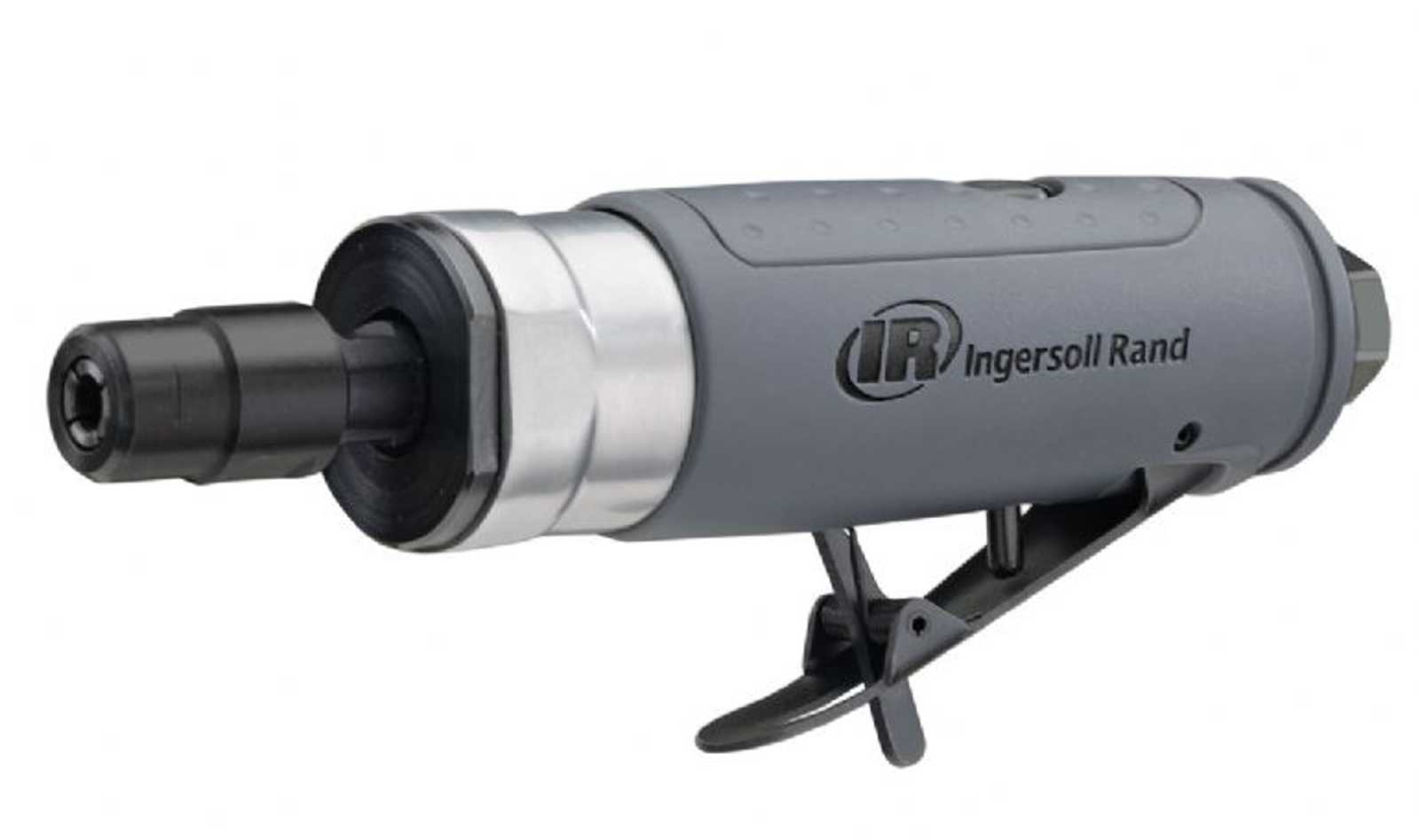

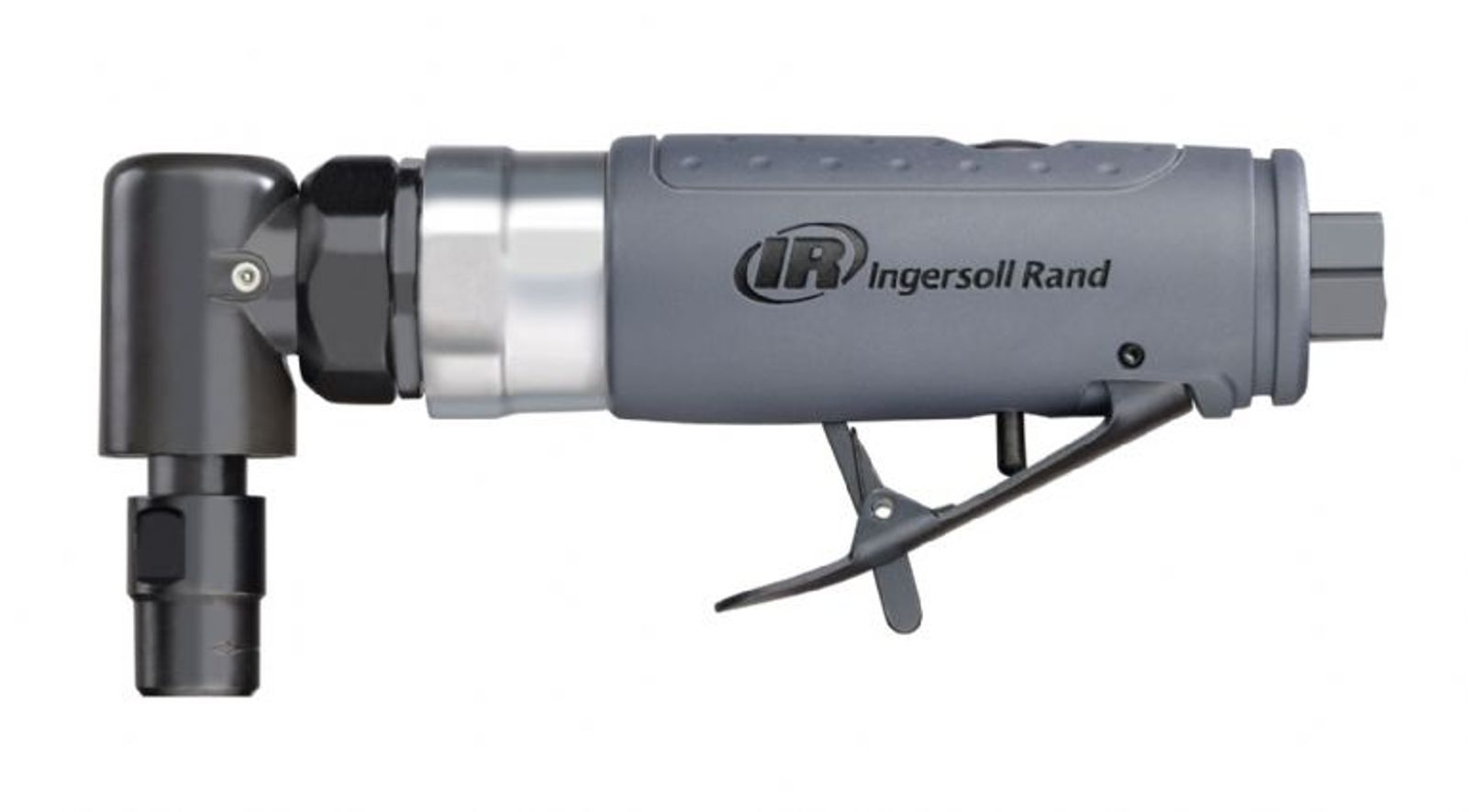

302B, 308B Air Die Grinder

If you’re looking for powerful performance, the 302B and 308B Die Grinders are your best bet. With the 302B as a right angle configuration and the 308B as a compact, straight option, you’ll be able to reach tight workspaces with ease.

Comfort:
  • The composite housing on these models is lightweight and contoured for increased comfort and protection from temperature fluxuations.
Access:
  • With two configurations in the 302B (right angle) and 308B (straight), you can find a die grinder that fits your needs and reaches all your tough spots.
Piped Away Exhaust Ready:
  • These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.

Model

Rated Power (hp)

Rated Power (kW)

Max Free Speed (rpm)

Output

Weight (lbs)

Weight (kg)

Length (in)

Length (mm)

Air Consumption @ Load (cfm)

Air Consumption @ Load (L/min)

Average Air Consumption (cfm)

Average Air Consumption (L/min)

Air Inlet Size (in)

Exhaust

Min Hose Size (in)

Min Hose Size (mm)

302B

0.33

0.25

20000

1/4 in. and 6 mm

1.28

0.58

6.93

176

23

651

6

170

1/4

Rear

3/8

10

308B

0.33

0.25

25000

1/4 in. and 6 mm

1.02

0.46

6.85

174

28

793

7

198

1/4

Rear

3/8

10
