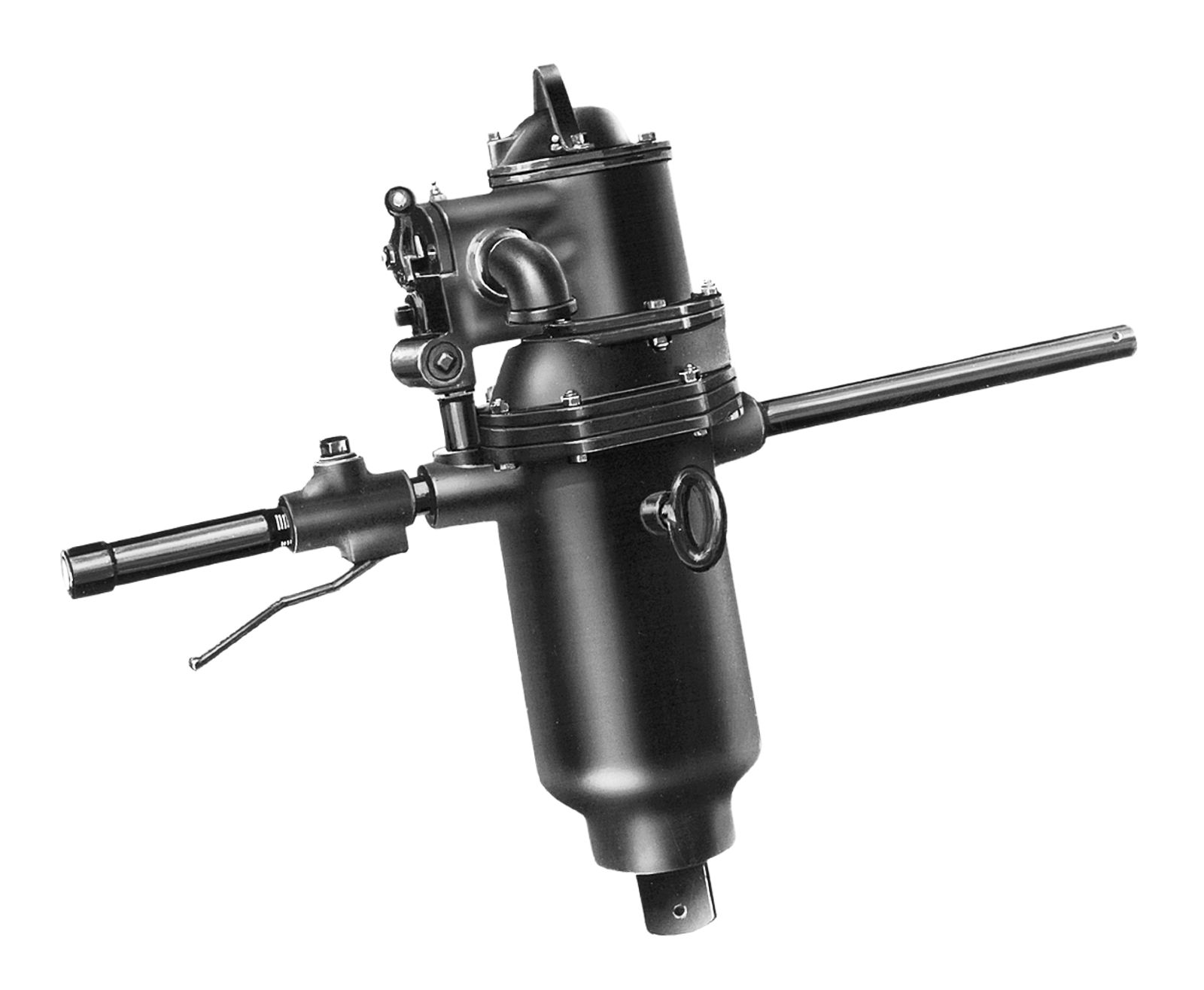

588A1 2-1/2″ Air Impact Wrench, T-Handle

The 588A1 Impact Wrench delivers high power, doesn’t stall, and delivers smooth, constant speed from its motor.

Durability:

  • With an iron hammer case and bronze end-plate, this wrench is spark proof and corrosion resistant. It will withstand even the harshest conditions.

Reliability:

  • Built with the most premium parts in the industry, this wrench is designed to last.

Power:

  • With a high torque output and maximum power, this wrench makes every job a breeze.

Model

Configuration

Actuation

Drive Size

Drive Type

Forward Torque ft-lbs (Nm)

Max Reverse Torque ft-lbs (Nm)

Blows per minute

Free Speed (RPM)

Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)

Vibration Level (m/s²)

Weight lbs (kg)

Length in (mm)

Air Inlet in (mm)

Min Hose Size in (mm)

PSI

Bar

588A1

T-Handle

Lever

2-1/2 in.

Square, Thru-Hole

25000 (33900)

50000 (67800)

550

355

110.0 / 121.0

20.5

215 (97.5)

26.63 (676)

1 (25.4)

1 (25.4)

90

6.2

588A1 Product Information

1.8 MB, PDF

588A1 Parts Information

744 KB, PDF

588A1 Maintenance Information

870 KB, PDF

Air Impact Wrench Safety Information

6.1 MB, PDF
